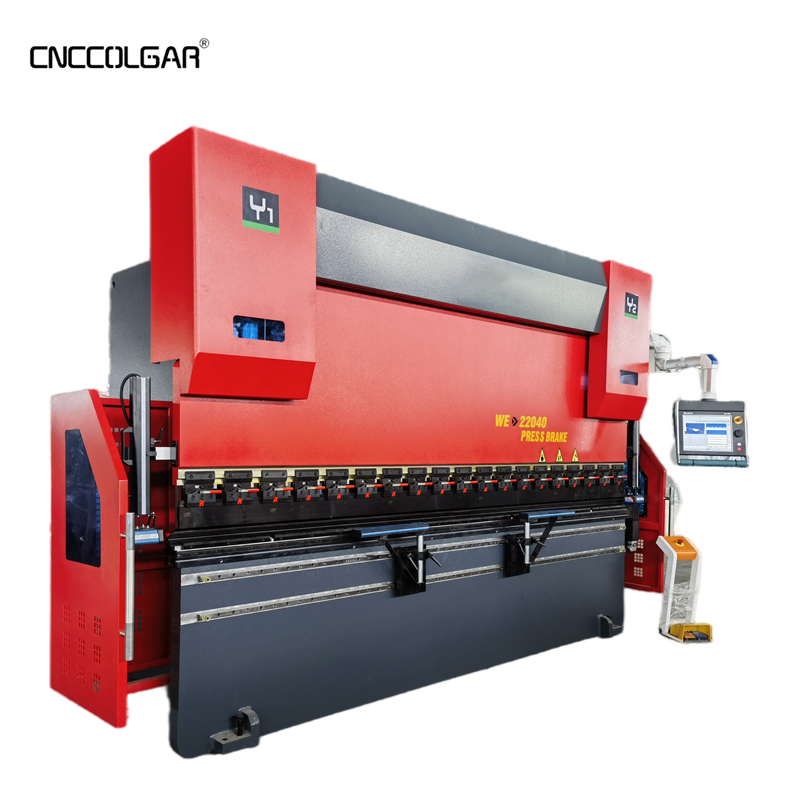

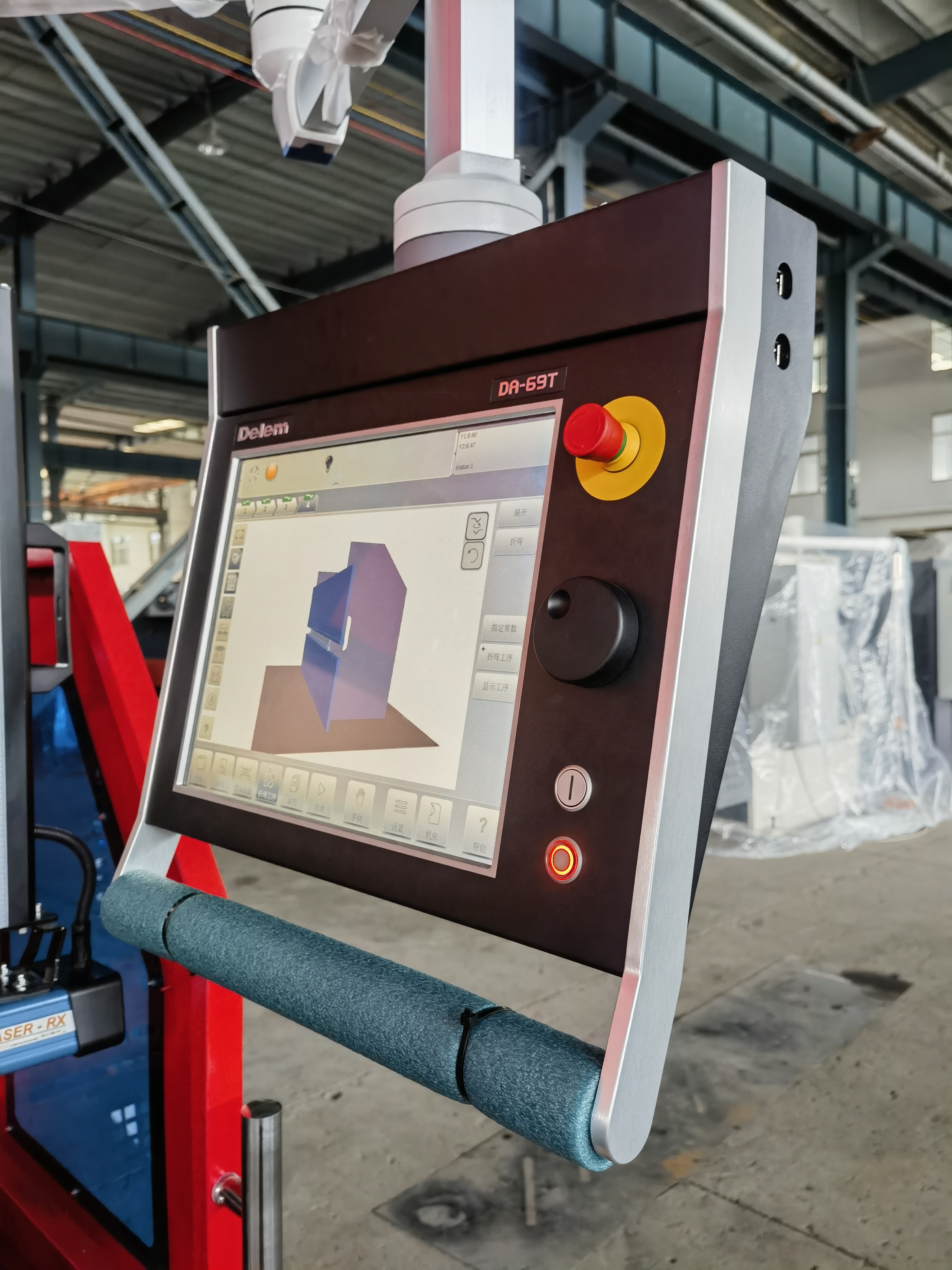

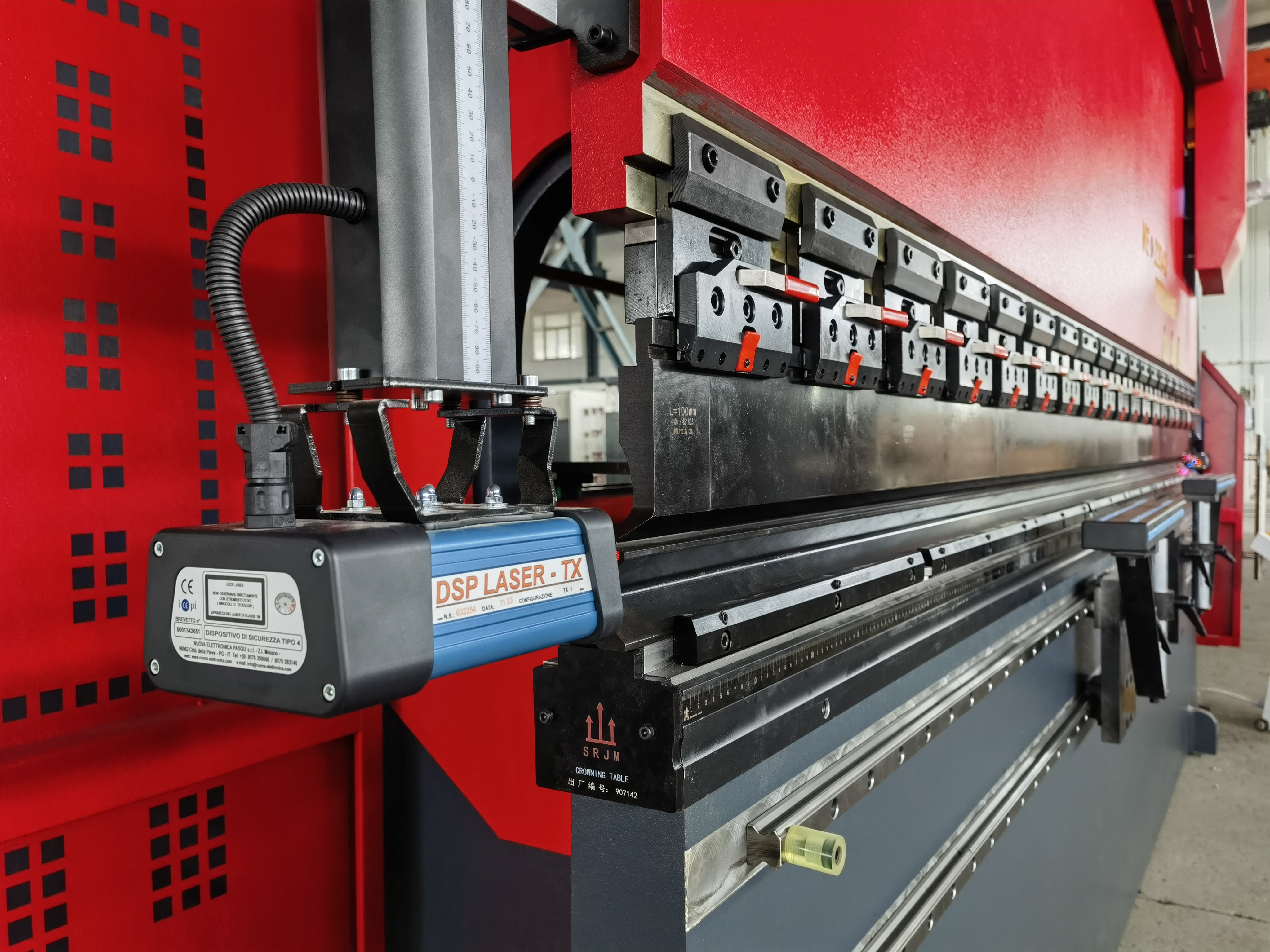

CNCColgar 220T 4000mm CNC Press Brake DELEM DA69T Electro-Hydraulic Synchronized Bending Machine Sheet Metal Folding Tool

Product Description

Sheet metal hydraulic bending machine, CNC press brake machine with DELEM DA69T

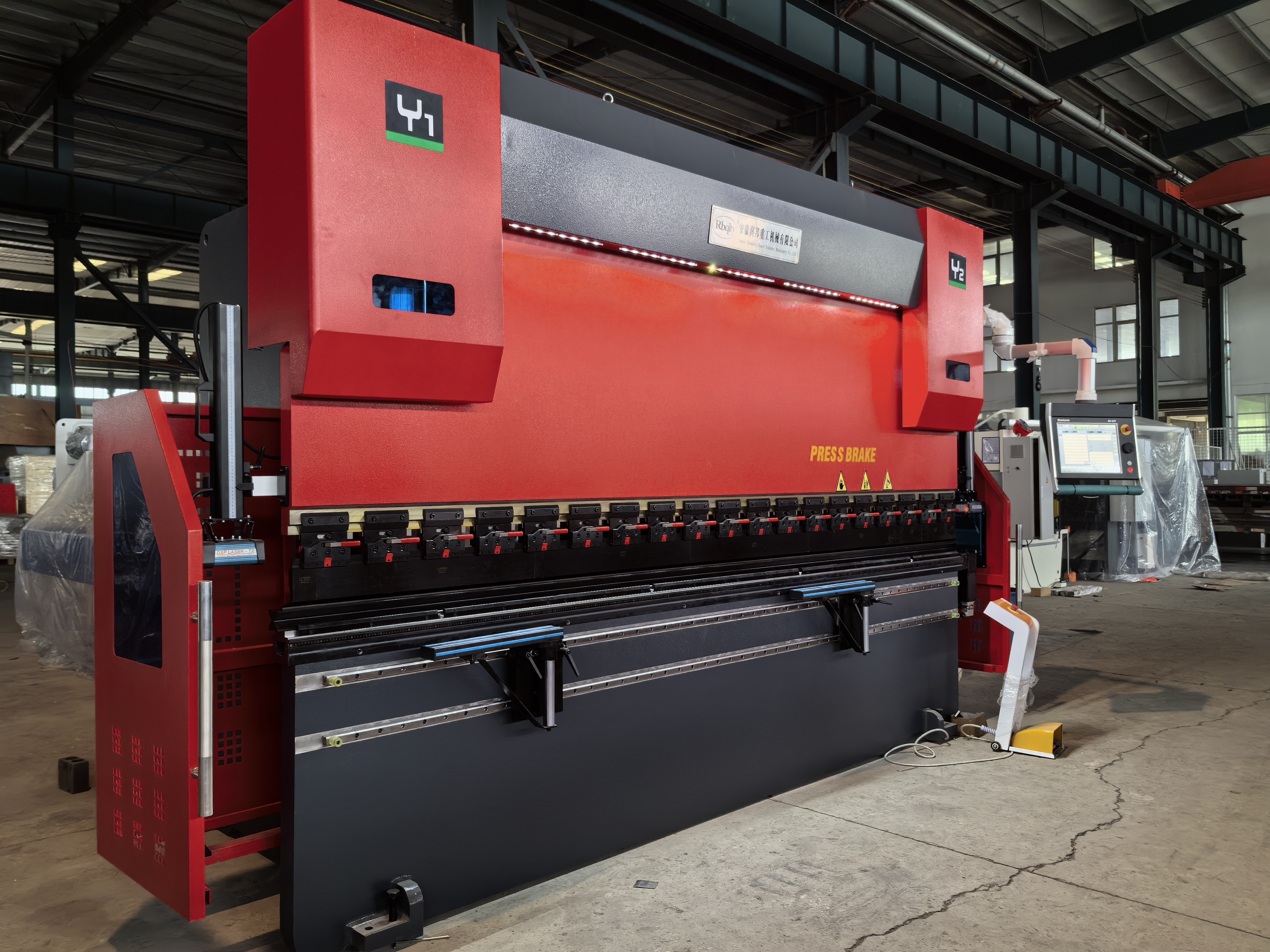

Sheet metal hydraulic bending machine
  • Steel plate welded structure, hydraulic transmission, accumulator return, holistic processed, vibrating to eliminate stress, high strength and good rigidity.
  • Mechanical torque system makes sure the synchronization of cylinders.
  • The stroke of slider and back gauge is adjusted automatically by double servo motors or transducer, and showed on CNC Mechanical torque or NC control panel.
  • Slanting wedges can be chosen to install on the top dies which can be adjusted by hands or automatically. Hydraulic compensation system is installed under the worktable.

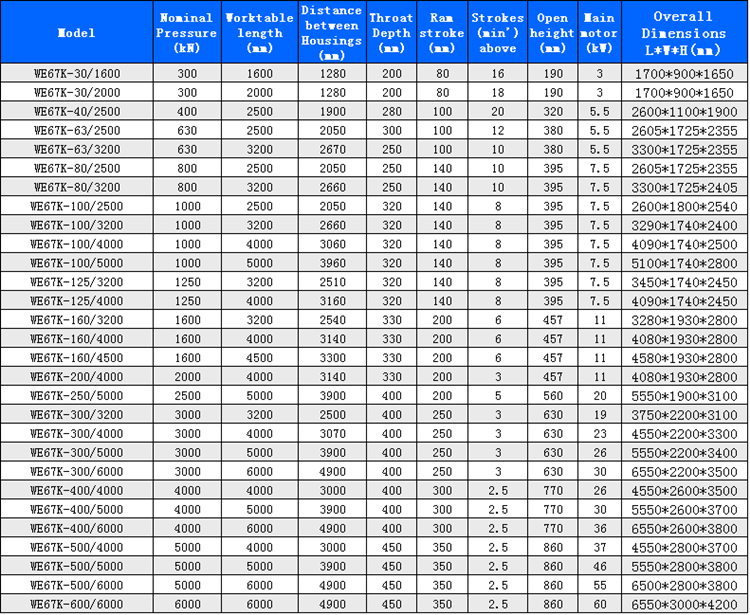

CNC press brake detail
Details Images
Details Images Showcase

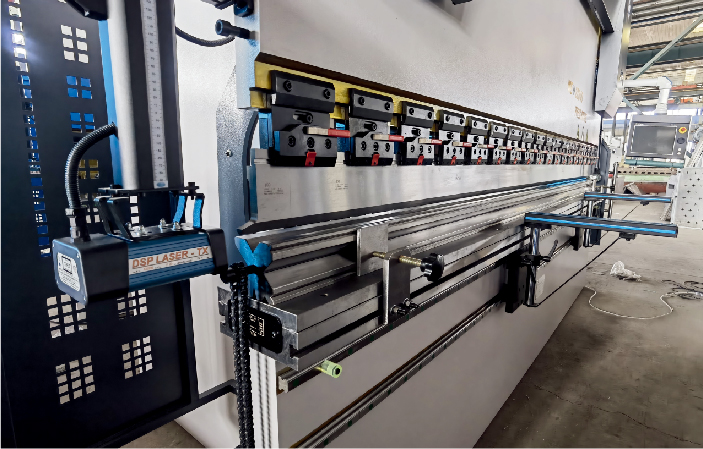

Front support + guide rail
Front support + guide rail
Features of simple structure, powerful functions, can be adjusted up and down or moved along the workbench rightwards and leftwards.

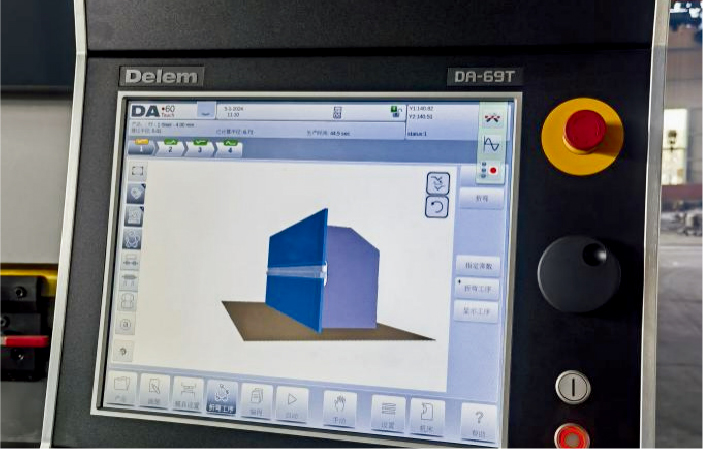

CNC system
CNC system
Intelligent hydraulic synchronization system, more efficient work, anti-biased load.

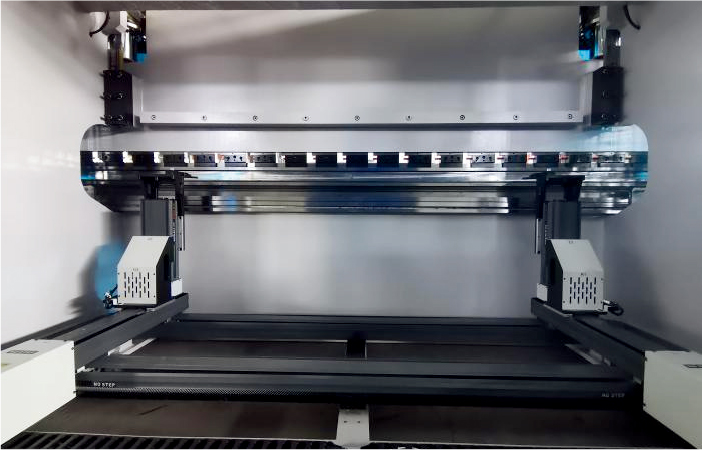

Back gauge
Back gauge
Control the processing metal plate position well and improve bending precision.

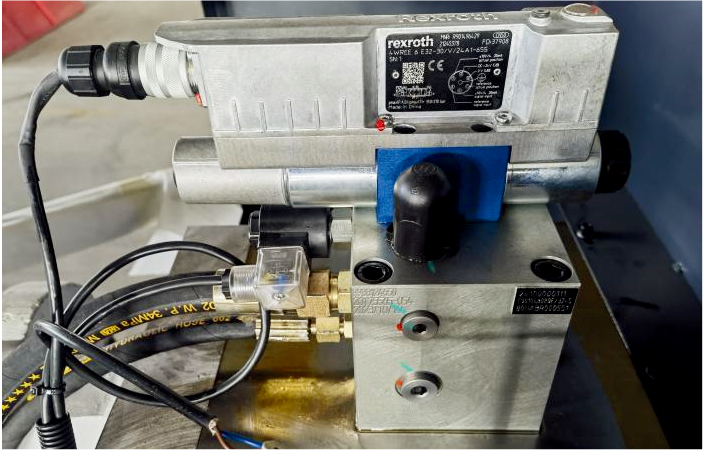

Hydraulic Valve
Hydraulic Valve
Brand: BOSCH REXROTH
Original: Germany
Hydraulic transmission with high reliability, safe and efficient with good quality.

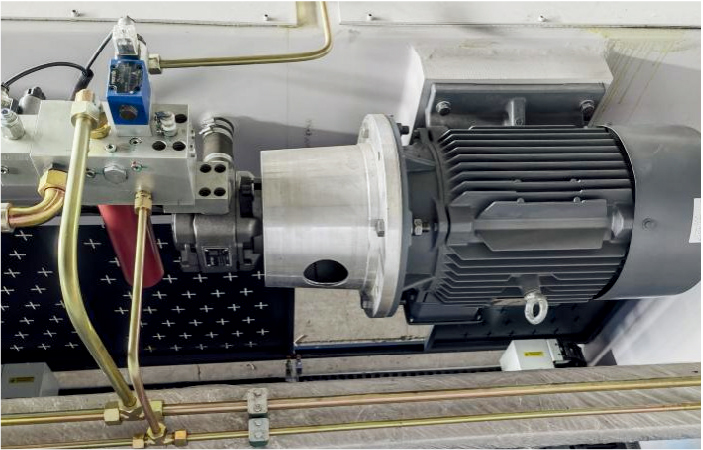

Main motor
Main motor
Brand: Siemens
Original: Germany
High efficiency, low noise, easy maintenance.

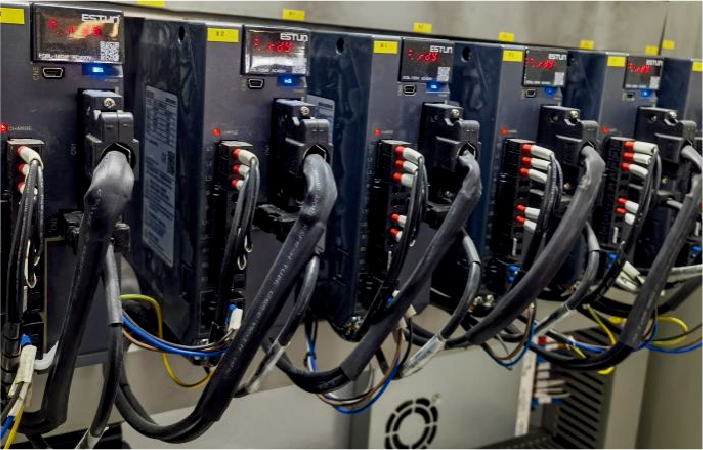

Servo Drive
Servo Drive
Hybrid drive of electric and hydraulic drive system is adopted to achieve the fastest cycle speed and effectively save energy by 60%.

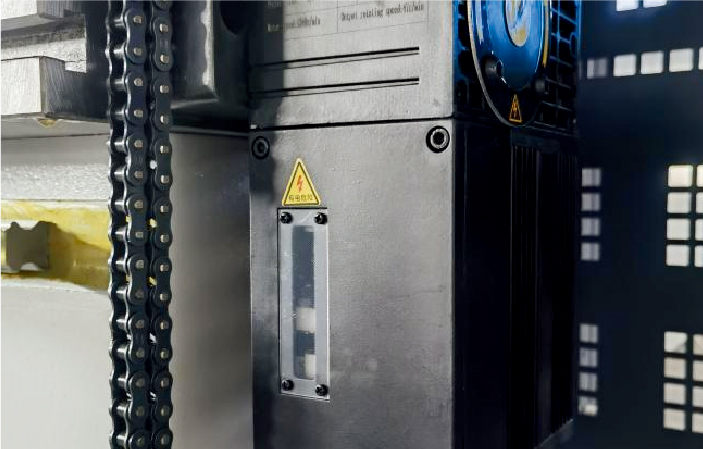

V-axis electrical compensation
V-axis electrical compensation
Improve bending accuracy.

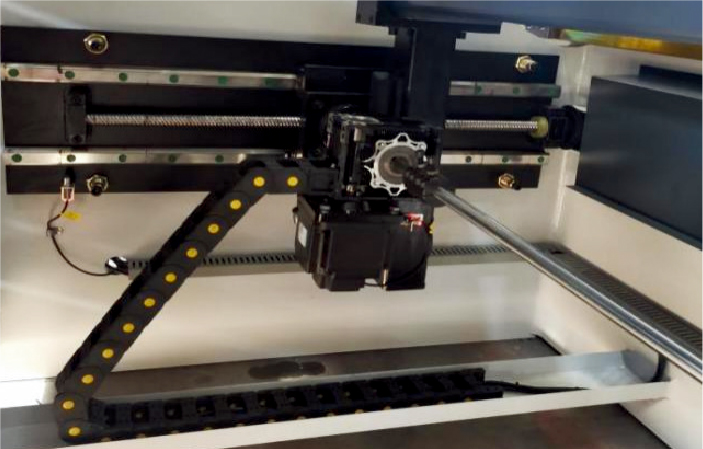

Ball screw + linear guide
Ball screw + linear guide
Ensure high precision operation, system control to change the back gauge distance.
Operational View

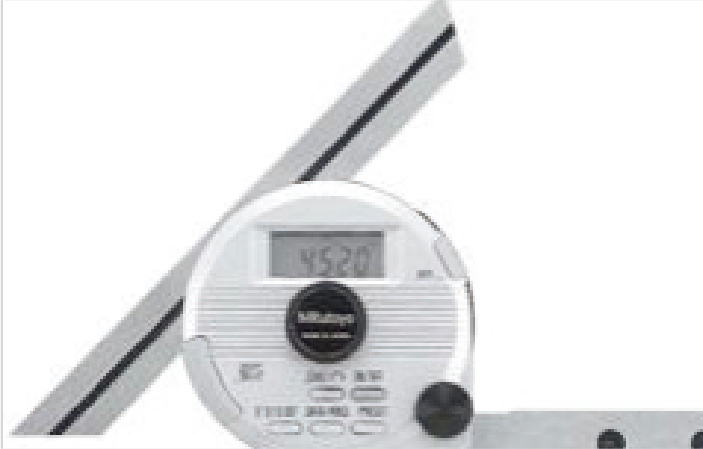

Angle measurement device
Angle measurement device
Measure the angle bending and improve precision.

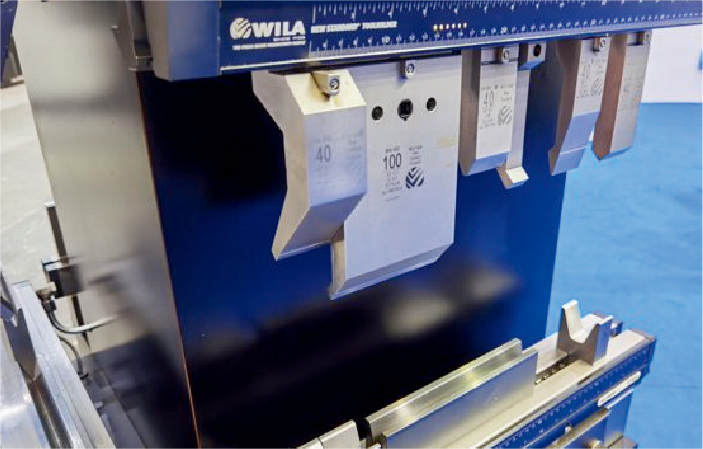

Wila mold
Wila mold
Accurate, durable, flexible, fast and safe.

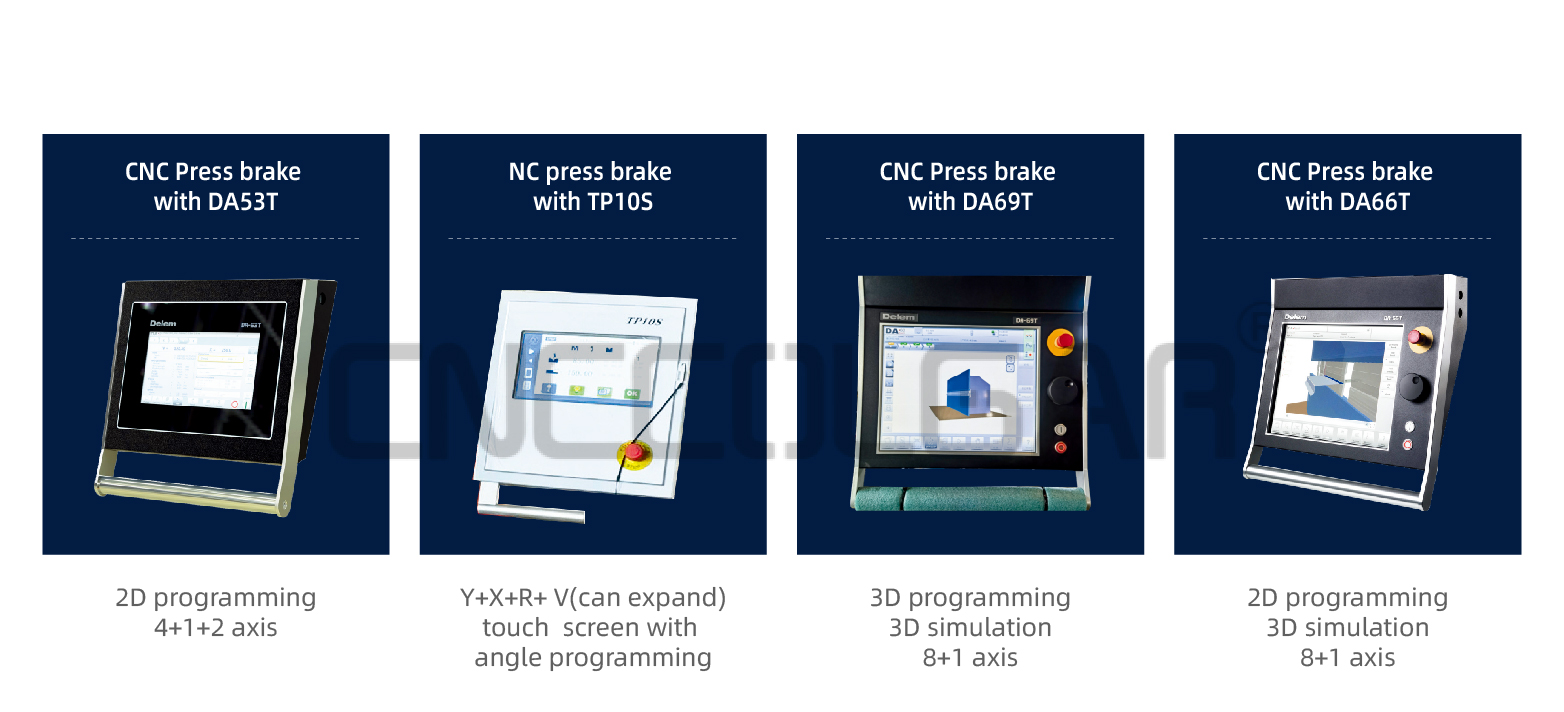

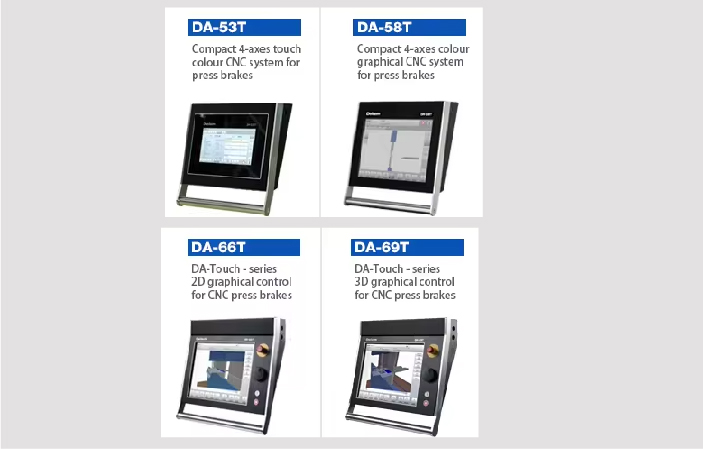

CNC control system
CNC control system
Multi-axis control for automation, easier for customers to use.

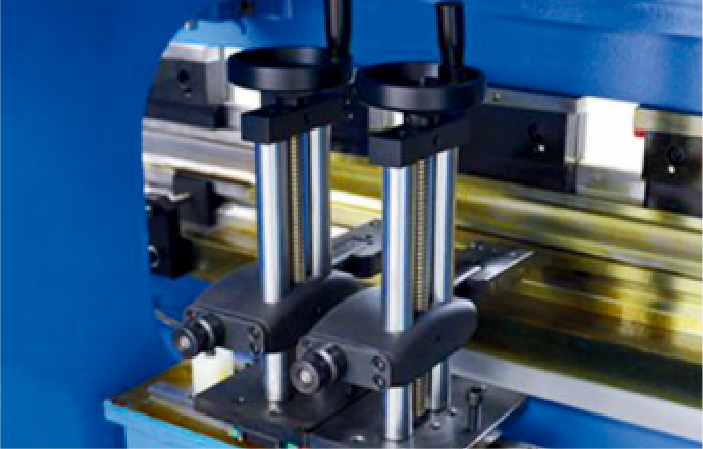

Up and down stop finger
Up and down stop finger
Manual R-axis to realize diversified processing of work pieces.

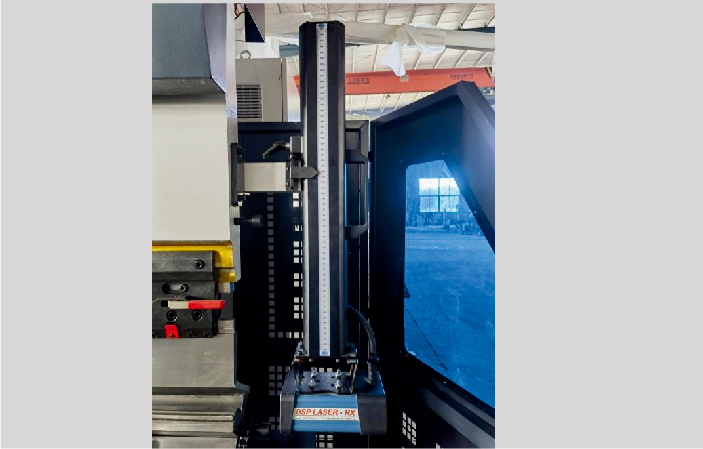

Laser protection
Laser protection
Ensuring safe, protect workers' hands from being pinched, improving safety.

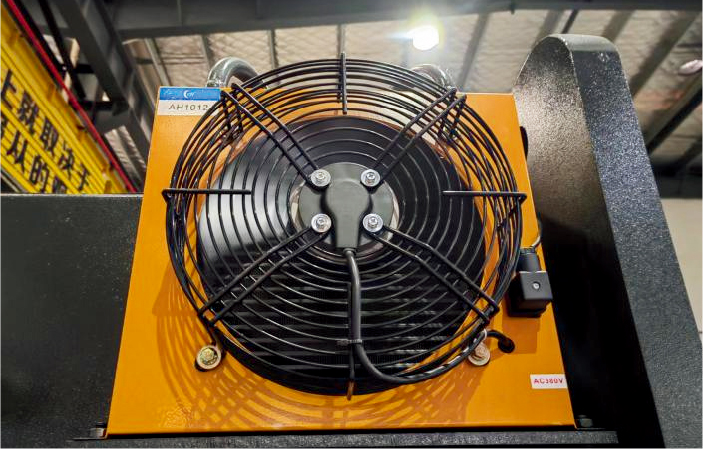

Air cooled
Air cooled
Lower oil temperature and reduce energy loss.
Finished Product Display
Machine Configuration
Factory Overview 1
Factory Overview 2
Factory Overview 3
Factory Overview 4
Quality Standard Certifications
Process Flow
Frequently Asked Questions
How to choose a bending machine?
Please provide details regarding the material of your plate, the maximum thickness, the maximum plate width, and if possible, specify the model you prefer.
Where is the factory located? How can I get there?
You can fly directly to Nanjing Lukou Airport, where we will pick you up. All customers from domestic regions and abroad are warmly welcome to visit.
How is quality ensured in the factory?
Quality control is prioritised from the start to the end. The manufacturing processes have achieved both ISO and CE certifications.
What are the available payment methods?
Payments can be made via T/T, Western Union, MoneyGram, or PayPal. A 30% deposit is required, with the remaining 70% balance paid before shipment.
How long does production take?
The standard production and delivery time ranges between 15 and 35 days.
What synchronisation and drive technologies are used?
The machinery incorporates a mechanical torque system to guarantee cylinder synchronisation and adopts a hybrid drive of electric and hydraulic systems to achieve fast cycle speeds and save up to 60% of energy.
