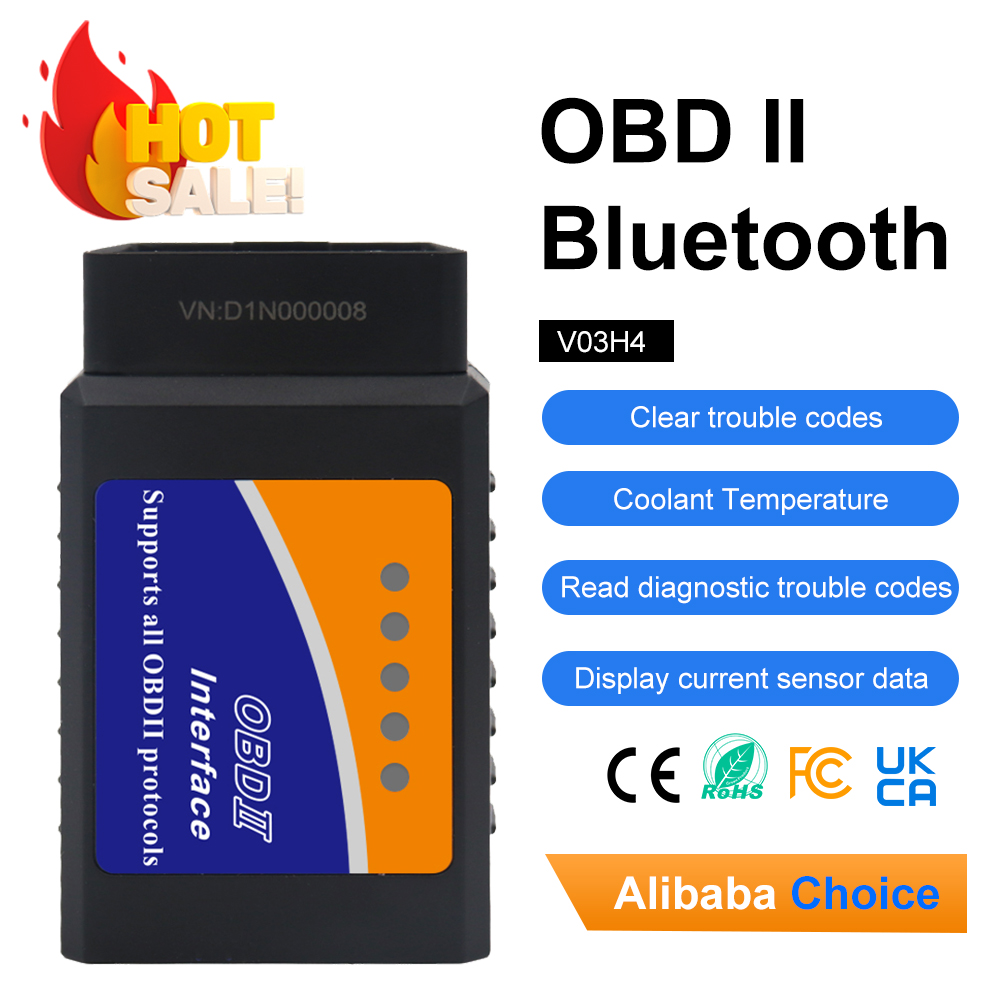

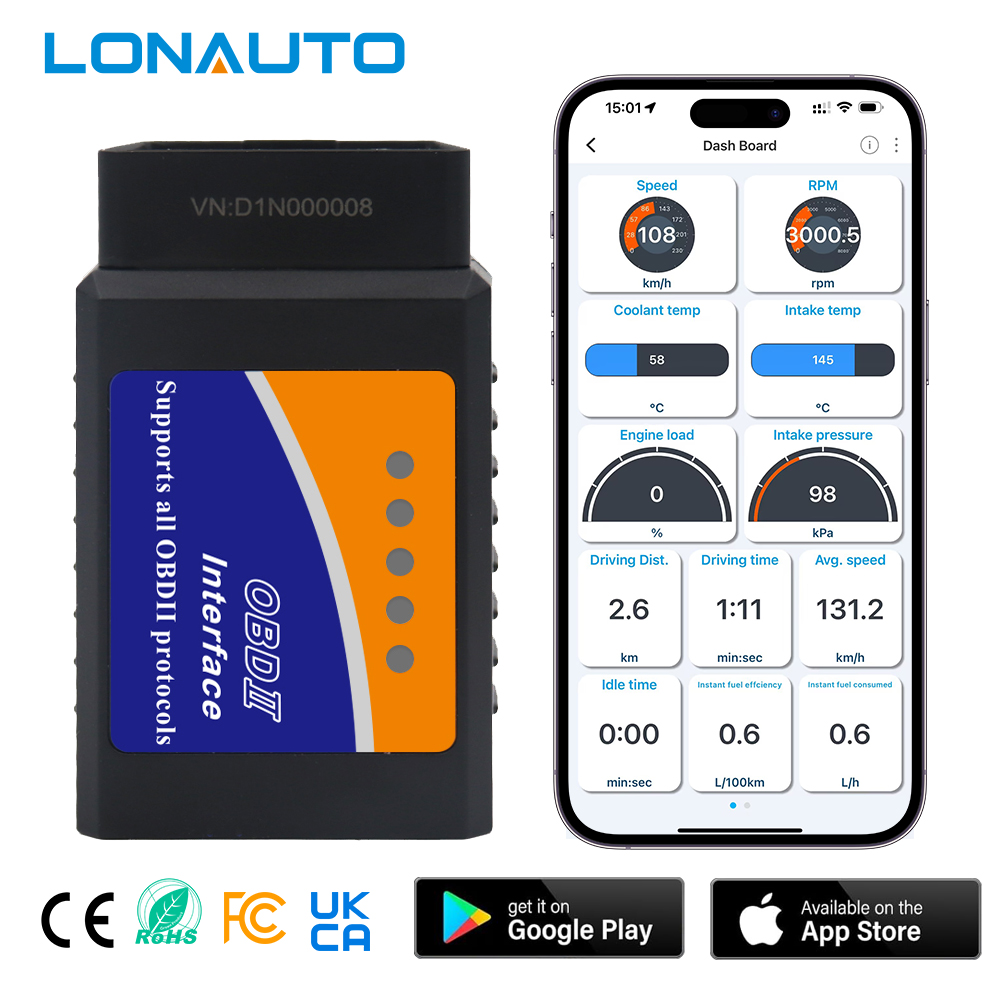

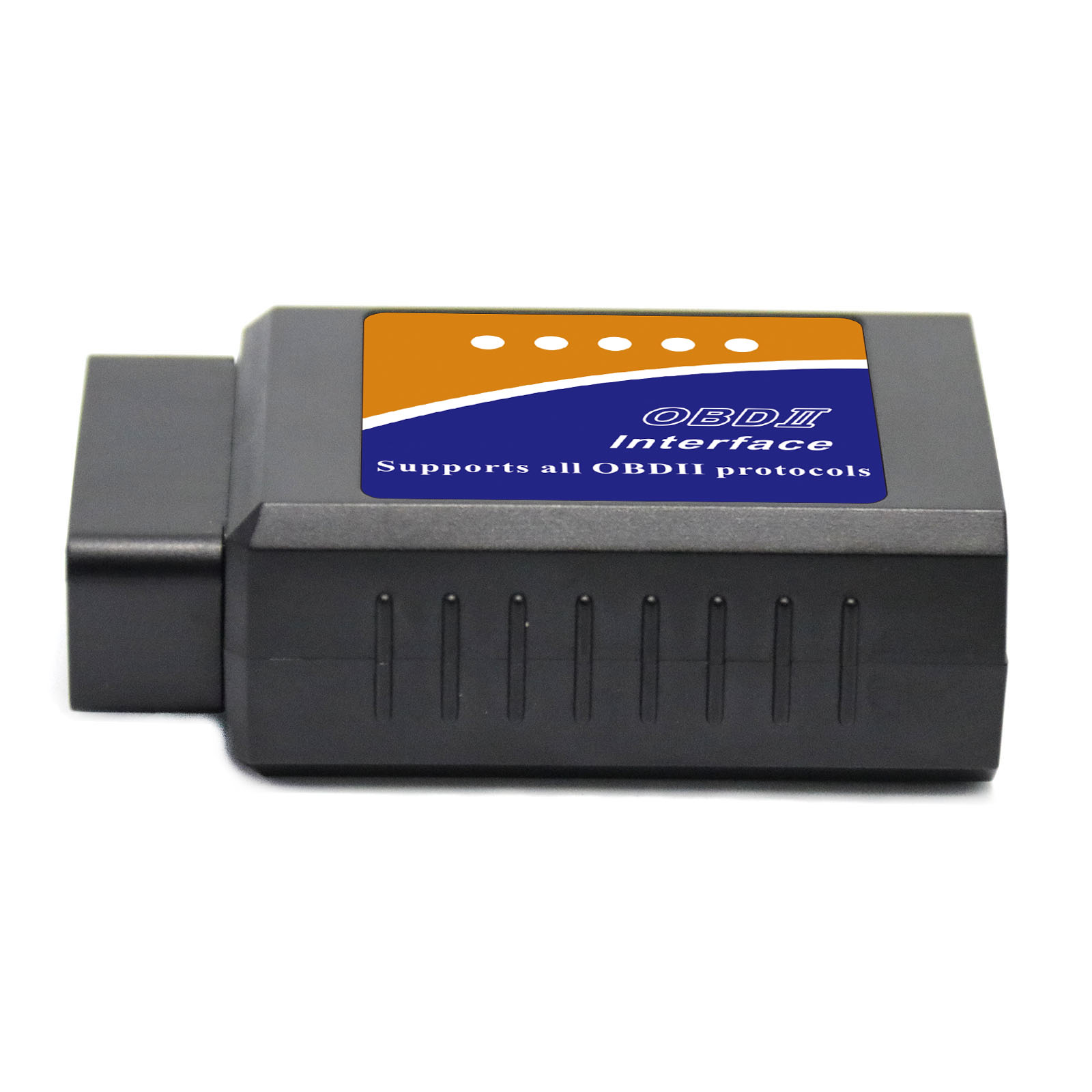

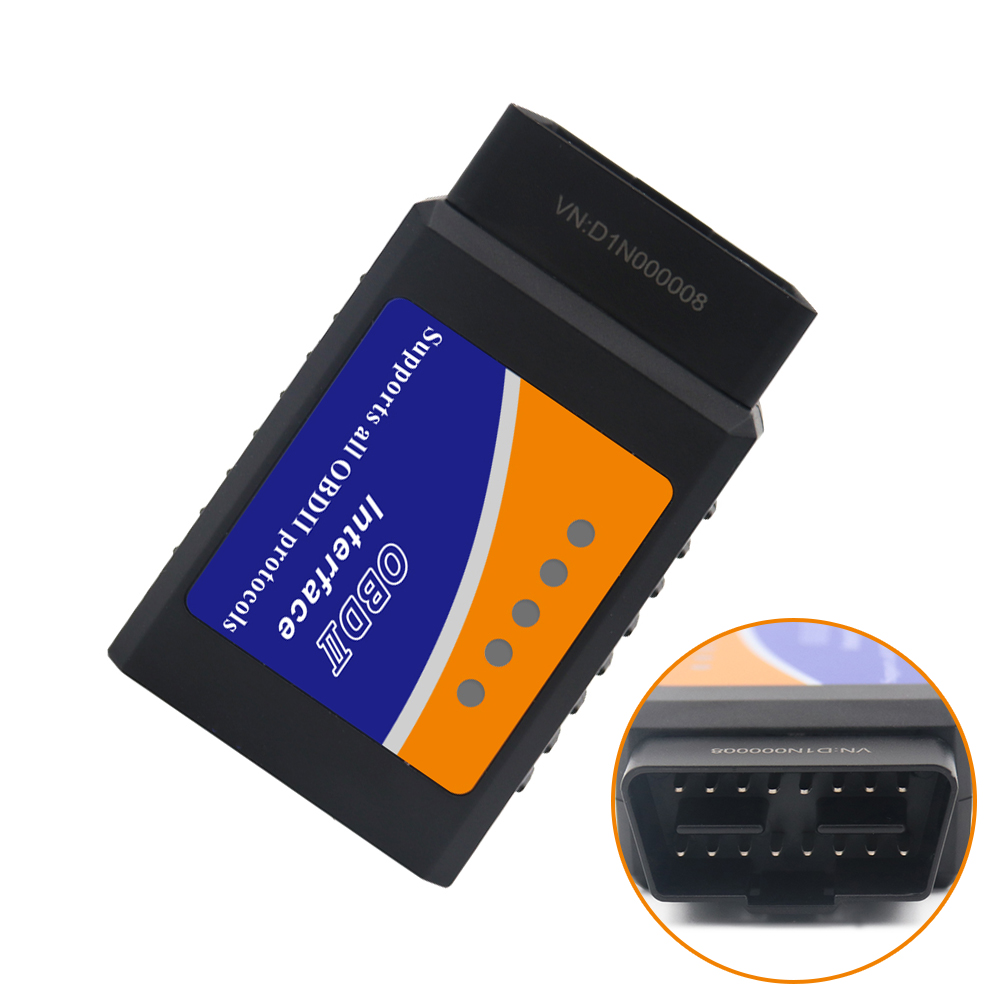

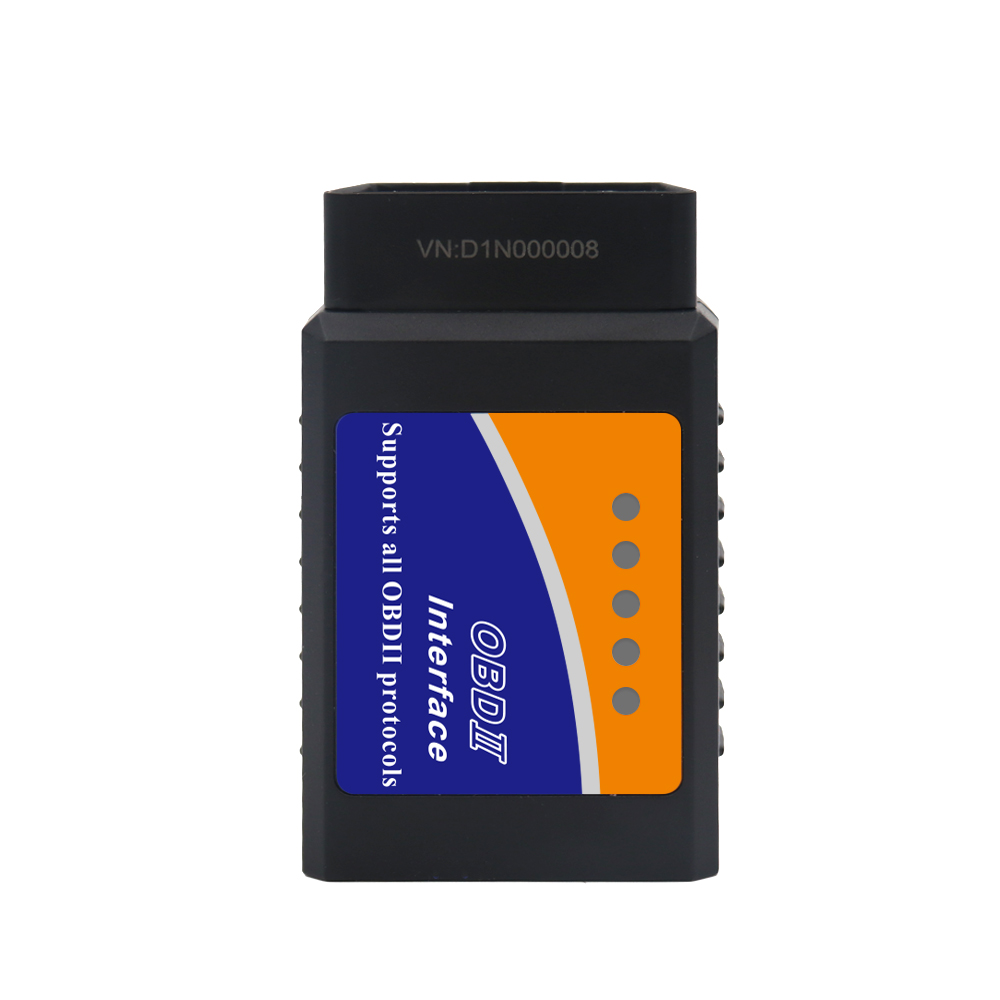

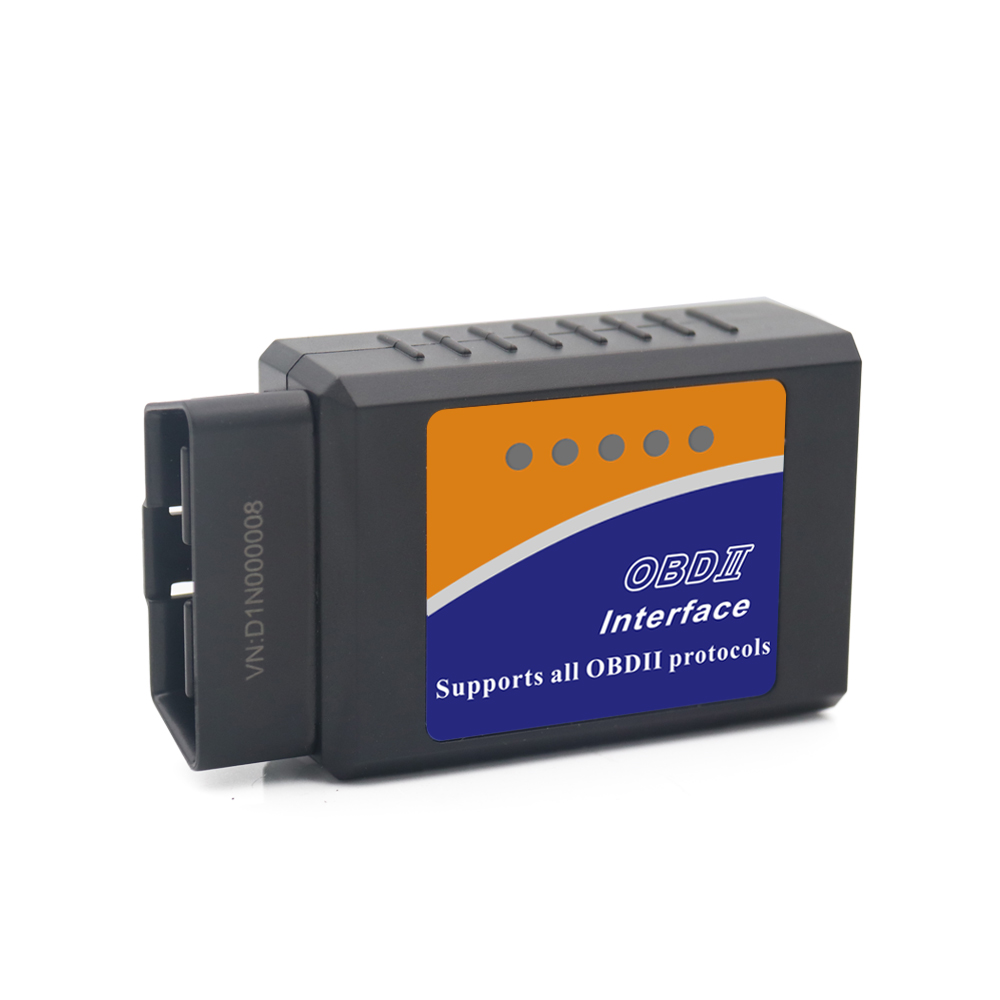

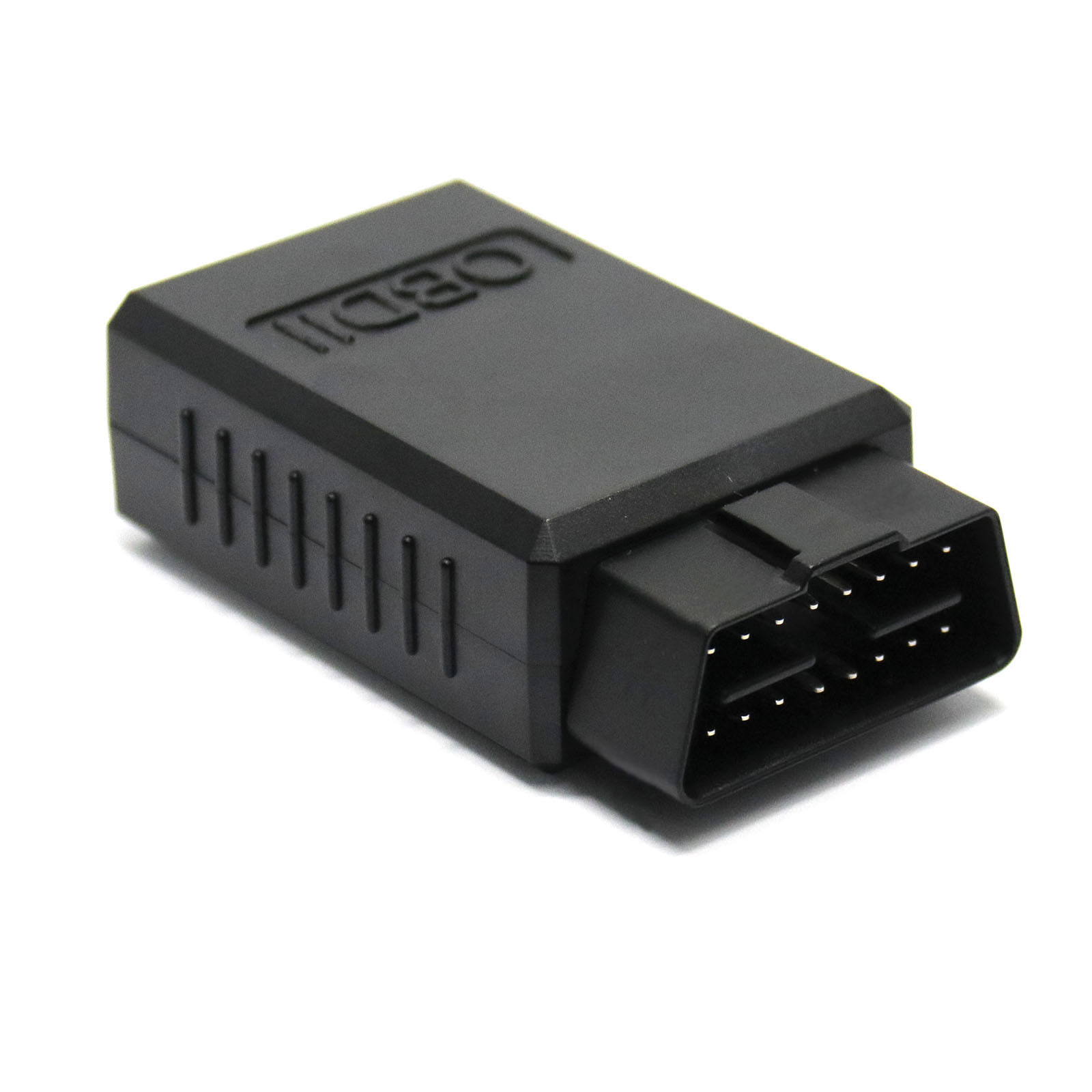

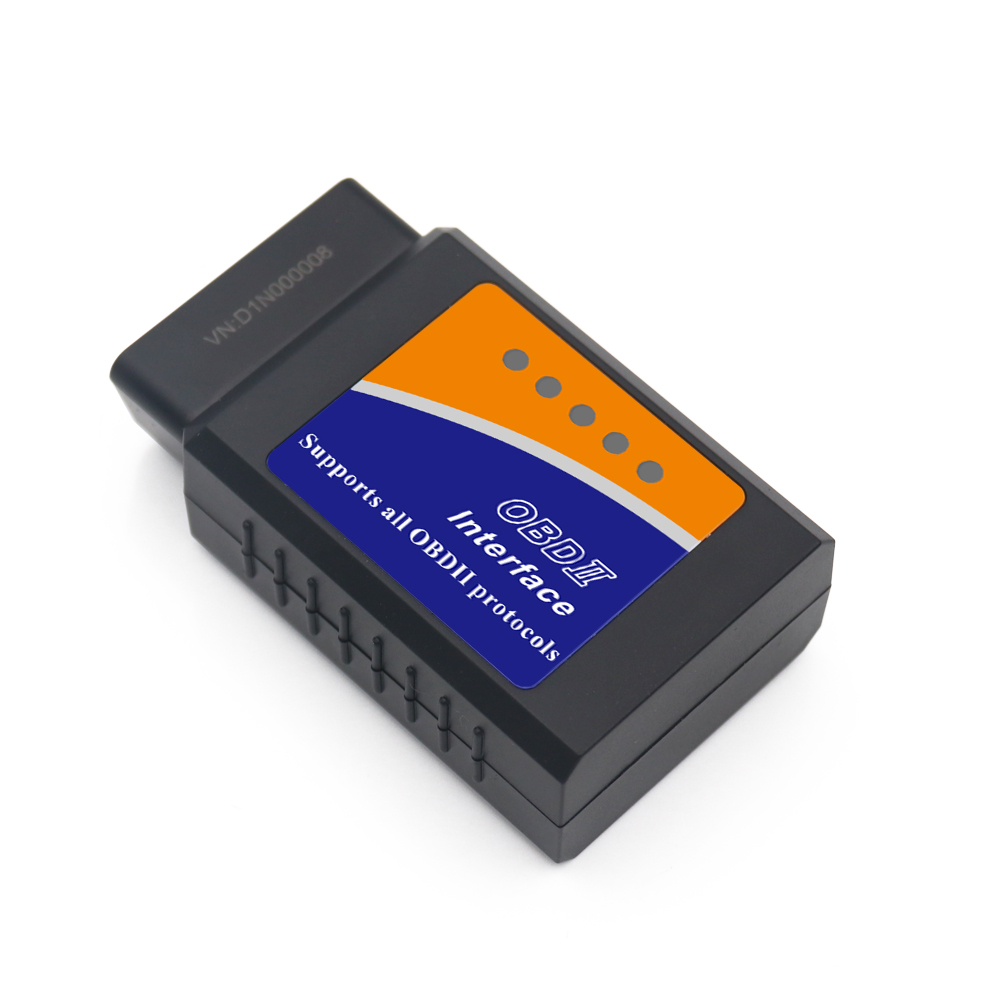

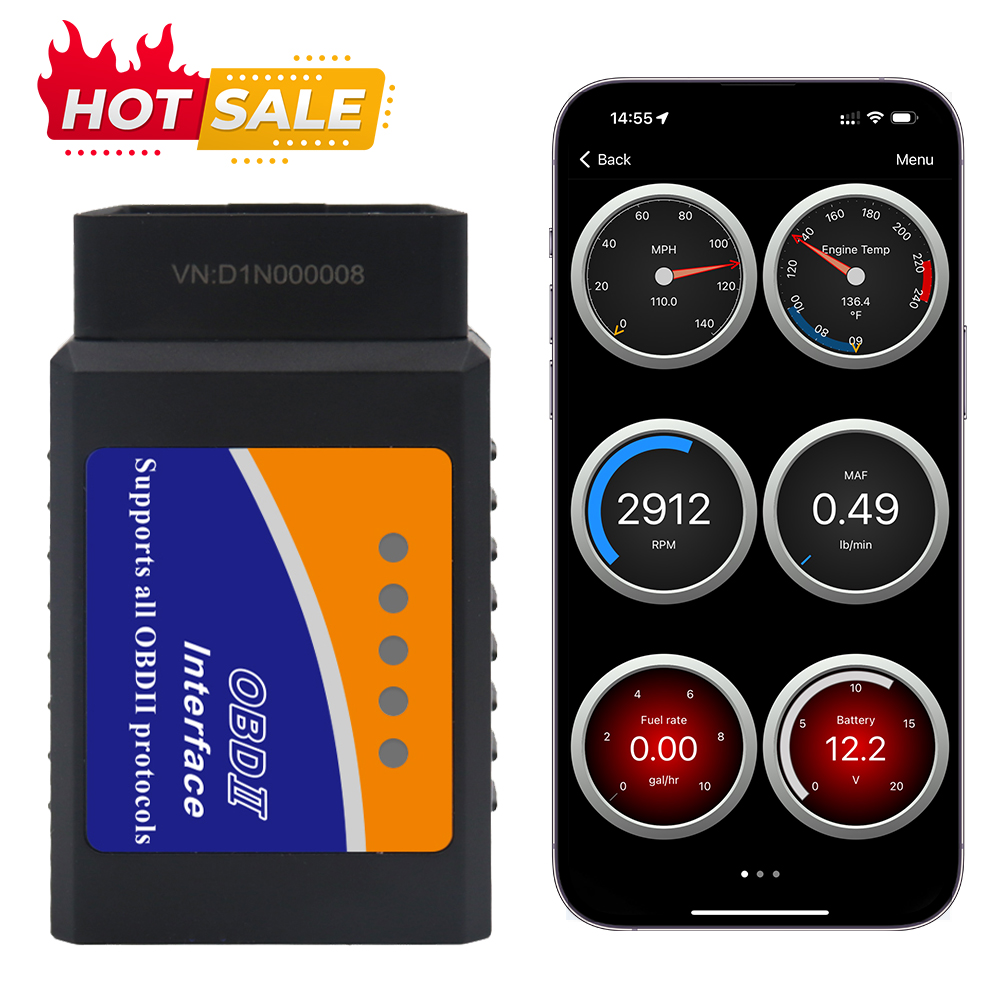

Dropshipping ELM327 Engine Diagnostic Handheld Scanner Auto Diagnostic Device V1.5 Automotive Diagnostic System Analyzer

Product Description

Product Description
Product Specifics:
  • Communication method: Bluetooth 4.0
  • Master chip: No master chip.
  • Compatible platform: Android / iOS / Windows
  • Firmware version: V 1.5
  • Operating voltage: 9V~16V
  • Operating current: 16mA
  • Operating temperature: -40°C~85°C
  • Storage temperature: -30°C~80°C
  • Operating humidity: <60%
  • OBDII protocols supported: OBDII 9 protocols
  • OEM/ODM: Yes
  • Shell material: ABS
Protocol Support:
  • 1. SAE J1850 PWM (41.6Kbaud)
  • 2. SAE J1850 VPW (10.4Kbaud)
  • 3. ISO9141-2 (5 baud init, 10.4Kbaud)
  • 4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
  • 5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
  • 6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
  • 7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
  • 8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
  • 9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
Compatible Software & Platform:
✓ Compatible Software:
  • Windows: ScanMaster-ELM, ScanTool.net, PCMSCAN, Car Scanner ELM OBD2, OBD dash;
  • Android: Torque, inCarDoc, DashCommand, EOBD, Car Scanner ELM OBD2, OBD Auto Doctor, OBD Fusion;
  • iOS: inCarDoc, DashCommand, Car Scanner ELM OBD2, OBD Auto Doctor, OBD Fusion;
  • Symbian: OBDScope.
✓ Compatible Platform:
  • Support System: Windows XP, Windows 7/8, Windows 10, Android, iOS, Symbian.

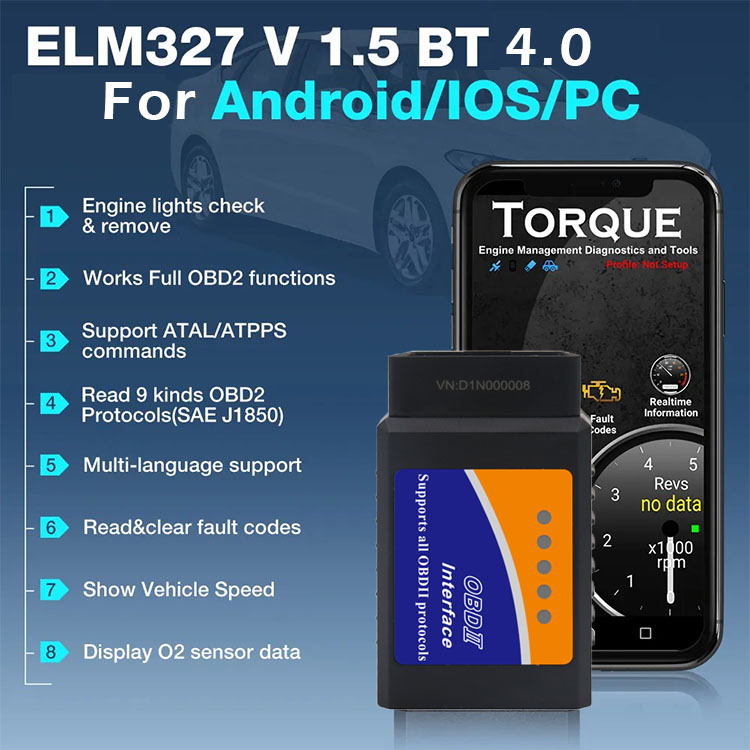

Product Features:

The program helps you perform the following operations:

  • 1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
  • 2. Clear trouble codes and turn off the MIL ("Check Engine" light).
  • 3. Display current sensor data, including:
  • 4. Engine RPM / Calculated Load Value / Coolant Temperature / Fuel System Status
  • 5. Vehicle Speed / Short Term Fuel Trim / Long Term Fuel Trim
  • 6. Intake Manifold Pressure / Timing Advance / Intake Air Temperature
  • 7. Air Flow Rate / Absolute Throttle Position
  • 8. Oxygen sensor voltages/associated short term fuel trims
  • 9. Fuel System status / Fuel Pressure AND many others...
Other Information:
Packing list 1 x Bluetooth 4.0 OBDII

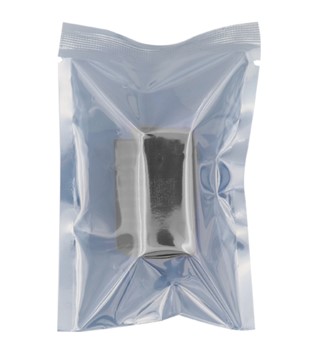

1 x Static Bag
Warranty Certified CE, FCC, RoHS compliant
Warranty: 1 year
Support OEM&ODM (optional) Bluetooth name / Product label / Packing box, manual / Product shell silk-screen / Product shell color / shape / Product firmware development, feature upgrade..
Payment Alibaba Trade Assurance, Paypal, West Union, T/T and Bank Transfer are acceptable. Kindly note that a few transaction fee will be charged by Paypal.
Delivery For small order, products will be delivered with 1-3 working days after payment.
For OEM order, please check the shipping time with us.
We can send out goods by express UPS/DHL/TNT/FEDEX/EMS, ocean shipping are Available.

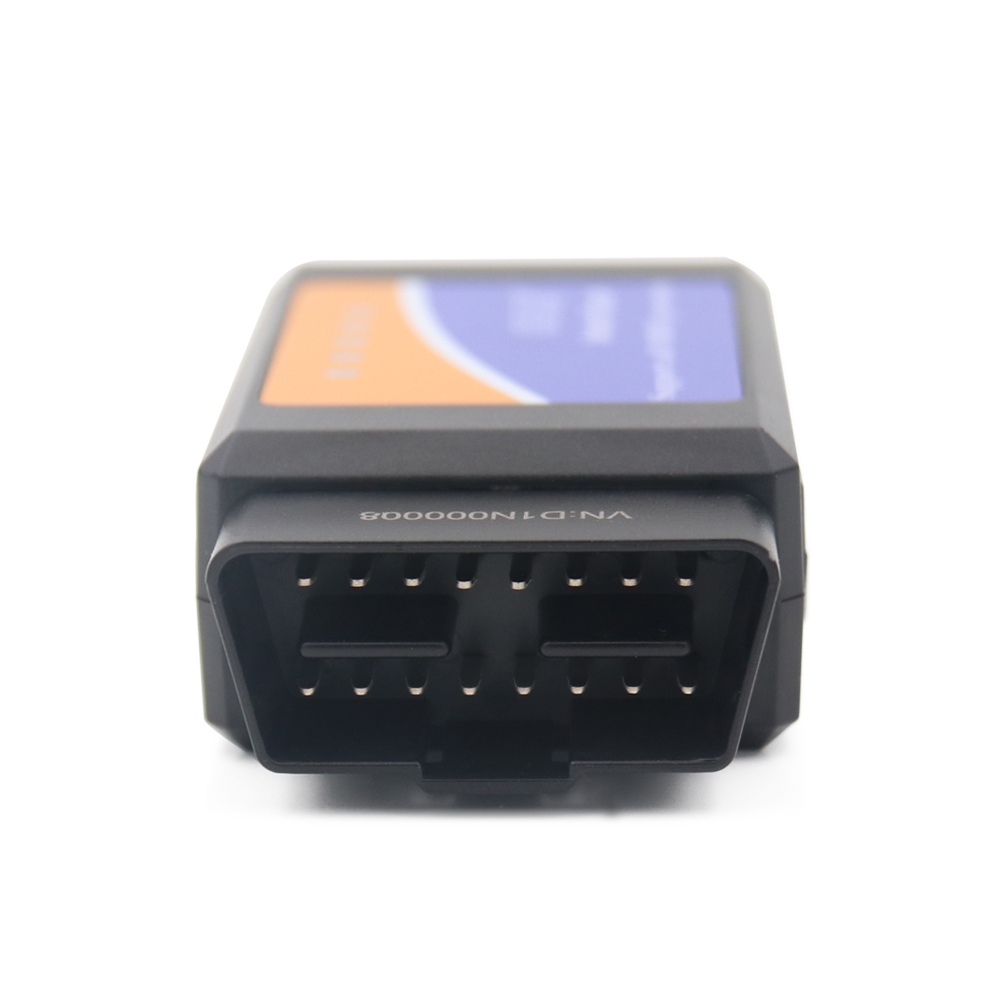

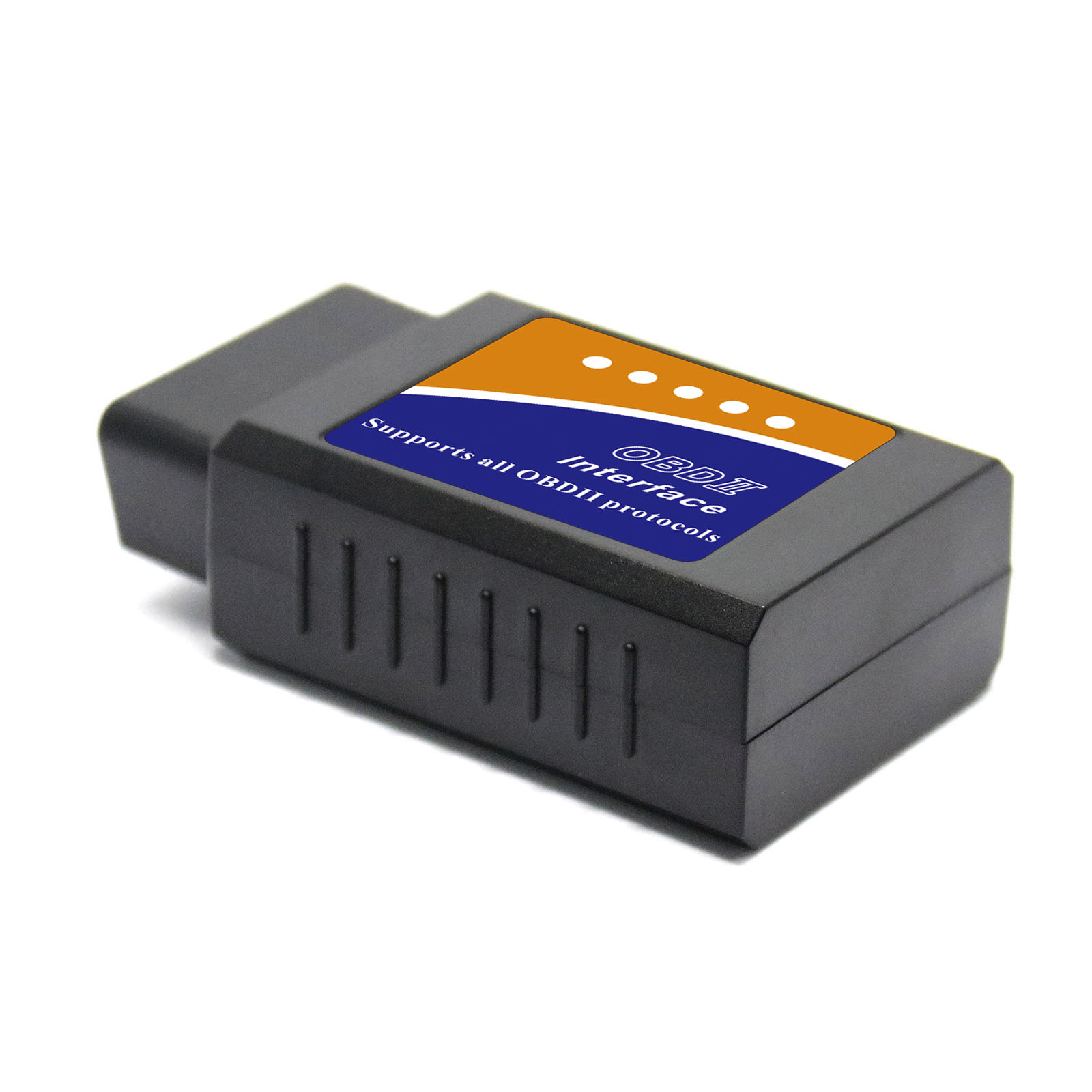

Details Images

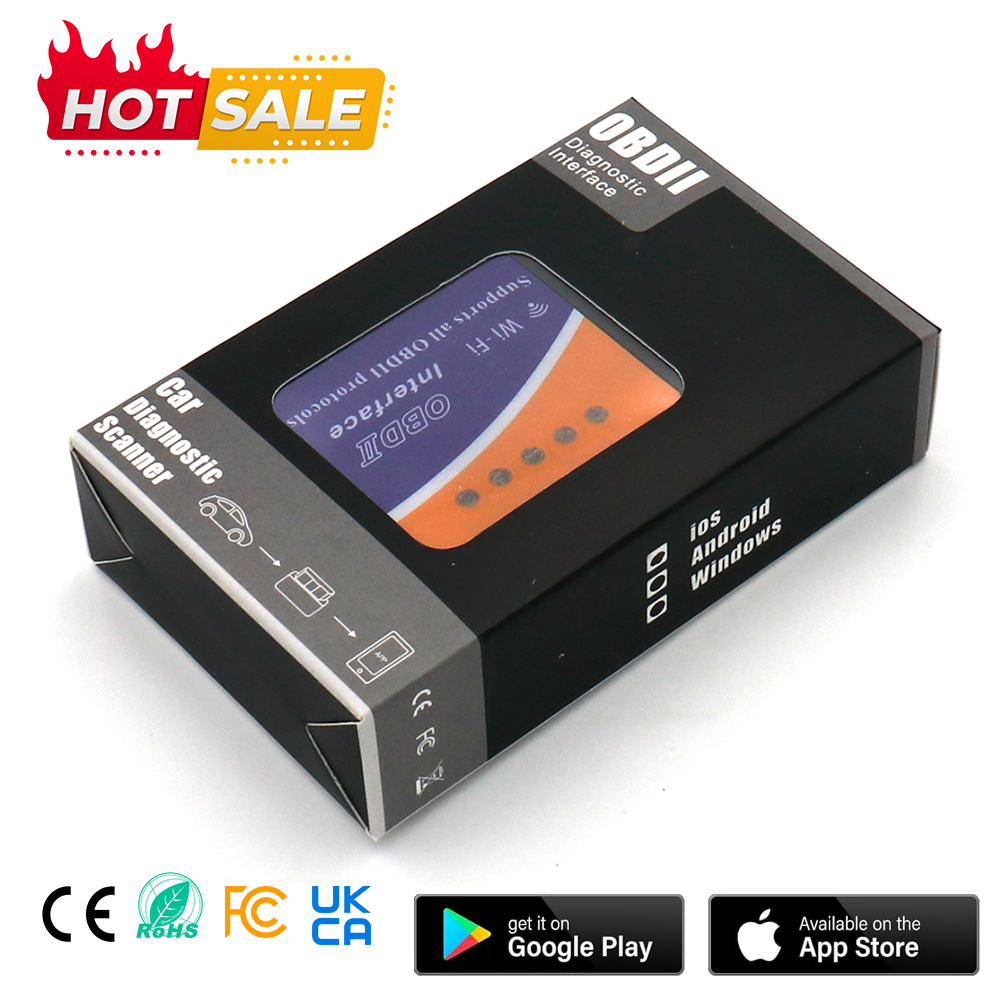

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1. What is your terms of packing?

A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?

A: If customization order, T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. If ready-to-ship order, 100% payment done well before shipping.

Q3. What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDP, DAP, CPT.

Q4. How about your delivery time?

A: Generally, it will take 3 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

Q6. How do you make our business long-term and good relationship?

A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
