THINKDIAG Mini Obd2 Scanner All Cars Full System Diagnose Lifetime Free Auto Diagnostic Tool Read/Clear Error Code
1 / 5
THINKDIAG Mini Obd2 Scanner All Cars Full System Diagnose Lifetime Free Auto Diagnostic Tool Read/Clear Error Code
1. Read DTC from all electronics modules lifetime free: Read your car's full system fault codes. You can perform lifetime free diagnosis for more than 126 car brands' full electronic control systems. It retrieves vehicle diagnostic information such as trouble codes, event codes, and live data for systems including ABS, SRS, Engine, Transmission, Brake System, Emission System, Fuel System, Light System, and Wiper System.
2. Lifetime free diagnosis engine: Compatible with all models that support OBD II protocol after 1996. Perform tasks such as reading live data stream, reading freeze frame data, reading/clearing DTCs, monitoring O2 sensors, system monitoring, reading pending DTCs, onboard system control operations, and reading vehicle information.
3. Supports 12 languages: Automatically switches with the mobile phone language settings. Supports English, French, Spanish, German, Italian, Portuguese, Japanese, Polish, Russian, Turkish, Greek, and Traditional Chinese.

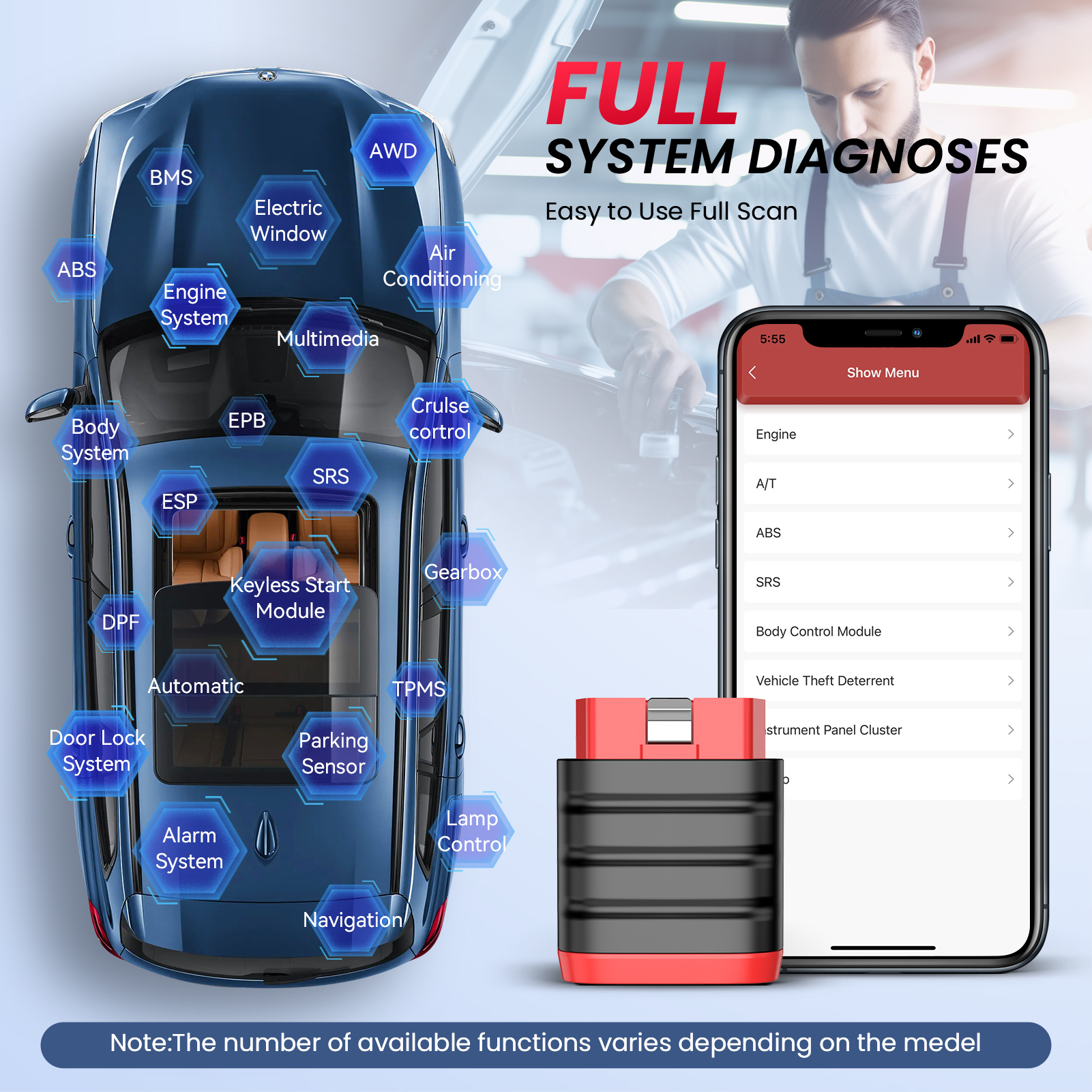

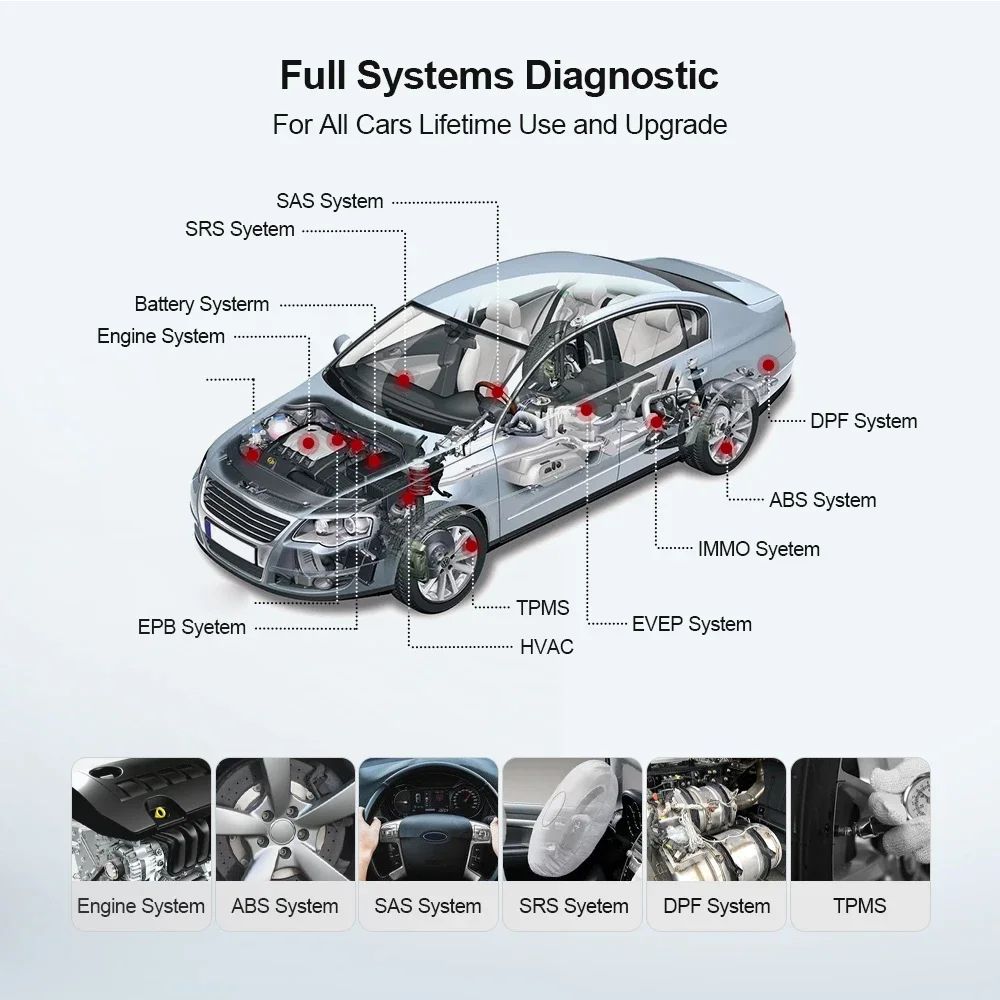

All Cars Lifetime Free Full System Diagnostic
The Diagnostics application enables a data link to the electronic control system of the test vehicle. The application performs functional tests, retrieves diagnostic trouble/event codes, and views live data for various control systems:
ECM = Engine System
IC = Instrument System
ABS System = Antilock Brake System
SRS System = Air Bag Restraint System
TCM = Transmission System
BCM = Chassis System
EPS = Electric Power Steering System
EPB System = Electric Park Brake System
TPMS System = Tire Pressure Monitoring System
AC System = Air Conditioning System
Security & IMMO System

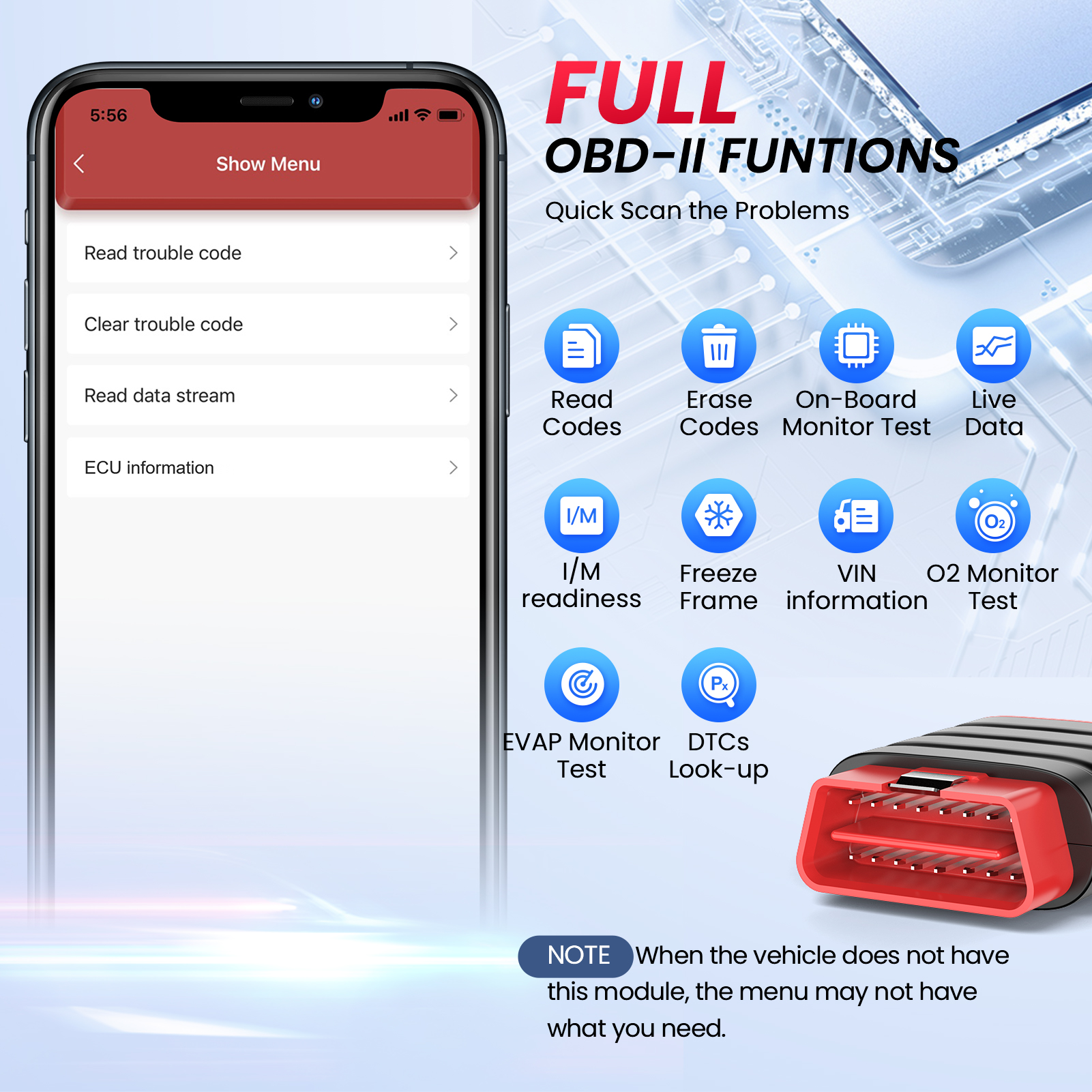

Lifetime Free All 10 Mode OBDII/EOBD Functions
Supported Models: Compatible with all models supporting OBD II protocol after 1996. Supported Protocols: ISO 14230-4(KWP2000) / ISO 15765-4(CAN) / ISO 9141-2(ISO) / ISO 14229(UDS) / SAE J1850(VPW & PWM)
Mode 1: Read live data stream
Mode 2: Read freeze frame data
Mode 3: Read DTCs (diagnostic trouble codes)
Mode 4: Clear DTCs
Mode 5: Oxygen sensor monitoring
Mode 6: System monitoring
Mode 7: Read pending DTCs
Mode 8: Control operation of on-board system
Mode 9: Read vehicle information
Mode 10: Request emissions-related diagnostic trouble codes with permanent status after a clear/reset

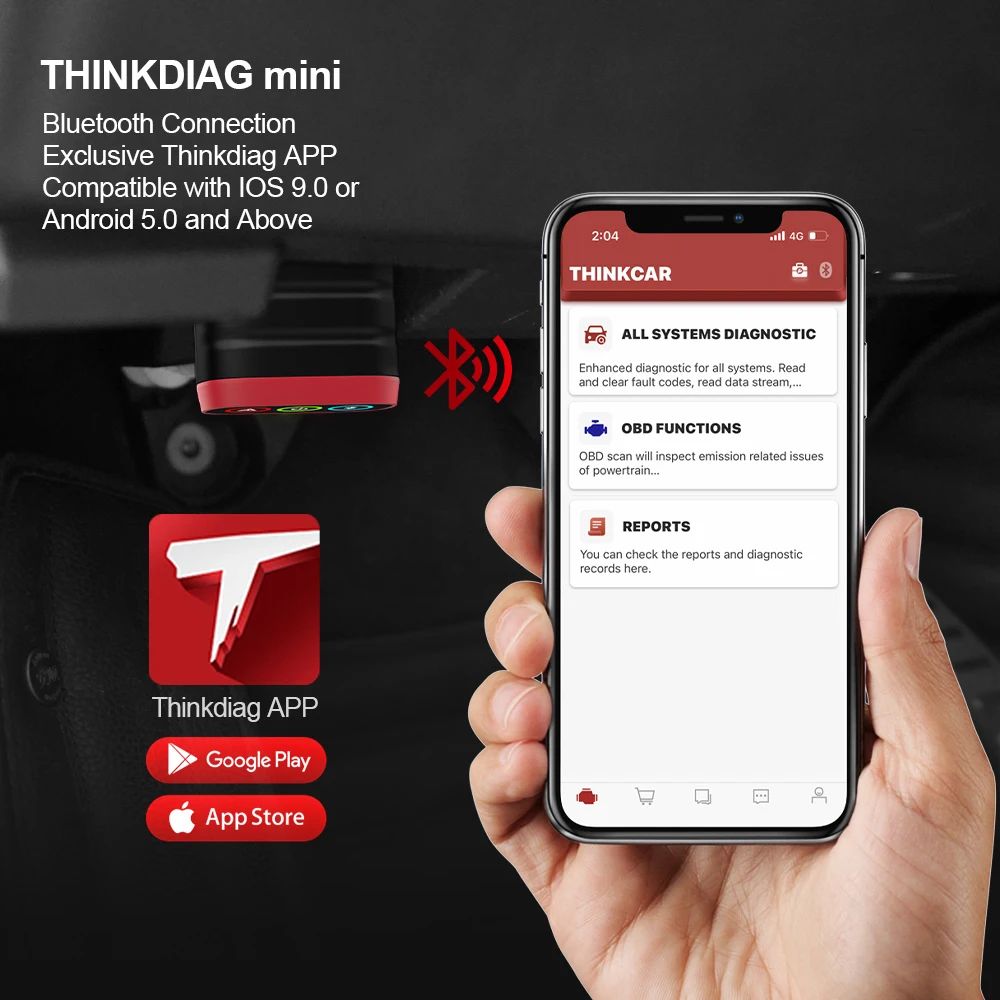

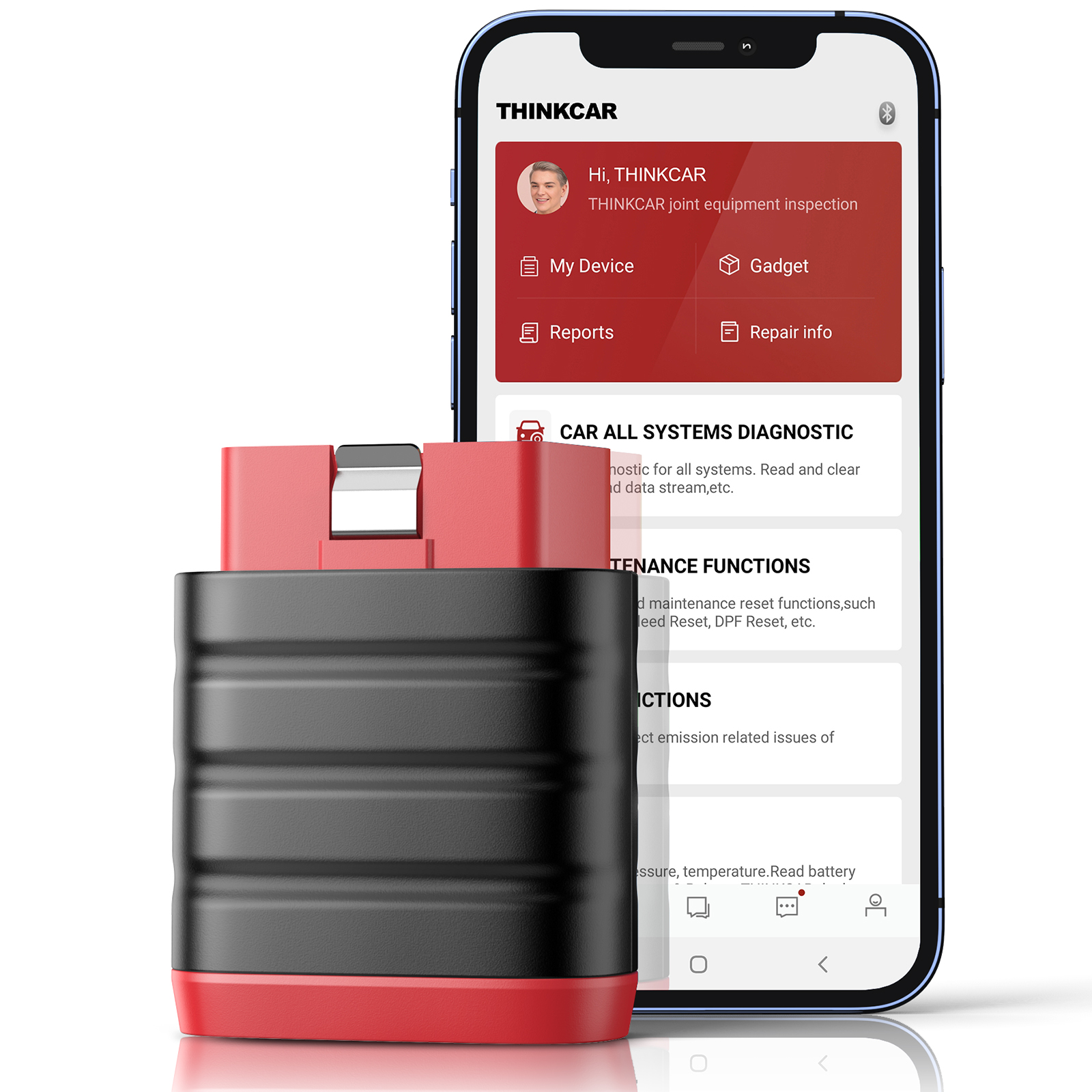

Mobile & Tablet Compatibility
Use the scanner via the THINKDIAG+ APP. Connecting the adapter to the car allows diagnostics via Bluetooth 4.2. It is ideal for DIY car owners and vehicle repair stores.
Android: 5.0 and above (but does not support Android 12.0)
iOS: 9.0 and above

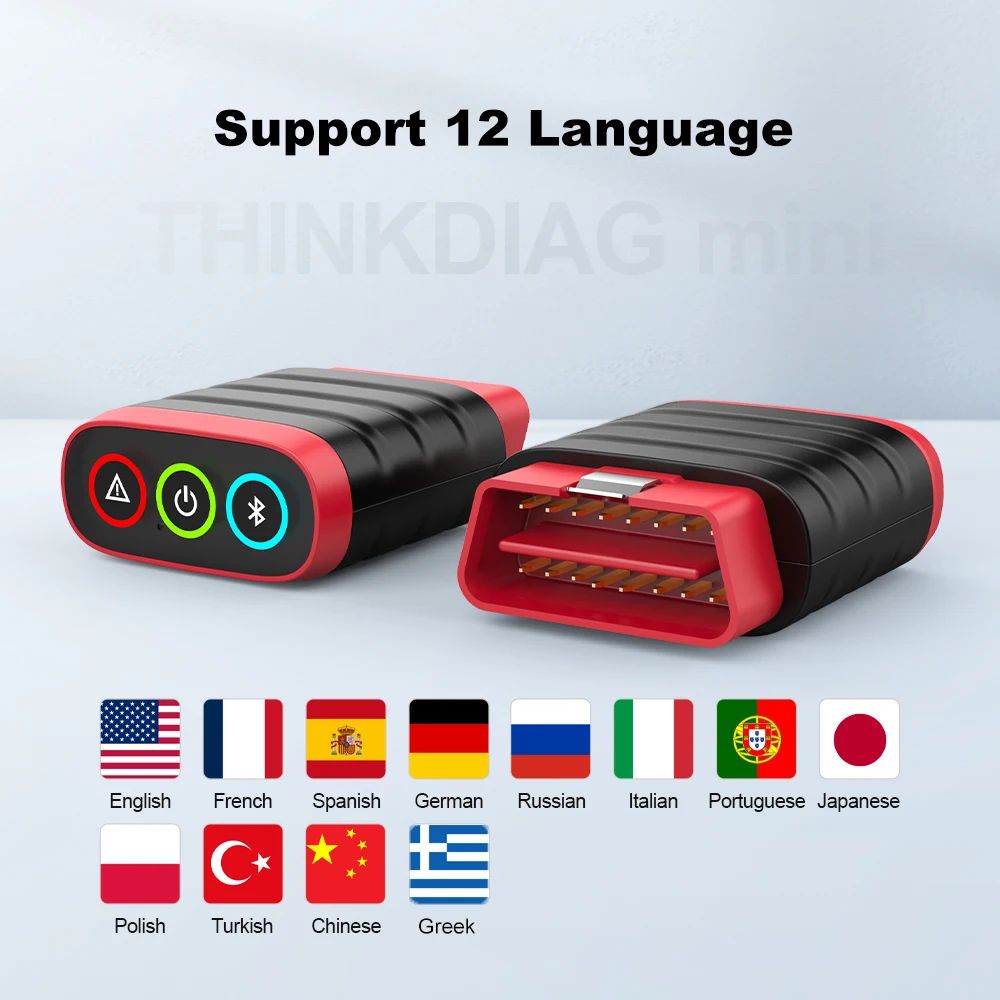

Multi-Language Display
Supports 12 languages: English, French, German, Spanish, Italian, Portuguese, Japanese, Russian, Polish, Traditional Chinese, Turkish, and Greek.

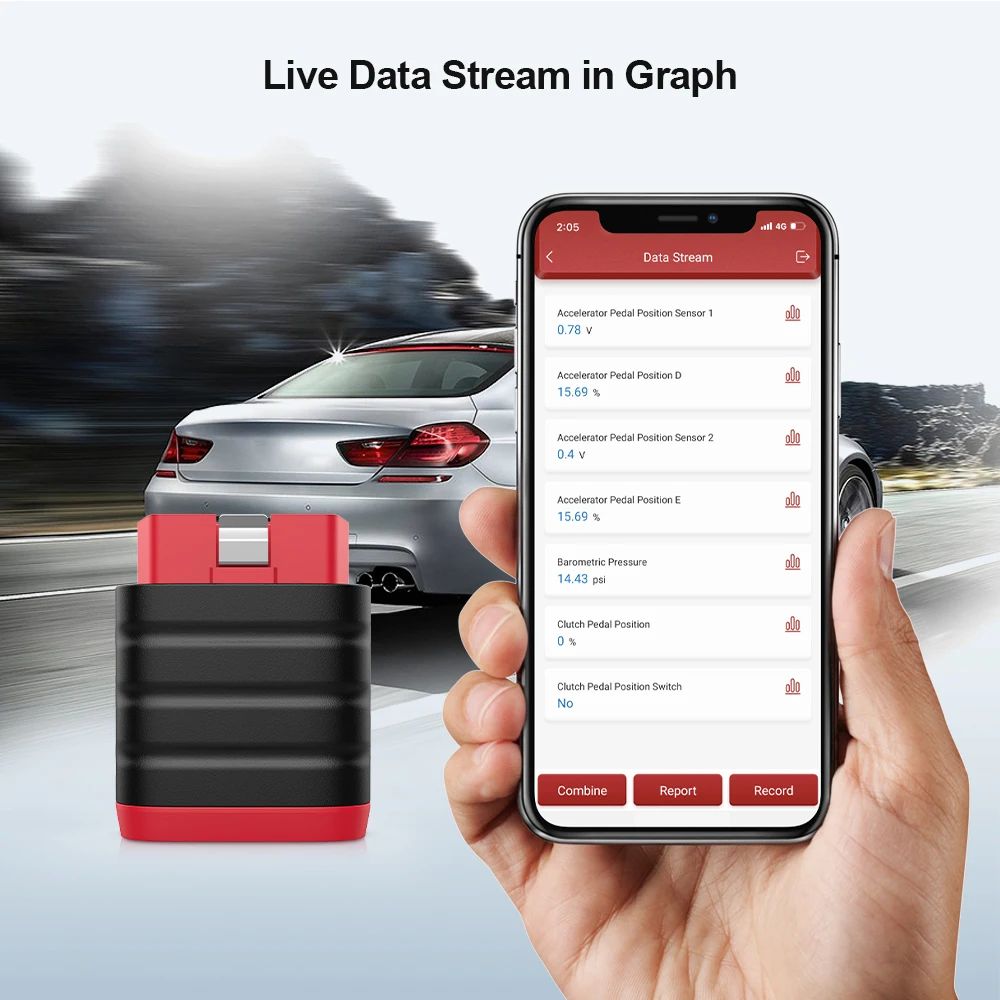

Real-Time Graphic Live Data
Displays information of continuous data streams from a vehicle in live graphic (waveform) format.

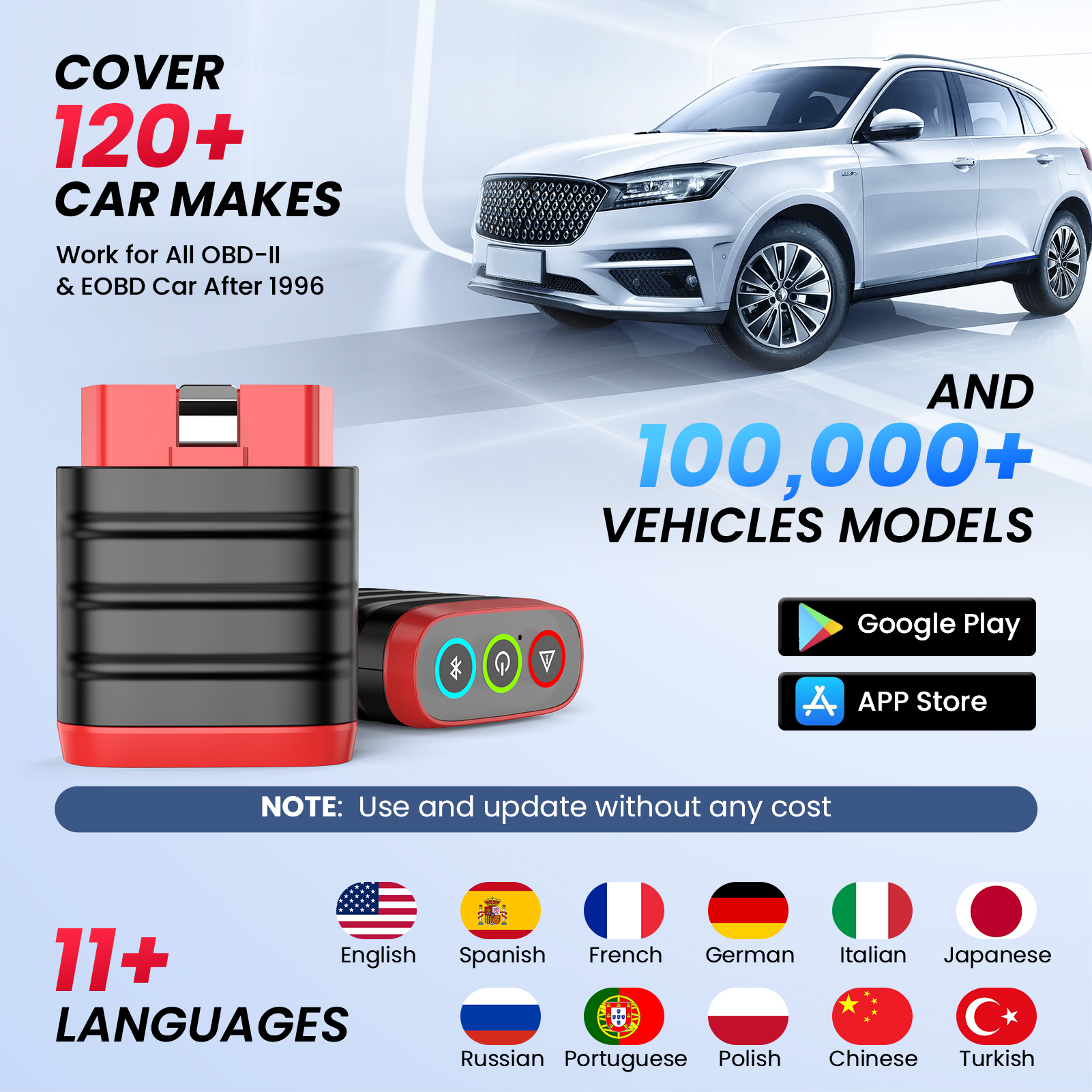

Wide Vehicle Coverage (Over 115 Major Manufacturers)
Compatible with most vehicles that support OBDII protocols after 1996.
American Cars:
Buick, Chrysler, Cadillac, Chevrolet, Dodge, AU Ford, Brazil Fiat, Brazil GM, Ford, GM, Jeep, Lincoln, SGM
European Cars:
Aston Martin, Audi, Alfa Romeo, Abarth, BMW, Bentley, Bugatti, Citroen, DR, Dacia, EU Ford, Ferrari, Fiat, GAZ, Iveco, IZH, Jaguar, Land Rover, Lamborghini, Lancia, Mercedes, Maserati, Maybach, Mini, Opel, Opel (South Africa), PAZ, Peugeot, Porsche, Renault, Rover, Rolls-Royce, SAAB, Seat, Skoda, Smart, Sprinter, UAZ, VAZ, Volvo, Volkswagen, Vauxhall, ZAZ
Note: Japanese cars compatible with JOBD protocol are not supported.

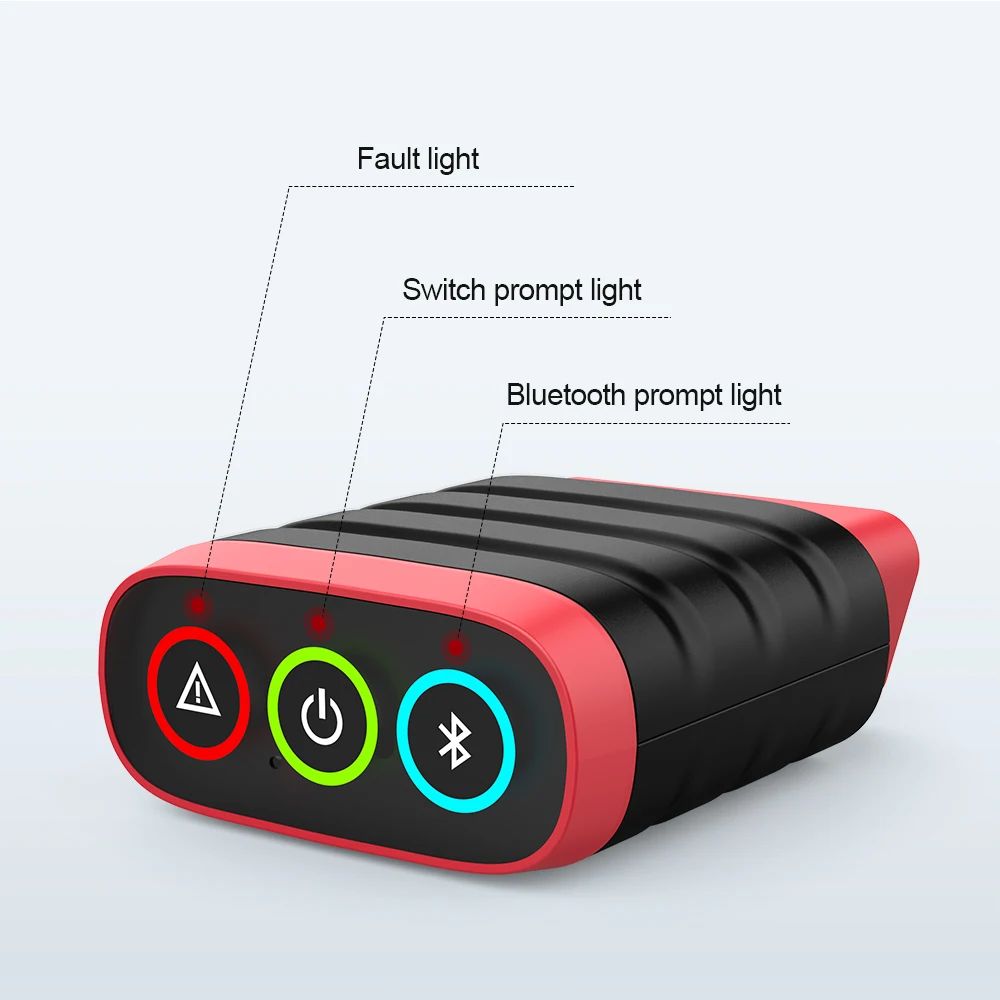

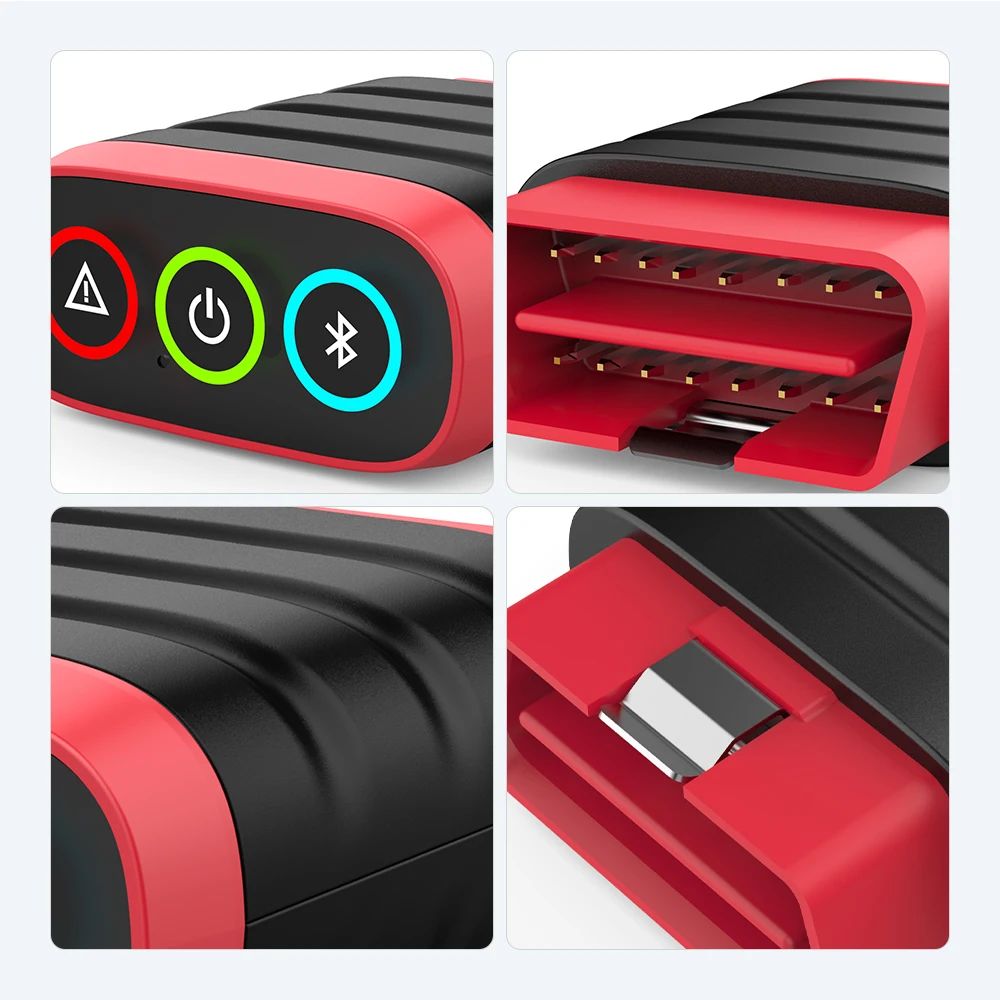

Tail Light Indicator Status
Green Light On: Device is powered on.
Blue Light On: Bluetooth is connected.
Blinking Blue Light: Bluetooth communication is active.
Red Light On: Product firmware needs to be updated and repaired.

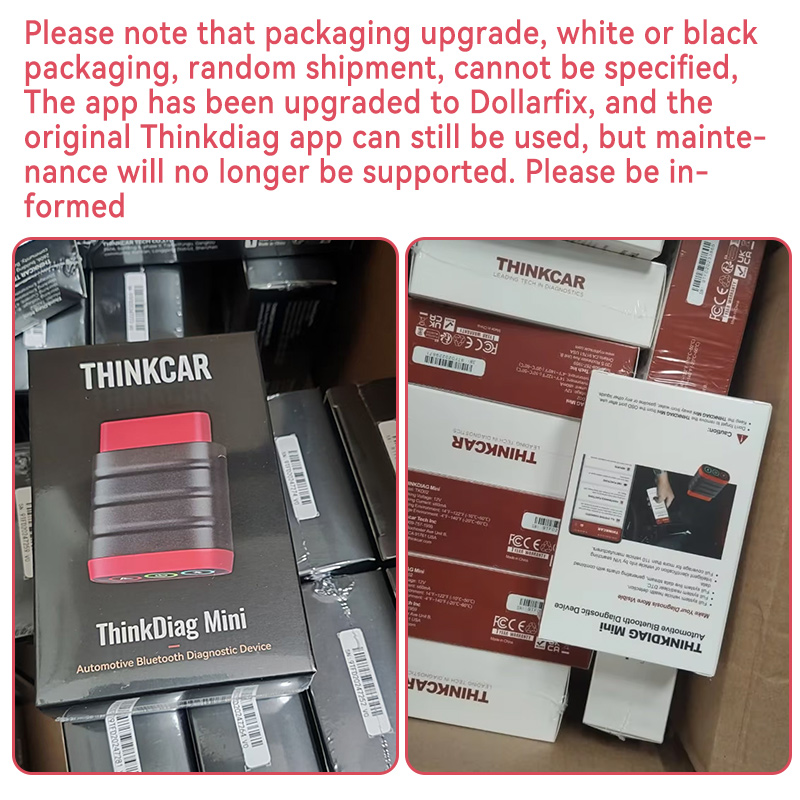

Package Contents
1 * Thinkdiag Mini OBD Connector
1 * User Manual
Technical Details & Protocol Specifications
THINKDIAG MINI
Full System Diagnostic Lifetime Free Update.
Supports All 10 Mode OBDII/EOBD Protocol Functions.
Compatible Protocols:
- ISO 14230-4 (KWP2000)
- ISO 15765-4 (CAN)
- ISO 9141-2 (ISO)
- ISO 14229 (UDS)
- SAE J1850 (VPW & PWM)
Frequently Asked Questions
Q: Does the diagnostics require a paid subscription?
No, the full system diagnostics and all 10 OBDII modes are lifetime free updates with no recurring subscription fees.
Q: Which mobile operating systems are compatible?
The scanner works with the THINKDIAG+ app on Android 5.0 and above (excluding Android 12) and iOS 9.0 and above.
Q: Are Japanese JOBD vehicles compatible?
No, Japanese cars running the JOBD protocol are not supported by the THINKDIAG MINI.
Q: How do I connect the scanner to my phone?
Plug the connector into the vehicle's OBD2 port, and connect via Bluetooth 4.2 using the THINKDIAG+ application on your mobile device.
Q: What does a steady red light mean on the scanner?
A steady red indicator light indicates that the product firmware needs to be updated and repaired through the application.
