Product Description

MOQ > 10 can be free shipping!

Standard OBD2 Protocol Support Only

This device can only support vehicles with the standard OBD2 protocol. Motorcycles and trucks are not supported.

ISO 14230-4 (KWP2000)
ISO 15765-4 (CAN)
ISO 9141-2 (ISO)
ISO 14229 (UDS)
SAEJ 1850 (VPW & PWM)

It is not compatible with Peugeot, Renault, Citroen and Ssangyong.

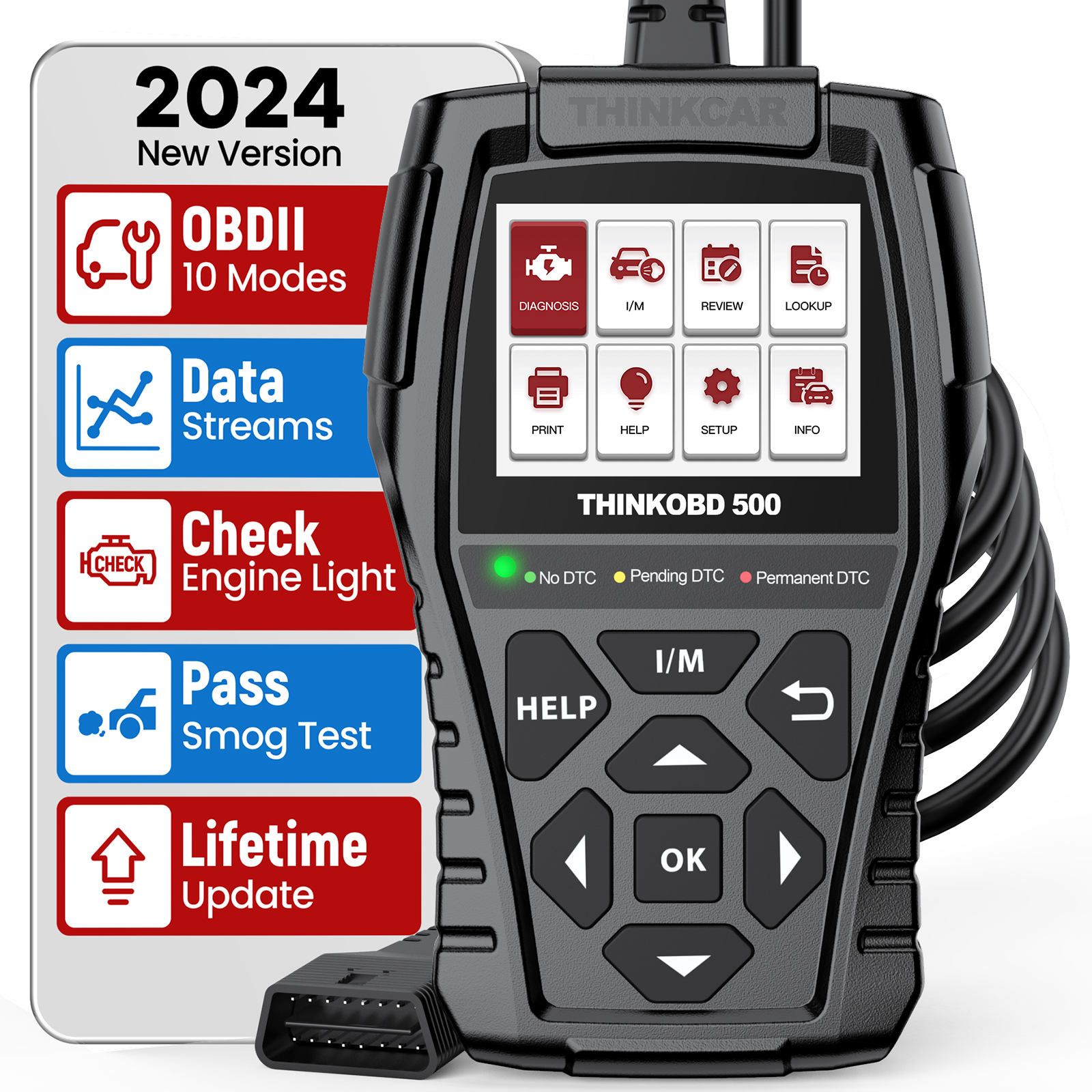

ThinkOBD 500 Screen Diagnostic Scan Tool

What Makes OBD500 Different?

1. In addition to the OBD2 functions, THINKOBD 500 car code reader is also designed with lots of additional functions, allowing DIY users to fix it on one’s own and enabling mechanics to greatly improve their work efficiency.

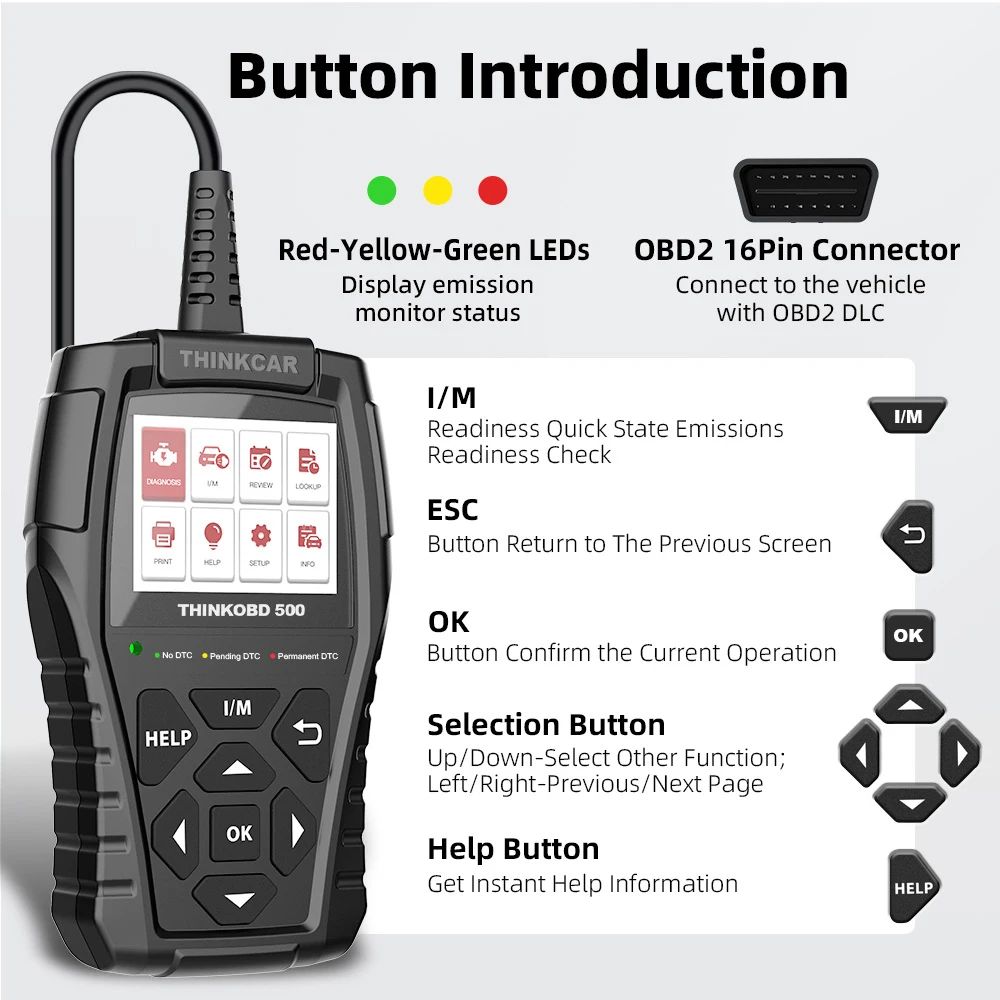

2. Expand Your Capability - HELP Shortcut Key

3. Provides quick access to the built-in Help Menus associated with the current DTC;

4. Offers you advanced DTCs query to identify the detailed meaning, causes, and tips of DTCs;

5. Enables you to fix the problem by yourself.

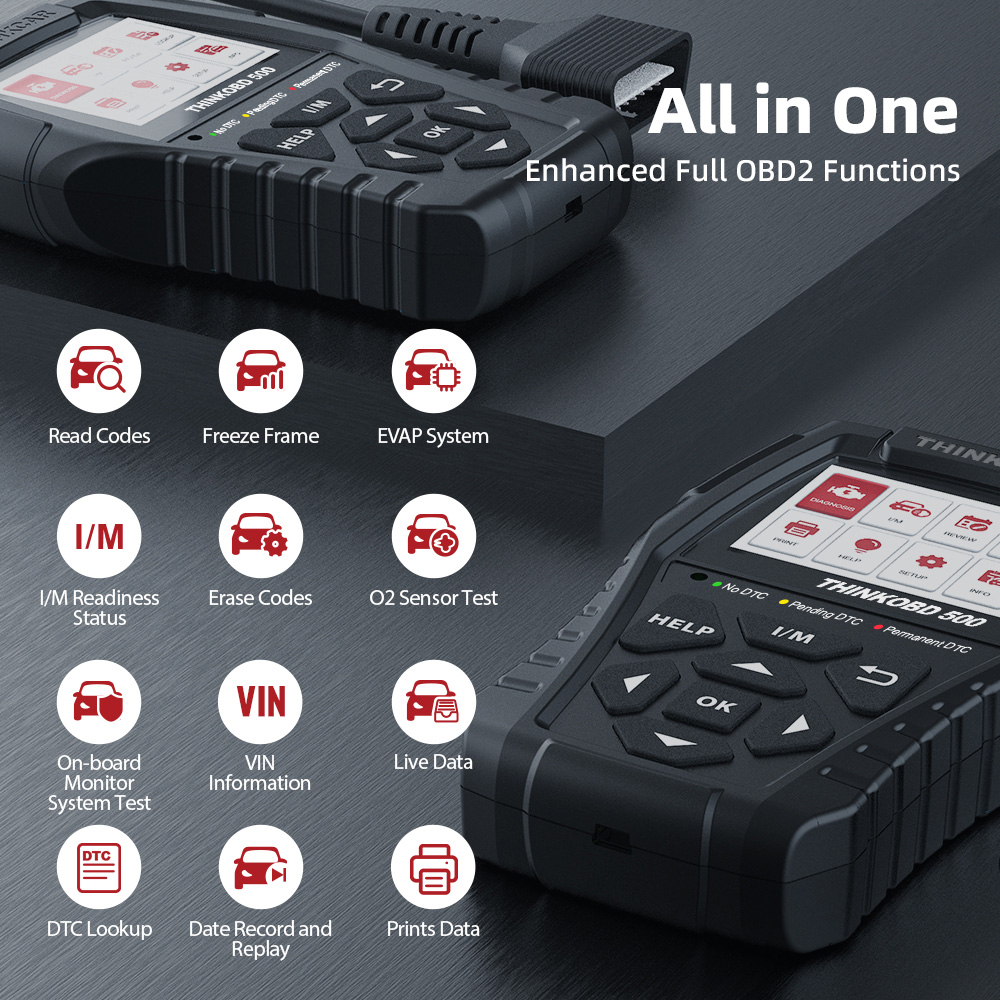

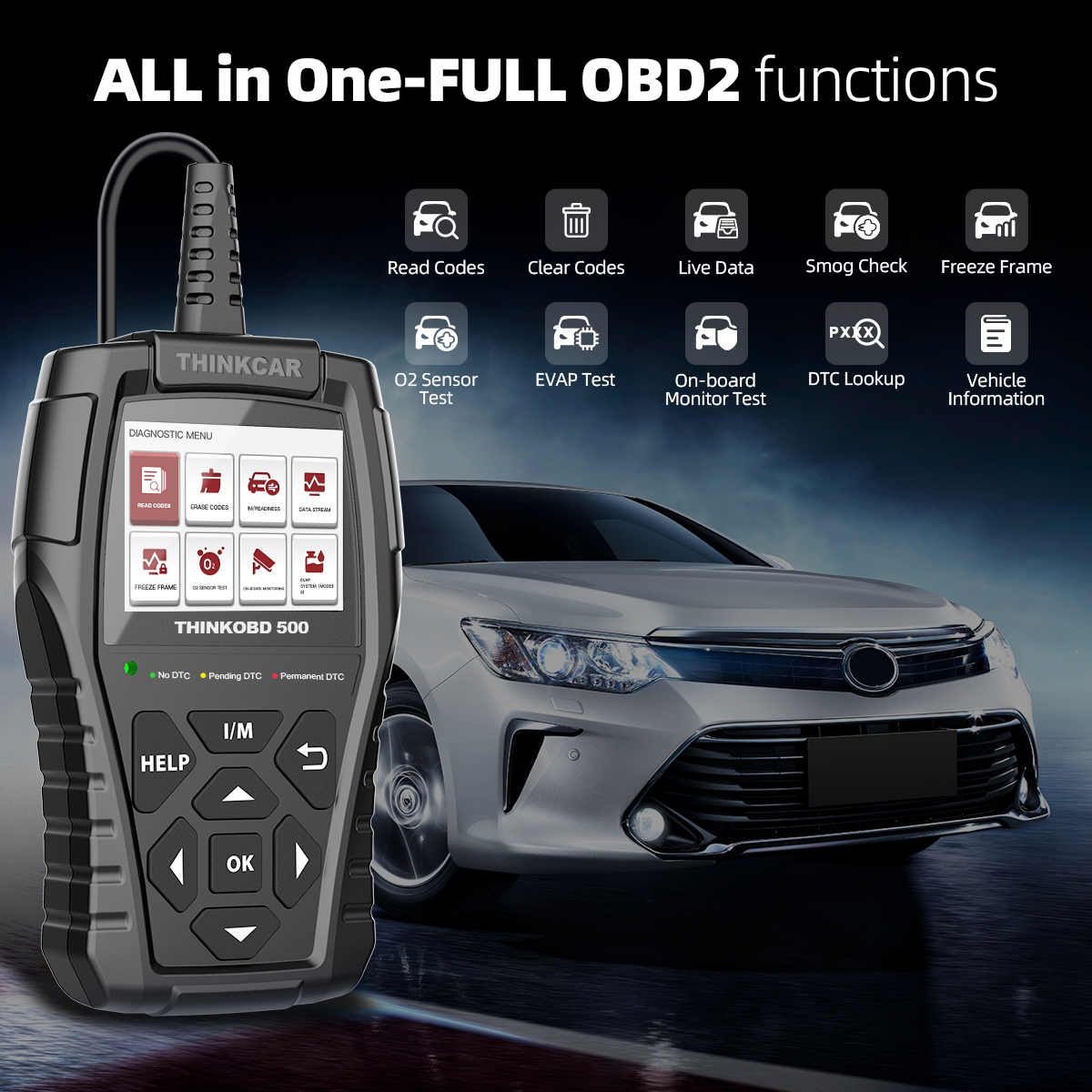

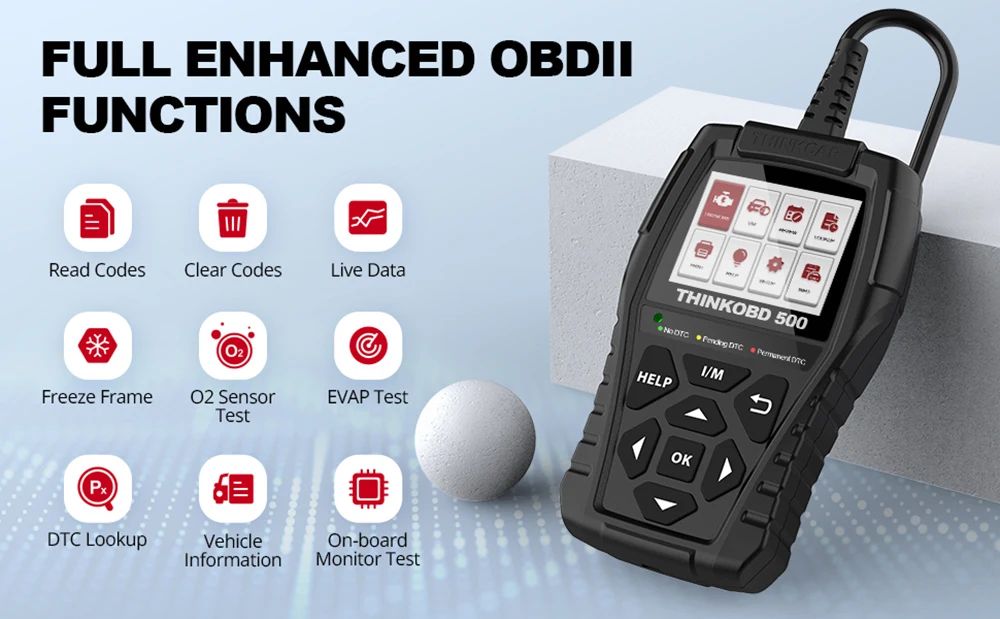

All Cars Full OBD2 Functions

Featuring 10 modes of OBD2 tests, ThinkOBD can be compatible with most OBDII protocol compliant cars to read and clear emission codes, show live data, O2 sensor test, On-Board monitor test, component test and view vehicle information etc.

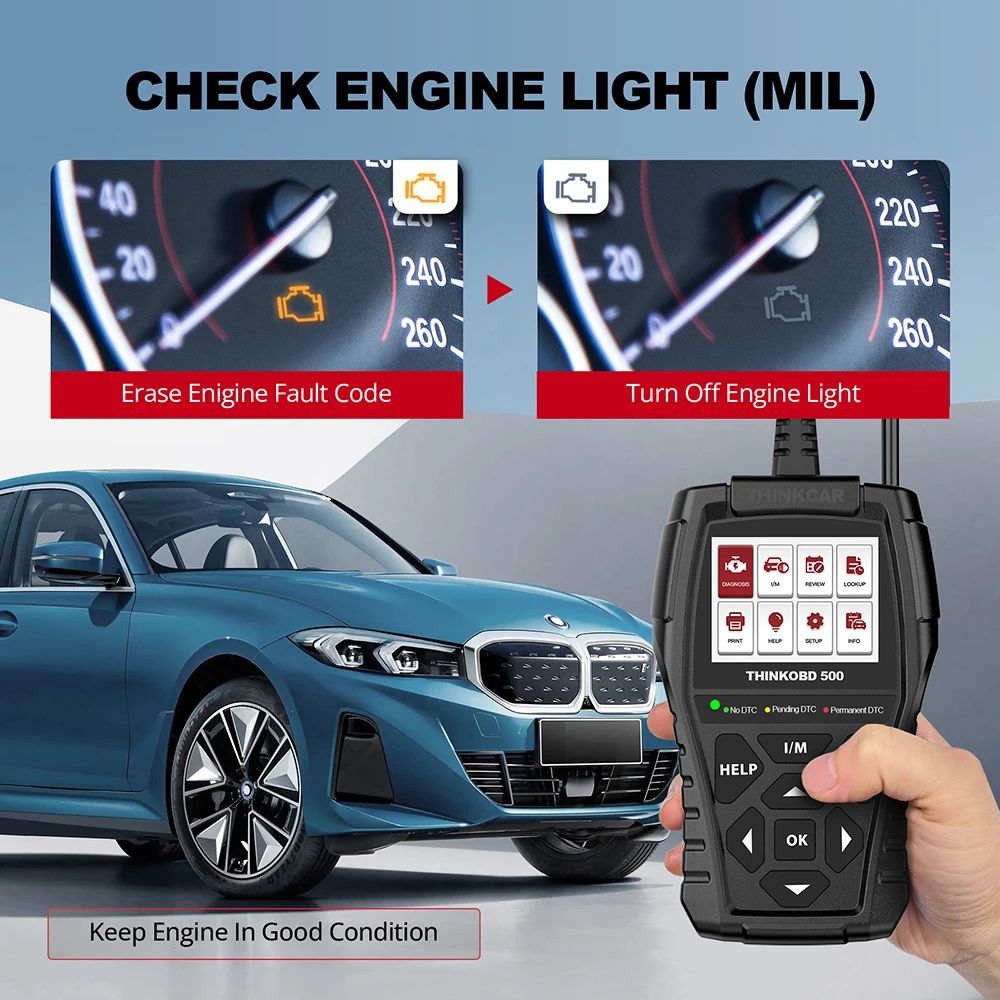

Turn off the Check Engine Light

THINKOBD enables you to clear the engine warning light, after completing the full obd2 diagnostics with ease. The main purpose of this tool is to:

Scan the engine systems;
Tell you about the nature of the issue;
Give an accurate reason why the check engine light is on;
Help to detect any potential problems;
Avoid excessive costs for unnecessary repairs.
Note: The warning light does not turn off till you fix the issue.

Pass Emission Test Smoothly

With this scan tool, you don't have to drive around endlessly, continuously coming back to the repair shop for the retest. You can do a quick check of the vehicle, to determine if it is ready to pass the emission test.

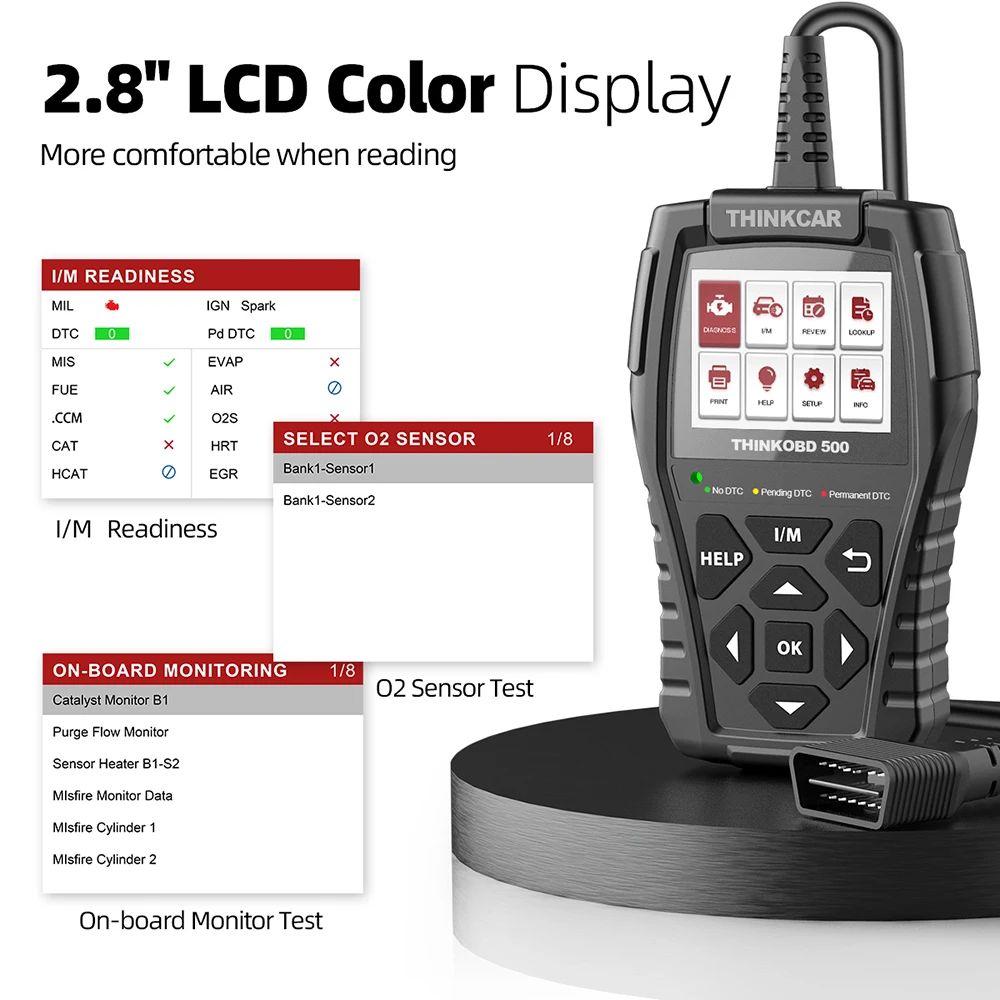

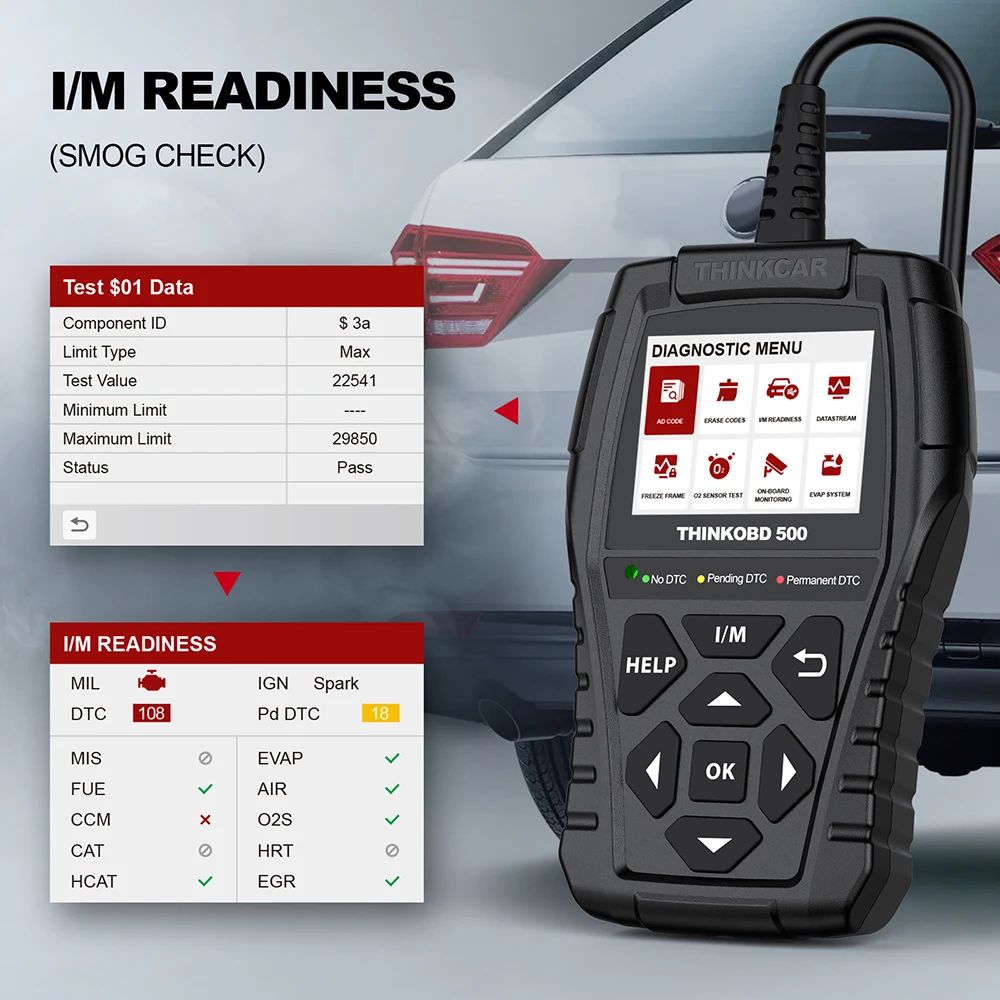

I/M Readiness

Check the readiness of the monitoring system. It is an excellent function to use prior to having a vehicle inspected for compliance to a state emissions program.

O2 Sensor Test

Retrieve O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.

On-Board Monitor

View the results of On-Board Monitor tests. The tests are useful after servicing or after erasing a vehicle’s control module memory.

Get Effective Diagnostic Result

Your repair work can be done in a short time by using THINKOBD as follows:

Vehicle Information: Display the vehicle identification number (VIN), the calibration identification (CIN), and the calibration verification number (CVN), and other information of the test vehicle.
EVAP Test: Mode $08 command tells your car to start a test of the “evaporative emission control system”, to prevent fuel from evaporating out of your tank and contributing to smog. By this way, you can verify your fix right away, without waiting a few days (or longer) for your car to run it automatically.
Freeze Frame Data: Snapshot the precise conditions of the car when a fault code triggers the check engine light, to help identify the problem.
Live Data Stream: Display the real time PID data from ECU (as analog inputs and outputs, digital inputs and outputs, and system status information broadcast on the vehicle data stream). The live data produced is accurate and tells you exactly what you require to know about your vehicle.

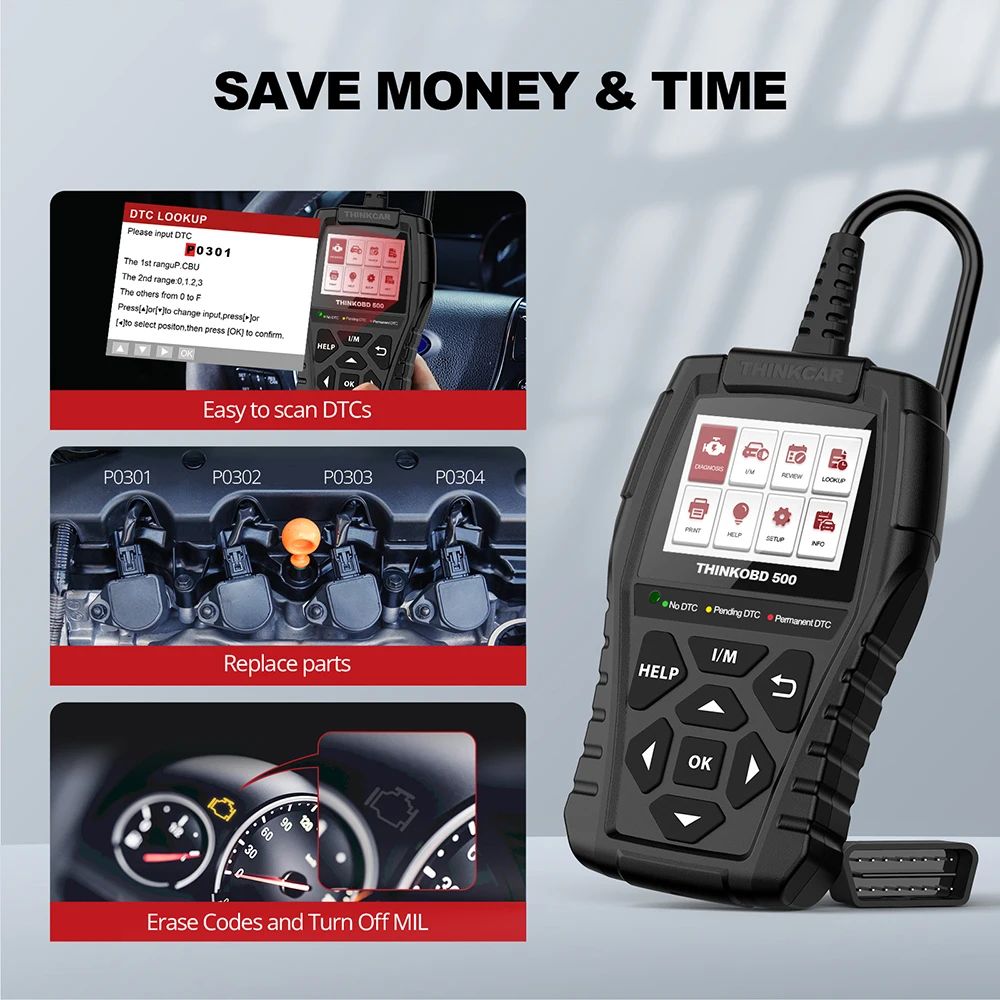

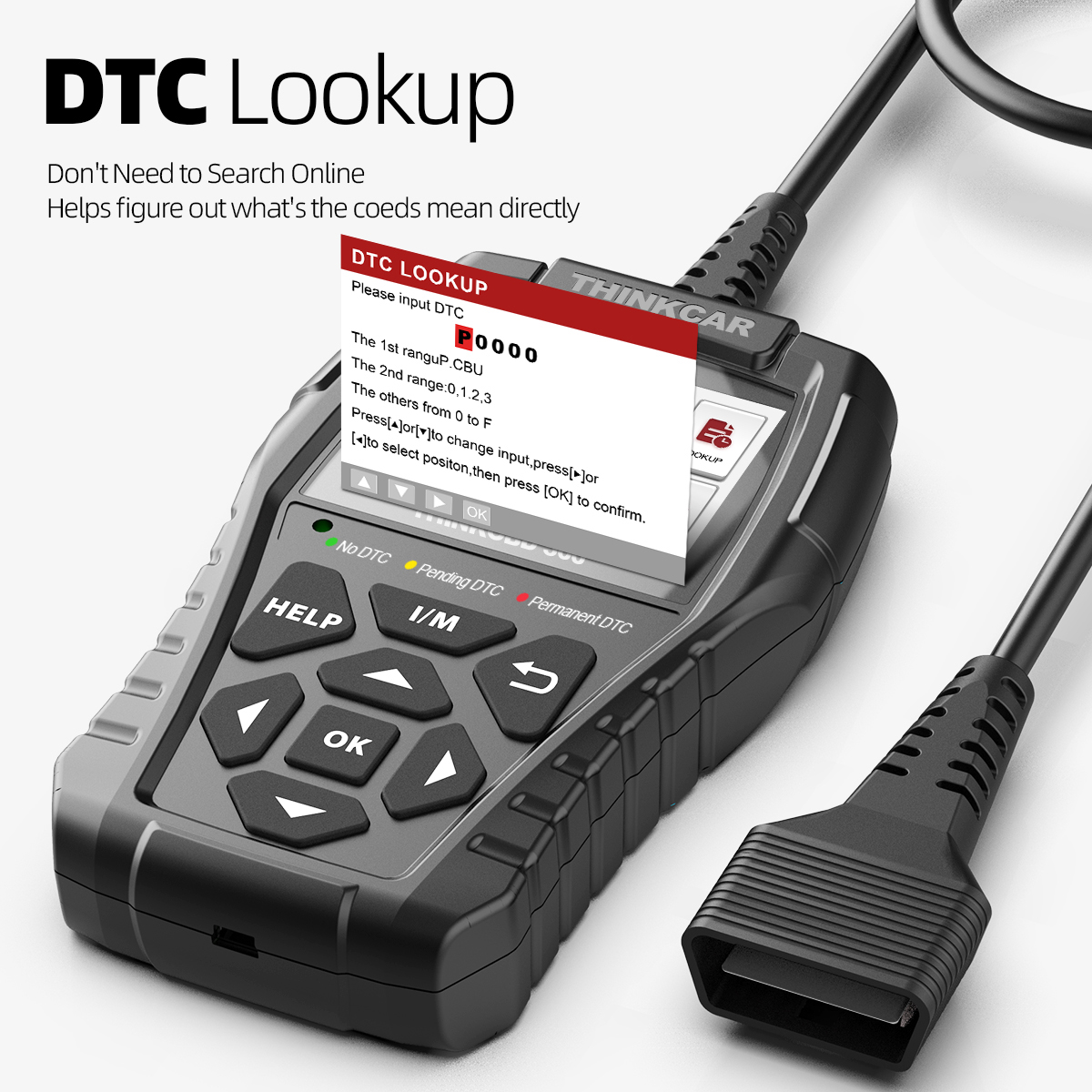

DTC lookup: Every code in THINKOBD comes with a description to aid technicians in efficient vehicle diagnostics and repair. This will save you the trouble of having to go online to look for the meaning of a diagnostic trouble code. And you can also simply click on the error code selected so as to get an in-depth definition.

Vehicle Compatibility

THINKCAR THINKOBD 500 OBD2 Scanner is compatible with 95% of all car models from the US, Europe, and Asia.

It is not compatible with Peugeot, Renault, Citroen and Ssangyong.

1. American Car List:

Support standard obd2 protocol and release year from 1996-now.

Such as: Chrysler, Ford, GM, Jeep, Lincoln, Buick, Cadillac, Chevrolet, Dodge, HM, ect...

2. European Car List:

Support standard obd2 protocol and release year from 2000-now.

Such as: Mercedes Benz, Smart, Sprinter, BMW, Volkswagen, Skoda, Audi, Opel, Lamborghini, Porsche, Maybach, Ford, Land Rover, Jaguar, Aston Martin, Bentley, Rolls-Royce, Rover, Mini, Vauxhall, DR, Ferrari, Fiat, Abarth, Lancia, Alfa Romeo, Maserati, Bugatti, Citroen, Saab, Volvo, GM, GMSA, Dacia, Seat, ect...

3. Asian Car List:

Support standard obd2 protocol and release year from 2008-now.

Such as: Thailand Isuzu, Acura, Daewoo, Infiniti, Proton, Honda, Mazda, Mahindra (MAHINDRA), Isuzu, Suzuki, Toyota, Nissan, Kia, Daihatsu, Lexus, Mitsubishi, Hyundai etc.

Japanese cars compatible with JOBD protocol are not supported.

Supports 8 Languages

English, French, Spanish, German, Russian, Italian, Portuguese, and Polish.

Note: If you receive no Polish or Italian please update the software on mythinkcar.com

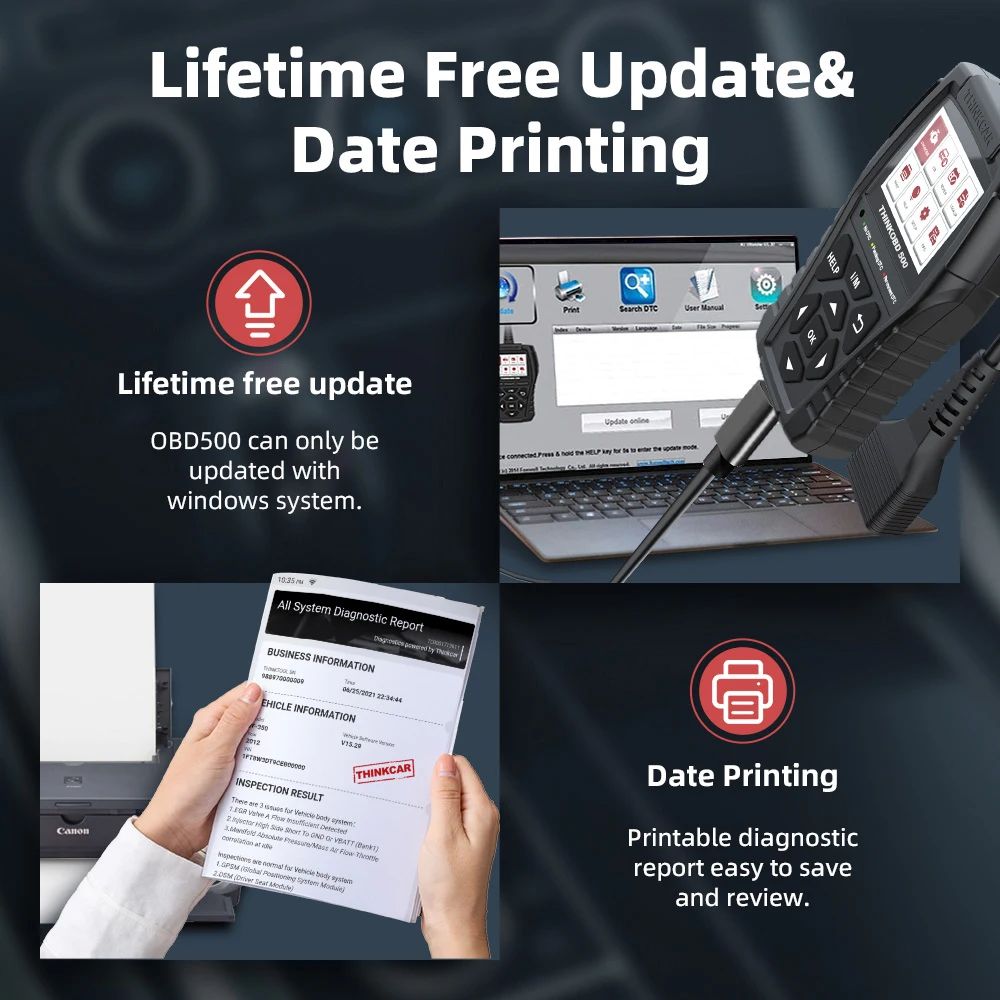

Lifetime Free Update, Report & Print

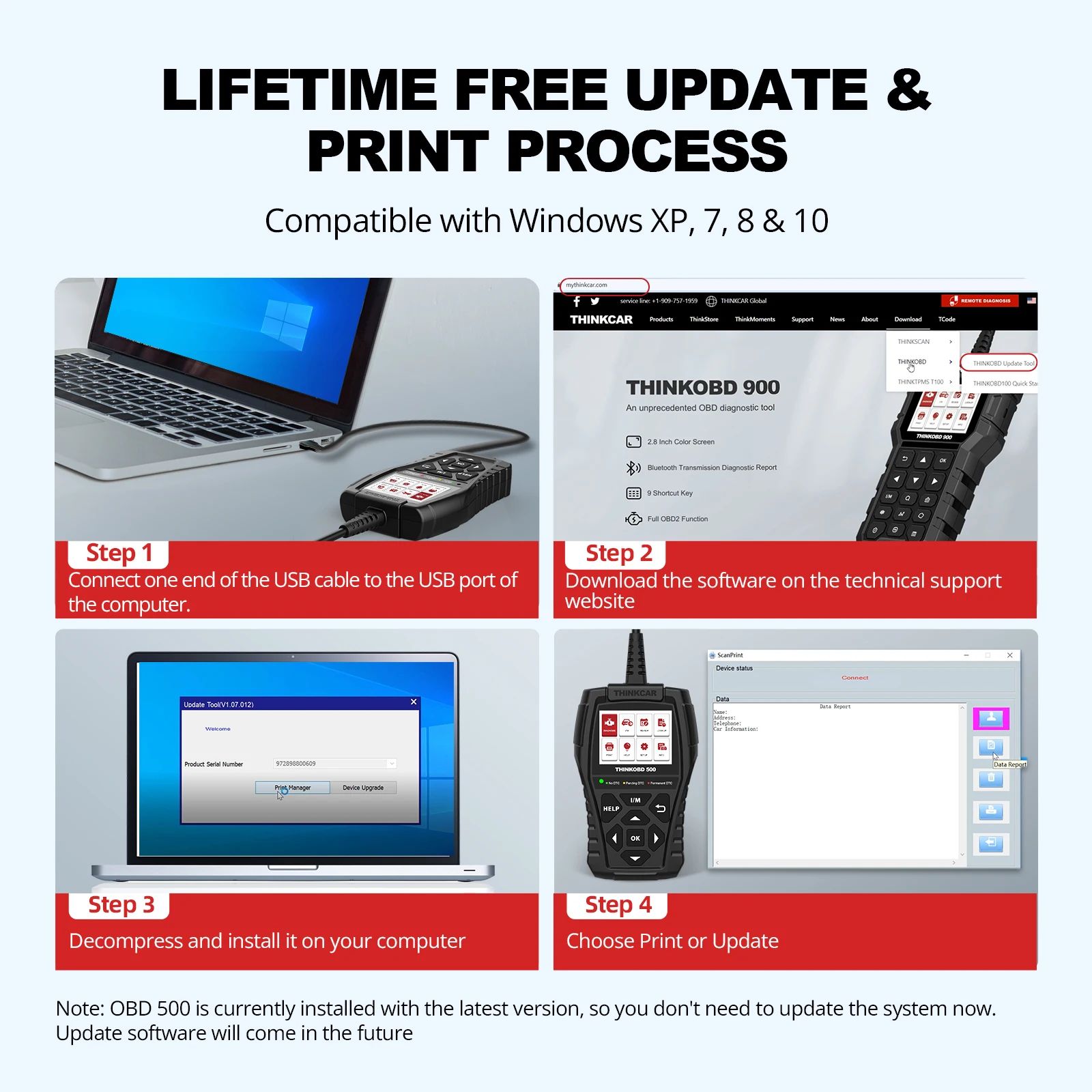

The ThinkOBD 500 automotive scanner supports connecting to a PC. Download and run the Update Tool, and select and print the data or update. It is easy to operate by following the setup steps. (Note: Only supports Windows, not compatible with Mac).

Note: Update for Windows XP/7/8/10 ONLY; not compatible with Windows 11 or above.

With lifetime warranty, from the date of purchasing, if the product has failed, it is unconditionally replaced with a new one.

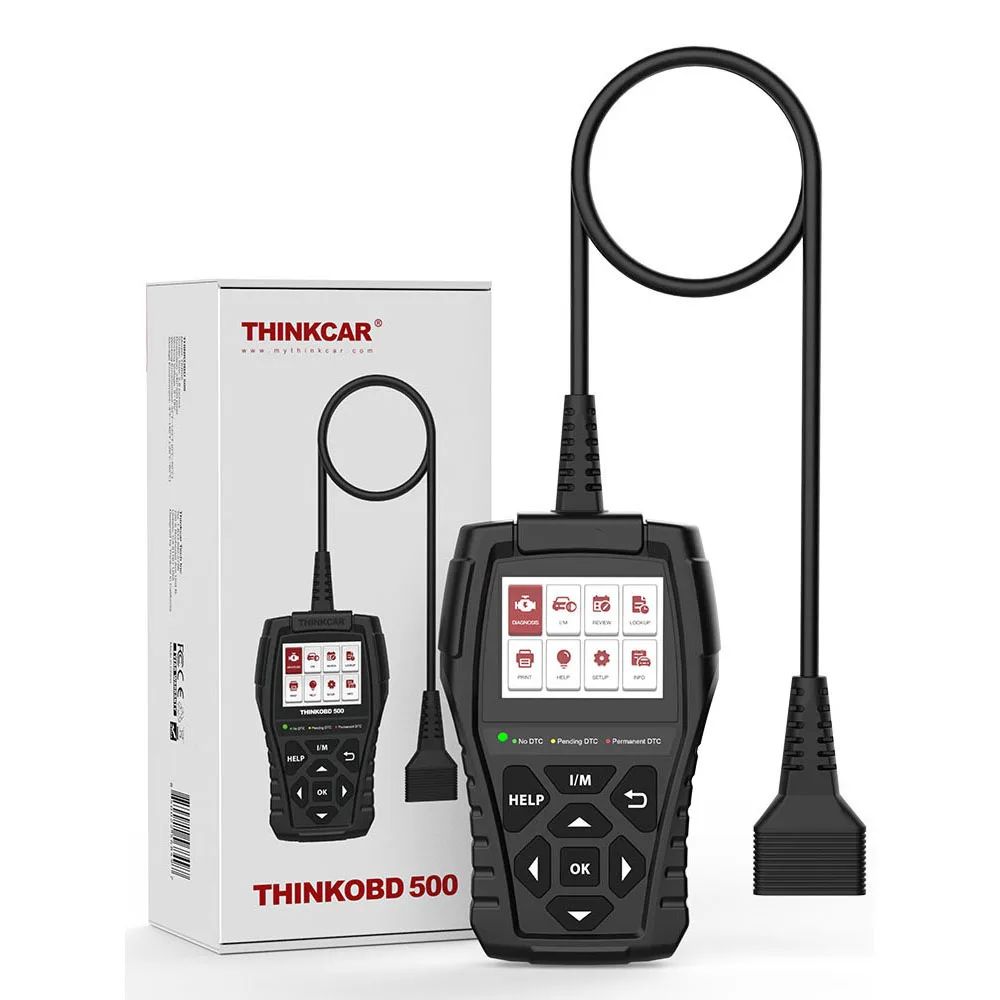

Packing List

1 * Thinkobd 500
1 * Date Cable
1 * Quick Start Guide

THINKOBD 500 Car OBD2 Scanner This scanner supports OBD2 and EOBD protocol cars. Not support JOBD protocol. OBD2 Protocol: ISO 14230-4(KWP2000) ISO 15765-4(CAN) ISO 9141-2(iso) ISO 14229(uds) SAEJ 1850(VPW&PWM)

Frequently Asked Questions

Does the THINKOBD 500 support my vehicle?

THINKOBD 500 is compatible with 95% of all car models from the US (since 1996), Europe (since 2000), and Asia (since 2008) that support standard OBD2 protocol. Note that motorcycles, trucks, and Japanese cars compatible with the JOBD protocol are not supported. Additionally, it is not compatible with Peugeot, Renault, Citroen, and Ssangyong.

What OBD2 protocols are compatible with this scanner?

This scanner supports standard OBD2 and EOBD protocols, including ISO 14230-4 (KWP2000), ISO 15765-4 (CAN), ISO 9141-2 (ISO), ISO 14229 (UDS), and SAEJ 1850 (VPW & PWM).

How many languages are supported by the system?

It supports 8 languages: English, French, Spanish, German, Russian, Italian, Portuguese, and Polish. If you do not see Polish or Italian on your device, you can get them by updating the software on mythinkcar.com.

How do I update the THINKOBD 500 scanner?

To update the scanner, connect it to a PC. Download and run the Update Tool to select, print data, or update. Note that the update tool is only compatible with Windows XP/7/8/10, and not compatible with Windows 11 or macOS.

What warranty is provided with the product?

The THINKOBD 500 comes with a lifetime warranty. From the date of purchase, if the product fails, it will be unconditionally replaced with a new unit.
