Professional Ca &EV Smart Diagnostic Tool XTOOL D9EV New Energy Vehicle Scanner for Tesla Battery Pack Detection ECU Coding Immo
1 / 5
Professional Ca &EV Smart Diagnostic Tool XTOOL D9EV New Energy Vehicle Scanner for Tesla Battery Pack Detection ECU Coding Immo
When you replace or initialize a new/used module for Ford, Lincoln, or Mazda, XTOOL D9 EV allows you to copy the data from the original module and install it to the new unit to finish the module replacement.
ECU Coding
Comes with advanced Coding capabilities to customize car settings through flashing hidden functions, disabling annoying functions, and reprogramming adaptive data for replaced components to enhance vehicle performance.
Intelligent Full System Diagnostics & Topology Mapping
OE-level full diagnostic scanner covering systems like engine, TCM, SRS, ABS, TPMS, BCM, Body, AC, and more. Perform active tests, read/clear codes, and view live data. Color-coded topology display graphs all systems on one page to easily identify fault locations.
Smart AutoVin & Auto Scan + Dual Connections
Supports BT wireless connection (up to 33 feet / 10 meters) and wired connection. AutoVin reads the vehicle identification number automatically, and Auto Scan performs a comprehensive check of all modules to save troubleshooting time.
Key Support & Coverage:
Commonly-Used 43+ Services: Designed for workshops and garages. Includes Oil Reset, EPB, SAS, DPF, Throttle Relearn, Injector Coding, IMMO, ABS Bleeding, TPMS Reset, BMS Reset, etc.
Bi-Directional Control / Active Tests: Send commands directly to onboard computers to test systems like A/C Clutch, Injectors, ABS Pump Motor, windows, doors, and sunroof without using vehicle controls.
Protocol Support: Compatible with DoIP and CAN FD protocols for advanced, high-speed vehicle communication.
Hardware Configuration: 9.7-inch screen based on Android 10, displays 15 data streams simultaneously. Powered by a 1.8GHz 4-core processor, 2GB RAM, 128GB ROM, and a 10000mAh battery (up to 12+ hours working time).
OE-Level Full Diagnostics
The XTOOL D9 EV automotive diagnostic computer is capable of in-depth OE-level diagnostics that were previously available to dealer tools only. It accesses and scans all available vehicle modules—including ABS, SRS (Airbag), TCM, PCM, BCM, IMMO, Chassis, Suspension, parking brake system, HVAC, lighting, and Radio systems—to pinpoint faults, clear codes, turn off warning lights, and reset monitors.
Read & clear codes, show DTC definitions, turn off Check Engine Light (MIL), ABS/Airbag/Transmission warning lights, and reset monitors.
Show 8 live data streams in 1 text or graph (misfire data, engine RPM, transmission oil temperature, mass airflow sensor data, fuel trim, fuel pressure, cylinder balance rates).
Retrieve freeze frame data to inspect parameters at the exact moment a DTC is recorded.
Perform active tests such as EVAP test, idle relearn, injector test, ABS motor pump cycling, and window/door/sunroof/wiper tests.
Intelligent Topology Mapping (App V4.25.4_6.36+)
• Color-coded module status for faster full-system diagnostic results.
• View the system communication structure and relationship between modules clearly.
• One-click display of the fault code to enter the system function directly.
Note: Topology Map is suitable for GM, Chrysler, Jeep, Dodge, Ford, Toyota, Nissan, Honda, BMW, Benz, Hyundai, Mazda (more coming soon). It is not compatible with all makes. Please verify compatibility before purchase.
Battery Pack Diagnostic for New Energy Vehicles
Electric vehicles (EVs) require a completely different diagnostic approach compared to traditional internal combustion engine (ICE) cars. Rather than being scattered across mechanical systems, EV issues are heavily concentrated in the electronic control systems and high-voltage battery packs. Traditional diagnostic scanners lack the capability to read EV high-voltage systems, trace battery pack module details, or isolate faults in motor controls.
To bridge this gap, the XTOOL D9 EV package comes equipped with specialized adapters to support high-voltage diagnosis and intensive battery pack analysis. It displays:
Total VoltageMax Voltage & Module LocationsMin Voltage & Module LocationsVoltage Difference of Each BatteryProbe Temperature
Provides a one-stop source of battery information, including battery brand, module locations, system block diagrams, component introductions, connection ports, and socket diagrams.
43+ Service Functions & Diagnostics
Oil Reset: Reset the engine oil life system for a new countdown.
EPB Reset: Safely maintain electronic braking systems by resetting brake pads.
SAS Calibration: Calibrate the Steering Angle Sensor and erase fault memories.
BMS Reset: Register newly replaced batteries into the car's ECU.
Gearbox Match: Adjust adaptive shifting points after replacement.
ABS Bleed: Bleed the brake system air to restore firm pedal feel.
Key Programming: Program keys, disable lost keys, and perform remote learning.
Injector Coding: Code replacement injectors to ensure accurate fuel injection.
Other Special Functions: Throttle Relearn, Suspension Calibration, TPMS Reset, ABS Initialization, Seat Calibration, Zero Point Calibration, Window/Door/Sunroof matching, Headlight Adjustment, Airbag Reset (clear crash data), Idle Relearn, Power Balance, Transport Mode, Tire Upgrade, Tooth Learning, VGT Turbo Calibration, Fuel Trim Reset, Fuel Alcohol Composition Reset, Air/Fuel Reset, Start/Stop Reset, and more.
Note: Special functions vary depending on vehicle make, model, and year. Please provide your VIN for a compatibility check.
Out-of-Vehicle Detection Modules
Compressor Detection
Supports off-vehicle drive test for repaired compressor modules. Simply connect power according to the compressor nameplate, link the VCI using the jumper diagram, and initiate a one-key start to verify repair success.
OBC Detection
Drive the OBC module off-vehicle. Connect the M812 box and VCI in series, connect the OBC according to the jumper layout, plug in the AC power/load, and verify operation with one key.
DCDC Detection
Drive and test DCDC modules independently of the vehicle. Once wired to the VCI following the provided diagram, run an instant start test.
48V Motor Detection
Drive Audi's 48V motor modules off-vehicle. Simply connect the power supply, wire up to the VCI with the jumper diagram, and use the one-key start function.

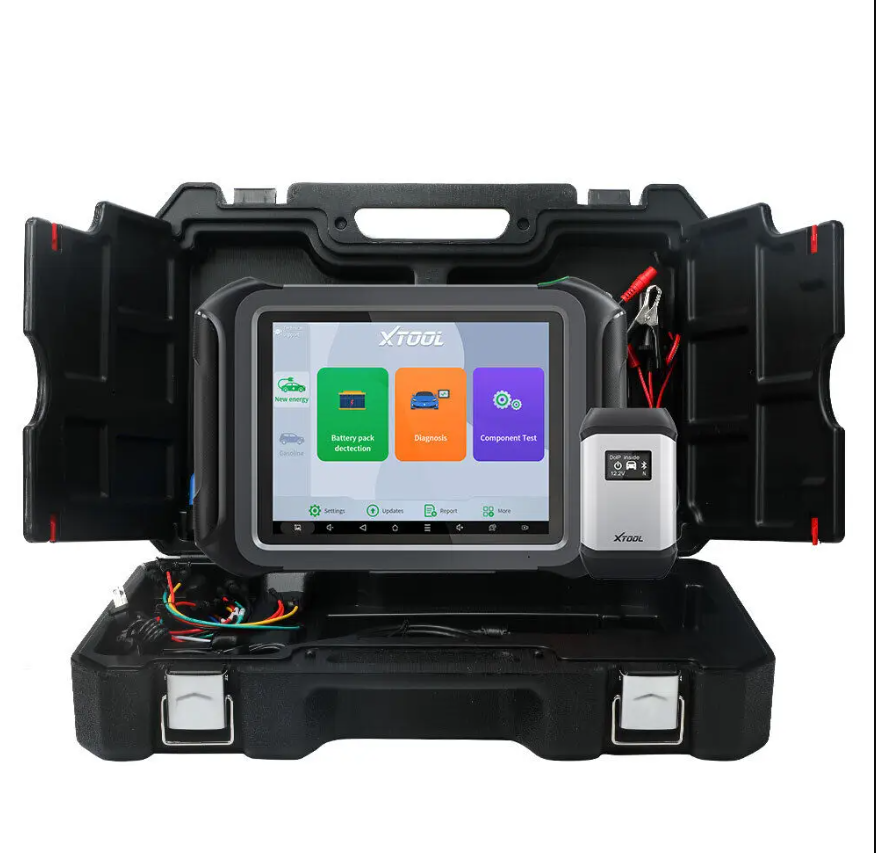

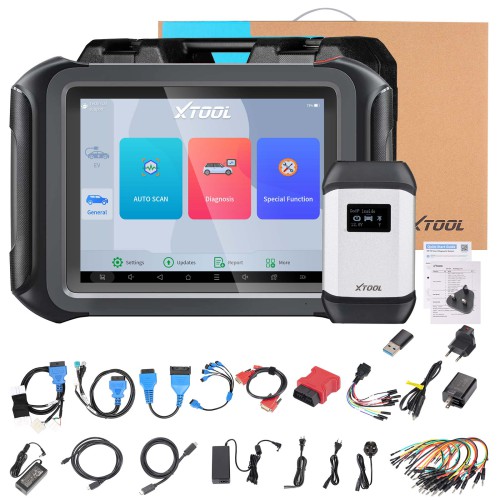

D9EV Main Unit, VCI Box, Charger DC 12V-3A, DB15 to OBD2-16 Main Cable, USB3.0 to Type_B Main Cable, USB3.0 Data Cable, Tesla Battery Pack Adapter J1E04, Tesla Adapter 1-L1E02, Tesla Adapter 2-L1E03, Universal Jumper Cables, Battery Clamp Wire, Cigar Lighter Cable, Quick Guide, Tool Case.
Specification
Item
Value
Type
Engine Analyzer / EV Diagnostics
Voltage
12V
Power
24W
Applicable Models
Compatible with most electric and gasoline vehicles
Combination
New Energy Diagnostic Scanner
Brand Name
Xtool
Model Number
XTOOL D9EV
Warranty
1 Year
Language
Multi-language support
Update
Two Years Free Update Online
Weight
7.5kg
Packing & Delivery
The product is securely packed in high-quality cartons to ensure safe delivery and protect the electronic components during transit.
Frequently Asked Questions (FAQ)
What makes the XTOOL D9 EV different from traditional scanners?
Unlike traditional scanners that cannot access high-voltage electric vehicle (EV) systems, the D9 EV is specially designed to diagnose both battery packs and electronic motor control systems, in addition to standard ICE vehicles.
Does the D9 EV support ECU Coding and PMI?
Yes, it features advanced ECU Coding to customize vehicle settings and disable unwanted functions, as well as Programmable Module Installation (PMI) for Ford, Lincoln, and Mazda to copy data to new modules.
Can I test components off-vehicle with the D9 EV?
Yes, the D9 EV supports independent, off-vehicle drive tests for repaired components including compressors, OBC, DCDC systems, and Audi 48V motor modules without needing to reinstall them.
Is the Topology Mapping compatible with all car makes?
Topology Mapping is compatible with major manufacturers including GM, Chrysler, Jeep, Dodge, Ford, Toyota, Nissan, Honda, BMW, Benz, Hyundai, and Mazda, with more brands being added via updates.
How do I change or add extra languages on my device?
The D9 EV supports 14 languages. To authorize a new language, simply provide the Serial Number (S/N) of your device, and you will be able to switch languages freely.
What protocol standards are supported by the diagnostic tool?
The XTOOL D9 EV supports the latest DOIP and CAN FD protocol standards, enabling fast communication and data transfer with modern luxury and electric vehicle networks.
