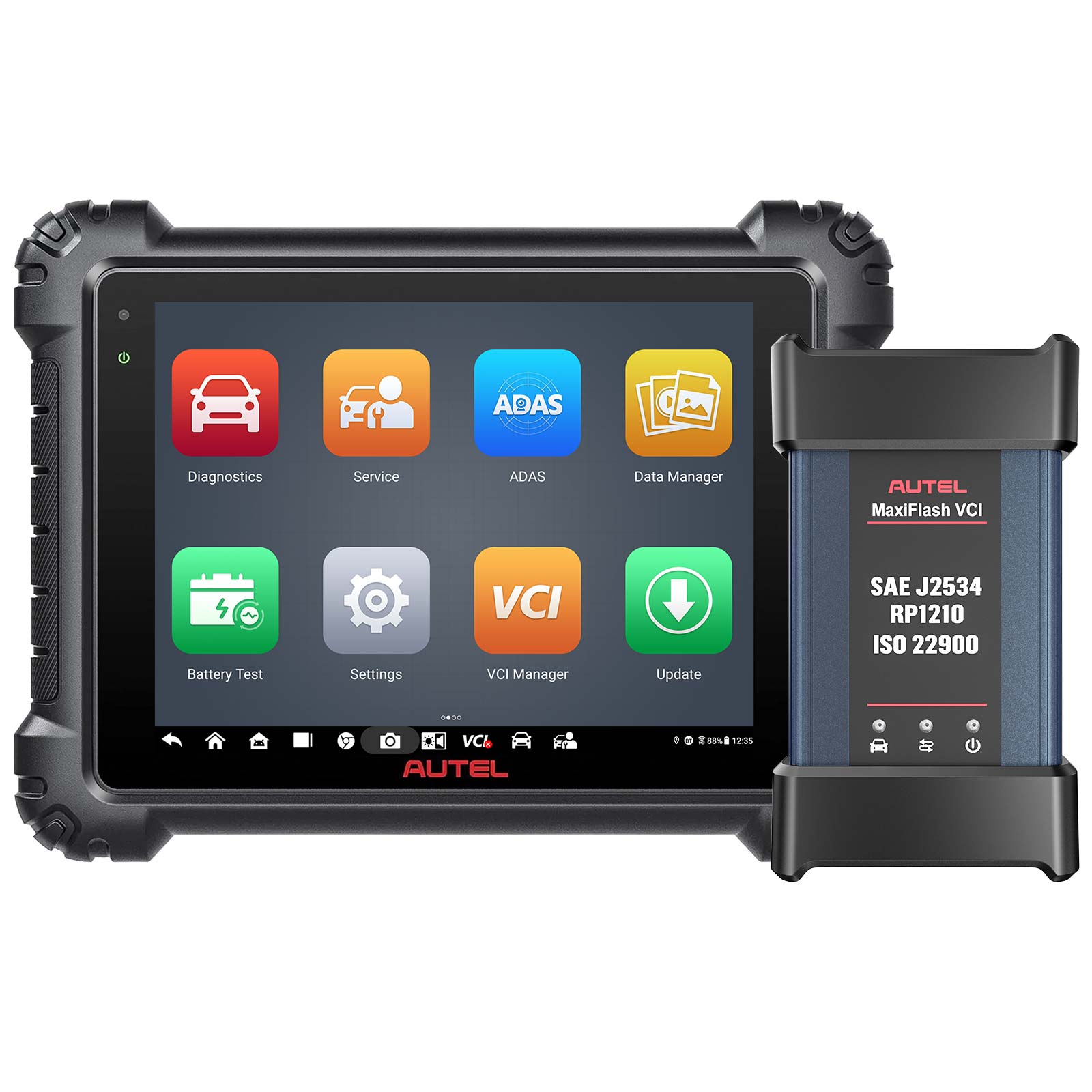

Autel Maxisys MS909 Advanced Smart Diagnostic Tablet All-In-One Scanner Full System Diagnostic Tablet With MaxiFlash VCI

Autel MaxiSys MS909 is an advanced diagnostic & analysis system based around a tablet and a VCI. It not only displays the relevant repairs gathered from experienced industry experts but also provides step-by-step guidance to ensure the repair is carried correctly and efficiently.

100% Original Autel Maxisys MS909 Full System Diagnostic Tablet With MaxiFlash VCI

Highlights

1

One Year Free Update Online.

2

Newly Upgraded Brand Tool with Powerful Hardware and Software.

3

Worldwide Vehicle Coverage: Support more than 80 US Domestic, Asian and European vehicles, including supercar.

Description

Autel MaxiSys MS909 features a 10-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 128GB built-in memory to provide diagnostic guidance and test components to confirm repairs. The MS909 features the new MaxiFlash VCI, a combination VCI and vehicle communication tool providing faster dual Wi-Fi vehicle and network communications. The MS909 features front and rear cameras and a rechargeable Lithium battery providing 8 hours of continuous use to ensure you always have the power to scan.

Autel Maxisys MS909 Advanced Smart Diagnostic Tablet All-In-One Scanner Full System Diagnostic Tablet With MaxiFlash VCI

Features

1

New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN

2

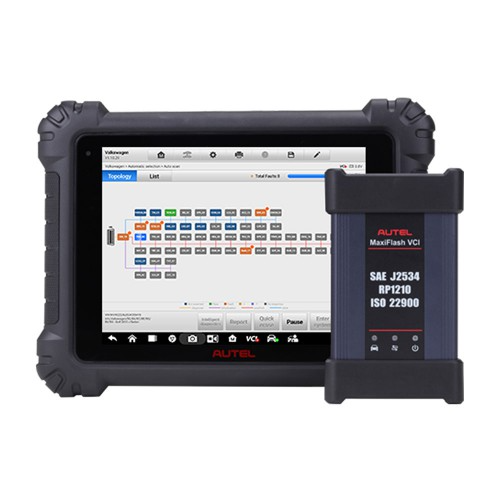

Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)

3

Relevant Cases: DTC Troubleshooting / Repair Tips Video Library

4

Repair Assist: Guided Procedures with DTC Analysis & Fault Code Solutions

5

Code-Related Technical Service Bulletins (on select vehicles)

6

License Plate Reader

7

ScanVIN: Barcode or Text Recognition with Camera

8

Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account (sold separately)

9

Enhanced Diagnostic Reports: PreSCAN & PostSCAN

10

Updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar

11

Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming

12

Automatic system and software updates with real-time push message notifications via internet

13

Interactive Data Logging sessions enable direct contact with Support for first-hand troubleshooting of diagnostic bugs and error

14

One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized

15

Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

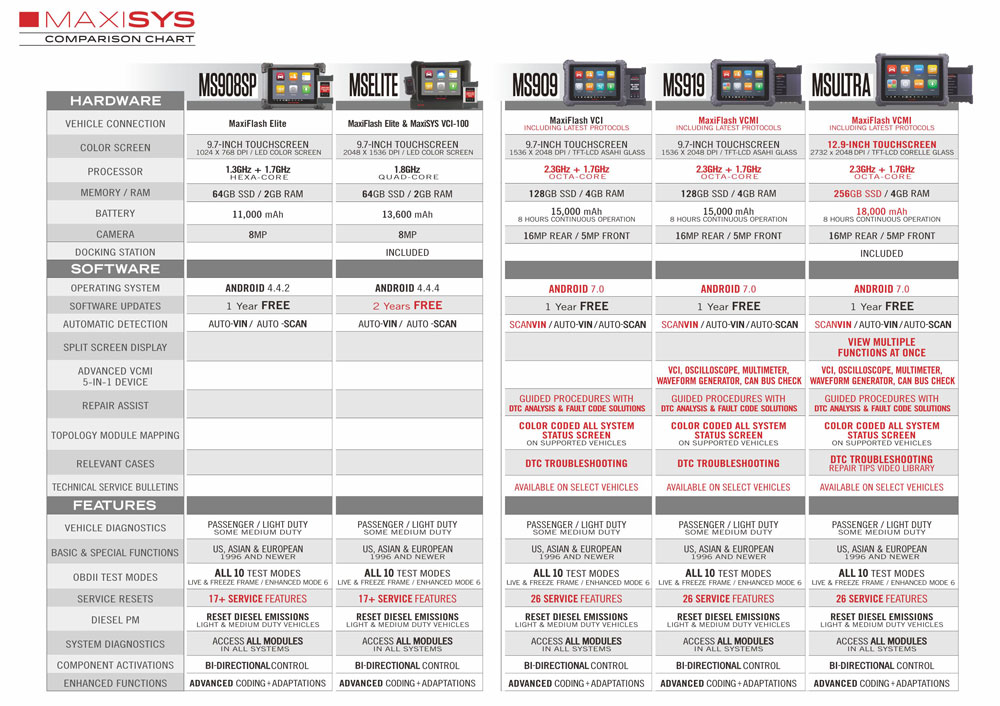

Comparison Table for Autel MaxiSYS Series

Advantages for MS909 in Summary

1

With More Memory: 128GB Memory

2

With MaxiFlash VCI Interface: With The Updated J2534 VCI Compatible with DoIP, MEGACAN, and more!

3

Topology M Module Listing Organizes and Displays Modules by Communication Network

4

With Faster processor

5

Does not Include a Docking Station

6

Does not Include Early OBD-II Adapters!

7

Android 7.0

Product Display

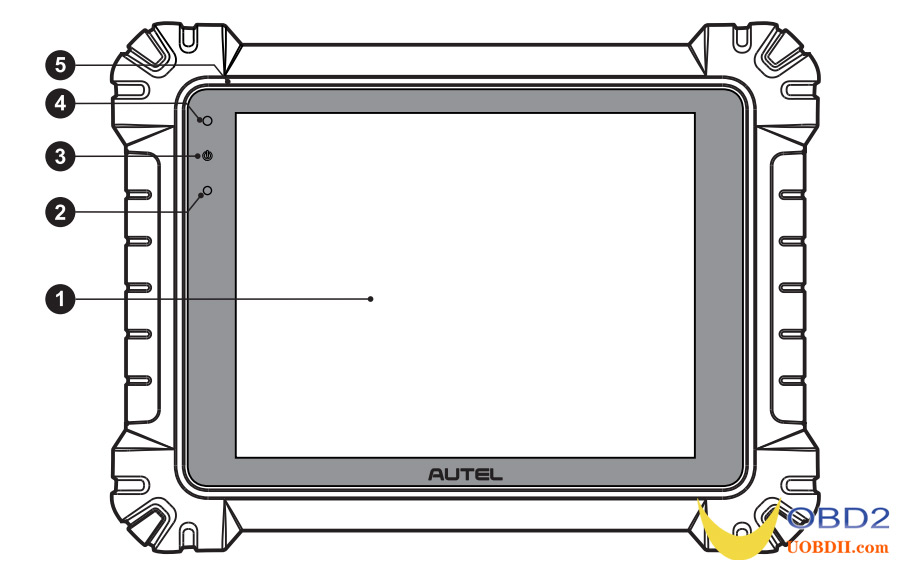

Autel MaxiSys MS909 Display Details

1

9.7" TFT-LCD Capacitive Touch Screen

2

Ambient Light Sensor – detects ambient brightness

3

Power LED - refer to Power LED Description for details

4

Front Camera

5

Built-in Microphone

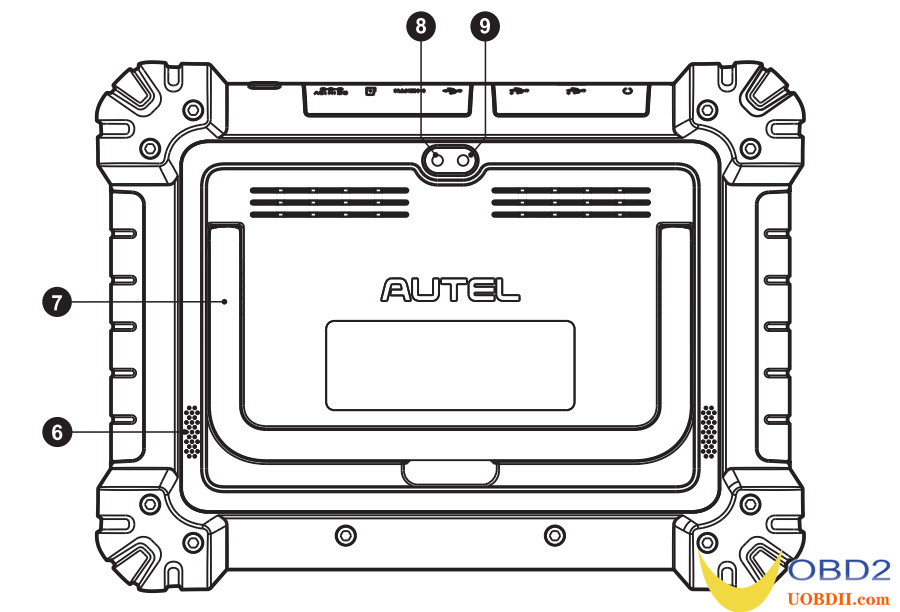

6

Speaker

7

Collapsible Stand – extends from the back to allow hands-free viewing of the tablet

8

Rear Camera

9

Camera Flash

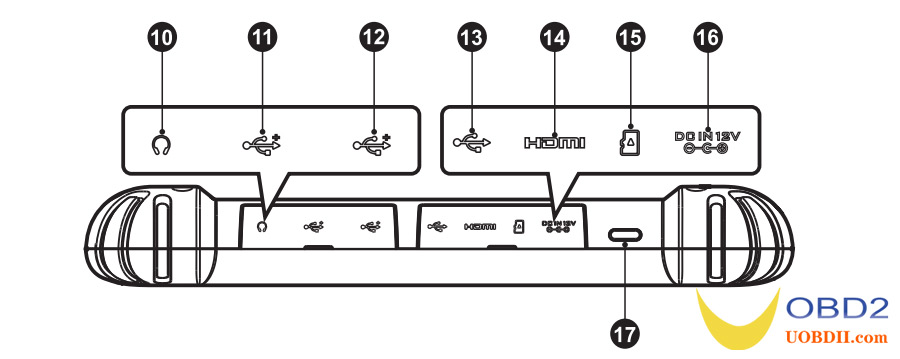

10

Head Phone Jack

11

USB Port

12

USB Port

13

Mini USB Port - cannot be used with the USB Port simultaneously

14

HDMI (High-Definition Multimedia Interface) Port

15

Micro SD Card Slot

16

DC Power Supply Input Port

17

Lock/Power Button – long press to turn on and off the Display Tablet, or tap the power button to lock the screen

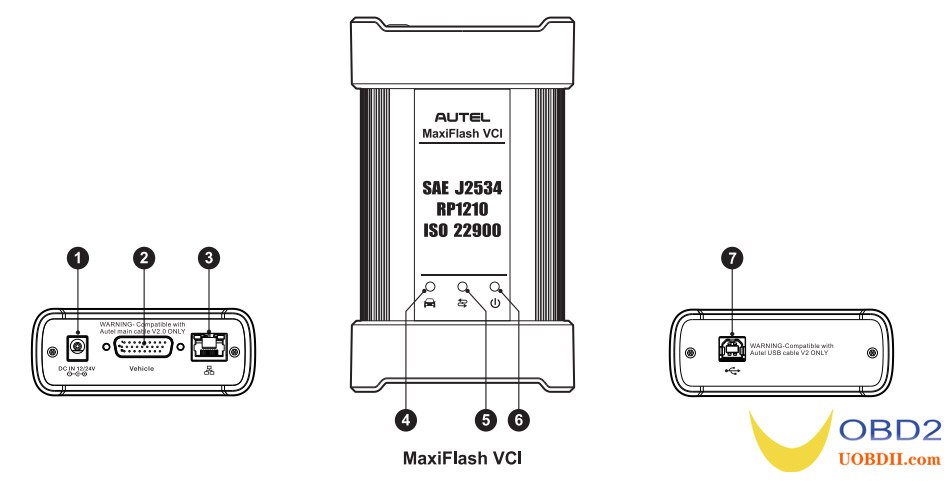

1

DC Power Supply Input Port

2

Vehicle Data Connector

3

Ethernet Port

4

Vehicle LED (Flashes green when the device is communicating with the vehicle system)

5

Connection LED (Lights solid green when the device is properly connected with the display tablet via the USB cable; Lights solid cyan when connected via Wi-Fi; lights solid blue when connected via wireless BT connection)

6

Power LED (Lights solid green when powered on; Flashes red when VCI is upgrading; Lights solid red when system failure occurs; Lights yellow automatically at power up when VCI is self-testing)

7

USB Port

MaxiFlash VCI Display

Specifications

Operating System	Android 7.0
Processor	Samsung Exynos 8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory	4GB RAM & 128GB On-board Memory

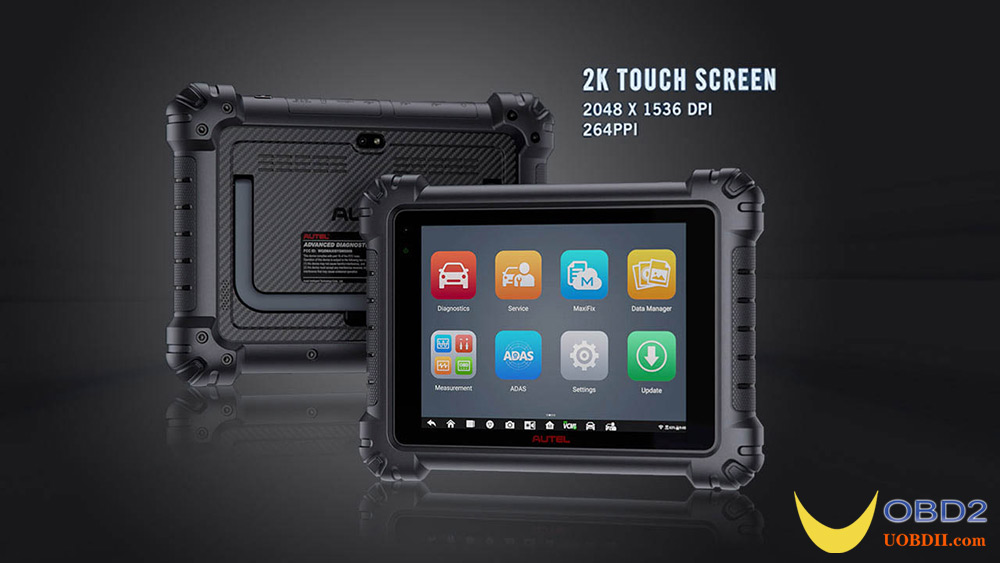

Display	9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
Connectivity	• WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO) • BT v.2.1 + EDR • GPS • USB 2.0 (TWO USB HOST Type A, ONE USB mini device) • HDMI 2.0 • SD Card (Support up to 256GB)
Camera	• Rear: 16 Megapixel, Autofocus with Flashlight • Front: 5.0 Megapixel
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	• Microphone • Dual Speakers • 3-Band 3.5 mm stereo/ standard headset jack
Power and Battery	• 15000mAH 3.8V lithium-polymer battery • Charging via 12V AC/ DC power supply with the temperature between 0°C and 45°C
Input Voltage	12V/3A Adapter
Operating Temperature	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Protocols	DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

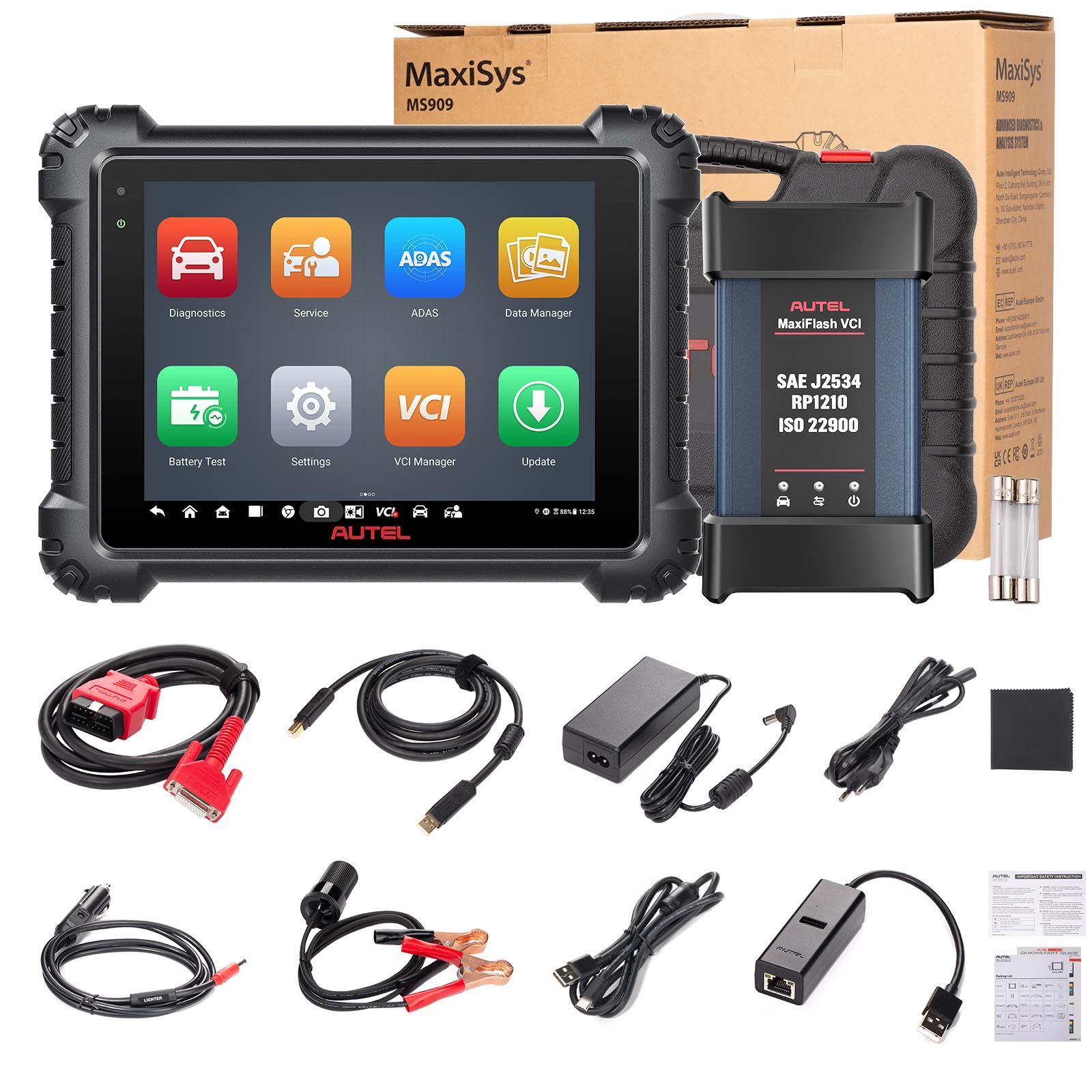

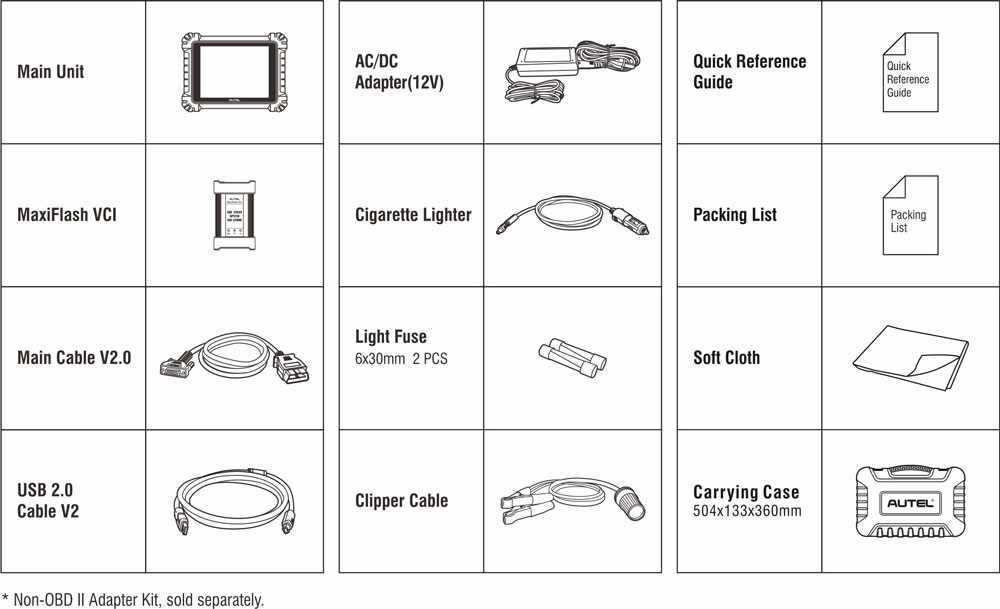

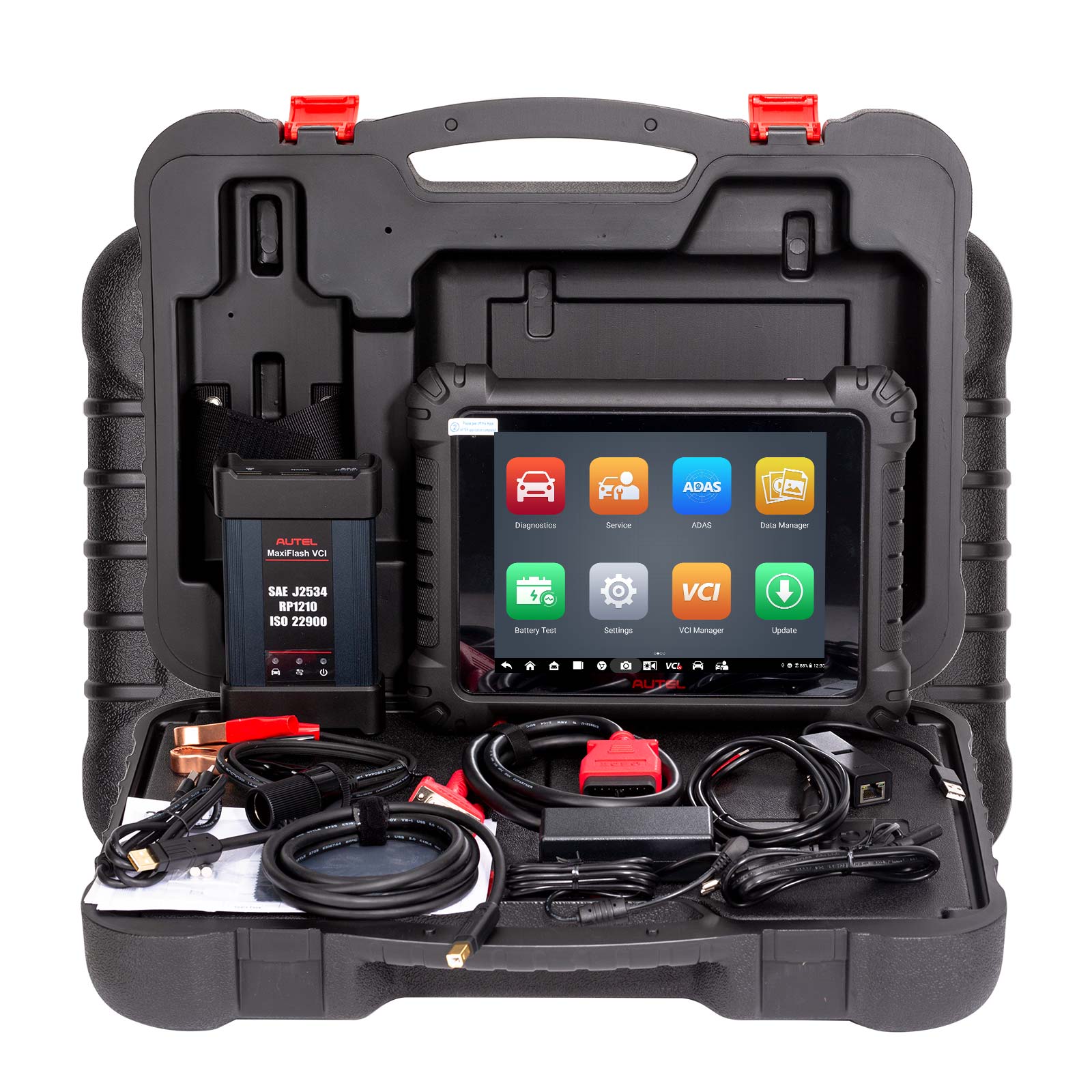

MaxiSYS MS909 Package List

✓

1pc x Maxisys MS909

✓

1pc x MaxiFlash VCI

✓

1pc x Main Cable V2.0

✓

1pc x USB 2.0 Cable V2

✓

1pc x AC/DC Adapter(12V)

✓

1pc x Cigarette Lighter

✓

1pc x Light Fuse 6x30mm 2 PCS

✓

1pc x Clipper Cable

✓

1pc x Quick Reference Guide

✓

1pc x Packing List

✓

1pc x Soft Cloth

✓

1pc x Carrying Case

Frequently Asked Questions (FAQ)

Shall I have wholesale price?

Of course, please contact with sales colleague, send them the order list, they will offer discount according to order amount.

When will you arrange the shipment?

Within 5 working days after payment received.

What payment method is available?

Bring the convenience to customers, Paypal / Western Union / T/T / Money Gram / Credit Card/ Trade Assurance / Cash/ Escrow account.

What is your guarantee?

We have one year guarantee,once received the goods,please spend your precious time and give us your precious feedback,If anything,please contact salesman and they will give you solution soon.

Does the Autel MaxiSys MS909 include free software updates?

Yes, the diagnostic system includes one year of free online software updates to ensure you have the latest vehicle coverage and functions.

What diagnostic protocols does the MaxiFlash VCI support?

The MaxiFlash VCI is compatible with advanced protocols such as D-PDU, DoIP/CAN FD, and Mega CAN for faster and more comprehensive vehicle communications.
