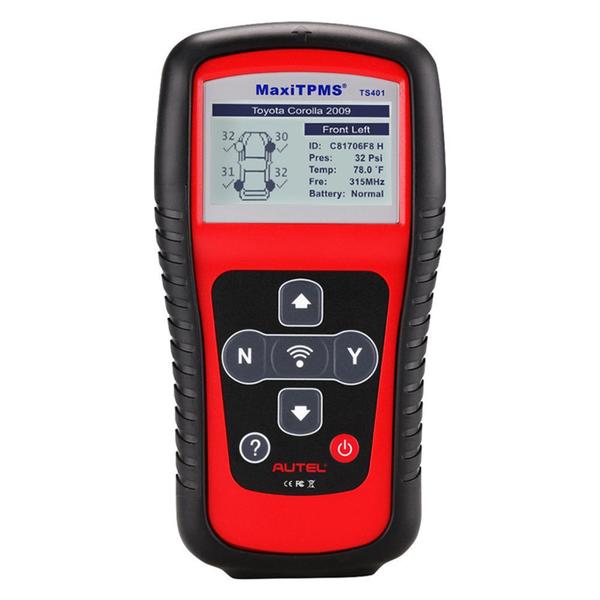

2020 Latest Autel MaxiTPMS TS401 Tire Pressure Sensor TPMS Diagnostic and Service Tool Code Readers Scan Tools Autel TPMS Tool

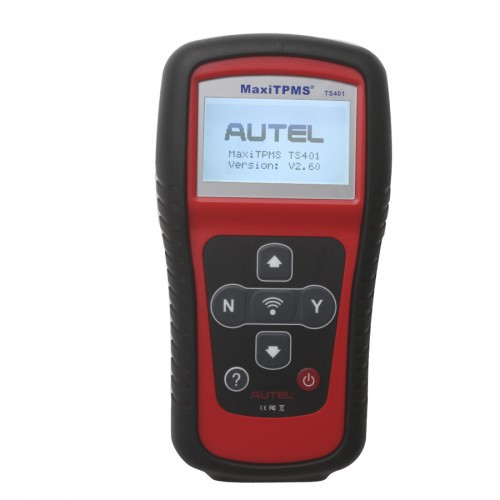

MaxiTPMS® TS401 from Autel is a new generation TPMS diagnostic & service tool which features unparalleled sensor coverage and incredibly easy-to-use interface. This ergonomic tool provides you easy and quick access to the faulty TPMS to help you increase customer satisfaction and boost your bottom line.
Specifications
| Newest version |
Upgrade Online |
| Multi-language: |
English, French, Spanish, German |
| Screen |
backlit 128*64 pixels with contrast adjustment |
| Power |
3.7 V lithium polymer battery |
| Operating temperature |
From 0 to 50 ° C |
| Storage temperature |
-20 to 70 ° C |
| Length \ Width \ Height |
195.5 mm \ 104 mm \ 37.5 mm |
Functions
- The function of TPMS (Tire Pressure Monitoring System) is to automatically monitor the tire pressure in the process of vehicle running and to alarm the tire leakage and low air pressure to ensure safe driving. The TS401 has functions about TPMS such as Activation, Relearn, and Read sensor data.
- The activation function is to allow the sensor to send a signal so that the car receiver can get the sensor information, such as tire pressure, temperature and battery status, which can be used to detect the sensor is normal;
- The Relearn function allows the sensor to read sensor ID and to match the ID stored in the TPMS ECU to correctly display the tire pressure and temperature parameters of each wheel, allows you to directly read feedback from all 4 sensors, clearly view the status of all TPMS sensors, and compare sensor and ECU data to instantly pinpoint system faults;

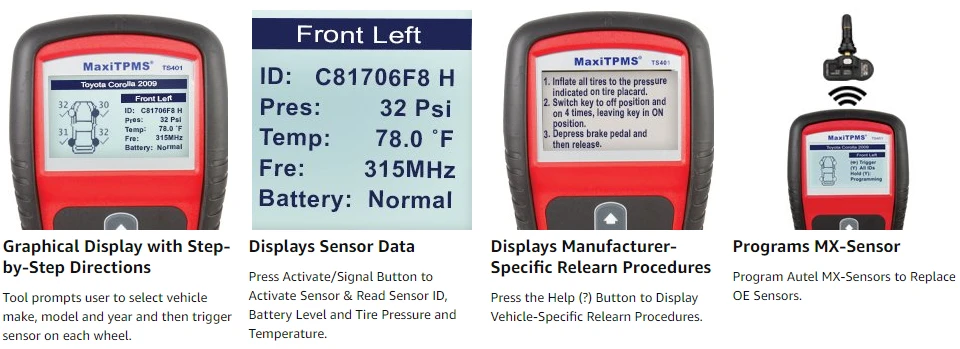

- Read sensor data including sensor ID, tire pressure, temperature, battery condition, OEM part number, OEM sensor maker and OEM frequency.
2020 Latest Autel MaxiTPMS TS401 Tire Pressure Sensor TPMS Diagnostic and Service Tool Code Readers Scan Tools Autel TPMS Tool
Product Features
- 1.Unparalleled sensor coverage - activate ALL magnetic, frequency and tire deflation triggered sensors on all vehicles sold worldwide
- 2.Receive both 315MHz and 433MHz signals
- 3.Interpret data including sensor ID, tire pressure, temperature,and battery condition
- 4.Provide visual and audible responses to confirm sensors are working properly
- 5.Accurate diagnosing result - a tool users can trust

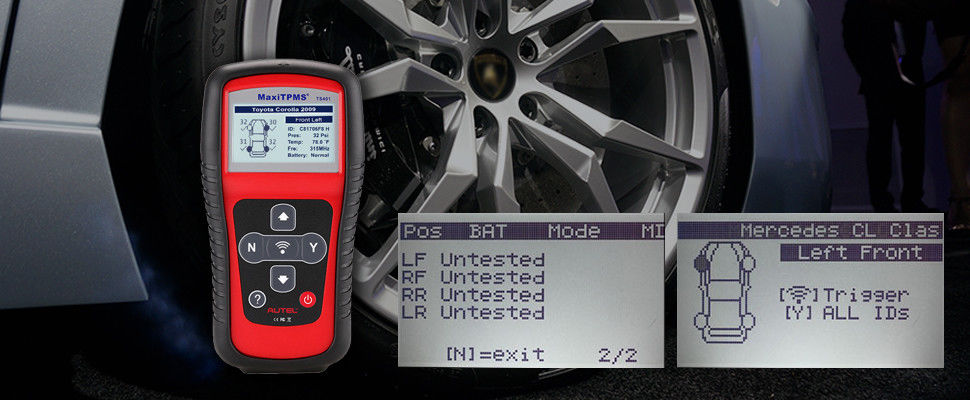

- 6.Incredibly easy-to-use with intuitive navigation and step-by-step on-screen instructions
- 7.Pre-selection process offer faster activation and diagnostics
- 8.Proper LF signal to prevent being fooled by other RF signals
- 9.Built-in rechargeable Li-ion battery
- 10.1-year free upgrade via USB port
- 11.Multilingual support
- 12.Save up to 16 TPMS records for future data printing and review
- 13.Automatic power-off to preserve battery life

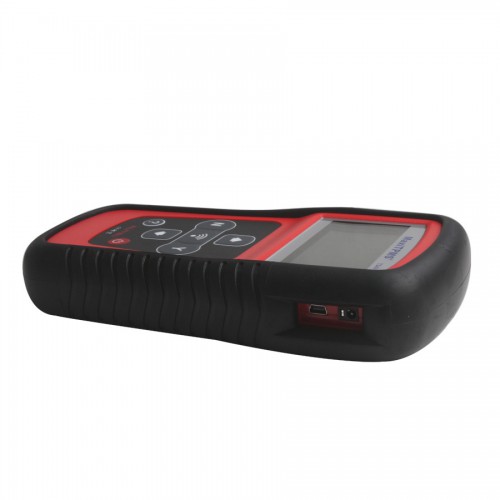

- 14.Ergonomic design features strong housing and protective rubber boot
2020 Latest Autel MaxiTPMS TS401 Tire Pressure Sensor TPMS Diagnostic and Service Tool Code Readers Scan Tools Autel TPMS Tool

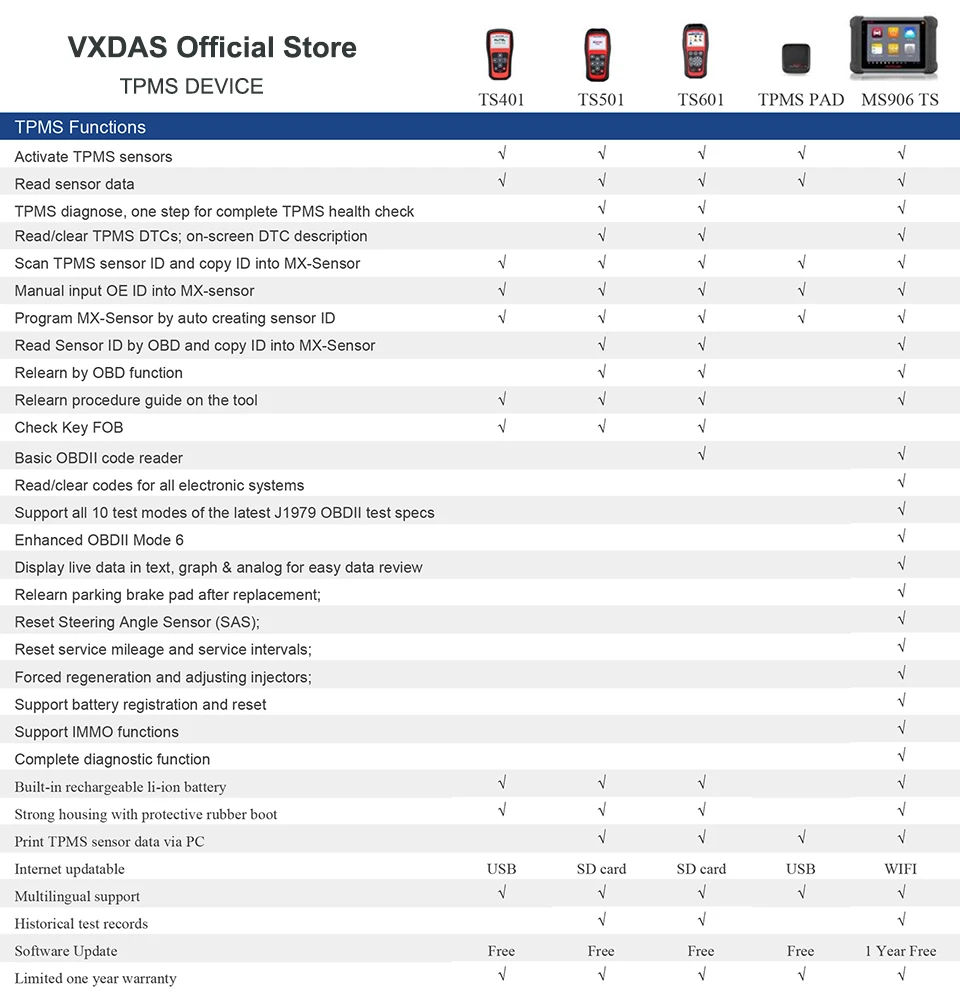

Item Comparison

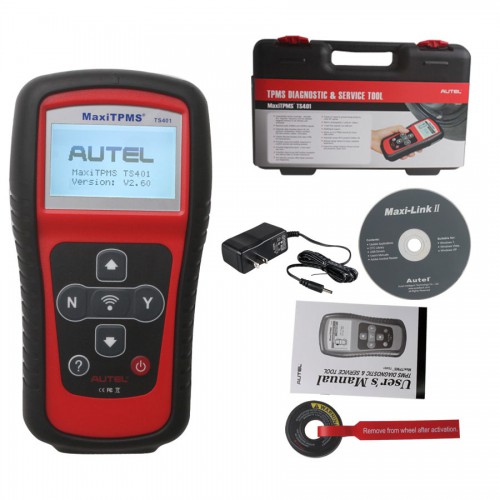

Package List
- MaxiTPMS TS401 tool
- Carry case
- CD
- Charger
- Magnet

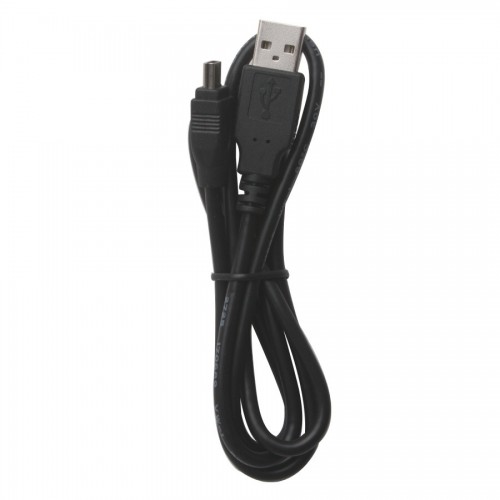

- USB Cable
- User's Manual
2020 Latest Autel MaxiTPMS TS401 Tire Pressure Sensor TPMS Diagnostic and Service Tool Code Readers Scan Tools Autel TPMS Tool
Frequently Asked Questions (FAQ)
What are the primary functions of the Autel MaxiTPMS TS401?
The TS401 is designed to automatically monitor tire pressure, detect tire leakage, and diagnose low pressure issues. It features core TPMS functions including sensor activation, relearning, and reading detailed sensor data.
What specific sensor data can this tool read?
It can read vital sensor details such as the sensor ID, tire pressure, current temperature, battery status, OEM part number, OEM sensor manufacturer, and OEM frequency.
Does the TS401 support multiple languages?
Yes, the MaxiTPMS TS401 supports multiple operating languages including English, French, Spanish, and German.
How does the Relearn function help with system diagnostic?
The Relearn function enables the tool to match the sensor ID with the ID stored in the vehicle's TPMS ECU. This correctly aligns the tire pressure and temperature parameters for each wheel, making it easy to pinpoint system faults.
How can I update the software on the MaxiTPMS TS401?
The tool supports online upgrades with 1-year of free updates. You can easily complete the upgrade process by connecting the device to a computer via the provided USB port.
What frequency signals can the TS401 receive?
The MaxiTPMS TS401 is capable of receiving both 315MHz and 433MHz signals, providing unparalleled coverage for vehicles worldwide.
