Product Features

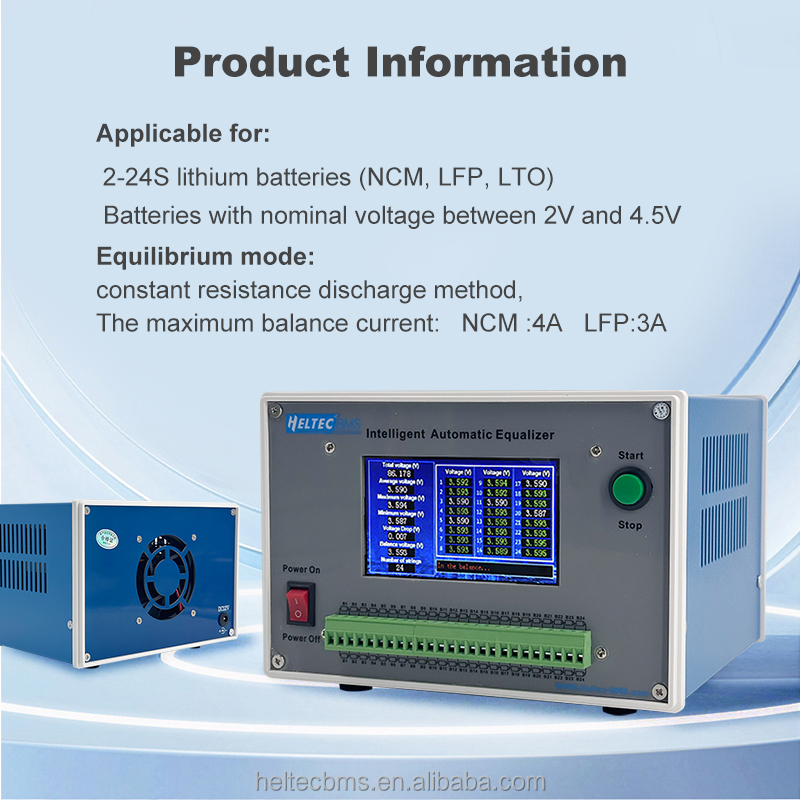

Support 2~24 series lithium battery, support ternary lithium, lithium iron phosphate, to cobalt lithium, support 1.5V~4.5V battery. The voltage is out of the range, it will sound a warning and display reverse polarity warning and reminder. After connection reverse, overvoltage (greater than 4.5V), low voltage (less than 1.5V) protection functions are balanced, it will stop automatically, and a warning sound will sound to indicate that the balance is complete.

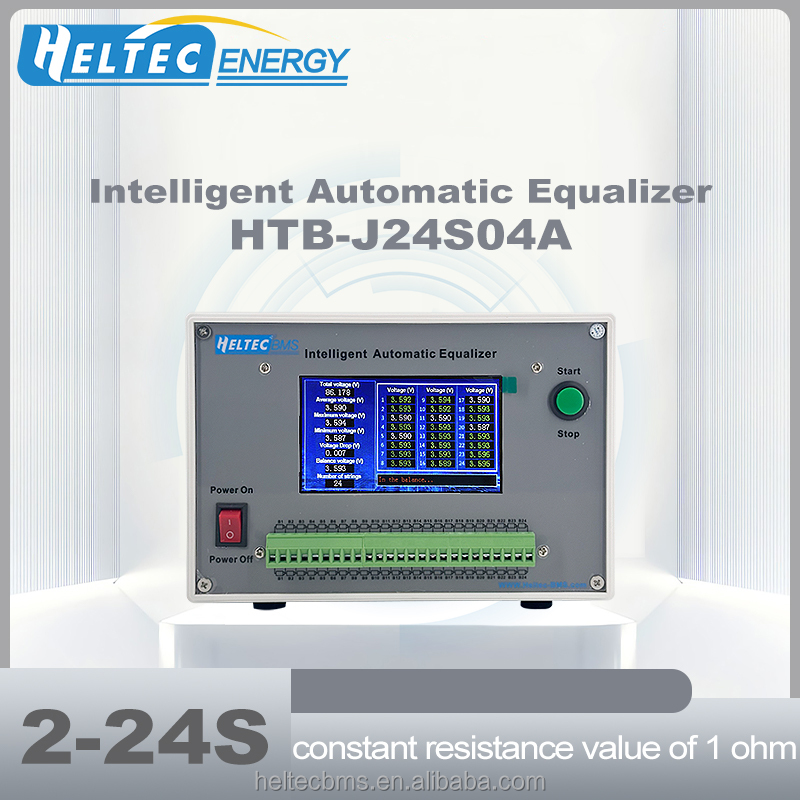

Constant resistance 1 ohm discharge balancing.
Large balancing current:
- Ternary lithium - 4A Max
- Lifepo4 - 3A Max

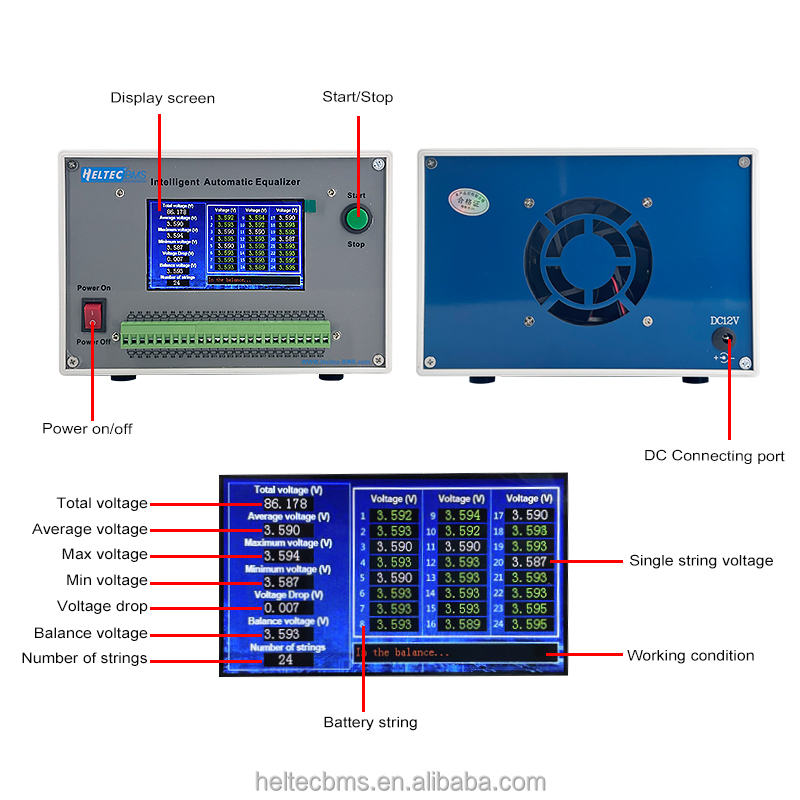

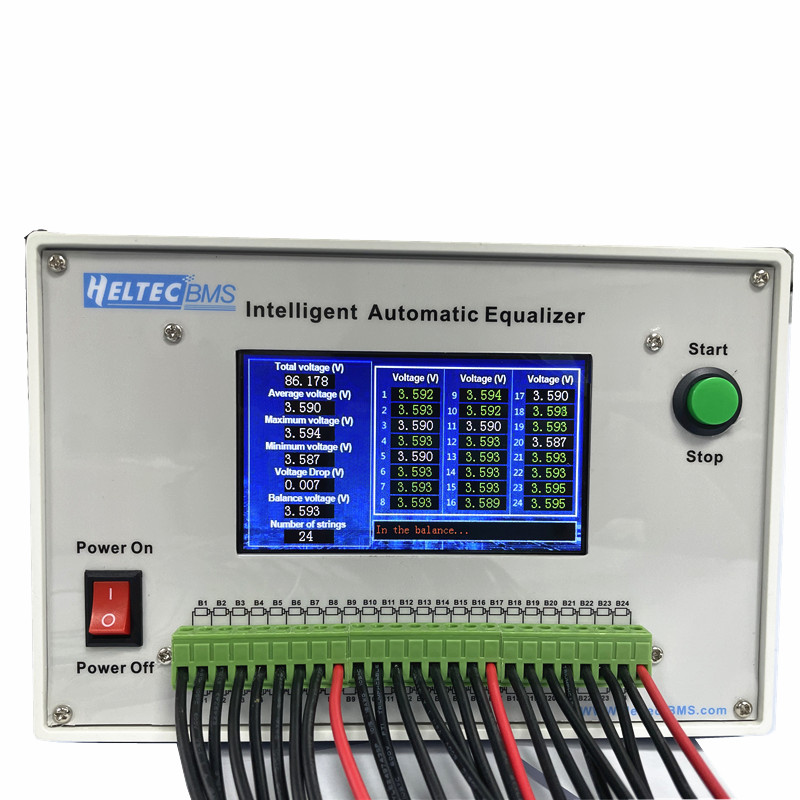

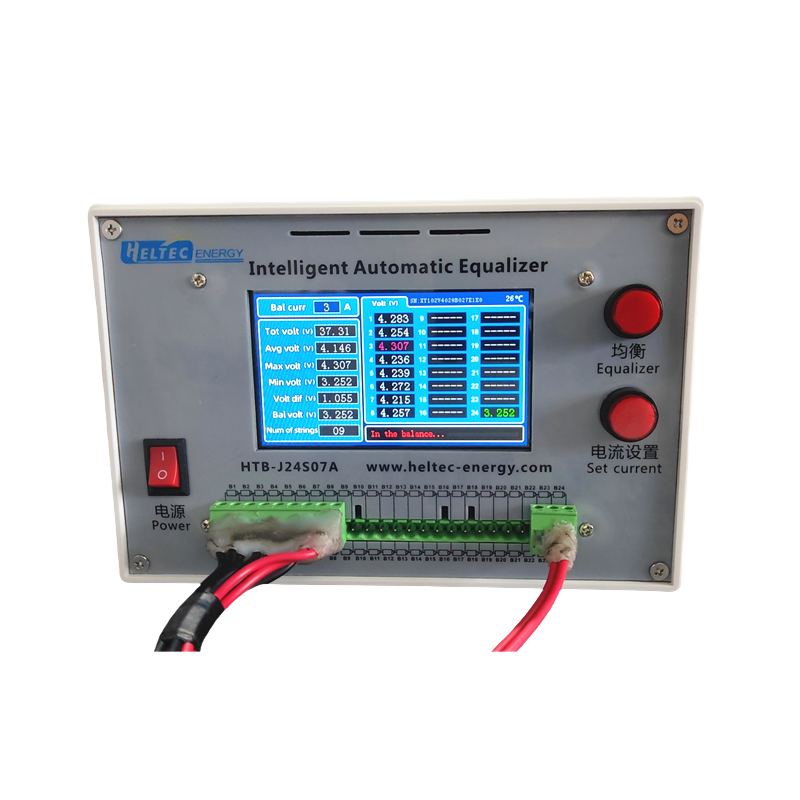

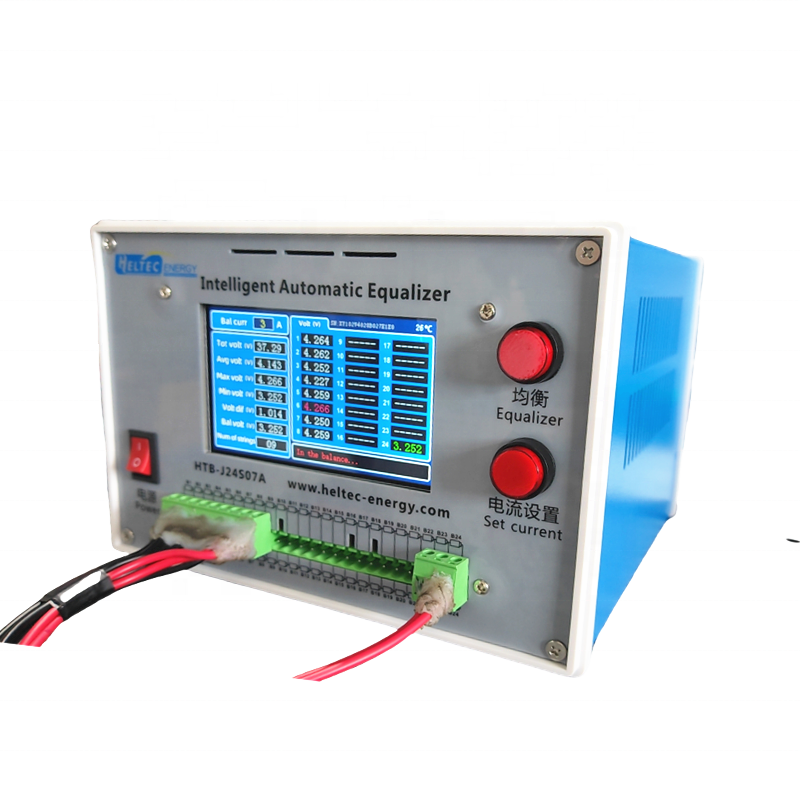

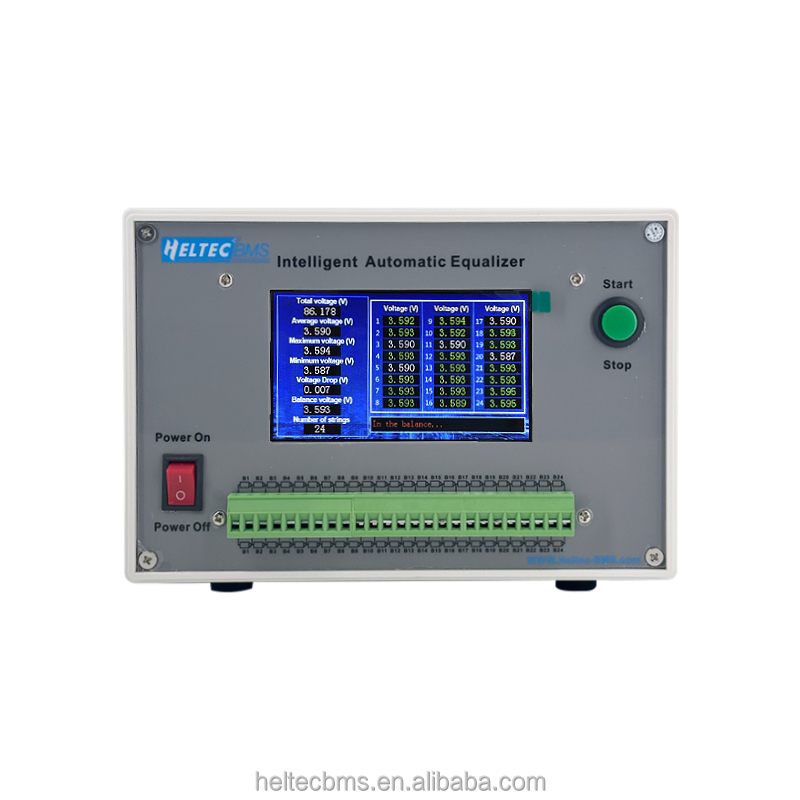

Displays: the voltage of each string, total voltage, highest string voltage, lowest string voltage, maximum voltage difference from battery pack, average voltage, balanced voltage, number of battery strings.
Discharge Method
Advantages:
- Do not charge the batteries, do not worry about overcharging problems.
- The speed of the whole balancing process is the same, and the balancing speed is fast.
Conclusions: Since the balancing method is to discharge the high-voltage string energy, until it is equal to the lowest voltage string, the excess energy is wasted.
