1. Support OBD II/EOBD nine standard protocols.

2. Support truck SAE J1939/SAE J1708 common protocols.

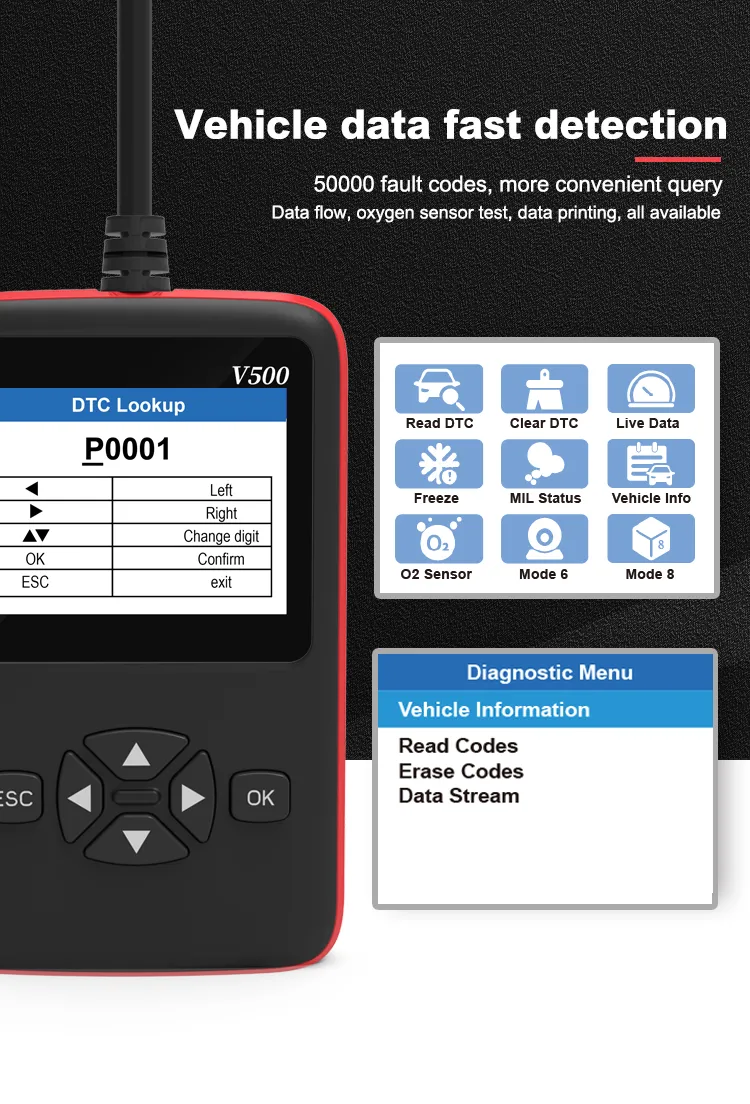

3. Supports gasoline models to read and clear vehicle fault codes, read data streams, freeze frame information, check MIL status, read vehicle information, oxygen sensor test, on-board monitoring (mode 6), evaporation system (mode 8) test.

4. Support truck model to read vehicle information, read/clear fault code information, data flow information.

5. Support fault code information query, built-in about 50,000 fault code library information.

6. Support data stream playback function, view/delete fault code, data stream, freeze frame information.

7. Support USB printing function, can print fault code, data flow, freeze frame information.

8. Support seven languages English, Chinese, Italian, French, Spanish, German, Russian.

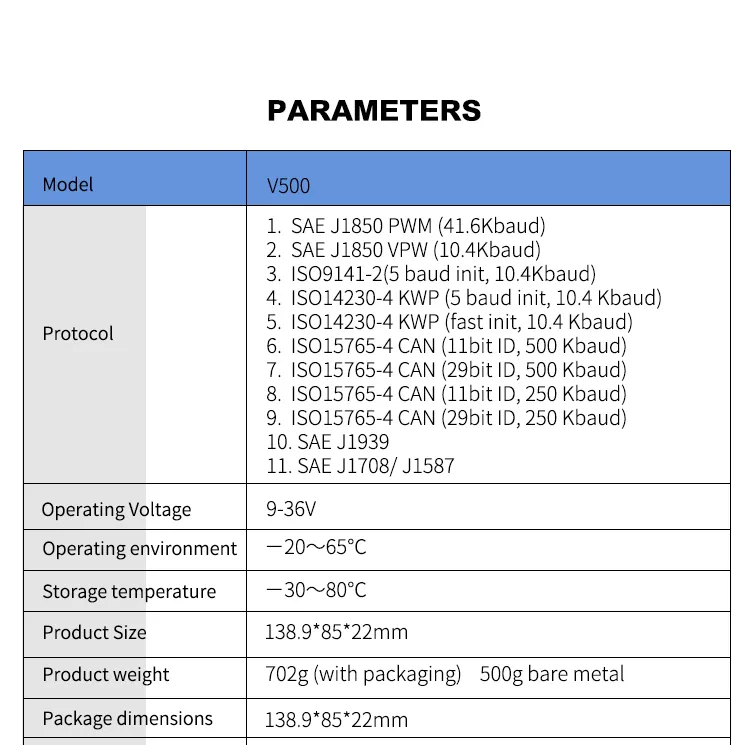

Main control chip: LPC1765FBD100

Operating voltage: 9~36V

Operating current: 89mA

Operating environment: -20~65ºC

Storage temperature: -30~80ºC

Overall Dimension: 138.9*85*22mm

Packing size: 175*258*62mm

Product weight: 500g

With packing: 702g

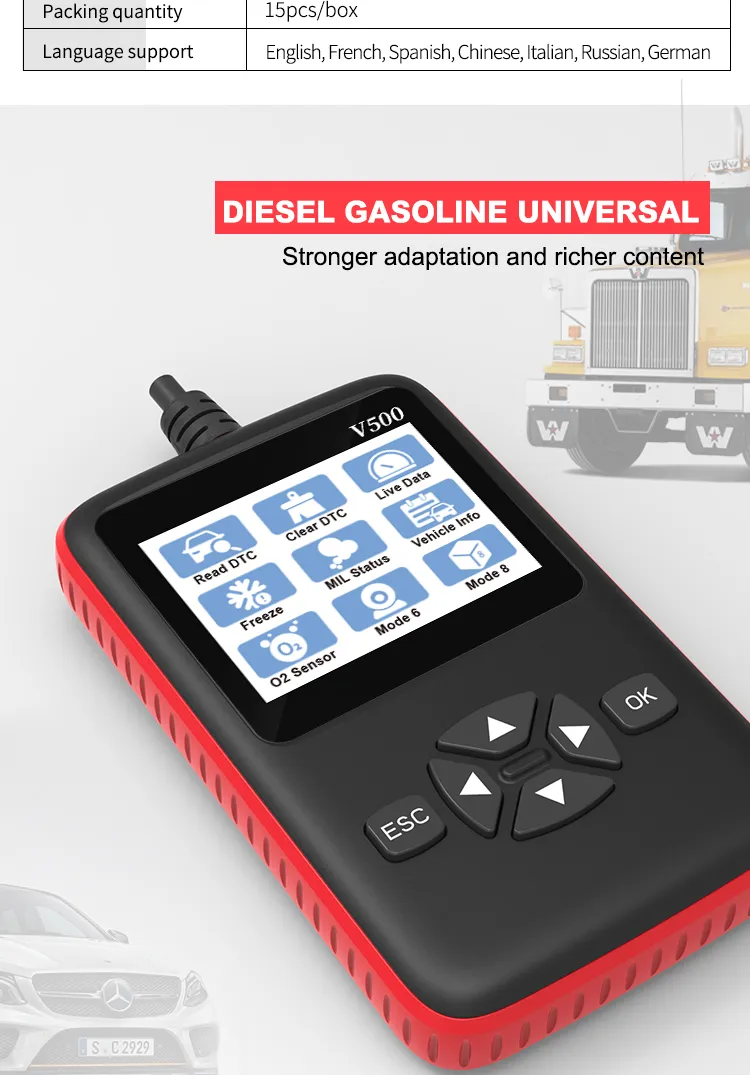

Packing quantity: 15pcs

1. SAE J1850 PWM (41.6Kbaud)

2. SAE J1850 VPW (10.4Kbaud)

3. ISO9141-2(5 baud init, 10.4Kbaud)

4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

5. ISO14230-4 KWP (fast init, 10.4 Kbaud)

6. ISO15765-4 CAN (11bit ID, 500 Kbaud)

7. ISO15765-4 CAN (29bit ID, 500 Kbaud)

8. ISO15765-4 CAN (11bit ID, 250 Kbaud)

9. ISO15765-4 CAN (29bit ID, 250 Kbaud)

10. SAE J1939

11. SAE J1708/ J1587
