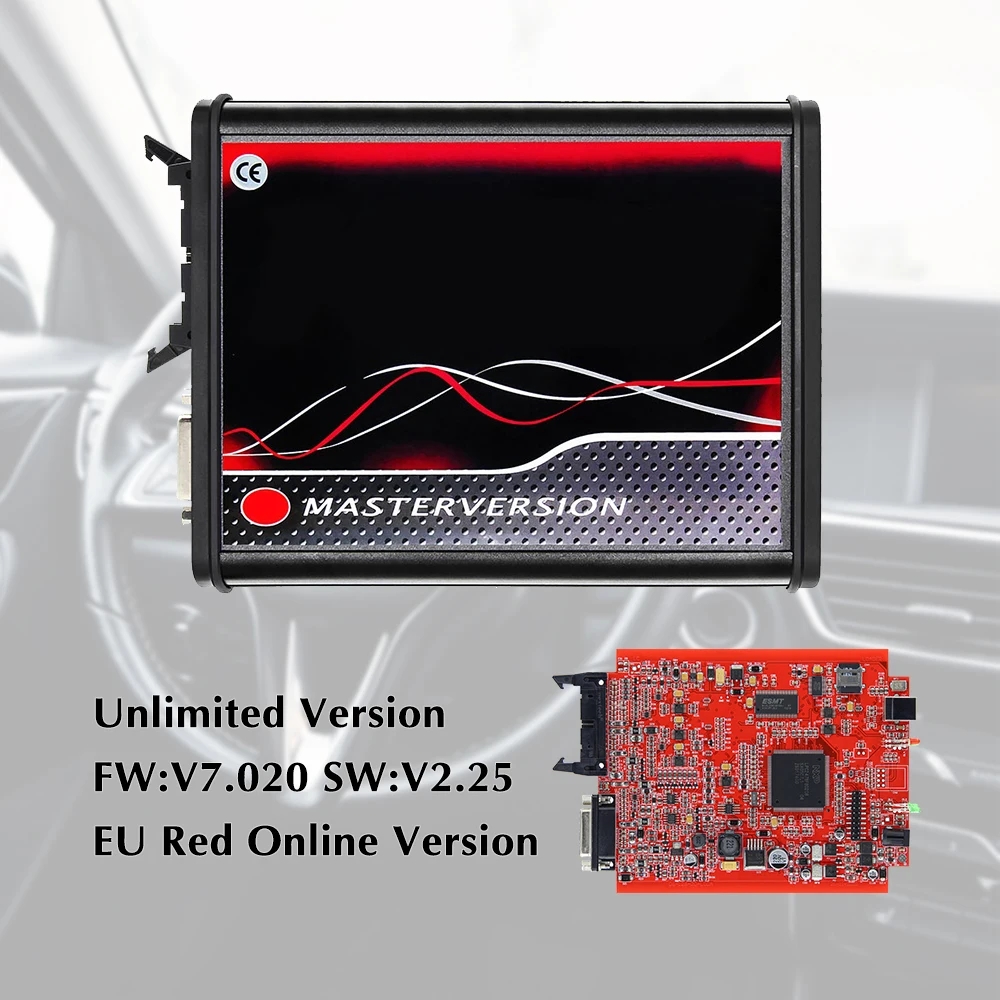

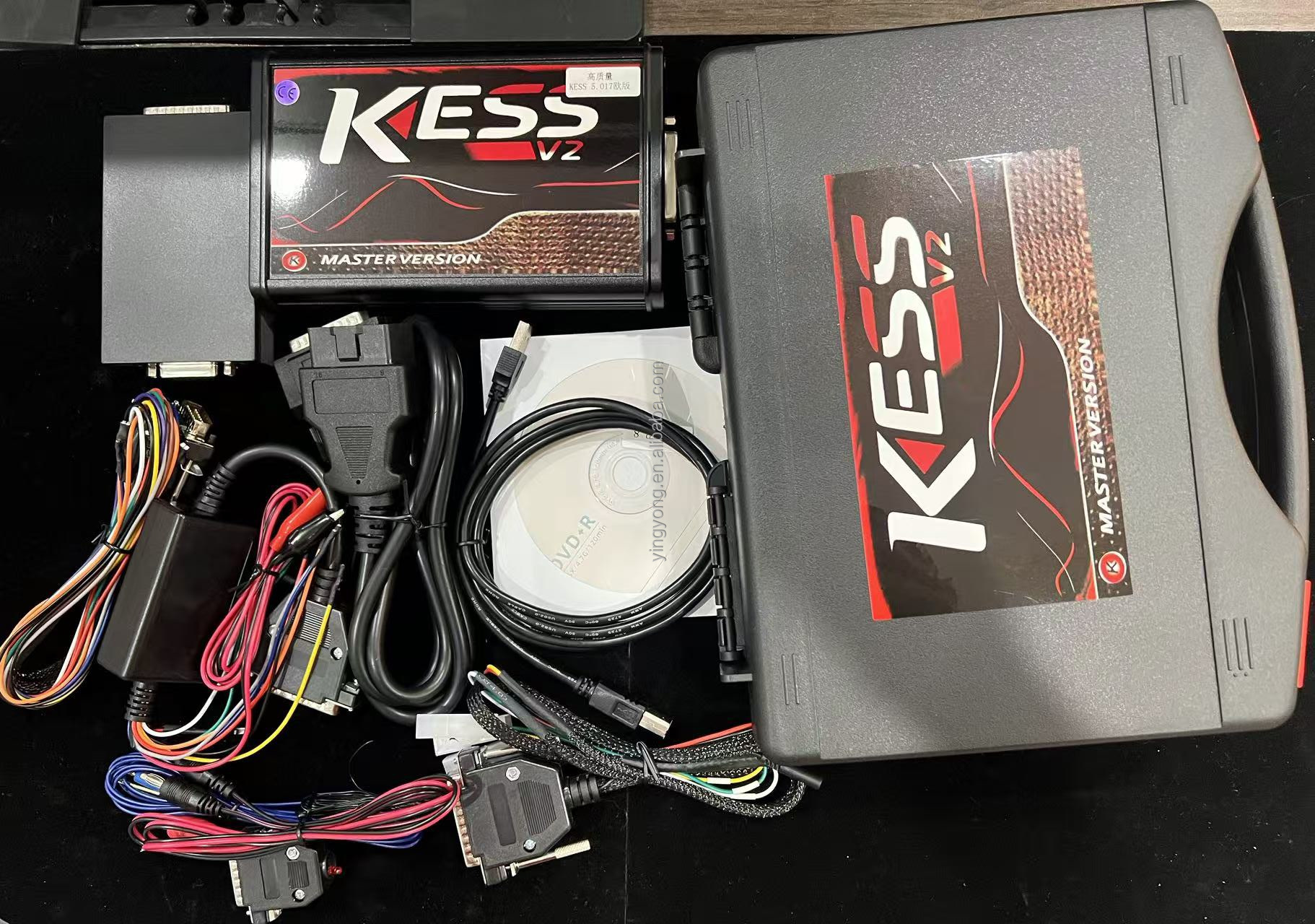

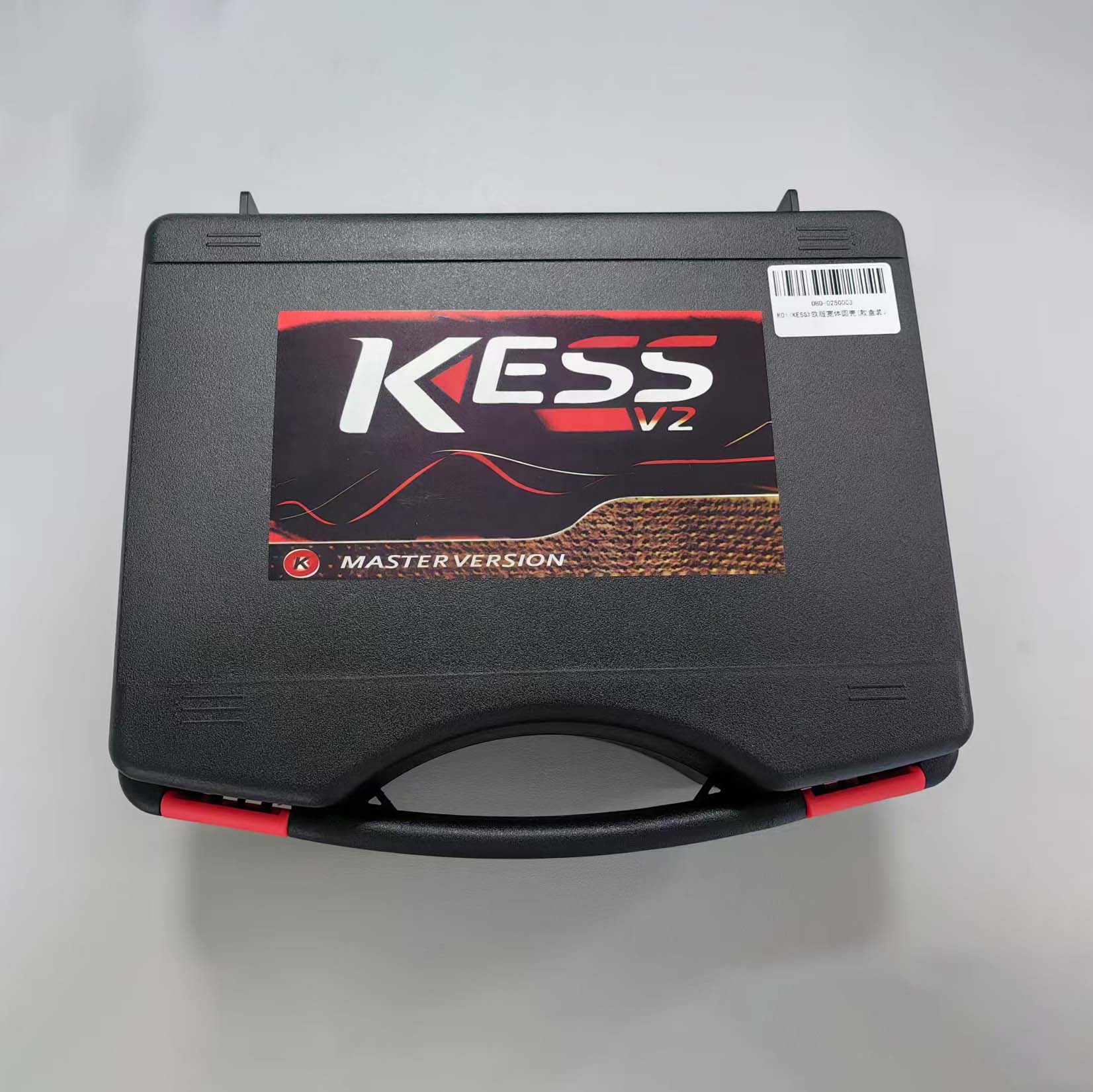

Online Unlimited 2.80 EU Red Kess V5.017 KTAG V7.020 4 LED 2.25 OBD2 Car ECU Chip Tuning Tool Programmer Tools With Plastic Toolbox

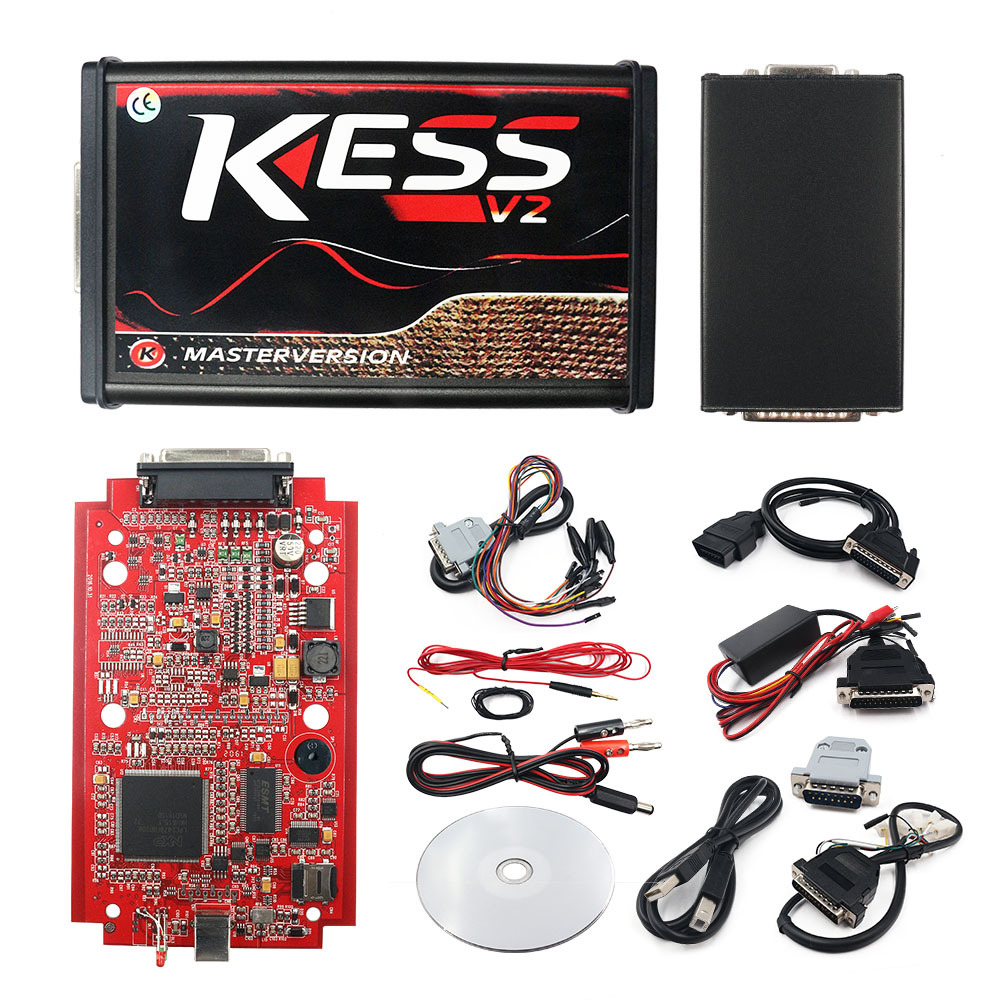

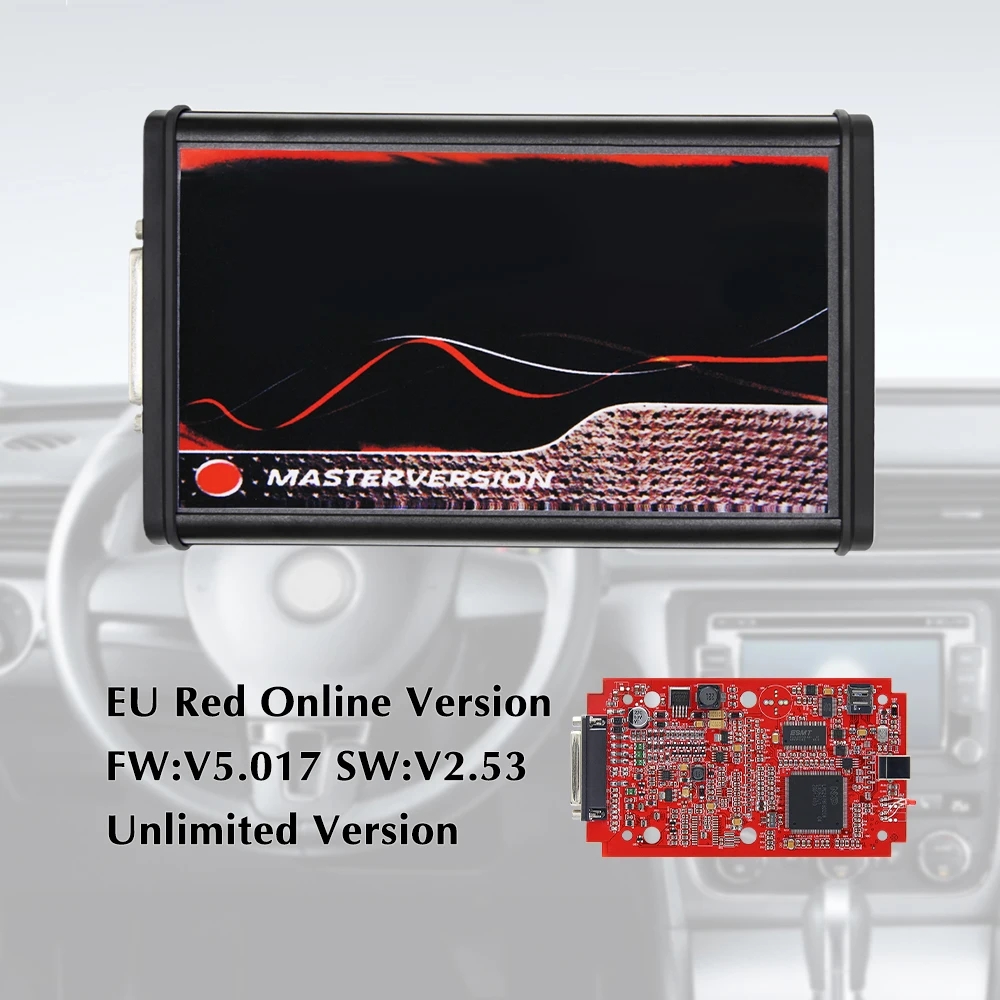

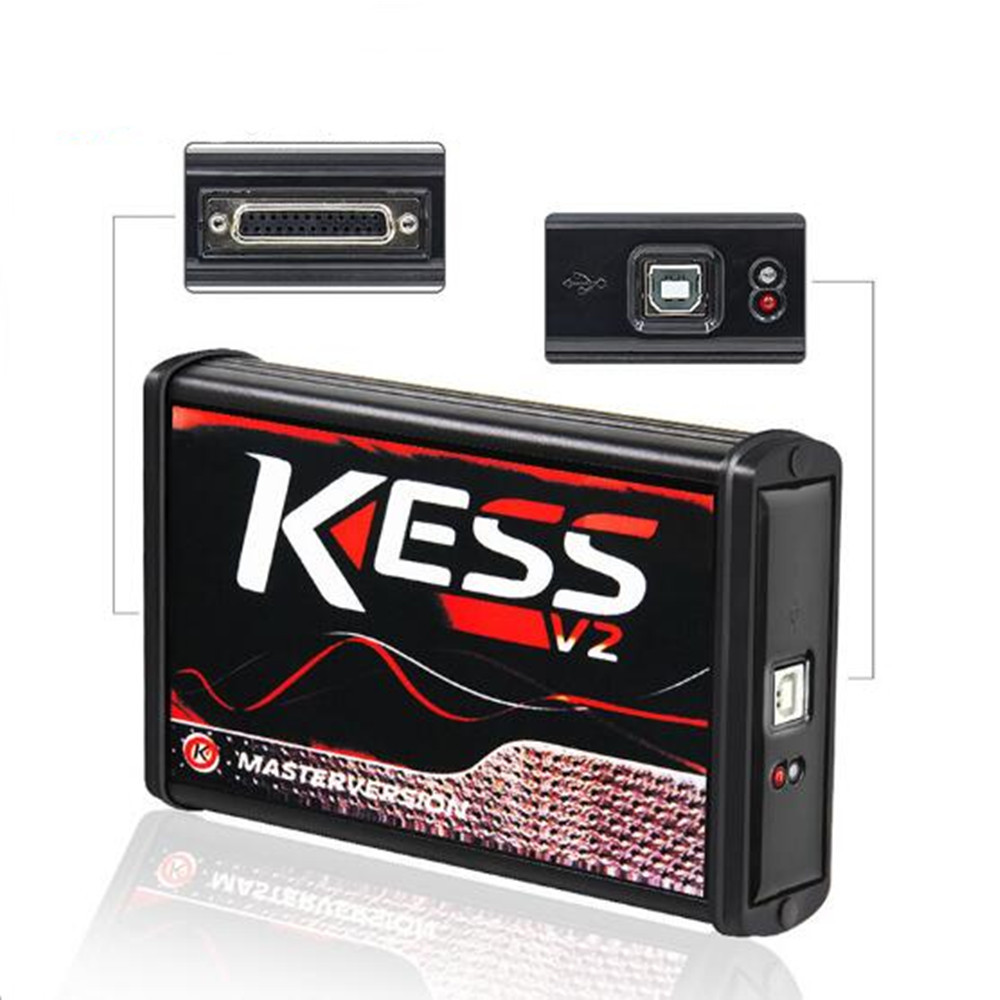

Kess 5.017 With NEW K-Suite 2.53 (exactly 7400 Vehicles added):
- Online Version: Connects to the internet without damage.
- Unlimited Version: No token limitations, allowing lifetime use.

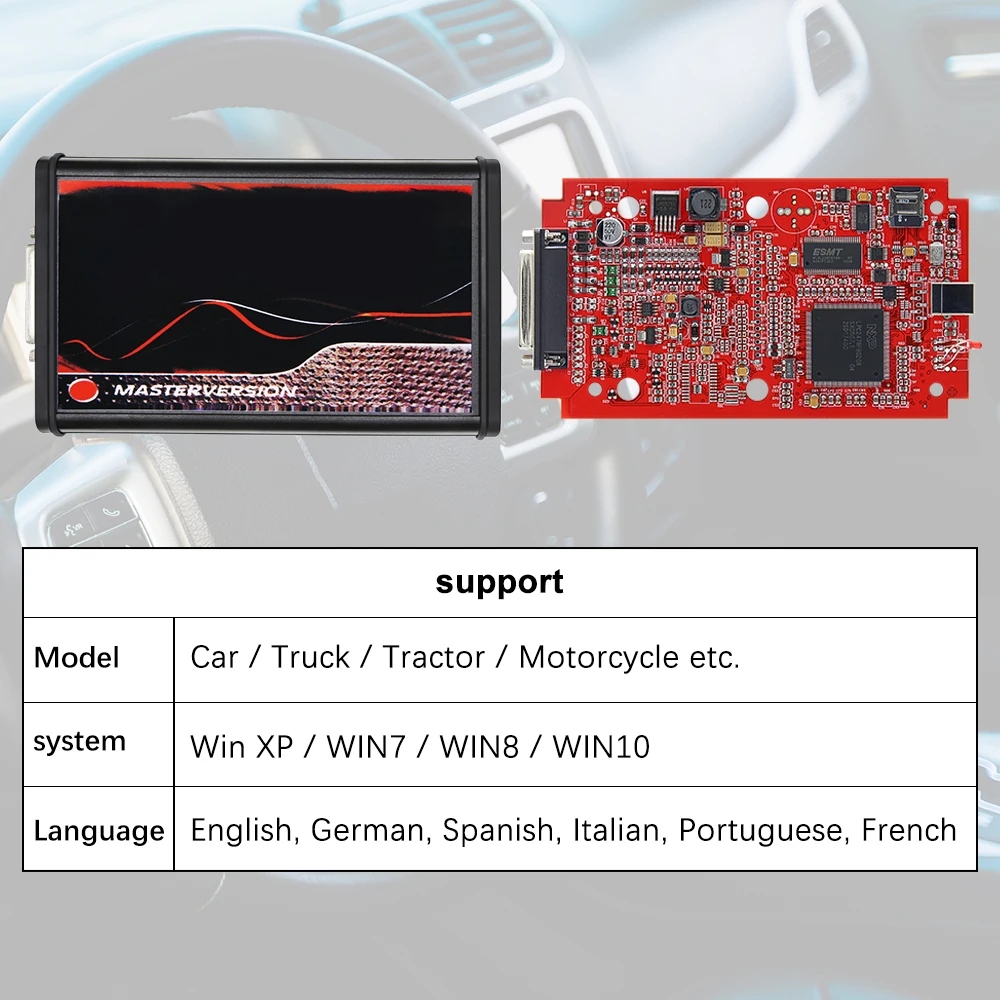

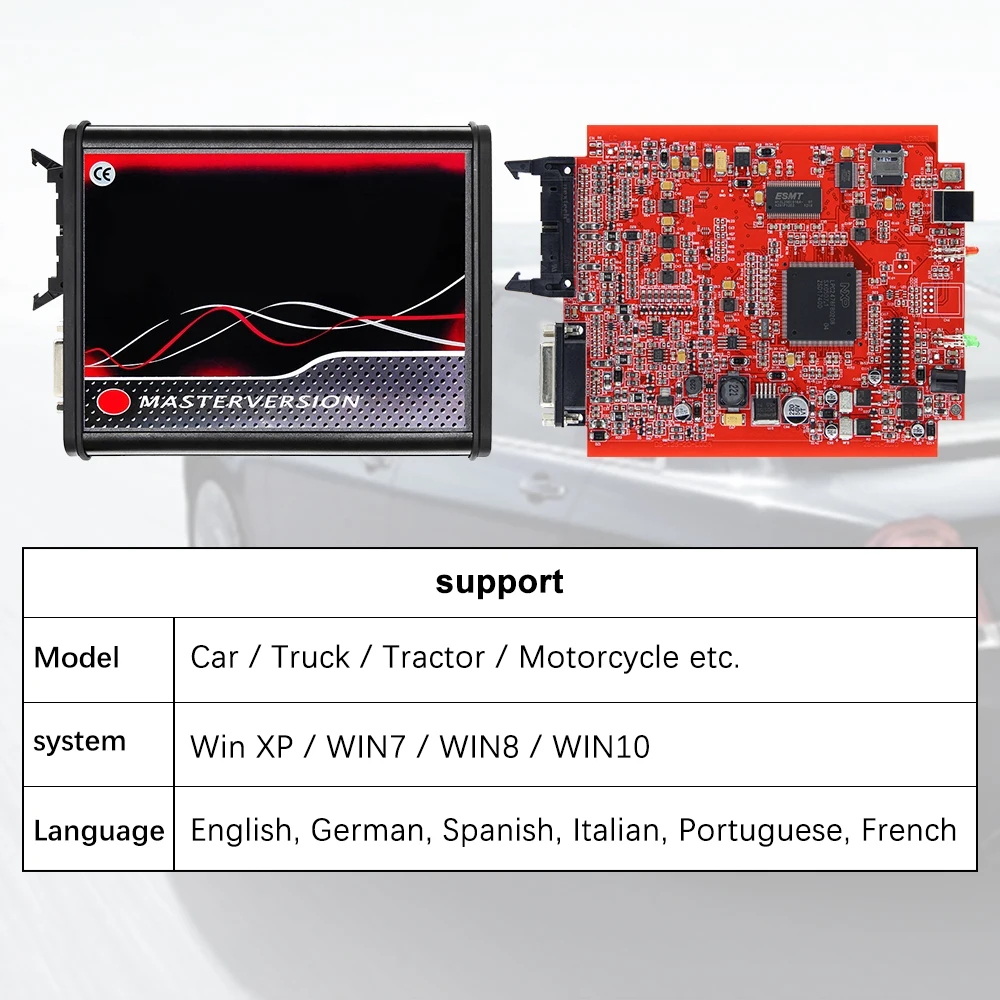

- Universal Support: Compatible with Cars, Trucks, Tractors, and Motorcycles (supports both 12V and 24V).
- Wide Protocols Coverage: Firmware V5.017 covers all major brands and protocols, including Line, KAN, EDC17, MED17, and Ford J1850.
- Engine-based Compatibility: Supports new vehicles based on the engine specifications.
- OBD2 Port Operation: Reads and writes ECU directly via the OBD2 port without disassembling the ECU, making it easy to use.
- Multi-Language Support: Available in English, German, Spanish, Italian, Portuguese, and French.
- OS Compatibility: Works on Windows XP, Windows 7 (32-bit), Windows 8, Windows 10 (64-bit), and Windows 11 (64-bit).
KTAG V7.02 V2.25 Features:
- Online Version: Connects to the internet safely.
- Unlimited Version: No token limitations for continuous operation.
- Universal Support: Suitable for Cars, Trucks, Tractors, Motorcycles, and Boats (supports 12V and 24V).
- Multi-Languages: English, German, Spanish, Italian, Portuguese, French.
- Multi-Systems: Compatible with Windows XP, WIN7, WIN8, WIN10, and more.
- Open Protocols: All software protocols are open, with over 160 more protocols than older versions.
- Connection Mode: Works via Tricore, BDM, BOOT, etc. (requires removing the ECU from the vehicle).

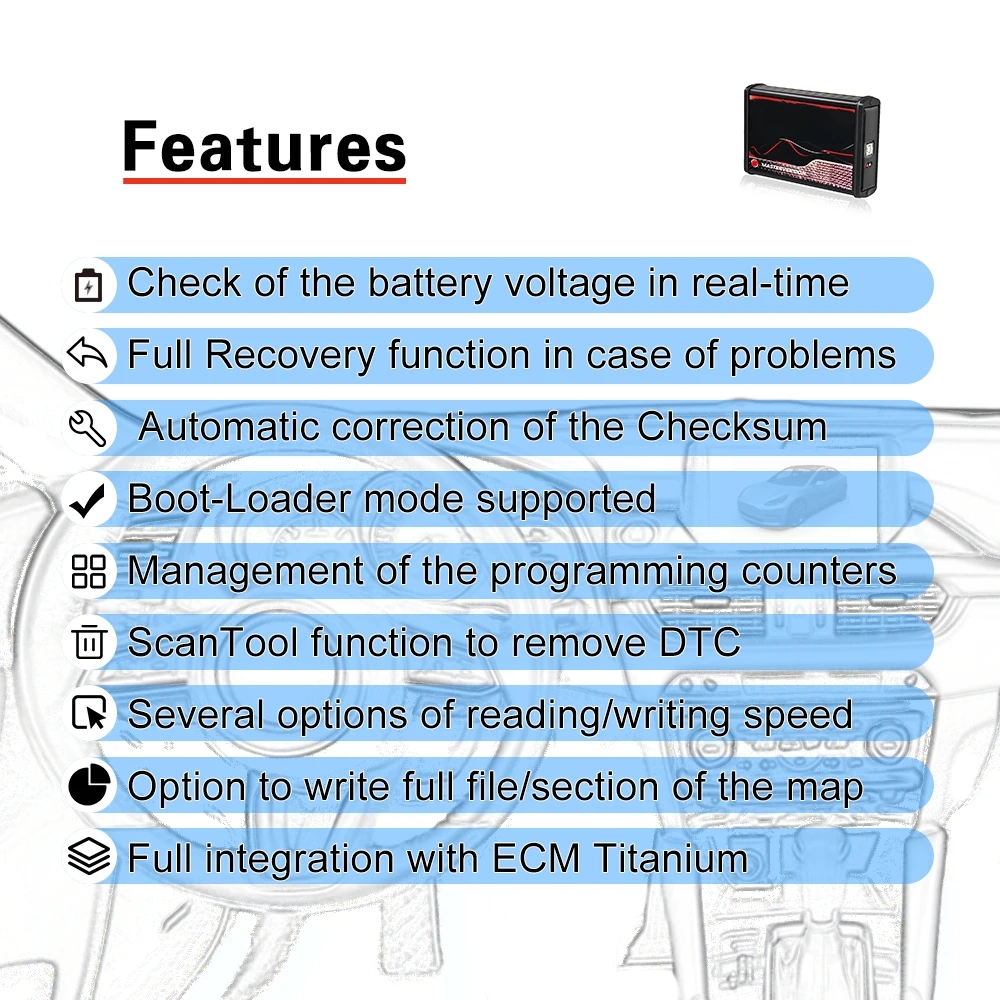

Various Built-in Features and Guarantees:
- Real-time monitoring of battery voltage.
- Full Recovery function in case of unexpected problems.
- Automatic Checksum Correction (where available).
- Complete integration with ECM Titanium.
- Management of the programming counters.
- ScanTool function for deleting DTCs.
- Different options for reading and writing speeds.
- Option to write full file/section of the map.
- Boot Loader Mode supported.
Differences Between KESS V5.017 and KTAG V7.020:

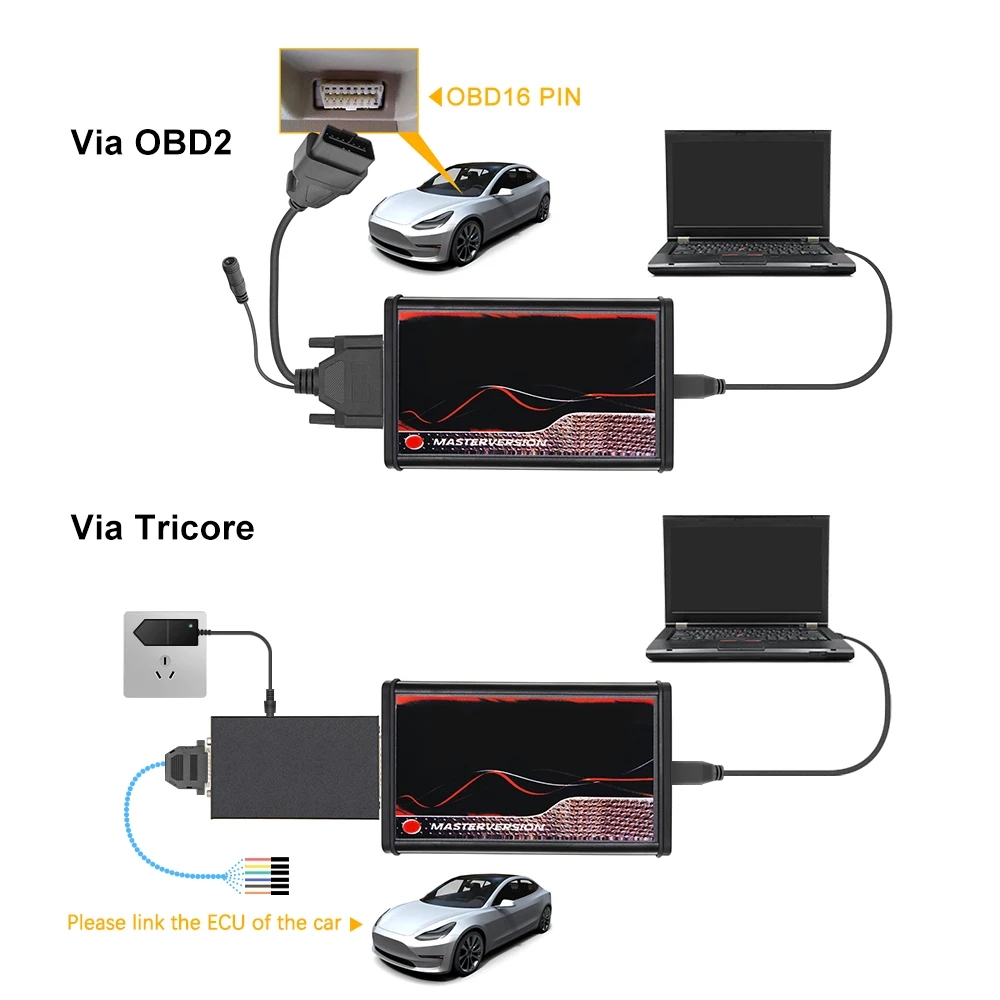

- Different Connection Method: KESS V5.017 can read and write ECU via OBD2 cable directly on most vehicles for easy operation. KTAG V7.020 reads and writes ECU via TRICORE, BDM, or other modes using special cables (the software provides step-by-step guidance).
- Different Vehicle Coverage: KTAG V7.020 supports Toyota Denso 76F00XX ECU protocols, which KESS V5.017 does not support. KTAG V7.020 also provides wider coverage and better performance for diesel vehicles, trucks, tractors, and motorcycles.
What's New in KTAG FW V7.020 SW V2.25?
- Added support for many encrypted car models, including Toyota 76FXXX, PSA 17.4.4, Ford E83, VW 17.5.5 (1766), Mercedes-Benz 276ECU, and Toyota 76F.
- 100 additional ECU types integrated.
- Software version: V2.25. Hardware version: V7.020.
- Multi-language support (Italian, German, English, French, Portuguese, Spanish).
- Reliable BDM function with no checksum errors. Supported protocols: BDM MOTOROLA MPC5xx.
- Supports ECU programming for Cars, Motorcycles, and Trucks.
- Added new file types (e.g., FENDT/JCB/VALTRA TRACTOR BOSCH EDC17CV41 SISU ENGINE CAN).
Advantages of KTAG V7.020:
- Supports full online protocols, fully activated, without token limits.
- Essential for ECUs that must be programmed via Jtag, BDM, and Boot protocols by disassembling.
- Compatible with Toyota Hilux kun26, adding 100 new ECU types and encrypted models.
- Includes GPT function cables.
- Online operation fully supported.
- Tested by professional tuners; regarded as a top choice for heavy-duty trucks, boats, and tractors.
Troubleshooting & Support:

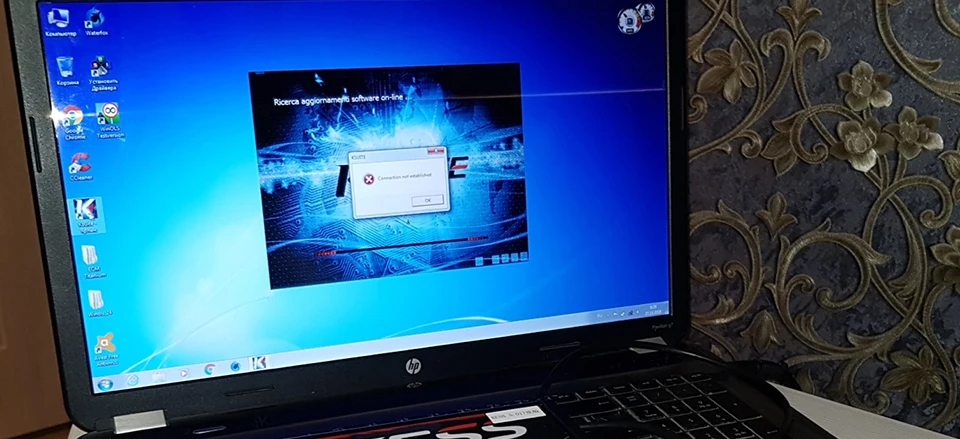

Q: Connections not established?
A: Please check whether you install the KESS driver properly in Device Manager.
Q: After opening "KSuite.exe" and trying to run KESS, all the following icons are gray and locked. Why?
A: Please check whether you have installed the driver properly in the device manager.

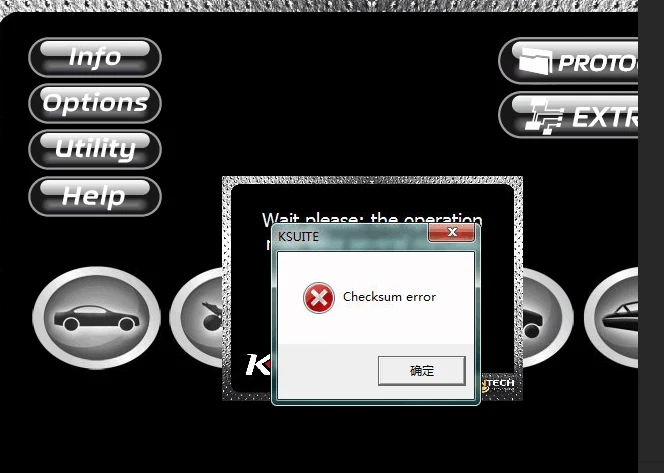

Q: Checksum error?
A1: Please search for "Microsoft Visual C++ 2005, 2008, 2010" online, install it on your computer, and try again.
A2: Replace the existing DLL files in the installation folder with the updated DLL files.

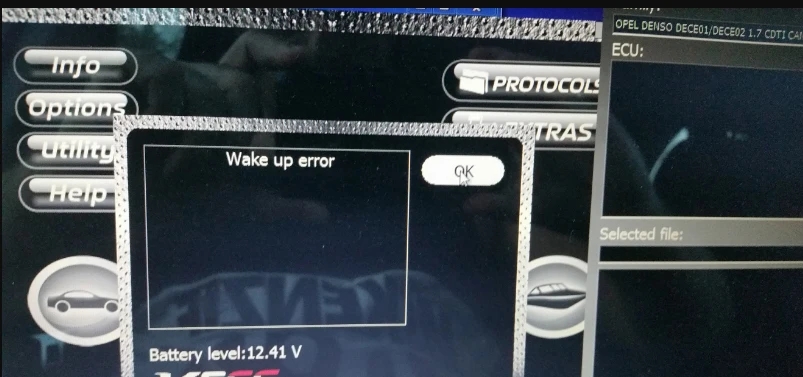

Q: Wake up error?
A: This error can occur when a user chooses a diesel profile for a gasoline car. Check the connection with the ECU and power supply. You may also try reinstalling the software. If the problem persists, test with a new SD card.

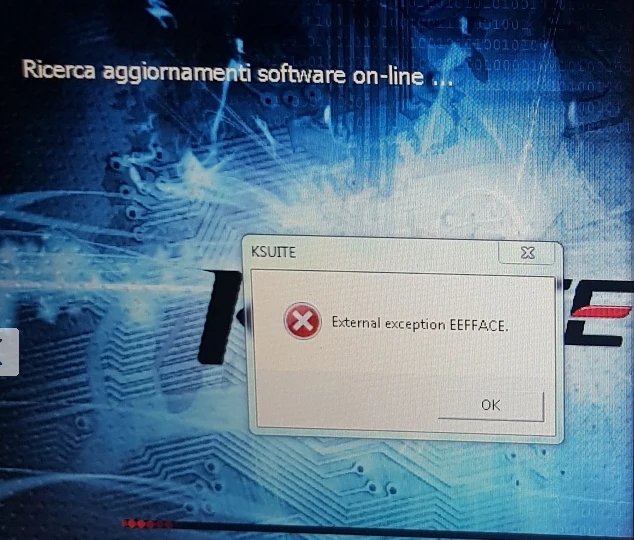

Q: External exception EEFFACE?
A: Make sure to use only the provided device and software. Combining the device with other software or using other hardware with our software can cause this issue. Uninstall and delete the software, paste the installation folder directly into the C:\ drive on your computer, and run it from there.
Frequently Asked Questions
What automotive products are available?
We provide a wide range of automotive products, especially in the field of intelligent devices. Common items include:
| Car Player |
Dash Cam |
Diagnostic Tools |
OBD Cable |
Other Auto Parts |
Does the product support customization?
Yes, various customized services are supported, such as custom logos, customized UI, and custom packaging. Please specify your requirements to get started.
What payment methods are accepted?
Various formal payment methods are accepted, including Western Union, PayPal, T/T, Trade Assurance Order Payment, and corporate bank transfers. Payment in RMB via Chinese freight forwarders is also supported.
How long does it take for goods to be shipped?
Standard orders usually take 7-30 days to ship out. Customized orders may require slightly longer lead times depending on the specifications.
How can I obtain more favorable pricing?
For long-term and stable partnerships, better pricing structures are available. Ensuring consistent product quality is our core priority.
What is the main difference between KESS and KTAG?
KESS supports OBD functions, enabling reading and writing directly through the car's OBD port. KTAG does not support OBD functions and requires the ECU to be disassembled and programmed via Boot, BDM, or Tricore mode.
