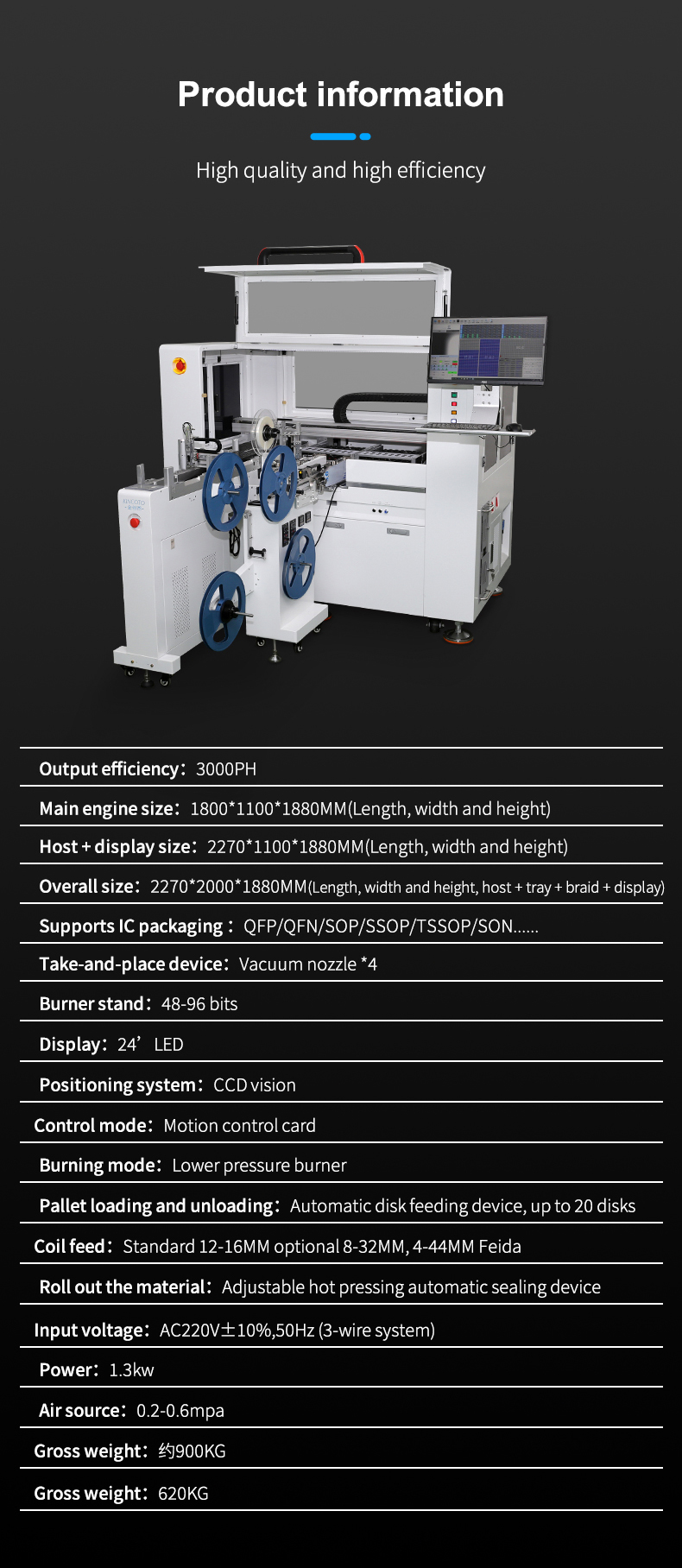

| Output efficiency | 3000-3500UPH |
| Over all | 2270*2000*1880mm(Length, width, height, Host + Tray +tape+ monitor) |

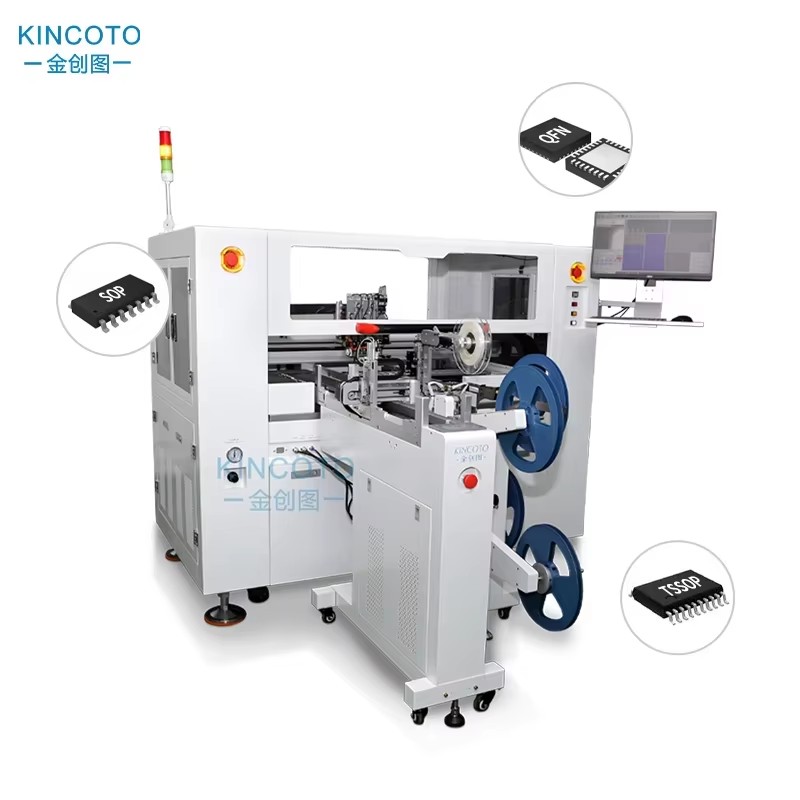

| Support IC packaging | QFN,SOP,SSOP,TSSOP,SON,QFP... |
| Pick and place device | Vacuum nozzle*4 |
| Programming Station | 48-32 |
| Monitor | 24''LCD |
| Pick and place accuracy | ±0.03mm |
| Way to control | Motion Control Card |

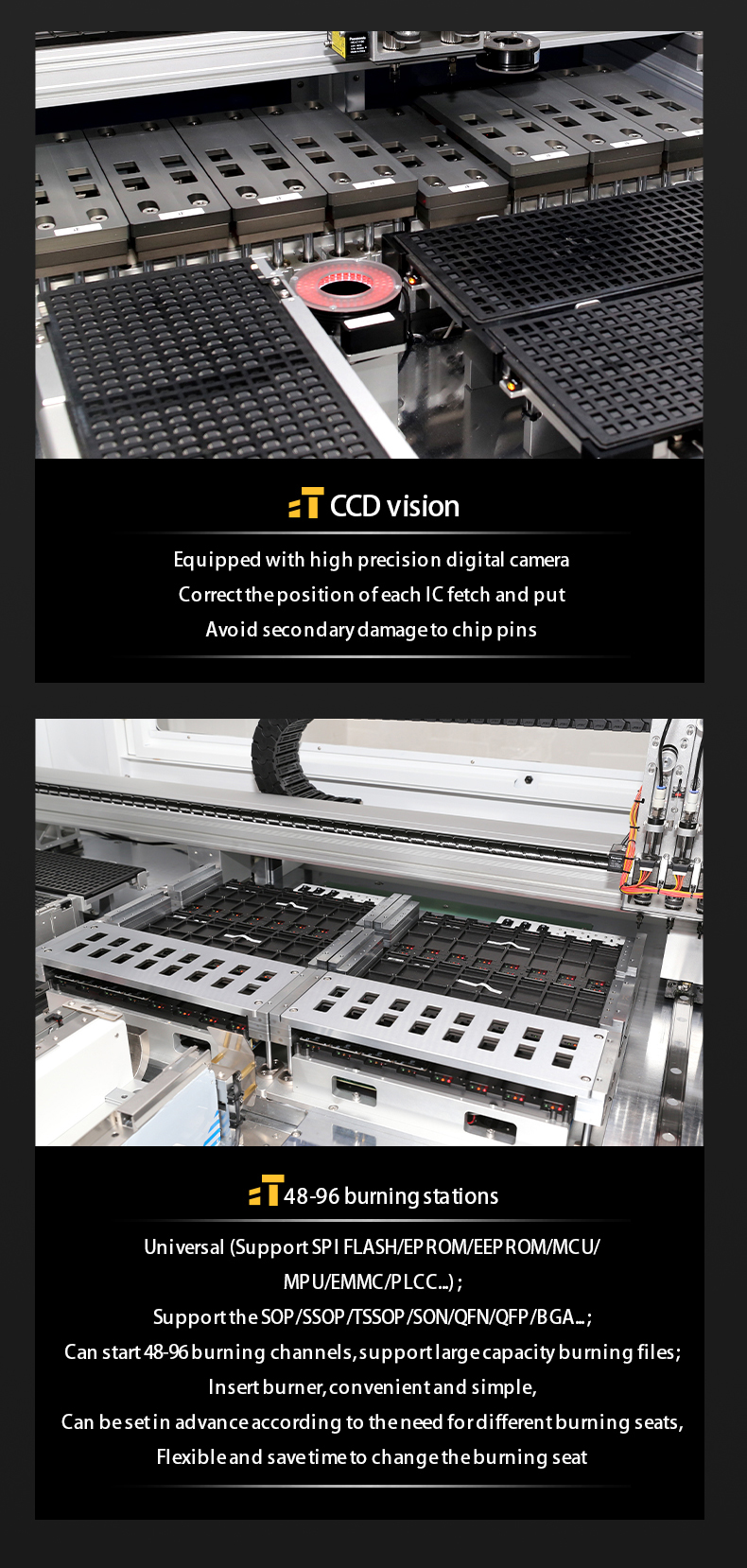

| GPS | CCD (optional) |
| Burning method | Down-press burning seat |

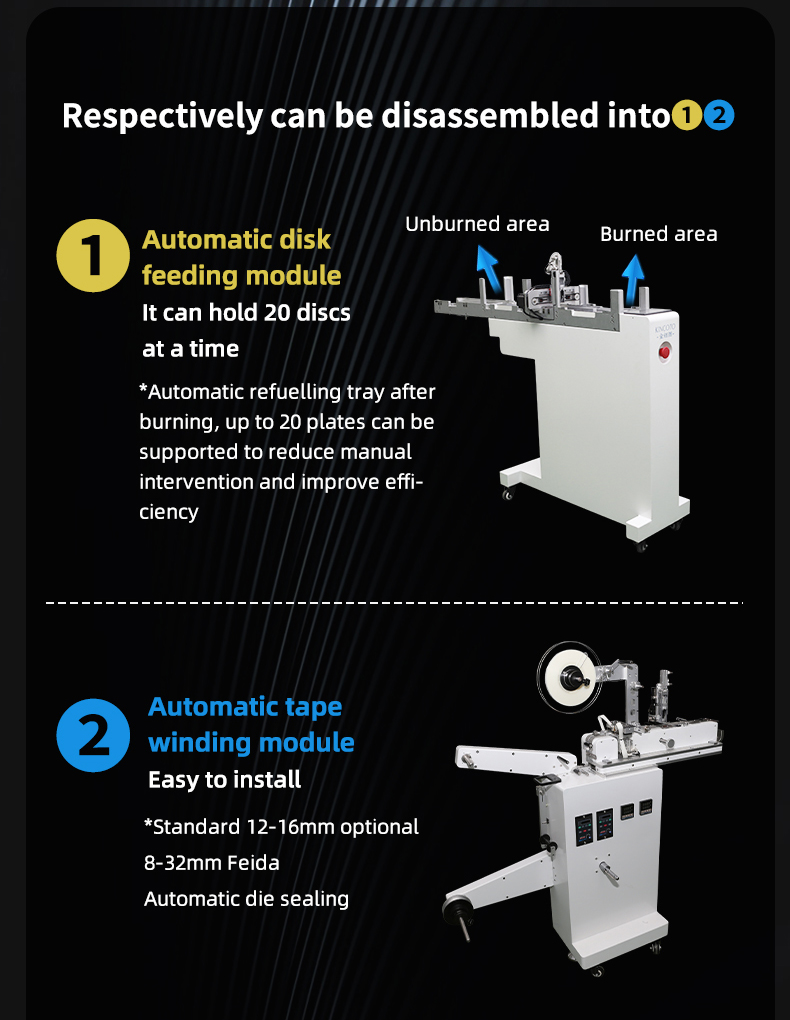

| Tray in and out | Automatic tray feeding device, supports up to 20 trays |
| Tape Input | Standard 12-16mm optional 8 32mm feeder |
| Tape output | Adjustable hot-pressing automatic film sealing device |
| Input voltage | AC220/50ZHz. |
| Power | 1.3kw |
| Gas source | 0.4-0.6MPA |
| Total weight | 900KG |

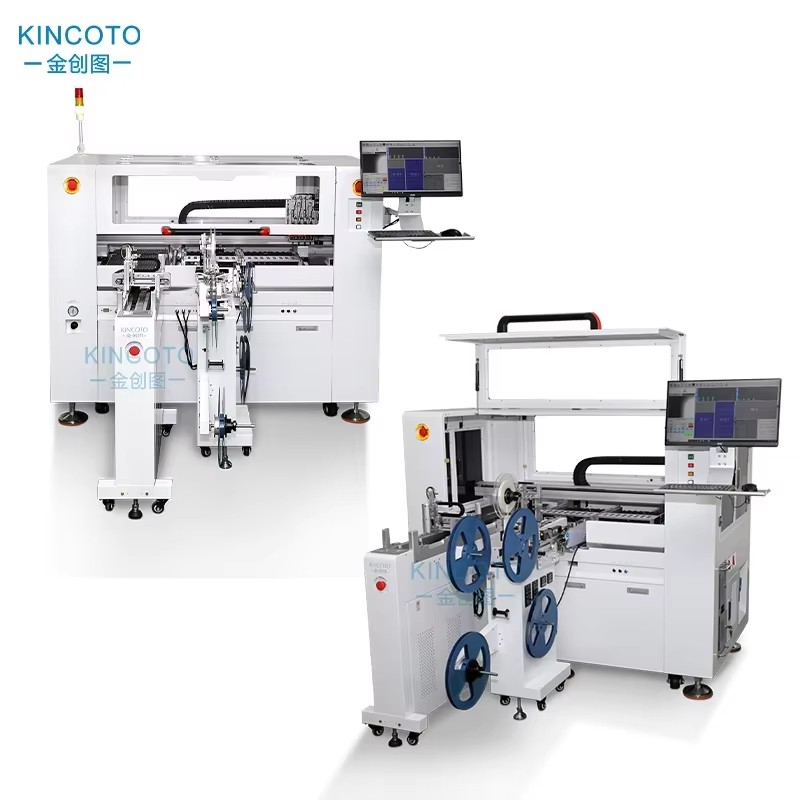

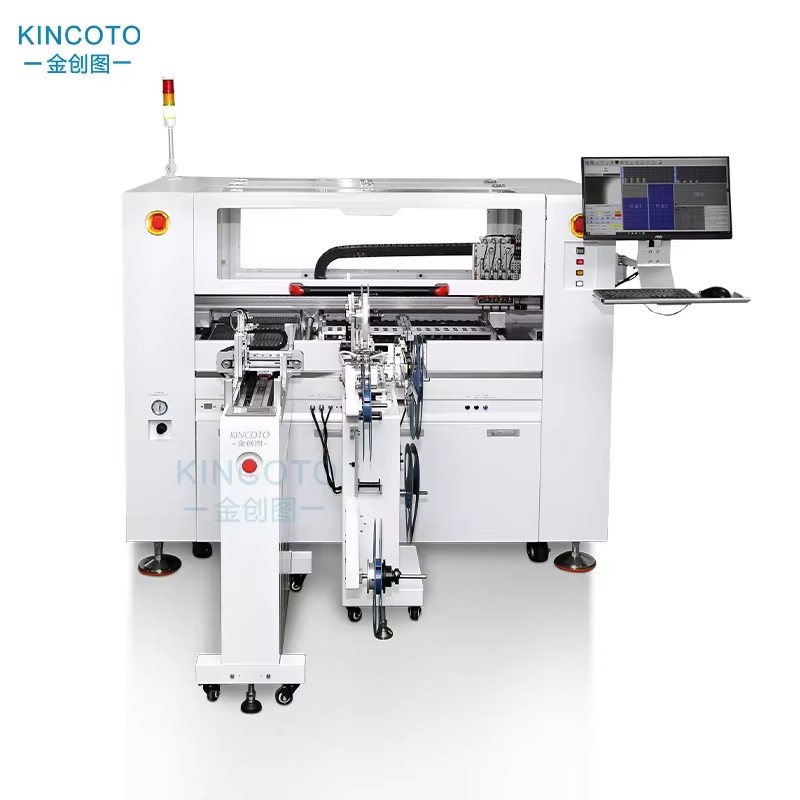

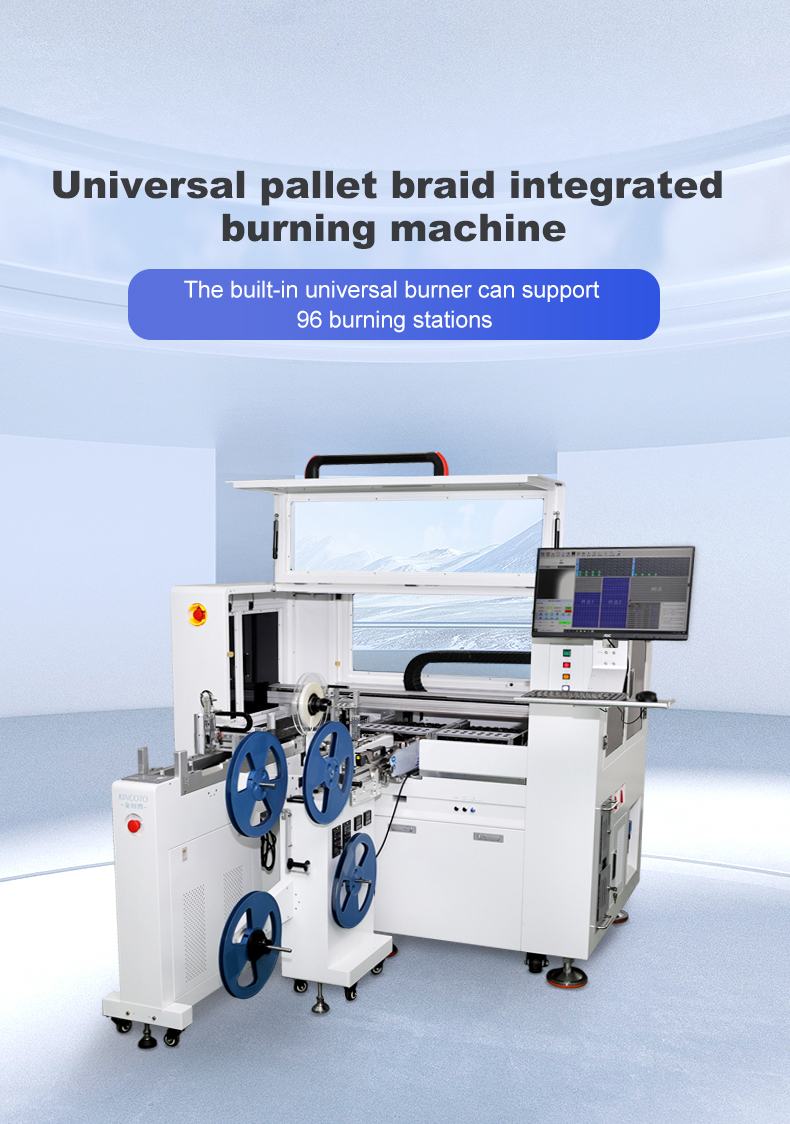

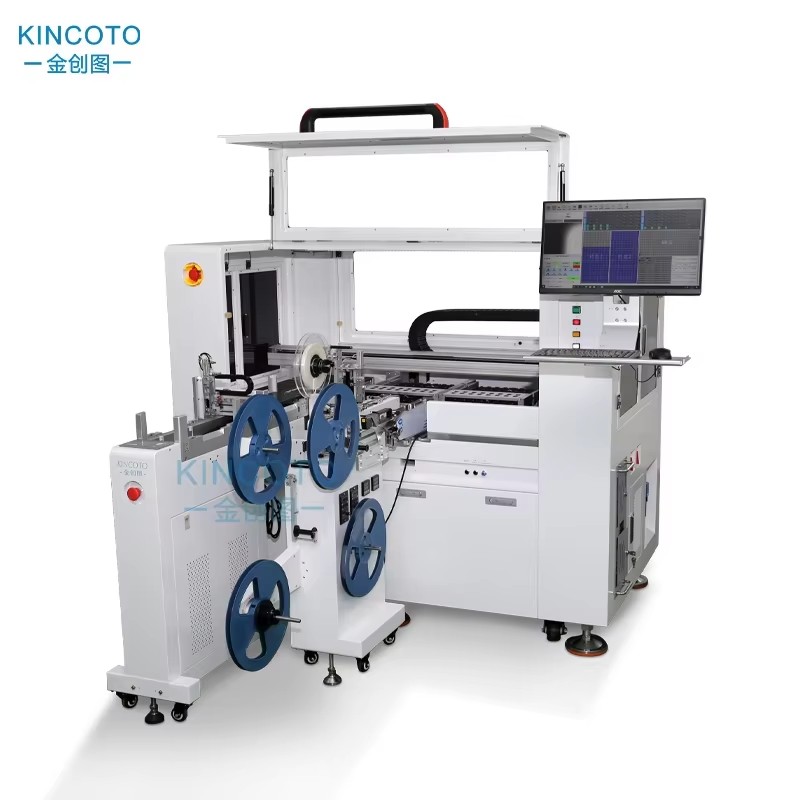

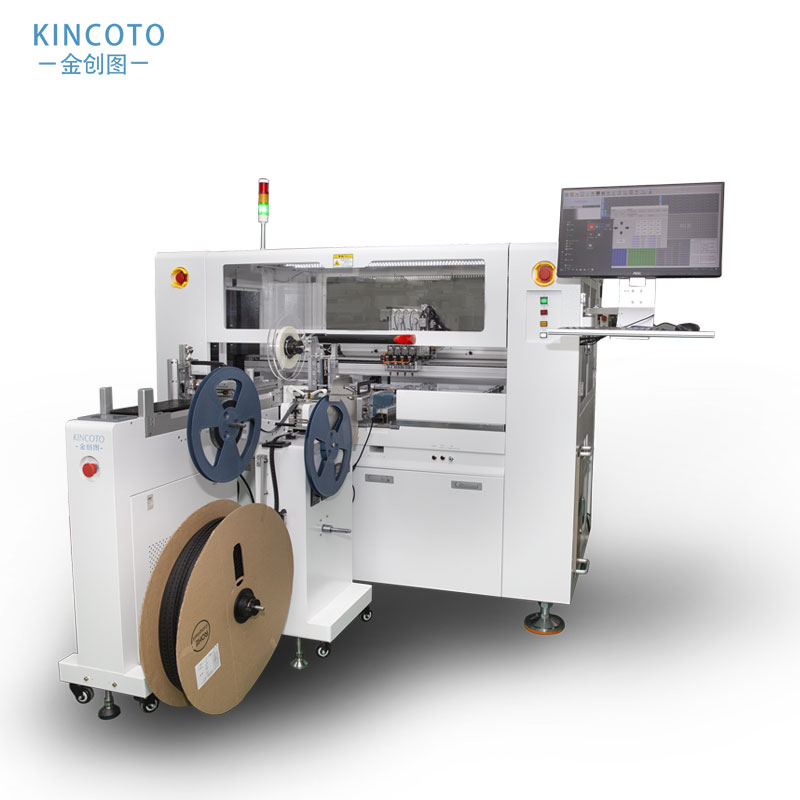

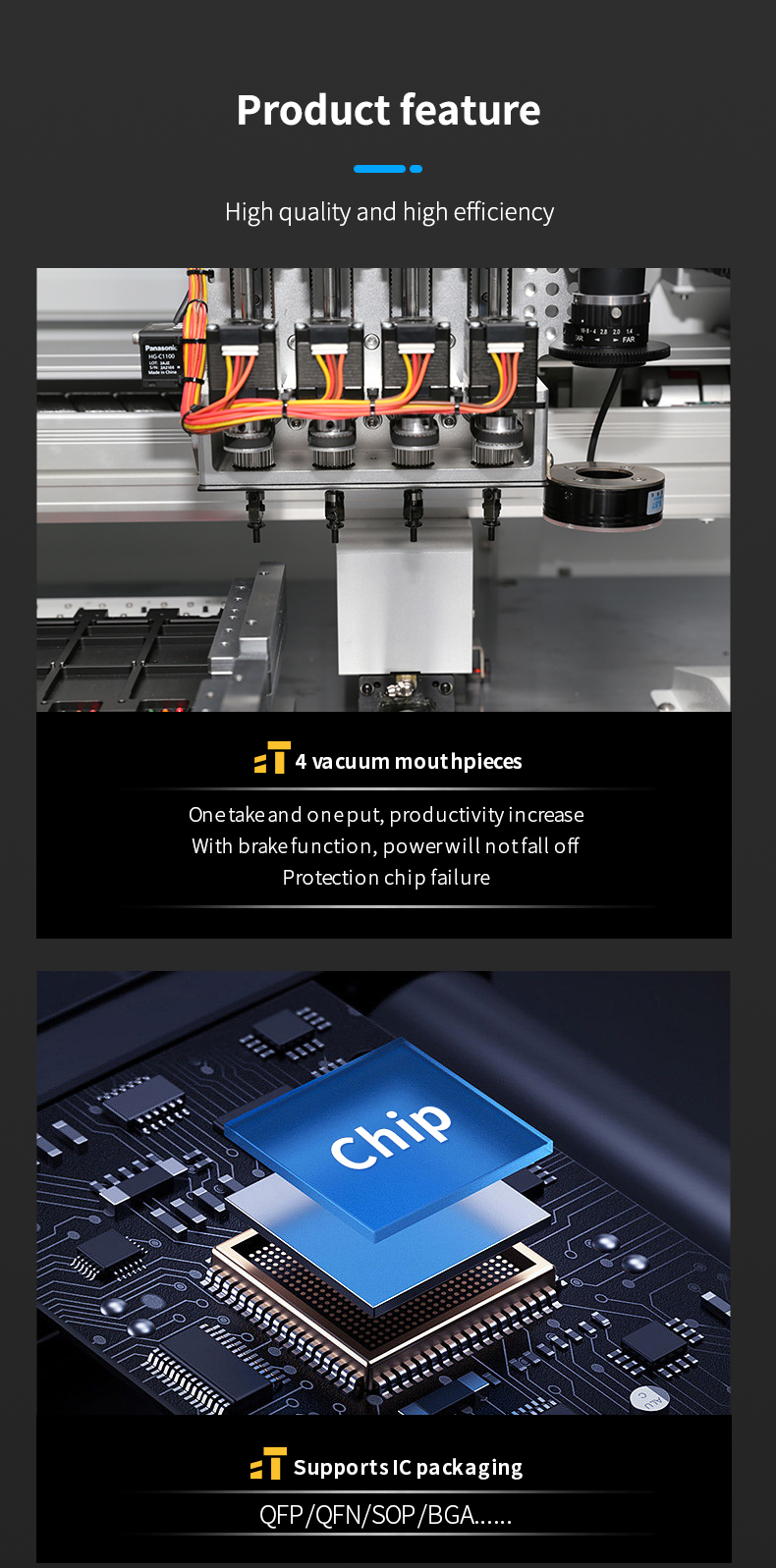

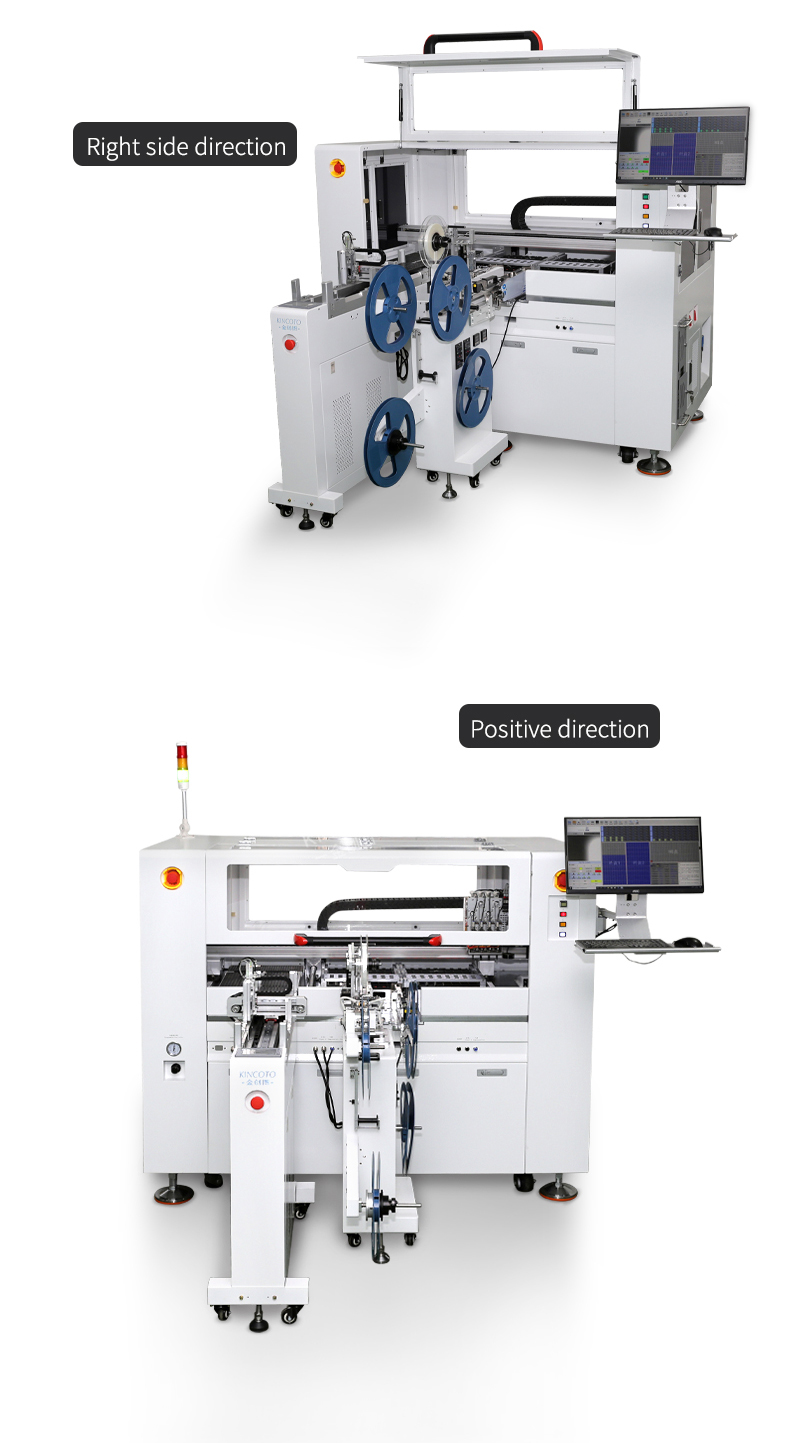

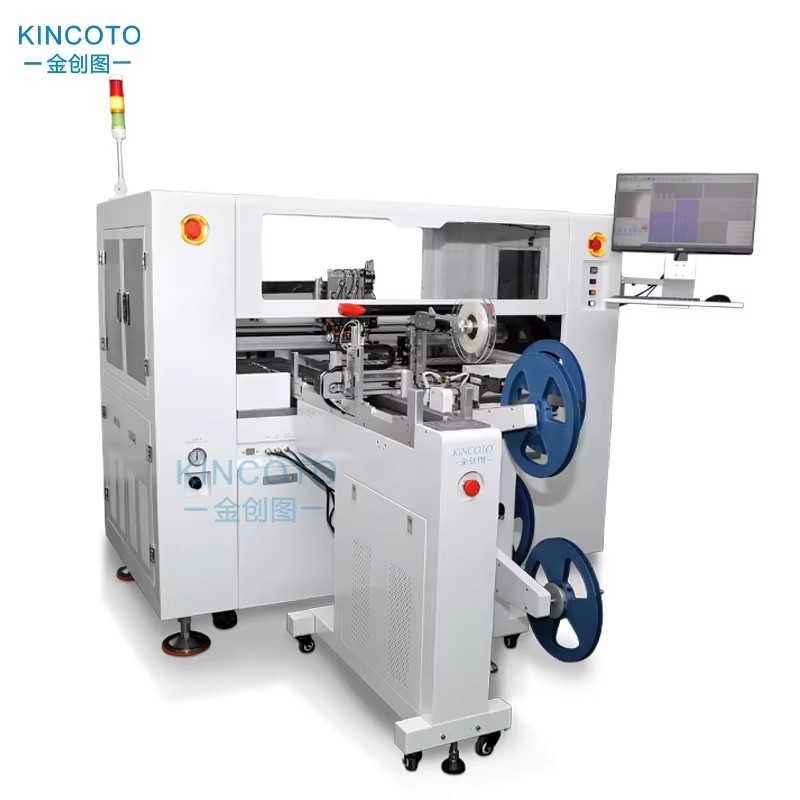

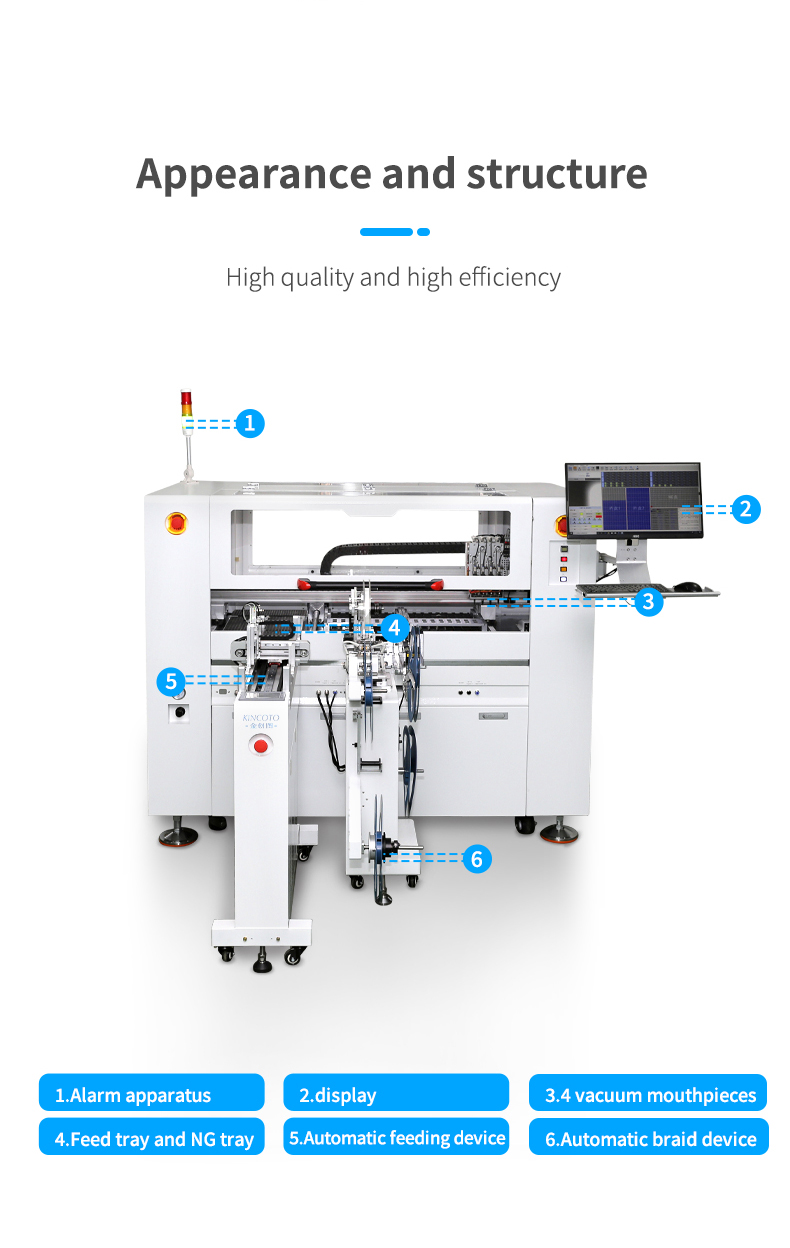

KA3000-GS6 is a three-in-one automated equipment for programming/testing of standard trays, tapes, and tubes. It uses an XYZ three-axis manipulator, and the Z axis is equipped with four nozzles to absorb chips with stable performance. It is equipped with 1-6 built-in programmers (supporting 96 programming stations). Automatic tray feeding can support up to 20 trays, automatic taping device, tube loading device three-in-one, NG tray and OK or supplementary tray. Convenient and efficient. The maximum production capacity can reach 3000UPH, CCD detection, high equipment compatibility.
Six modes: There are six modes: 1. tray in and tape out, 2. tape in and tape out, 3. tube in and tape out, 4. tape in and tray out, 5. tray in and tray out, 6. tube in and tray out.
Note: Tube material discharging is an optional device. If tube discharging is selected, it is necessary to communicate in advance. Although the equipment has reserved space for assembly, the standard price only includes the taping and tray device, and does not include the tube receiving device. If this device needs to be installed, it is necessary to communicate in advance.
