Easy Use OBD II Car Code Reader V1.5 Display Key Programmer VC309 OBD2 Scanner Diagnostic Tools

Product Description

OBD II Scanner--V1.5 VC309
SUPPORT OEM & ODM (OPTIONAL) Status
Packing Box Support
Logo Silk-Printing Support
Logo Color-Printing Support
Logo label/Color card/User manual Support
Product firmware development, feature upgrade Support

The OBDII/EOBD Code Reader is specially designed to work with all OBD II compliant vehicles, including those equipped with the next-generation protocol-Control Area Network (CAN). It is required by EPA that All 1996 and newer vehicles (cars and light trucks) sold in the United States must be OBD II compliant and this includes all Domestic, Asian and European vehicles.

A small number of 1994 and 1995 model year gasoline vehicles are OBD II compliant. To verify if a 1994 or 1995 vehicle is OBD II compliant, check the Vehicle Emissions Control Information (VECI) Label which is located under the hood or by the radiator of most vehicles. If the vehicle is OBD II compliant, the label will designate "OBD II Certified". Additionally, Government regulations mandate that all OBD II compliant vehicles must have a "common" sixteen-pin Data Link Connector (DLC).

For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant.

Features
  • Work with all 1996 and newer vehicles that are OBD II compliant (including CAN)
  • Read and clear generic and manufacturer specific Diagnostic Trouble Codes (DTCs) and turn off check engine light
  • Support multiple trouble code requests: generic codes, pending codes and manufacturer specific codes
  • Review the emission readiness status of OBD monitors
  • Determine the malfunction indicator lamp (MIL) status
  • Retrieve VIN (Vehicle Identification No.) on 2002 and newer vehicles that support Mode 9
  • Easy to use with one plug-in
  • Free CD software with over 7000 DTC definitions
  • No batteries needed-powered via detachable OBD II cable
Specifications

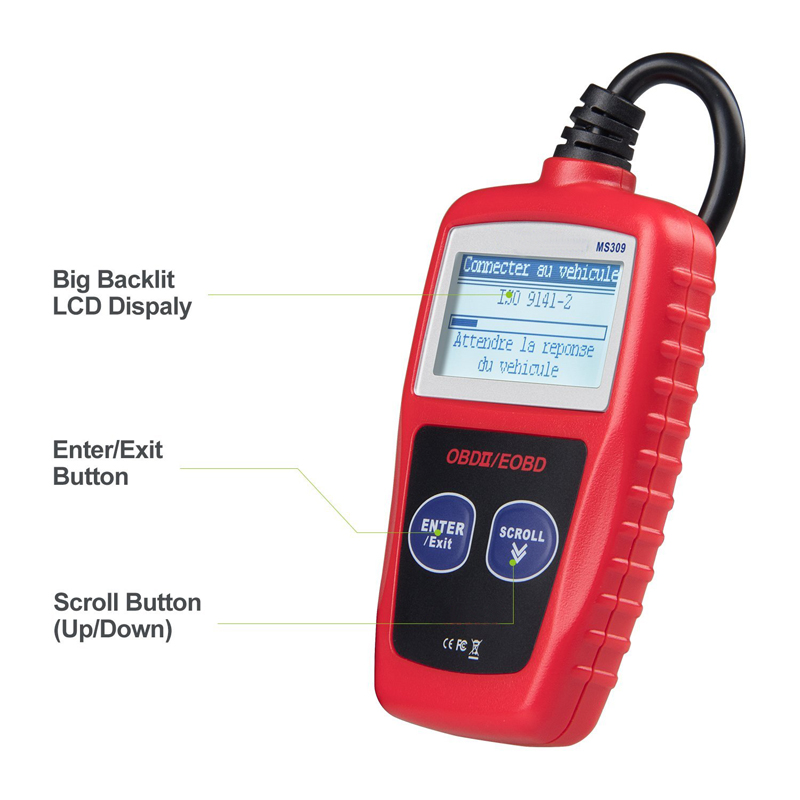

  • Display: Backlit, 128 x 64 pixel display
  • Operating Temperature: 0 to 60 °C (32 to 140 °F)
  • Storage Temperature: -20 to 70 °C (-4 to 158 °F)
  • Power: 8 to 18 Volts provided via vehicle battery
Dimensions

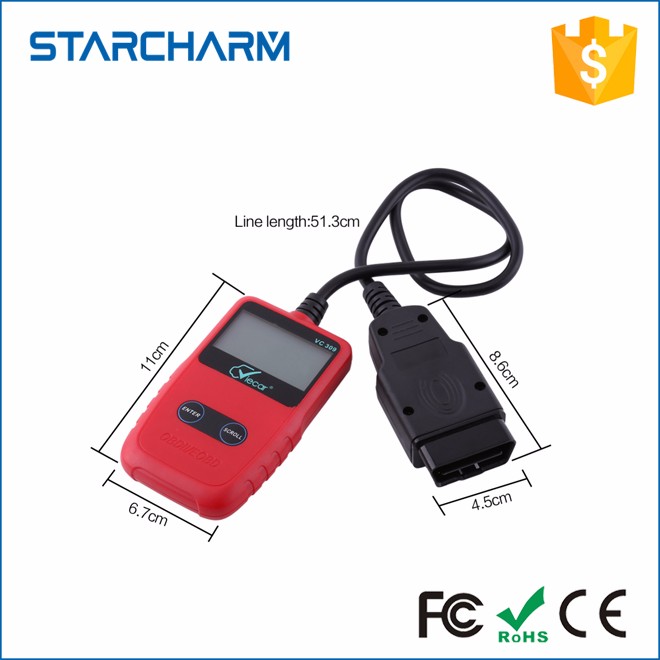

  • Size: 109.2 mm (4.30") x 66.9 mm (2.63") x 17.6mm (0.69")
  • Weight: NW: 0.12 Kg (0.26lb), GW: 0.15Kg (0.33lb)
Contents
  • Tool
  • User's Manual

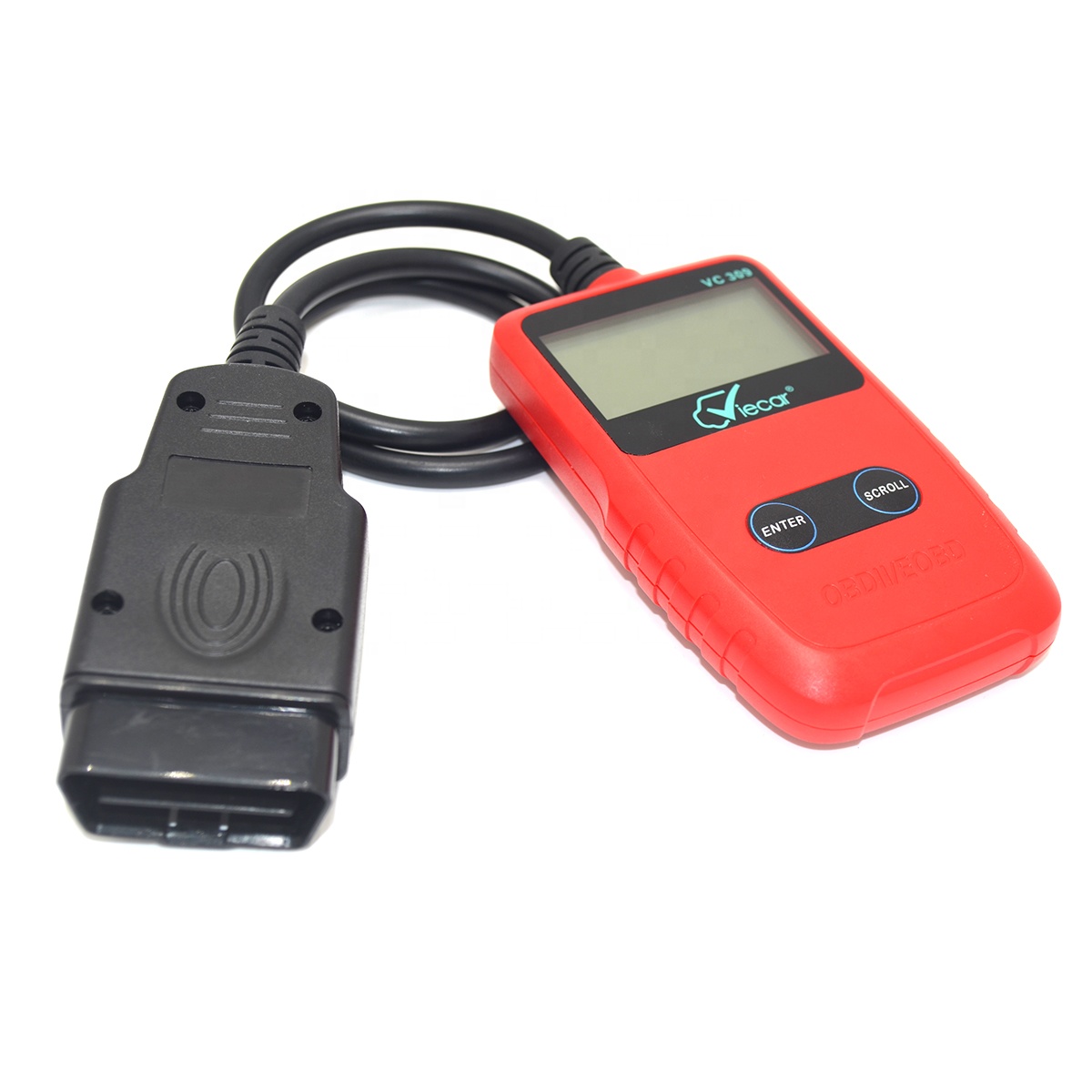

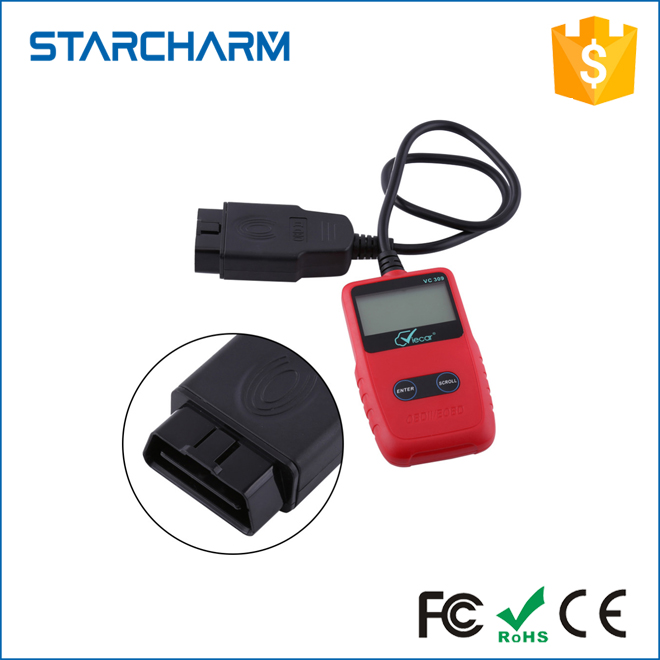

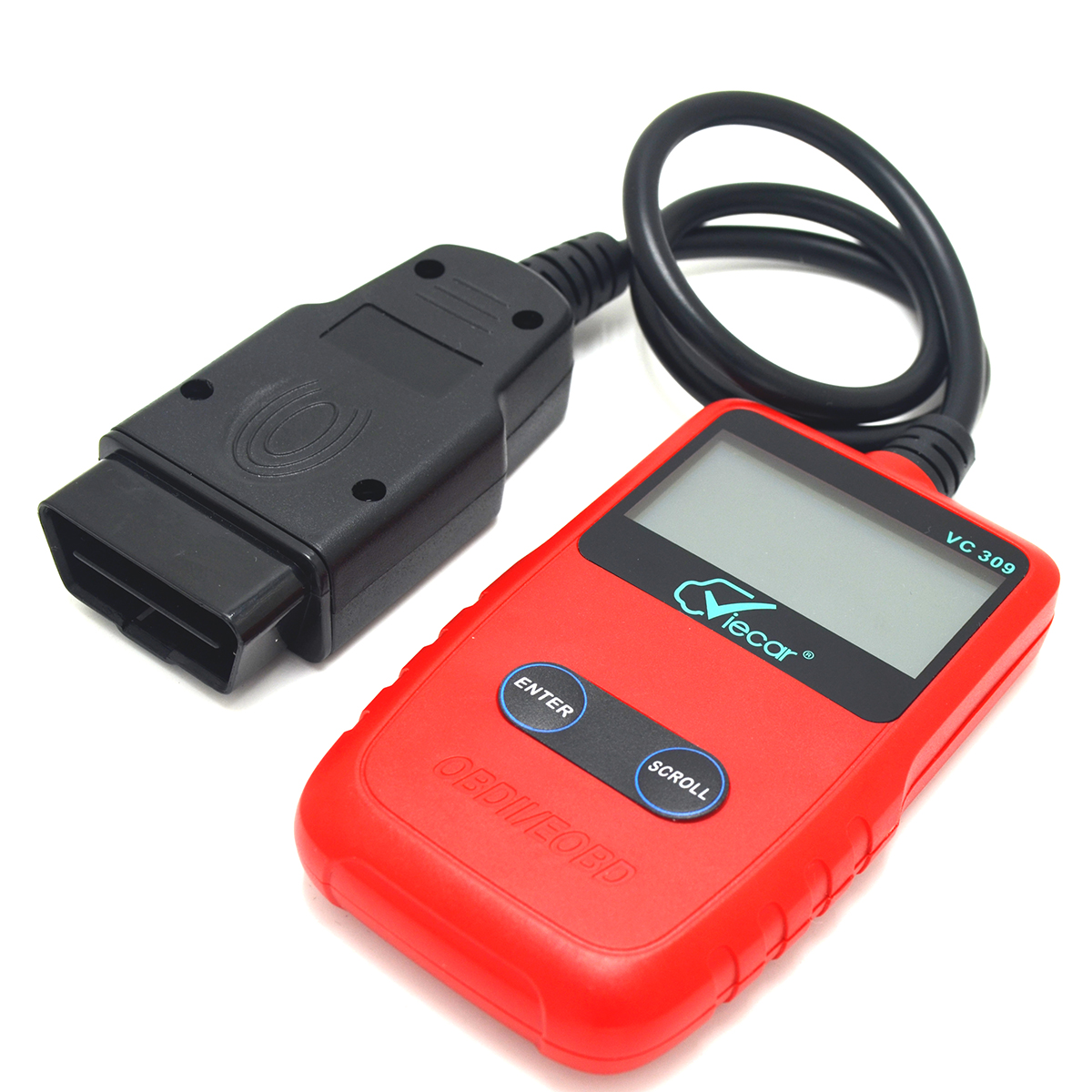

Picture Show

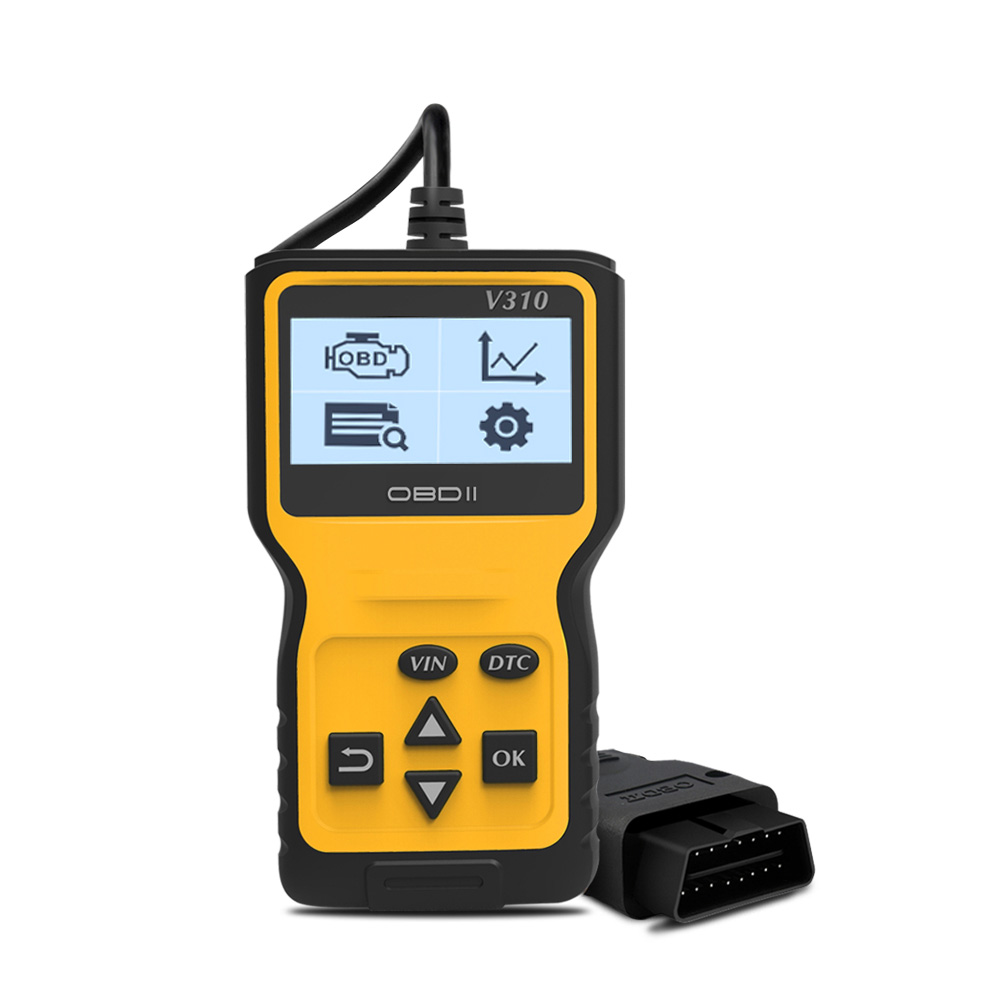

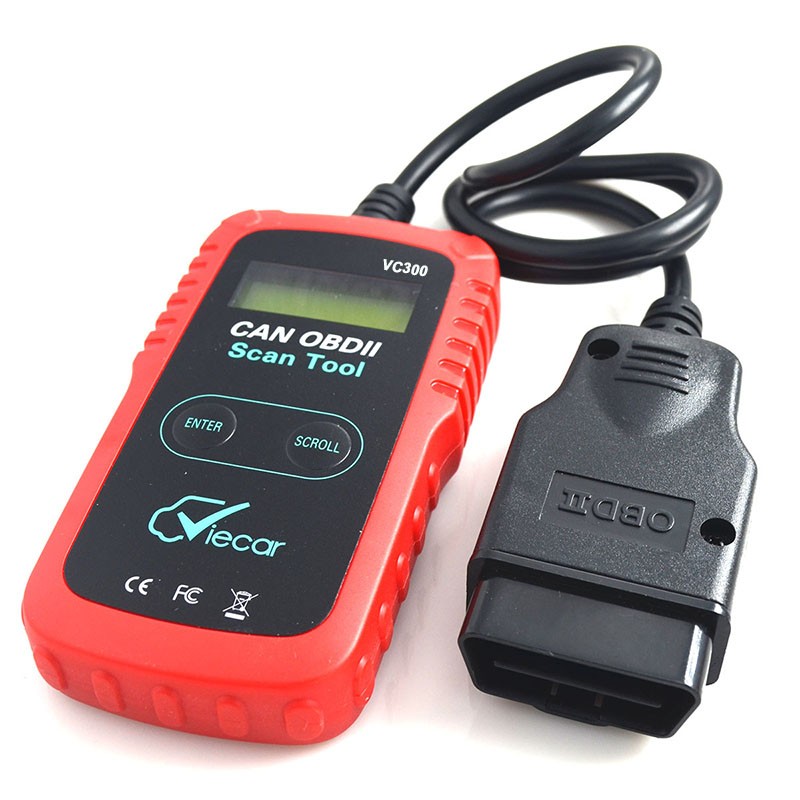

Similar Items
Our Factory

Registered in Shenzhen, China, the company has a number of independent intellectual property rights, and has a number of design patents and utility model patents in product design and production. One of the industry's leading automotive electronics manufacturers specialized in R&D, design, production, sales, specializing in R&D the production of car OBD and other high-tech electronic products, products passed a number of international certification. The company has over 2,000 square meters of whole clean room, more than one automatic SMT equipment, with strong production capacity, and through ISO9001: 2008 quality management system certification. The company also has strong research and development capability, providing customers OEM and ODM services according to customer's different requirement. The company has always put product's quality on the most important position, constantly improve the after-sale service, and actively promote the development of China's auto parts manufacturing. Master the most cutting-edge technology, standards and industry dynamics, giving customers the most advanced, most standards, the most reliable products.

Frequently Asked Questions (FAQ)
What is the OBD II Scanner V1.5 VC309 designed for?
It is designed to work with all OBD II compliant vehicles (including CAN protocol) to read and clear diagnostic trouble codes (DTCs), turn off check engine lights, check emission readiness, and retrieve VIN details.
Does this device require external batteries to operate?
No, it does not require any batteries. It is fully powered directly via the vehicle's battery through the detachable 16-pin OBD II cable connection (operating voltage: 8 to 18 Volts).
How do I verify if my vehicle is OBD II compliant?
All 1996 and newer vehicles sold in the USA are compliant. For 1994-1995 model year vehicles, check the Vehicle Emissions Control Information (VECI) label under the hood or near the radiator for the "OBD II Certified" designation.
What customization options are supported under OEM and ODM services?
We support customizing packaging boxes, logo silk-printing, logo color-printing, custom logo labels, color cards, user manuals, and customized firmware development or feature upgrades.
Does the tool provide definitions for the diagnostic trouble codes?
Yes, the package includes free CD software containing over 7,000 diagnostic trouble code (DTC) definitions to help you easily identify vehicle malfunctions.
What are the system dimensions and operating conditions?
The scanner dimensions are 109.2 mm x 66.9 mm x 17.6 mm, with a backlit 128 x 64 pixel display. It operates efficiently in temperatures ranging from 0 to 60 °C (32 to 140 °F).
