PICkit3 is a development tool designed by Microchip for beginners to learn, evaluate and develop PIC series MCUs, integrating online simulation and downloading. The PIC series single-chip microcomputer is connected with PICkit3 through the ICSP interface.
Supported Software: Directly supports Microchip's official IDE (integrated development environment software) MPLAB.
Supported Devices: Supports all PIC series microcontrollers with ICSP interface. To verify compatibility, open the software, configure -> select device PICKIT3; a green light in front of it indicates support.
Supported Device Matrix
8-bit Devices - PIC10F/12F/16F
PIC10F/12F/16F5X
PIC16F6xx
PIC16F7XX
PIC16F8XX
PIC16F9XX
PIC16F1XXX
8-bit Devices - PIC18F
PIC18CXX/FXX
PIC18F1XXX
PIC18F2XXX/4XXX/6XXX/8XXX
PIC18FXXJ
PIC18FXXK
16-bit & 32-bit Devices
dsPIC30F/33F
PIC24F/H
PIC32MX
Key Features & Performance
Programming Function
Can burn and write FLASH ROM, EEPROM, and support Microchip's KEELOQ HCS series chips, MCP250xx CAN series chips, and EEPROM memory chips.
Simulation Capabilities
Supports various debugging methods such as full-speed running, single-step debugging, and breakpoint debugging with high response speed via USB interface.
Upgradable Firmware
Automatic firmware upgrade programs are provided to support new PIC models introduced in the future.
LED Status Indicators
Power (Green): Lights up when powered on or connected to the target board.
Active (Blue): Lights up when the PICkit 3 has established communication with the PC or is sending/receiving commands.
Status (Green): Lights up when the debugger is working normally (standby).
Status (Yellow): Lights up when the operation is busy.
Status (Red): Lights up when the debugger fails.
Important Connection Note: Since the ICSP interface of PIC has only one row of 6PIN connectors, please pay attention to the left and right direction when connecting to the target board. Do not insert it backwards to avoid burning the device.

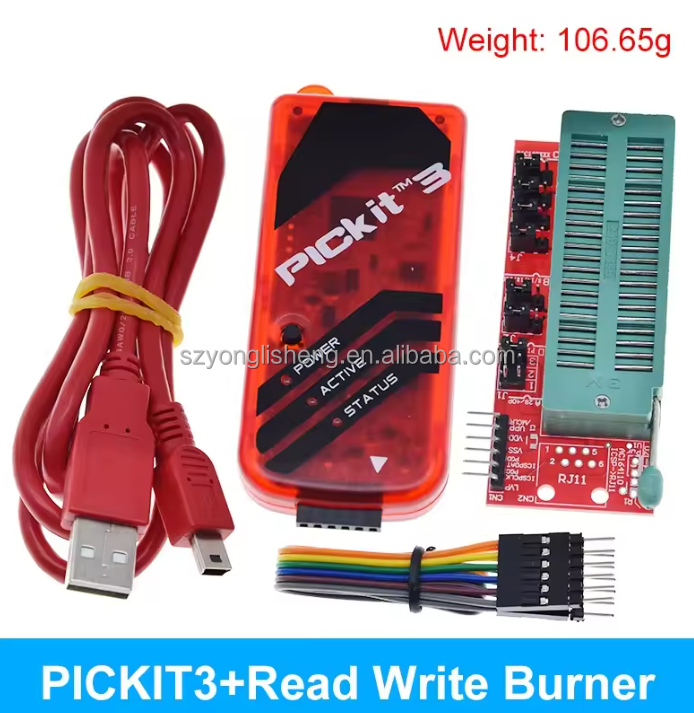

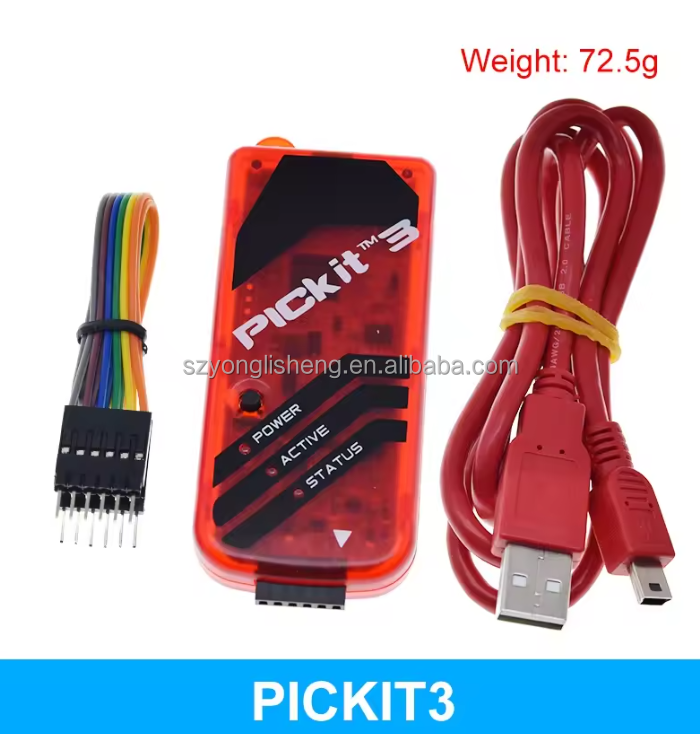

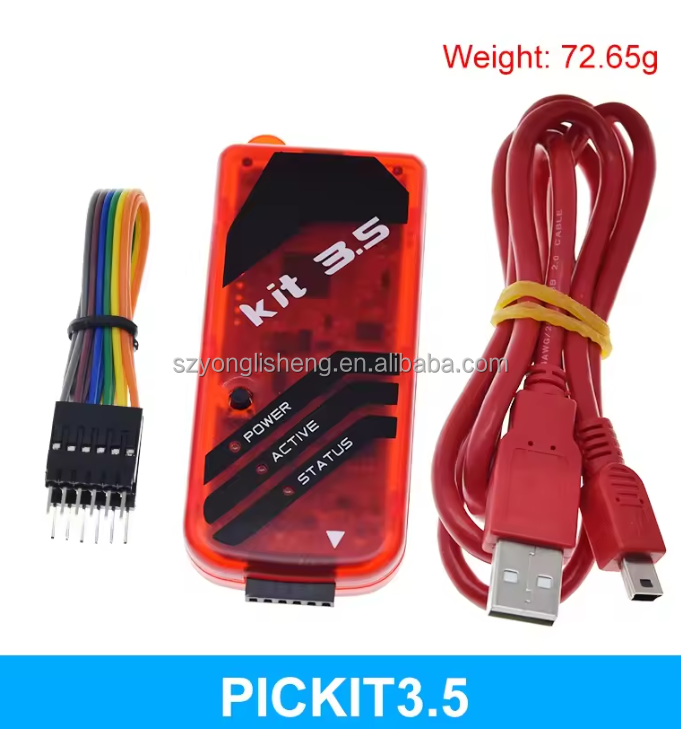

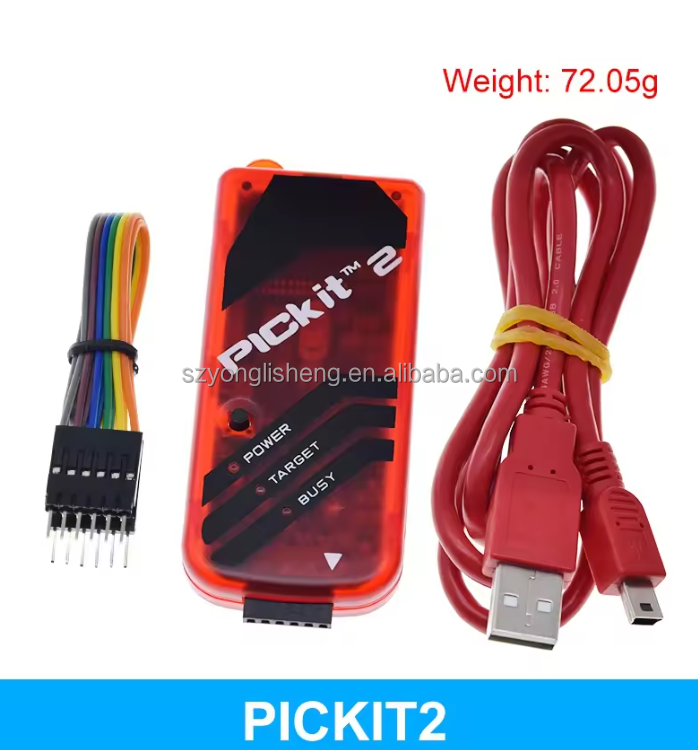

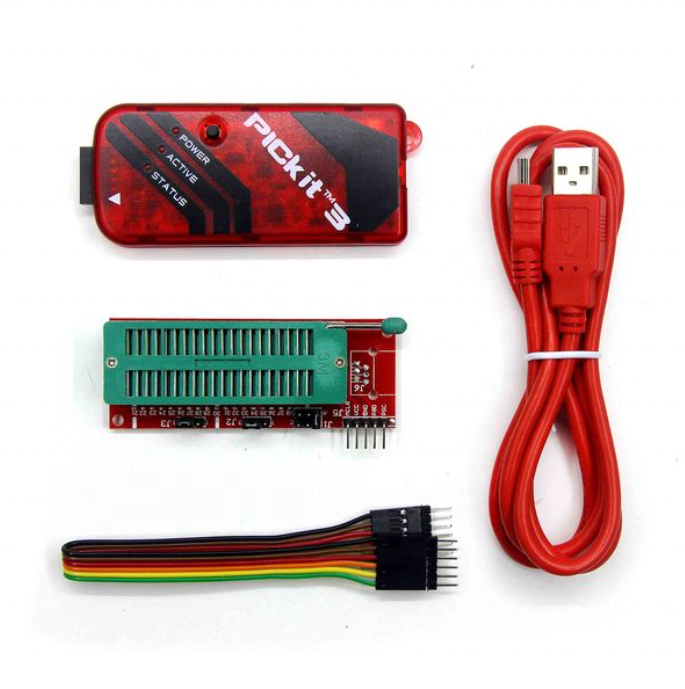

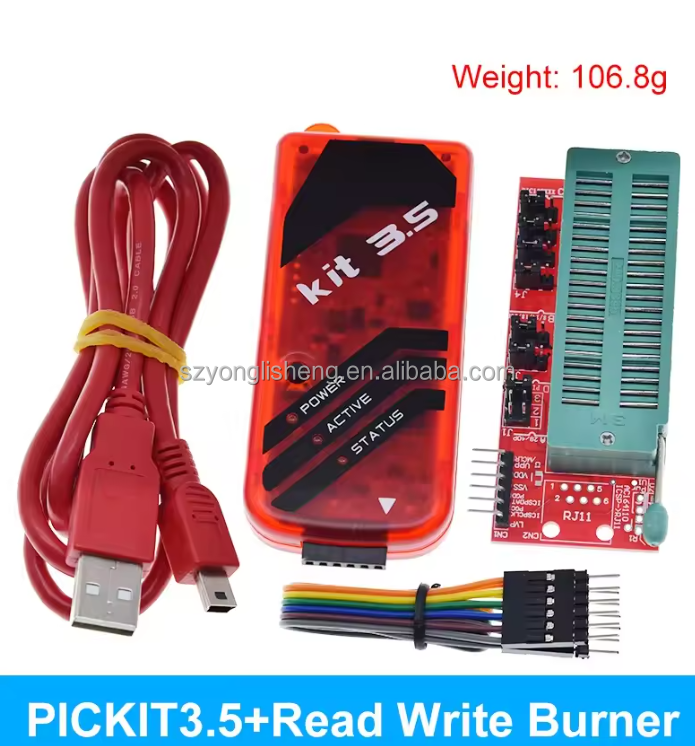

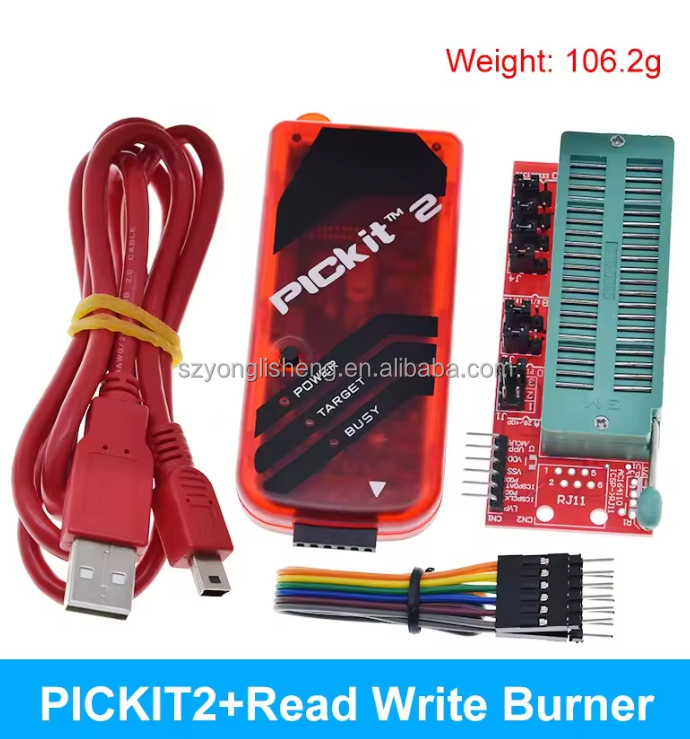

Product Images
More Products & Line
About & Certifications
Frequently Asked Questions (FAQ)
Q1: What kinds of components can you supply?
A: We are a professional supplier of electronic components. We can provide original and new integrated circuits, diodes, transistors, resistors, capacitors, crystals, etc., and also provide full BOM and PCB services.
Q2: What is the minimum order quantity (MOQ) for your products?
A: The minimum order quantity starts from ONE piece.
Q3: How long does it take to pack and ship the order?
A: We will pack and send your goods within 2-3 working days after we confirm your payment. Please let us know once payment is complete for faster processing.
Q4: What logistics methods are used for shipping?
A: We usually ship by DHL, UPS, TNT, or EMS, which typically takes 3-7 days to arrive. Air cargo and sea shipping are also optional.
Q5: What is your after-sales and warranty policy?
A: Our products are original and new from the manufacturer. We offer a 30-90 days warranty. During the guarantee period, if the items purchased are found to be of imperfect quality, please notify us within 3 days after delivery for returns or replacements.
Q6: Does the PICKit3 support future microchip models?
A: Yes, the programmer supports automatic firmware upgrades. When new PIC models are introduced by Microchip, you can upgrade the firmware through the official program to support the latest models.
