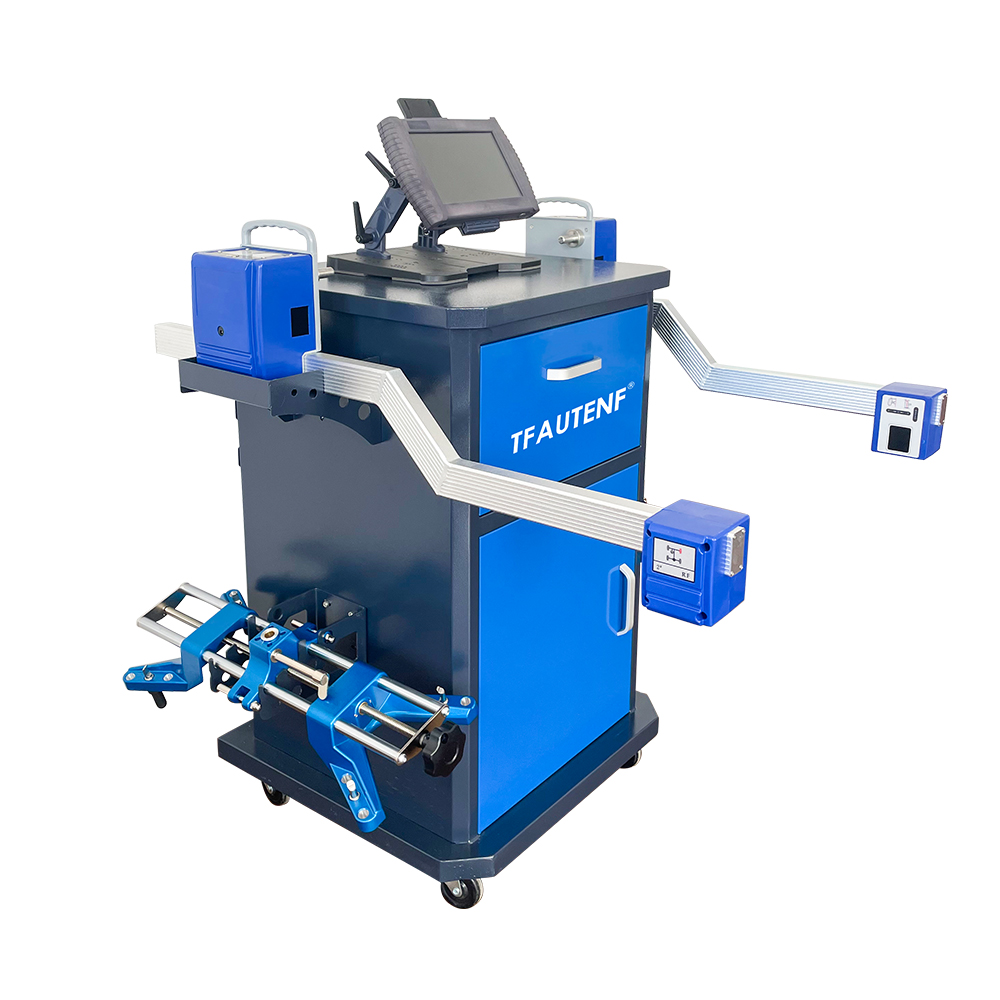

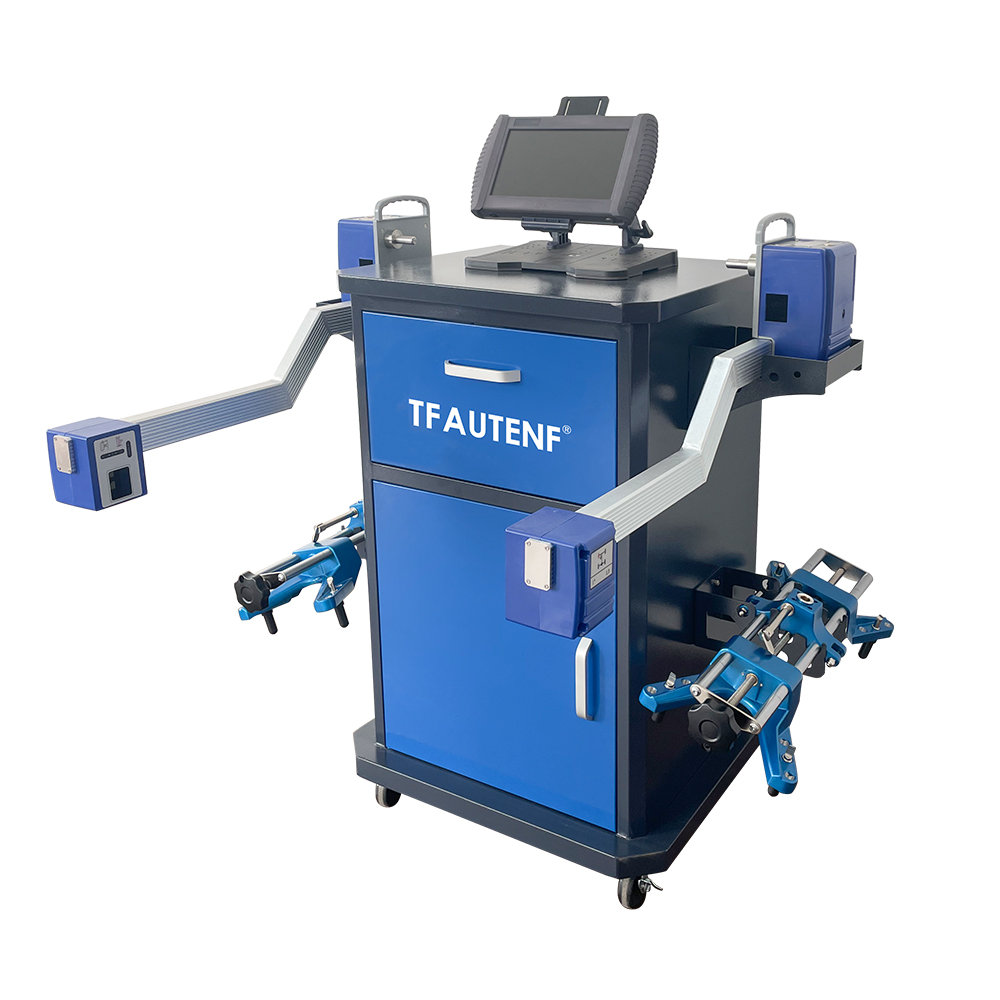

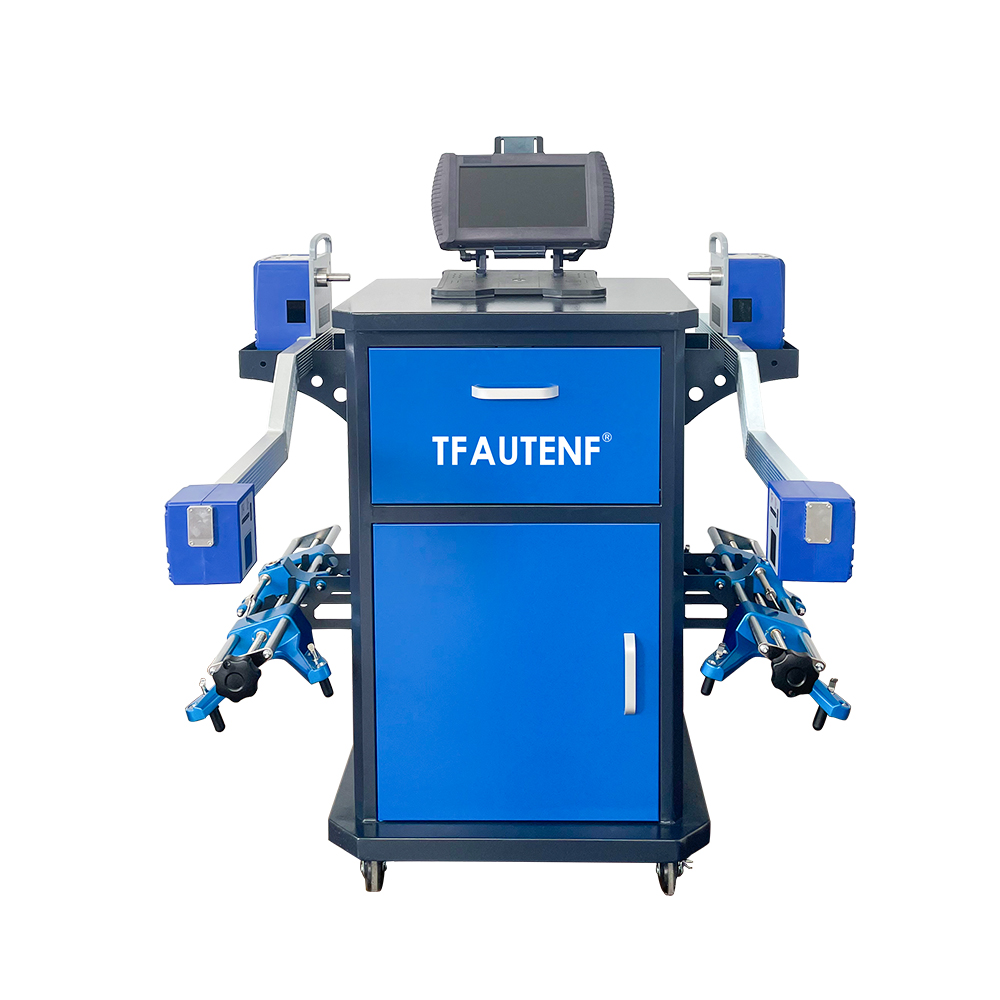

The model of wheel aligner can align steering axles, drive axles and trailers.
| Item Name | Quantity | Remark |
|---|---|---|

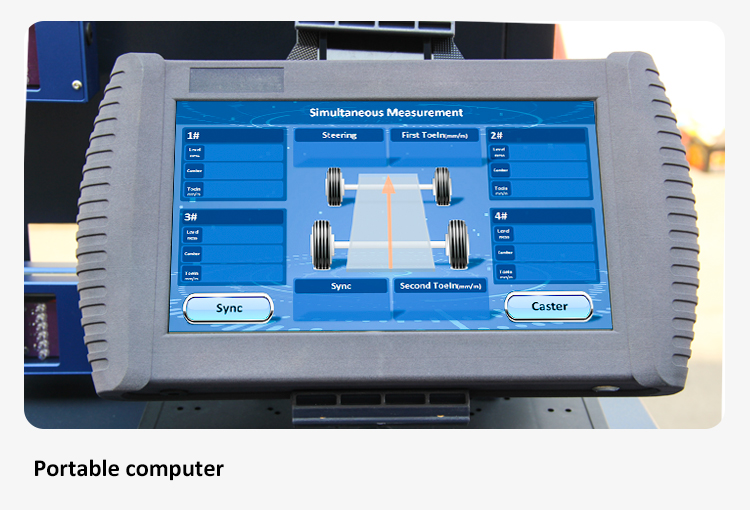

| Dedicated tablet computer | 1 pc | Directly enter alignment software after turn on, 10.1 inch touch screen, long standby time, built-in signal receiver |
| Support for tablet | 1 pc | - |
| Mobile cabinet | 1 pc | - |
| Electronic measuring sensors | 2 pcs | 3.5 inch touch screen, long standby time, can be calibrated directly on the sensors, coaxial compensation and offset compensation can be made on the sensors. |
| Aluminium alloy clamps | 2 pcs | 11-30 inch, 5.7 kgs/pc |

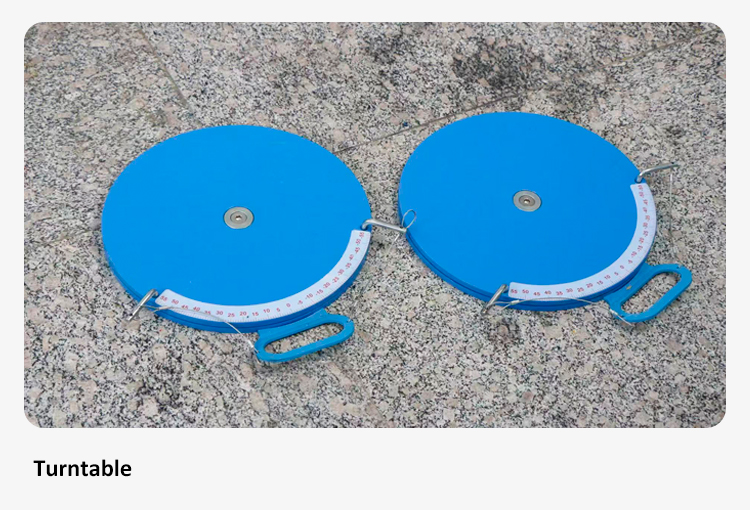

| Turntable plates | 2 pcs | Diameter: 350mm, height: 22mm, weight: 14.5kgs/pc, lifting capacity: 20 tons/pc, rotation range: 360° |
| Charger | 4 pcs | - |
| Charging socket | 1 pc | - |
| Laser transmitter | 1 pc | - |
| Magnetic ruler | 2 pcs | - |
| Measuring Item | Measuring Range | Measuring Accuracy |
|---|---|---|
| TOE | ± 200 mm | ± 0.1 mm |
| CAMBER | ± 90 ° | ± 1' |
| CASTER | ± 20 ° | ± 1' |
| SAI | ± 30 ° | ± 1' |
| Parameter | Details |
|---|---|
| Packages quantity | 2 pcs |
| Packages size | 660*620*1120mm, 1150*380*400mm |
| Volume | 0.64 CBM |
| Total gross weight | 107 kgs |
This heavy-duty wheel aligner is designed to support the alignment calibration of steering axles, drive axles, as well as trailers.
The measuring range for TOE is ± 200 mm with an accuracy of ± 0.1 mm. The CAMBER range is ± 90 °, CASTER range is ± 20 °, and SAI range is ± 30 °, each with a precise measurement accuracy of ± 1'.

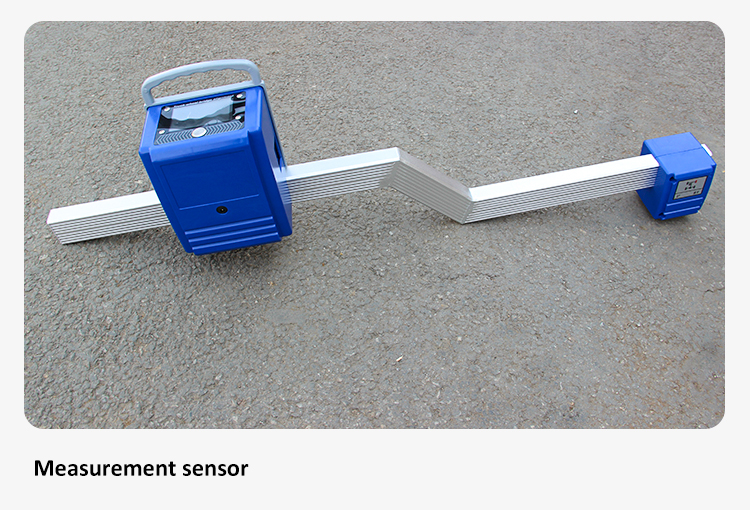

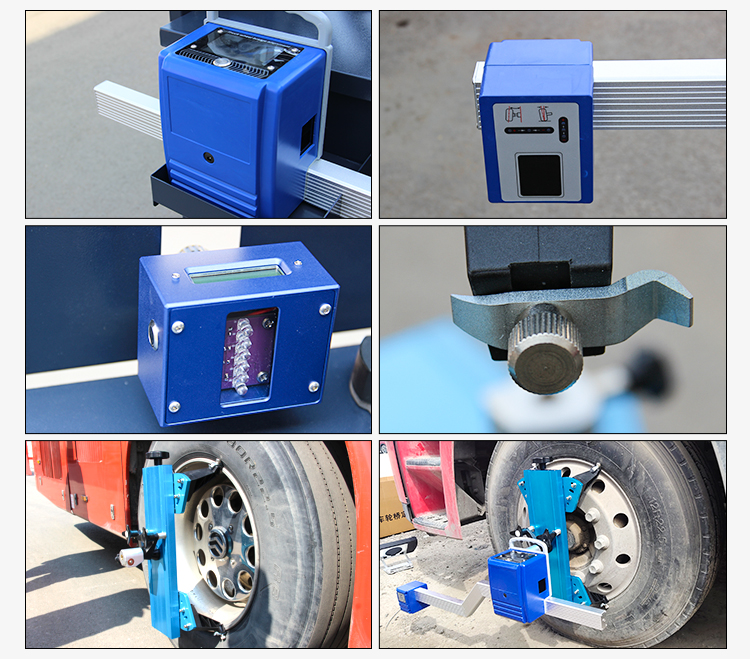

The electronic measuring sensors are equipped with a built-in 3.5-inch touch screen and boast a long standby time. Calibration, coaxial compensation, and offset compensation can all be executed directly on the sensors.

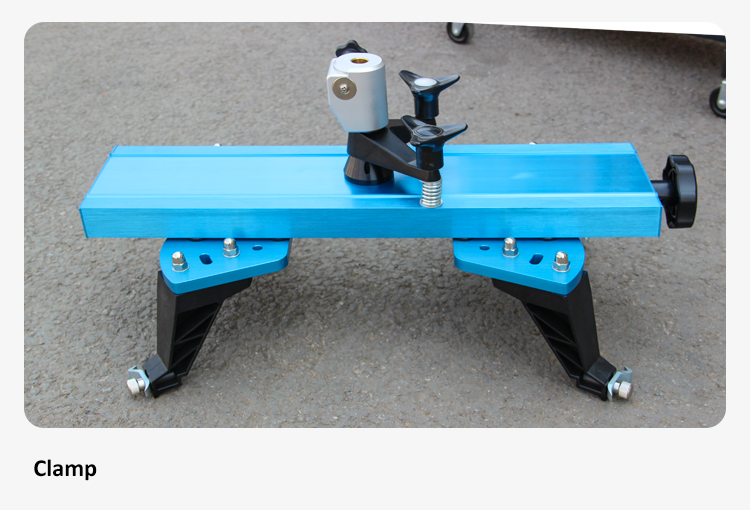

The package includes 2 pcs of aluminum alloy clamps. They accommodate wheel rim sizes ranging from 11 inches up to 30 inches and weigh approximately 5.7 kgs per piece.

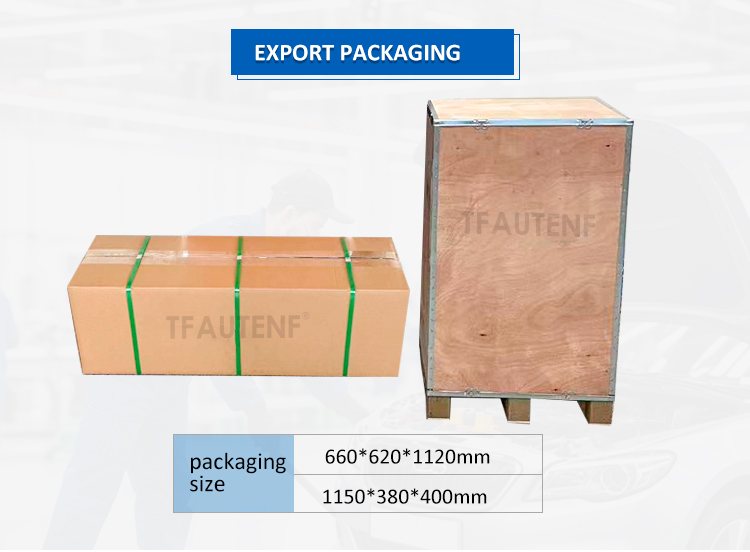

The standard wheel aligner configuration is shipped in 2 packages. The package sizes are 660*620*1120mm and 1150*380*400mm, with a total volume of 0.64 CBM and a total gross weight of 107 kgs.
