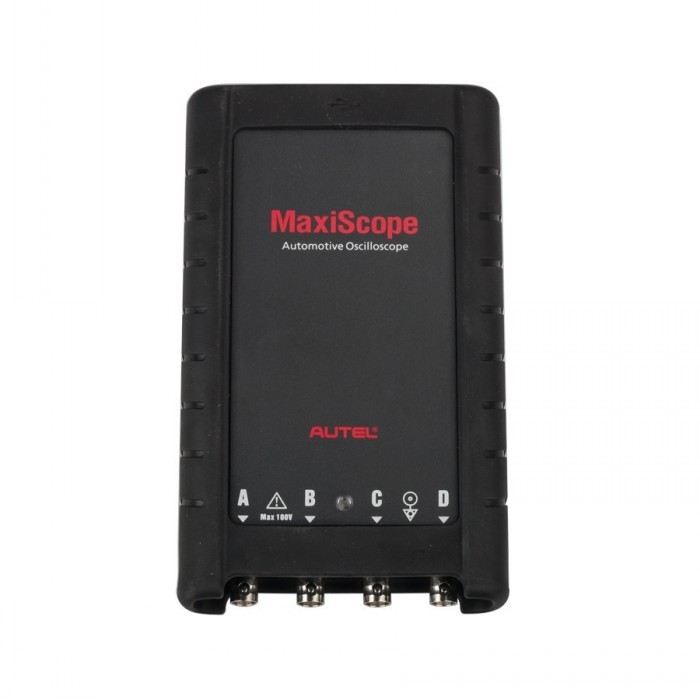

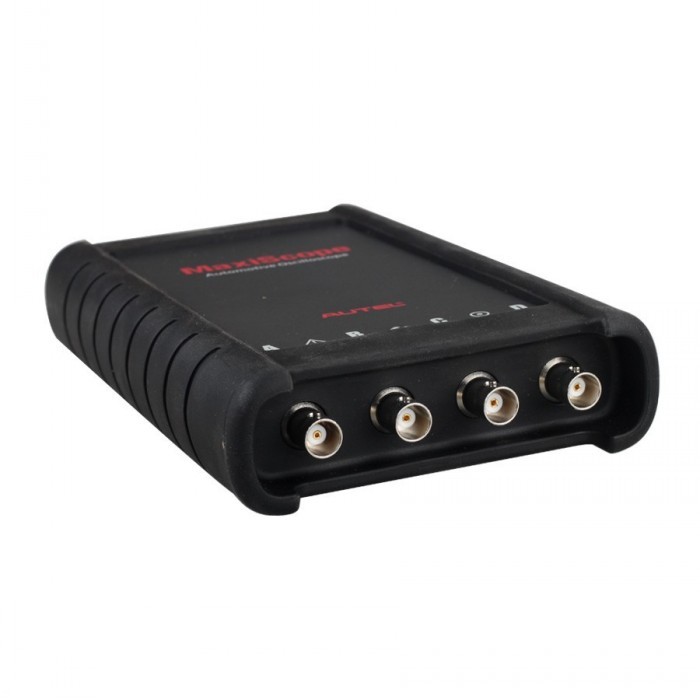

Featuring the user-friendly UI design combined with the unrivalled hardware specs, the MP408 system is able to measure and test virtually all the electrical and electronic components and circuits in any modern vehicles. Power for the MaxiScope MP408 Module comes directly from the USB port of the connected PC, making the system very versatile and portable to use.
| Parameter | Specification Details |
|---|---|
| Vertical resolution | 12 bits |
| Channels | 4 |
| Bandwidth | 20MHz |
| Accuracy | 1% |
| Sensitivity | 10mV/div to 20V/div |
| PC Interface | USB 2.0 – Cable supplied |
| Power Requirements | Powered from USB port |
| Input Ranges (full scale) | ±50mV to ±100V in 11 ranges |
| Input Impedance | 1MΩ in parallel with 22pF |
| Input Type | Single-ended, BNC connector |
| Input Coupling | Software selectable AC/DC |
| Overload Protection | ±200V on single input |
| Buffer Memory | 32M samples shared among active channels |
| Waveform Buffer | Up to 1000 waveforms |
| Timebase Ranges | 100ns/div to 1000s/div |
| Operating Temperature Range | 0°C to 50°C (15°C to 40°C for quoted accuracy) |
| Storage Temperature Range | -20°C to +60°C |
| Storage Humidity Range | 5% to 95%RH, Non-condensing |
| Dimensions | 190X115X38mm |
| Weight | < 0.5kg |
| Maximum Sampling Rate (Single Shot) | |
| 1 or 2 channels in use | 80MS/s |
| 3 or 4 channels in use | 20MS/s |

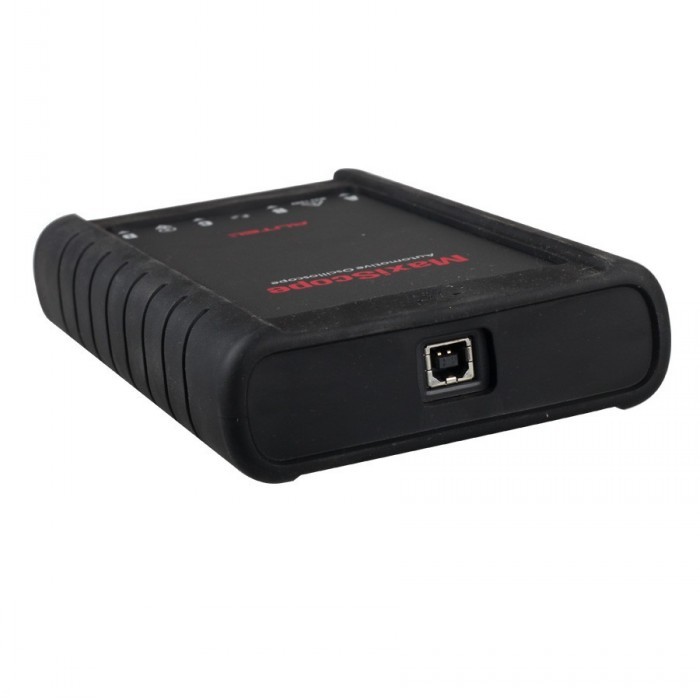

No. Power for the MaxiScope MP408 module is supplied directly through the USB port of the connected PC or compatible diagnostic tablet, making it highly portable and easy to use on site.

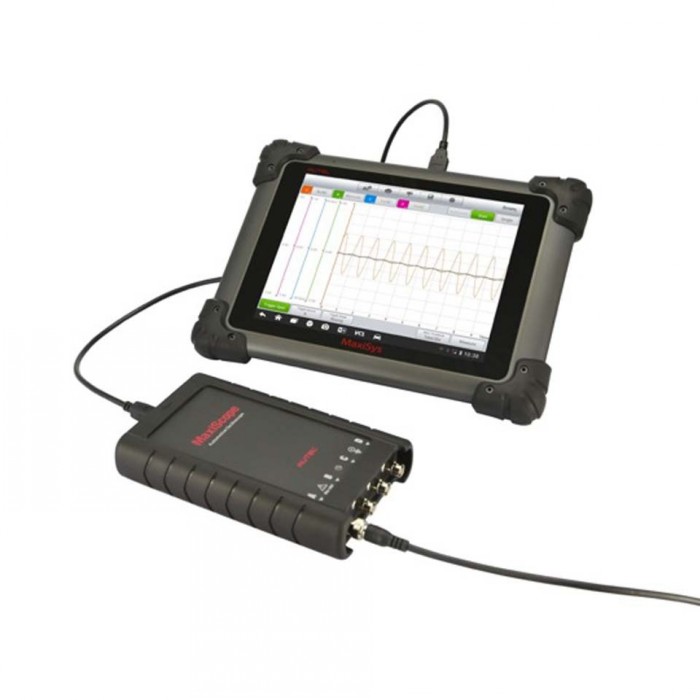

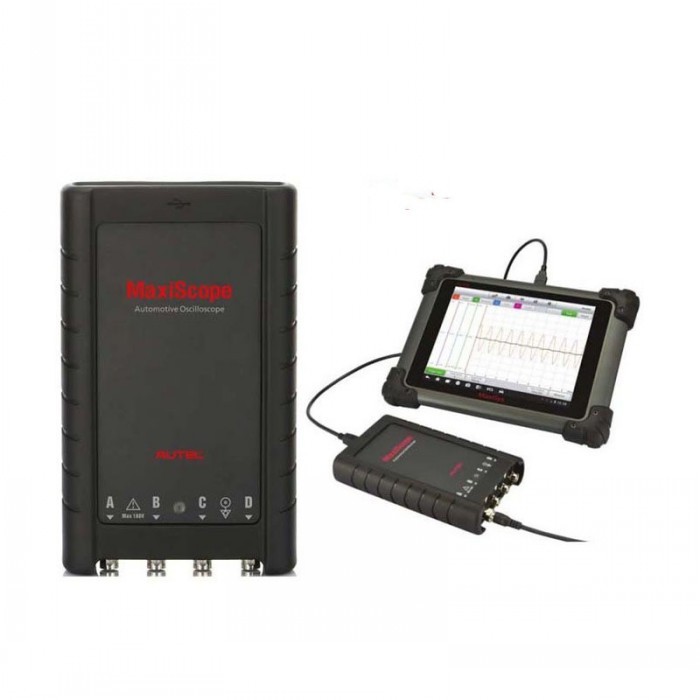

The MaxiScope MP408 is designed to work seamlessly with PC diagnostic software systems as well as the Autel MaxiSys tools and tablets.
The device features a 20MHz bandwidth, a high-resolution 12-bit vertical resolution across 4 channels, and an overall voltage accuracy of 1%.
When 1 or 2 channels are actively in use, the maximum sampling rate is 80MS/s. When 3 or 4 channels are in use, the maximum rate is 20MS/s.
The MaxiScope MP408 is fully compatible with LIN, CAN, and FlexRay data bus systems, allowing you to test modern vehicle electronic components effectively.
Yes, while it features a one-click auto setup of the voltage scale and time base, it also allows manual editing of measurement parameter displays to fit specific diagnostic requirements.
