Micsig Professional Portable 4CH 200MHz Bandwidth Split-Type Automotive Diagnostic Oscilloscope VATO2004

Product Description

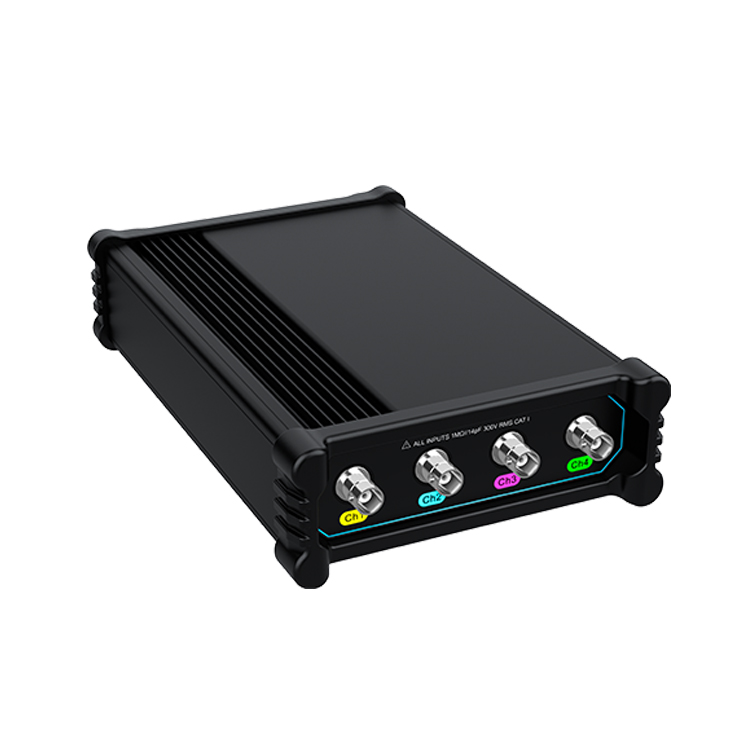

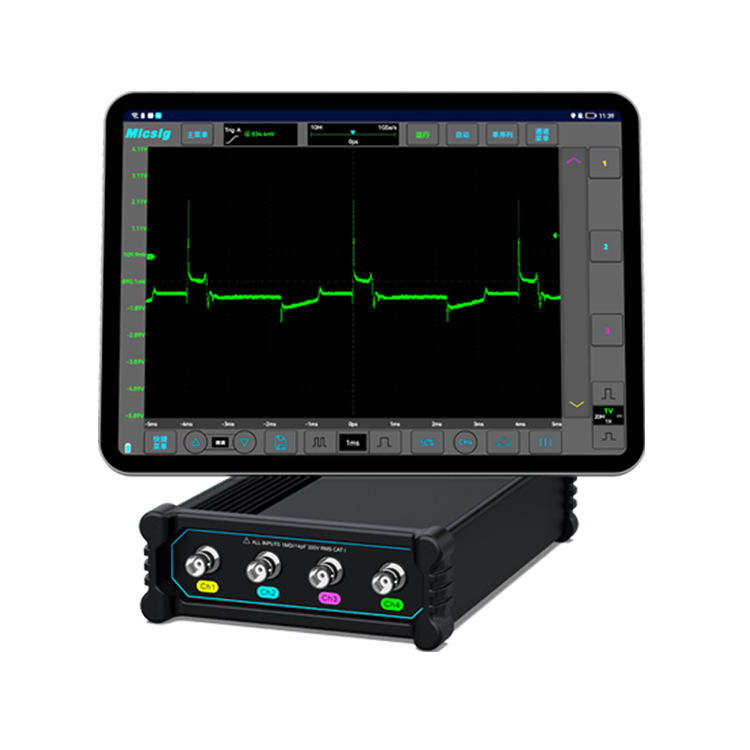

VATO2004 is a portable affordable split-type automotive diagnostic oscilloscope, most compact design with a built-in battery. It features 200MHz bandwidth, 4 channels, 1GSa/s sampling rate, up to 50Mpts memory depth. It can be connected to any Android device, such as tablets, smartphones, and PC computers. With a user-friendly UI design, a wide range of measurement options, and built-in professional automotive software packages, it allows for one-click test configuration and provides a new automotive diagnostic operation experience.

One step to diagnose, easy to test
Deep memory depth, capture all signal details
Small size, light weight, perfect for outdoor test
31 automated measurements, one click to select
Various communication tests: Ignition, CAN (FD), Camshaft sensors, cooling fans actuators and more
Multiple serial bus protocol triggering and decoding
Easy to use on any Android devices (Smartphone, Tablet, PC)

Specification

Type	Automotive Oscilloscope
Model Number	VATO2004
Bandwidth	200MHz
Analog channels	4
Rise Time	≤1.8ns
Real-time sampling rate	1GSa/s
Memory Depth	50Mpts
DC Gain Accuracy	≤ 2%
Input Impedance	1MΩ±1% \|\| 14pF
Power supply	USB Type-C, DC power
Support Test	Charging/Start Circuits, Sensors, Actuators, Ignition, Networks (CAN L/H, CAN FD, LIN, Flexray, K line), Combination Tests
Battery (Optional)	7.4V, 7500mAh Lithium-ion battery
Dimensions	14021552mm
Net Weight	640g

Detailed Images

Ultimate Portability: Install and run the oscilloscope Apk on any Android devices: smartphone, tablet, or Android PC, all signals on your fingertip.

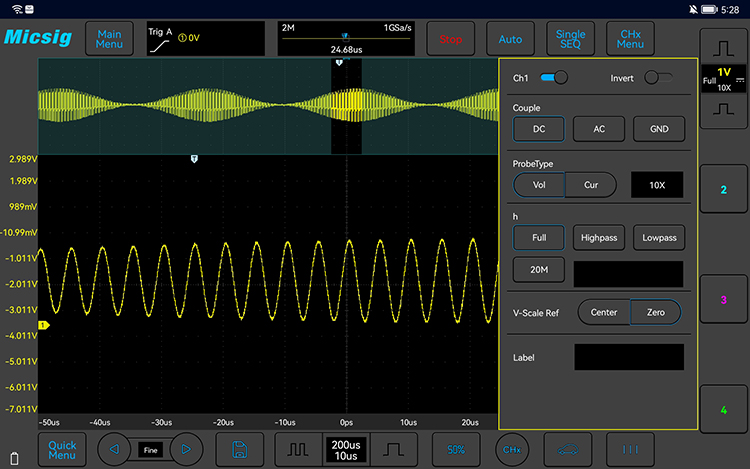

Intuitive Operation

Equipped with a operating system designed for mobile devices, offering extremely simple and reliable performance.

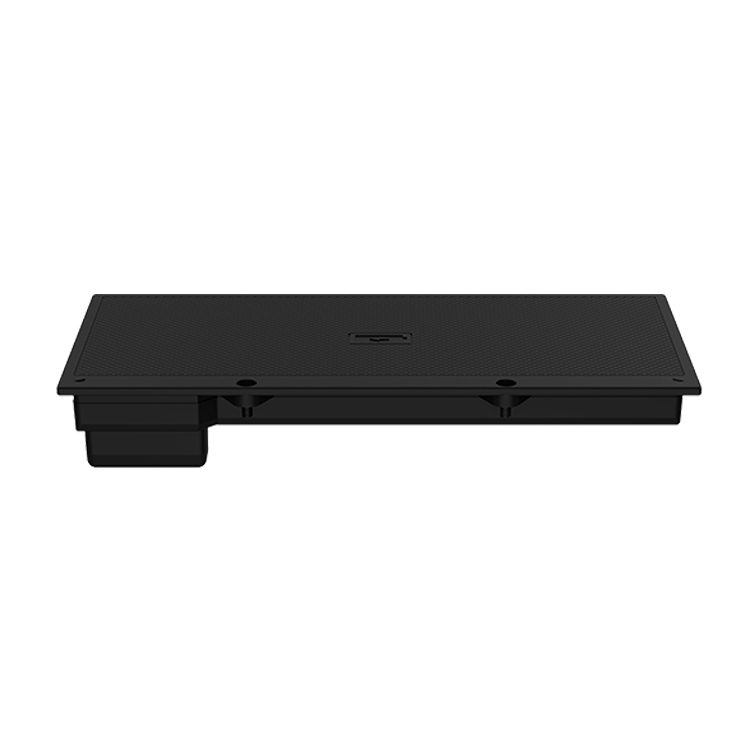

Large Battery Powered

7500mAh lithium battery (optional) enables up to 24-hour field testing, power-off lock make sure secured transport.

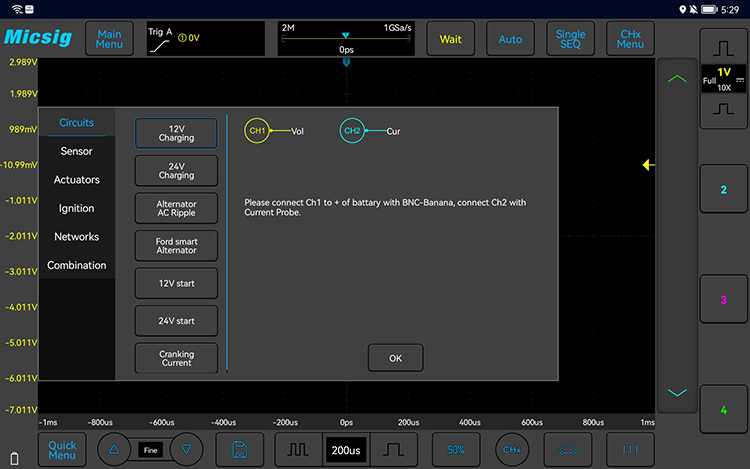

Circuits

Charging/Starting System Testing, including 12V / 24V charging/starting circuit, charging ripples, and other related tests.

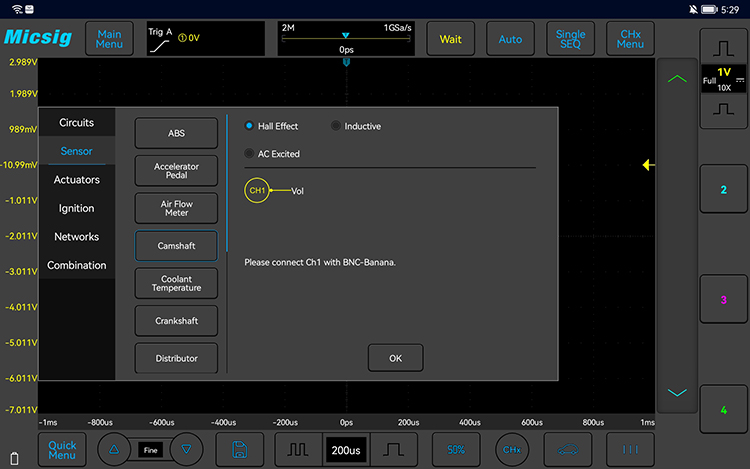

Sensor

Various automotive sensor tests: ABS, throttle pedals, intake pressure, air flow meter, crankshaft, camshaft, knock, distributor, oxygen sensor...

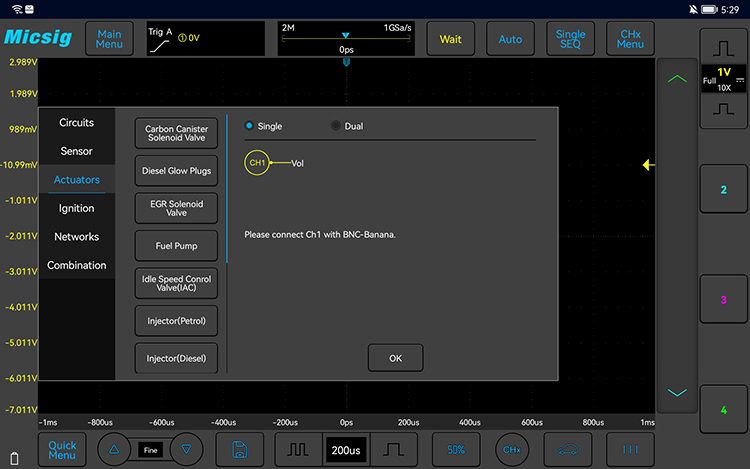

Actuators

Support various actuator tests: fuel injector voltage and current, fan control signals, variable valve timing, carbon canister solenoid valve, EGR solenoid valve, etc.

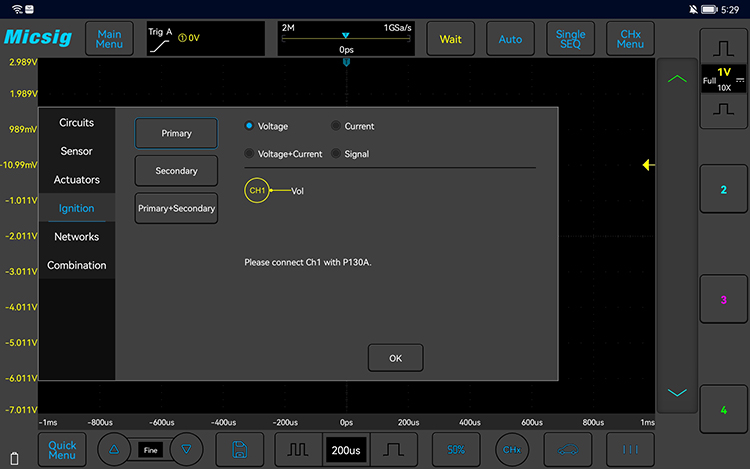

Ignitions

Including primary ignition, secondary ignition, primary + secondary ignition.

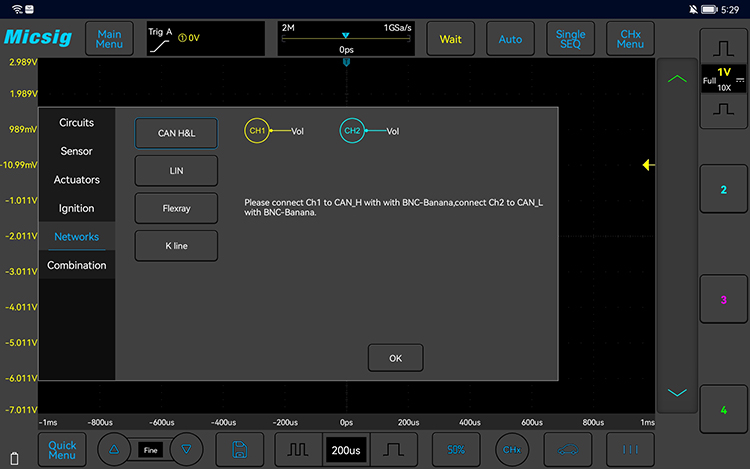

Networks

Network (Communication) tests, including CAN Low/High, CAN FD, LIN, FlexRay, and K-line.

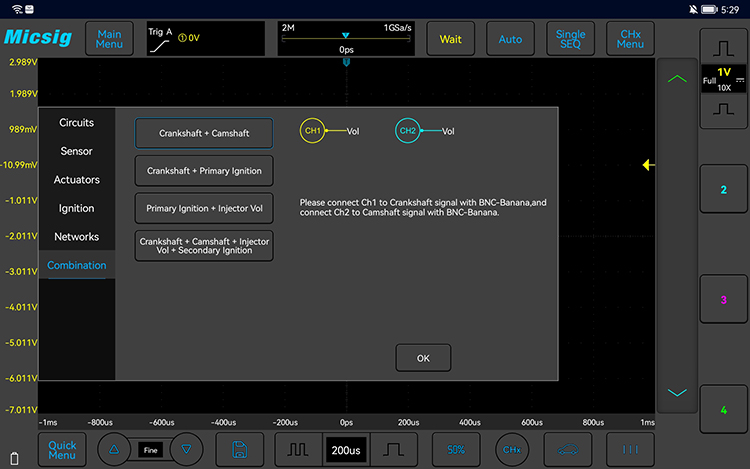

Combination Tests

Support combination test when multiple channels are connected: such as crankshaft + camshaft, primary ignition + fuel injector voltage...

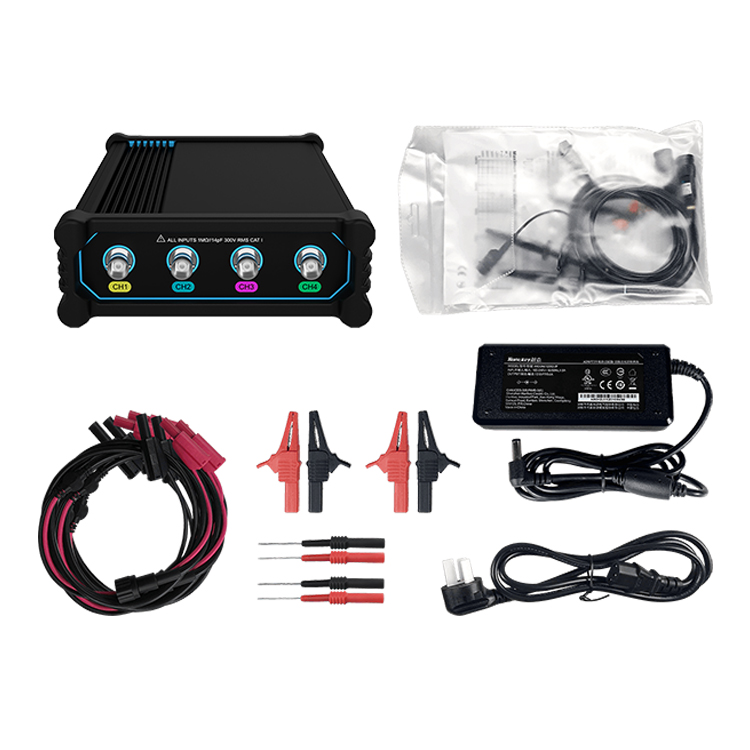

Standard Accessories

Passive probes (10:1), alligator clips, pin probes, BNC - banana cables.

Packing & Delivery

Company Profile

FAQ

What are the primary specifications of the VATO2004 oscilloscope?

The VATO2004 is a split-type automotive diagnostic oscilloscope featuring a 200MHz bandwidth, 4 analog channels, a 1GSa/s real-time sampling rate, and a deep memory depth of up to 50Mpts.

Which devices are compatible with the VATO2004?

It is designed to connect seamlessly to any Android device, including smartphones, tablets, and Android-based PC computers, utilizing a dedicated user-friendly app.

What types of automotive diagnostic tests does it support?

It supports a wide range of tests including Charging/Starting Circuits, Sensors (ABS, throttle, airflow, etc.), Actuators (injectors, solenoids), Ignition systems (primary and secondary), and Networks (CAN, CAN FD, LIN, Flexray, K line), as well as multi-channel Combination Tests.

Does it come with a built-in battery for outdoor use?

Yes, the VATO2004 has a highly compact, portable design with a built-in battery. There is also an optional 7.4V 7500mAh Lithium-ion battery that enables up to 24 hours of field testing.

What standard accessories are included in the package?

The standard package includes passive probes (10:1 ratio), alligator clips, pin probes, and BNC-to-banana cables.

Does the software support automated measurements?

Yes, the operating platform features 31 automated measurements that can be selected with a simple click, alongside multiple serial bus protocol triggering and decoding capabilities.

Product Detail

Micsig Professional Portable 4CH 200MHz Bandwidth Split-Type Automotive Diagnostic Oscilloscope VATO2004
