| Sample rate | 2.5MS/s |
| Bandwidth | 200KHz |
| Vertical Sensitivity | 10mV / Div-20V/Div (Progress according to the 1-2-5 way) |
| Time Base Range | 10us / Div-50s/Div (Progress according to the 1-2-5 way) |
| Voltage range |
X1: ±40V (Vpp:80V) X10: ±400V (Vpp:800V) |
| Trigger Method | Auto / Normal / Single |
| Coupling Method | AC/DC |

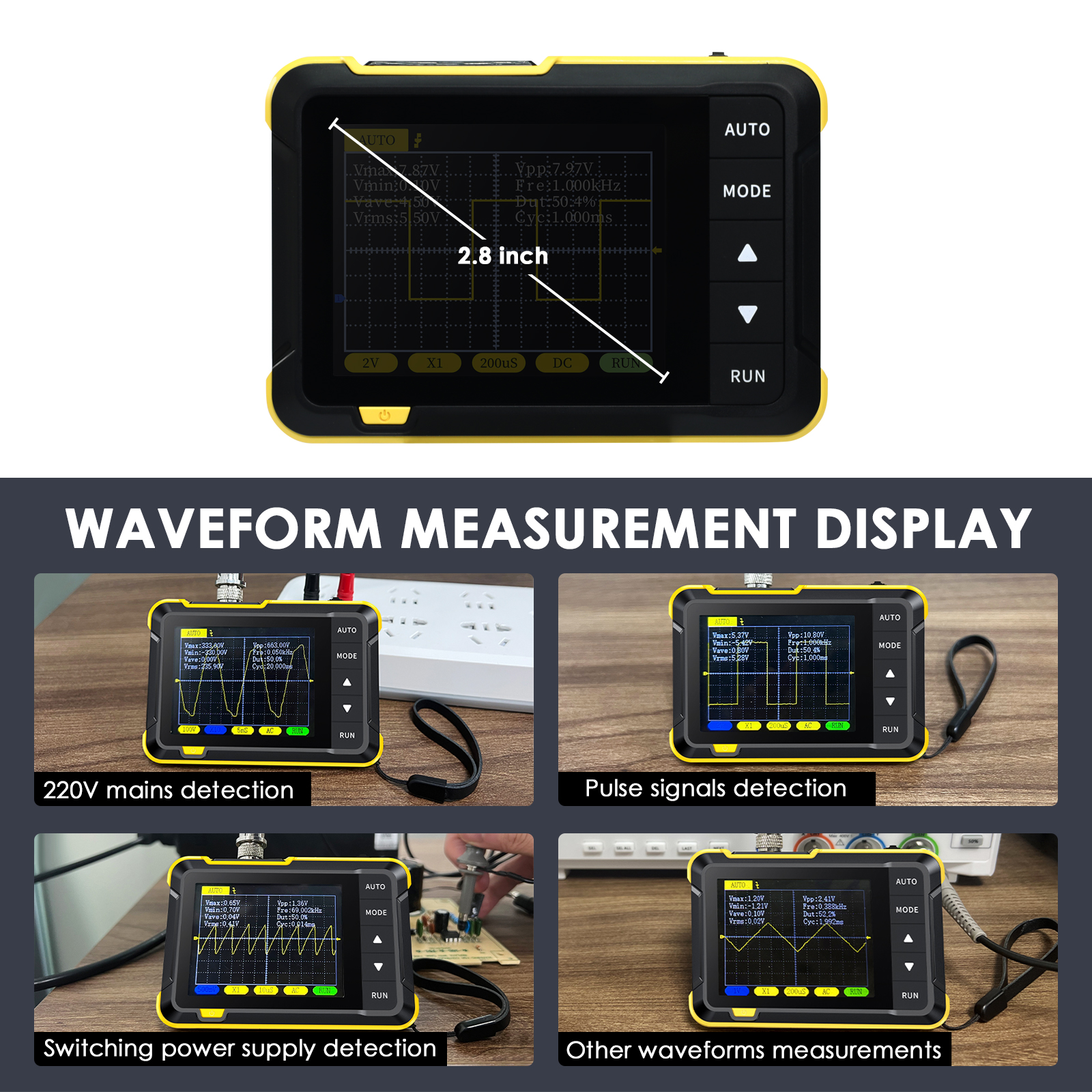

| Display | 2.8 inches / PPI: 320*240 |
| USB Charging | 5V / 1A |
| Lithium Battery Capacity | 1000mAh |
| Square wave calibration | Frequency: 1K, Duty Cycle: 50% |
| Size | 99x68.3x19.5mm |
| Weight | 100g |

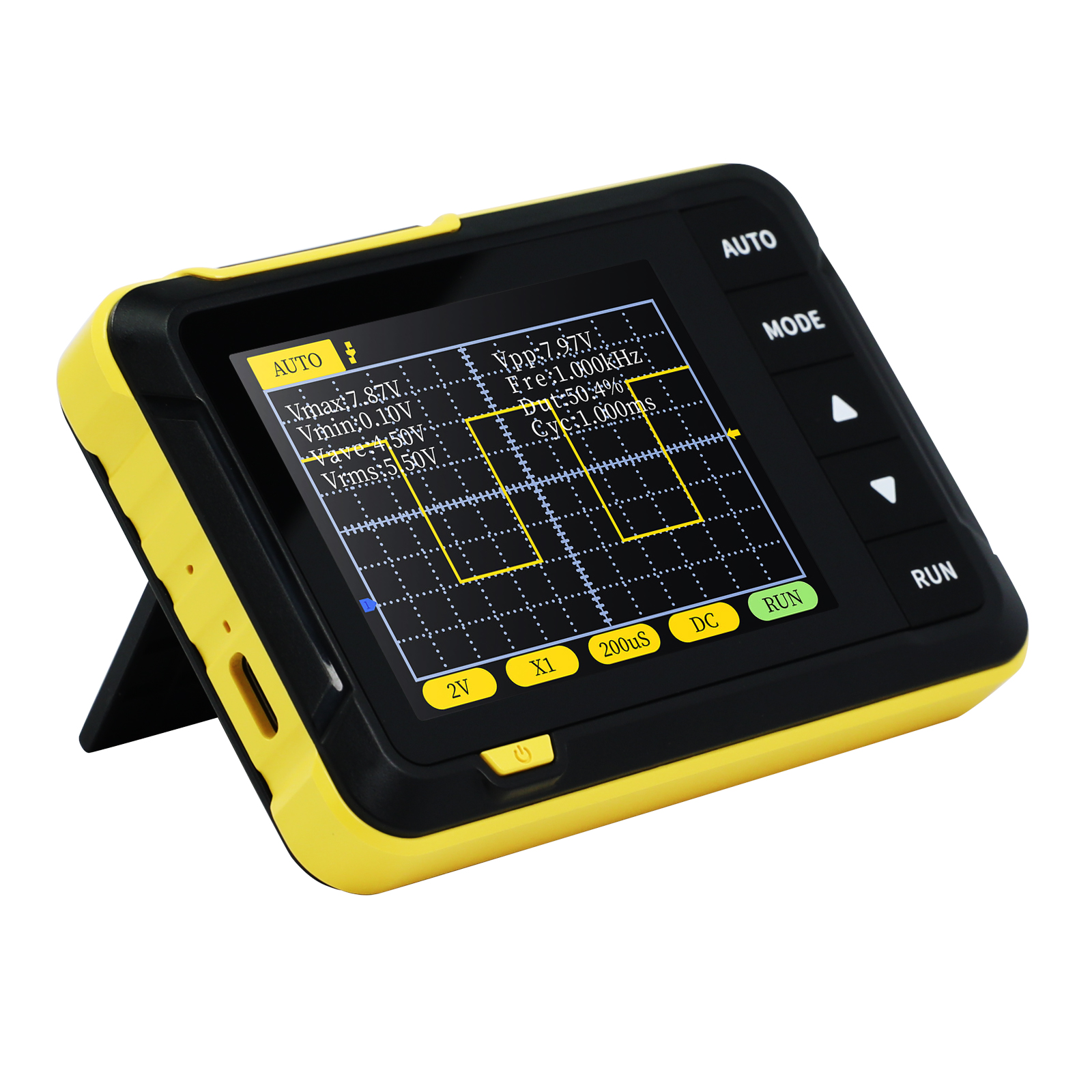

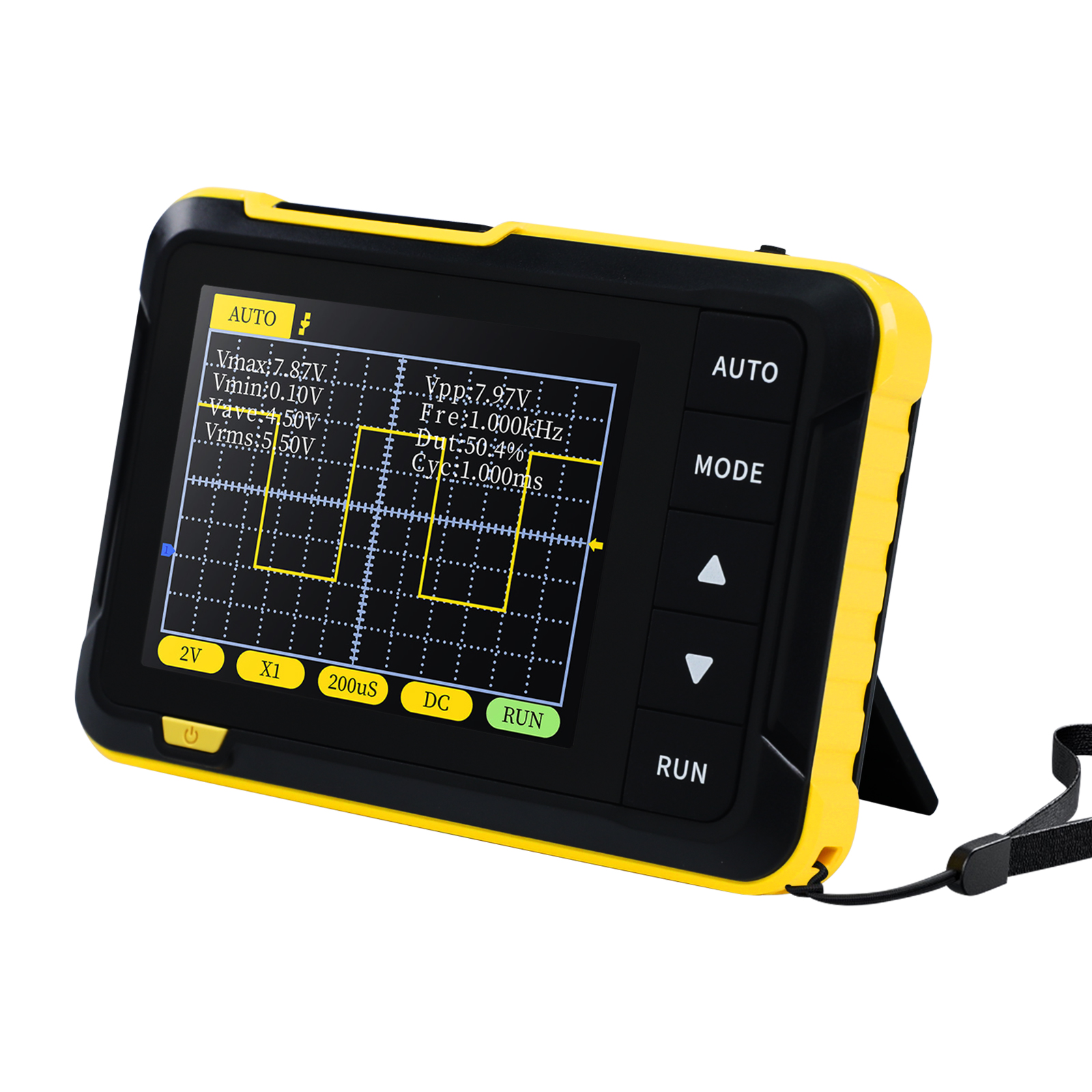

The mini oscilloscope features a real-time sampling rate of 2.5MS/s and a 200KHz bandwidth, making it ideal for standard periodic analog and digital signals.
With the X10 probe, the oscilloscope supports voltage measurements up to ±400V (Vpp:800V). In X1 mode, it measures up to ±40V (Vpp:80V).

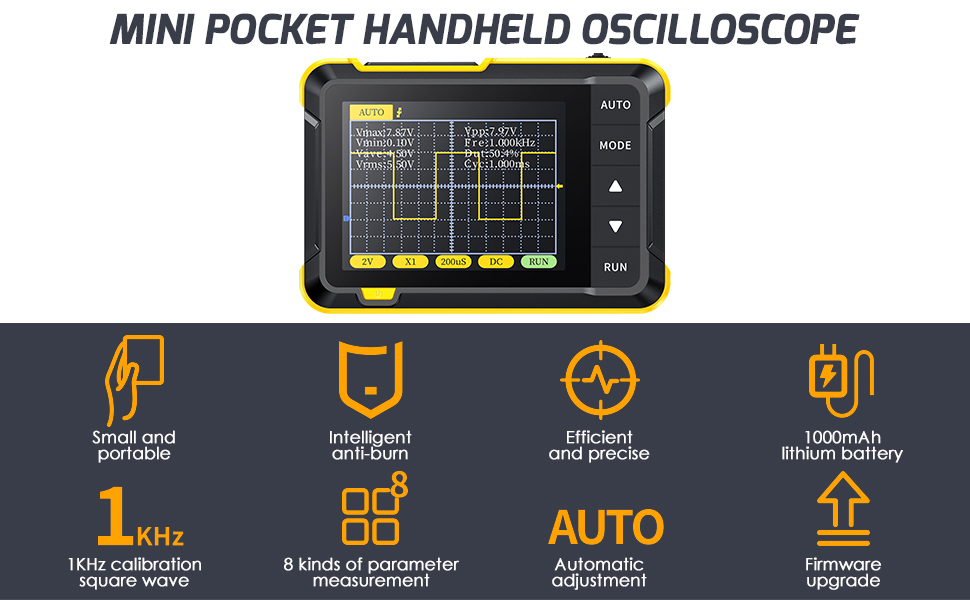

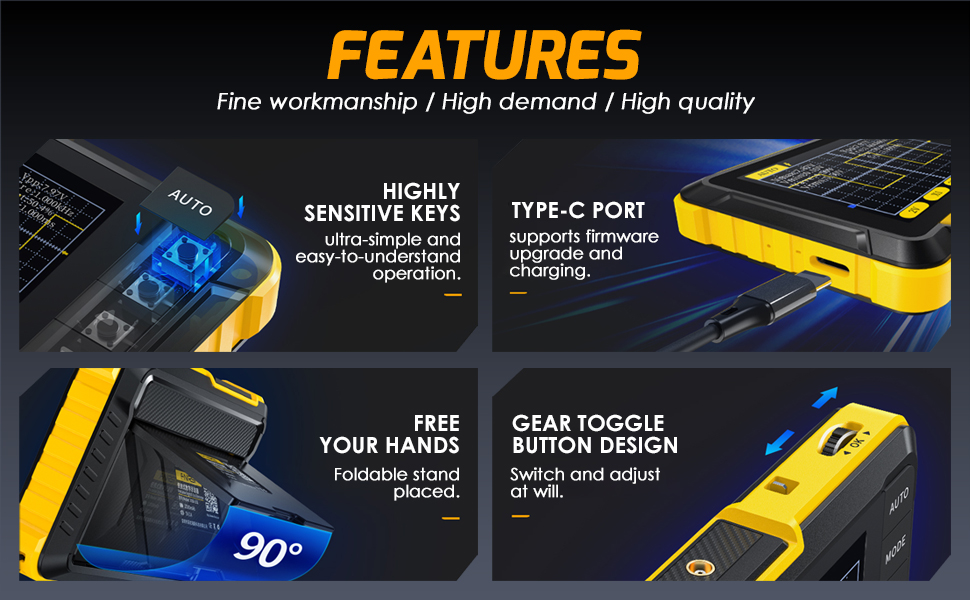

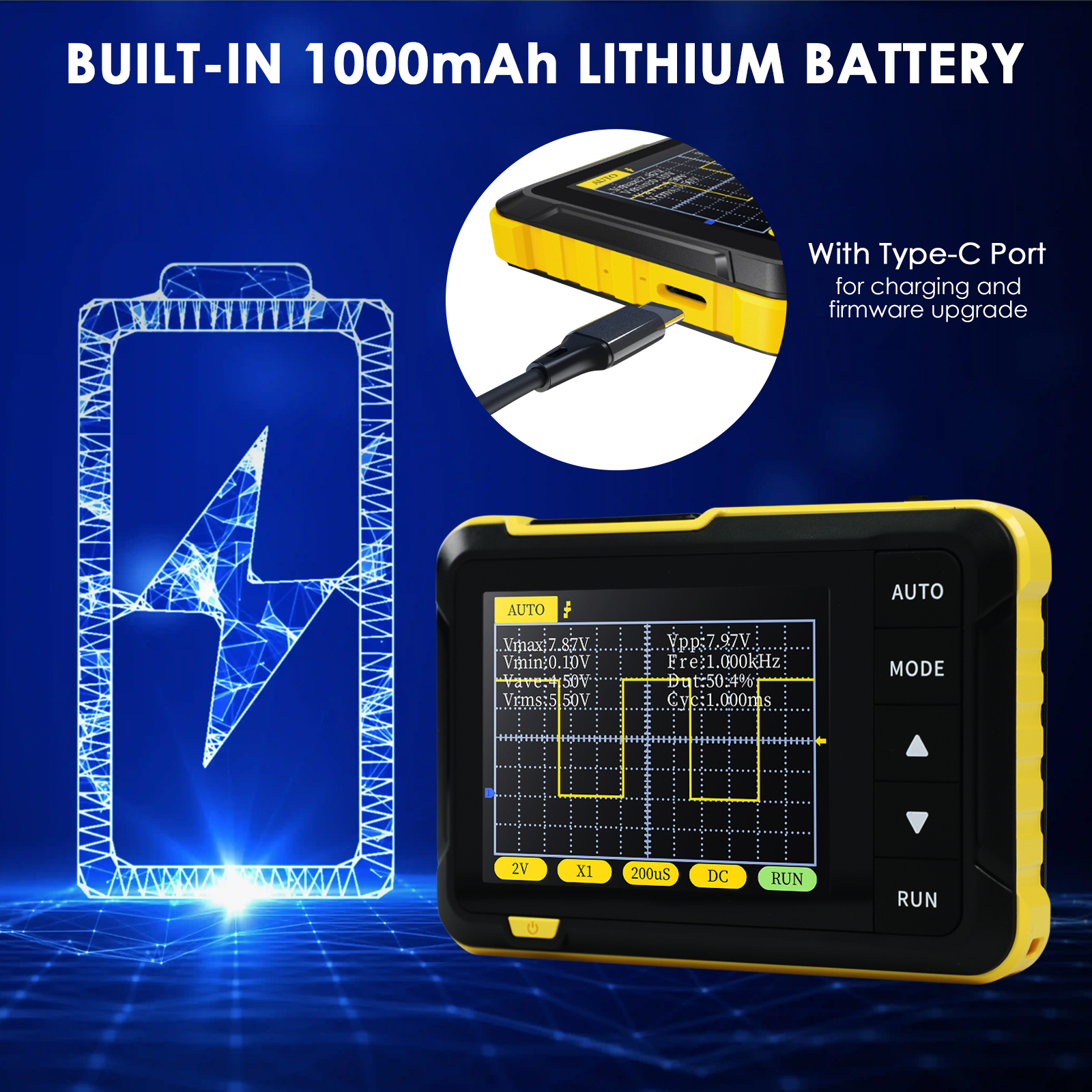

It is equipped with a 1000mAh lithium battery that provides up to 4 hours of continuous use. It supports Type-C USB charging (5V/1A) and can be operated while charging.

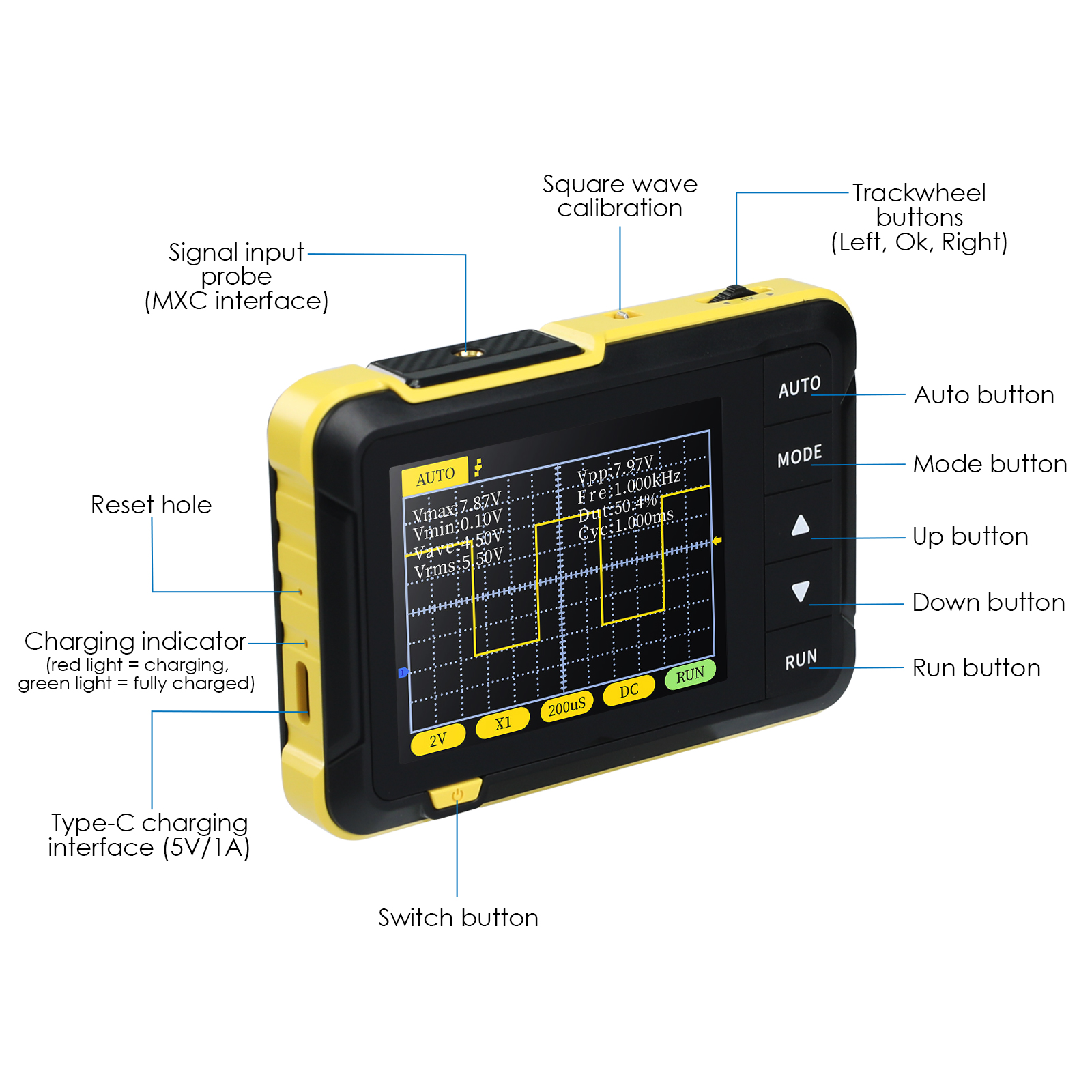

Yes, it features an intelligent one-key AUTO setting that automatically optimizes parameter displays. You can also long-press the AUTO button for fast baseline calibration.

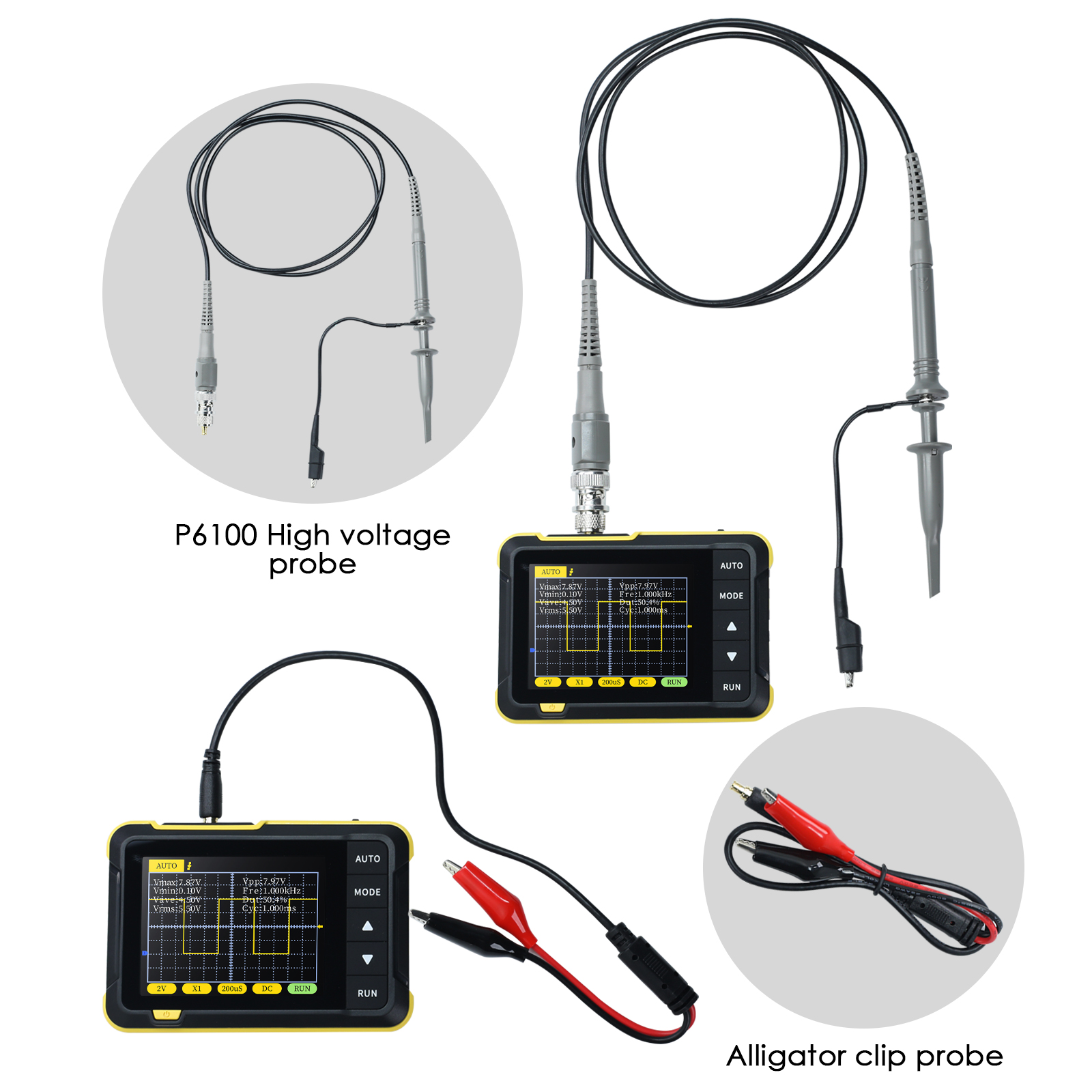

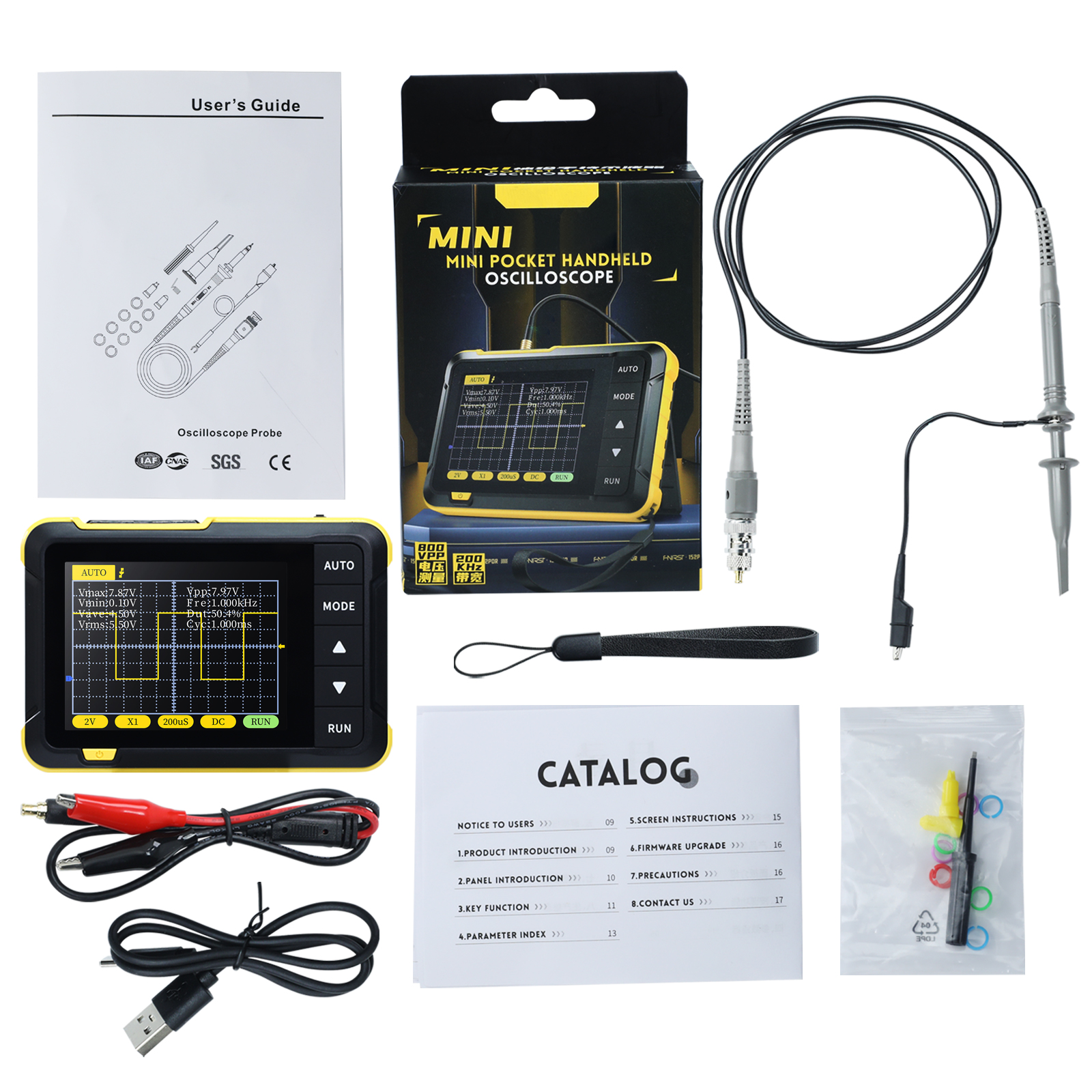

The complete set includes the host device, an alligator clip probe, a charging cable, a lanyard, an instruction manual, an adapter, and a P6100 high-voltage probe.
It supports Auto, Normal, and Single trigger modes, as well as AC and DC coupling methods, allowing you to capture various types of waveforms easily.
