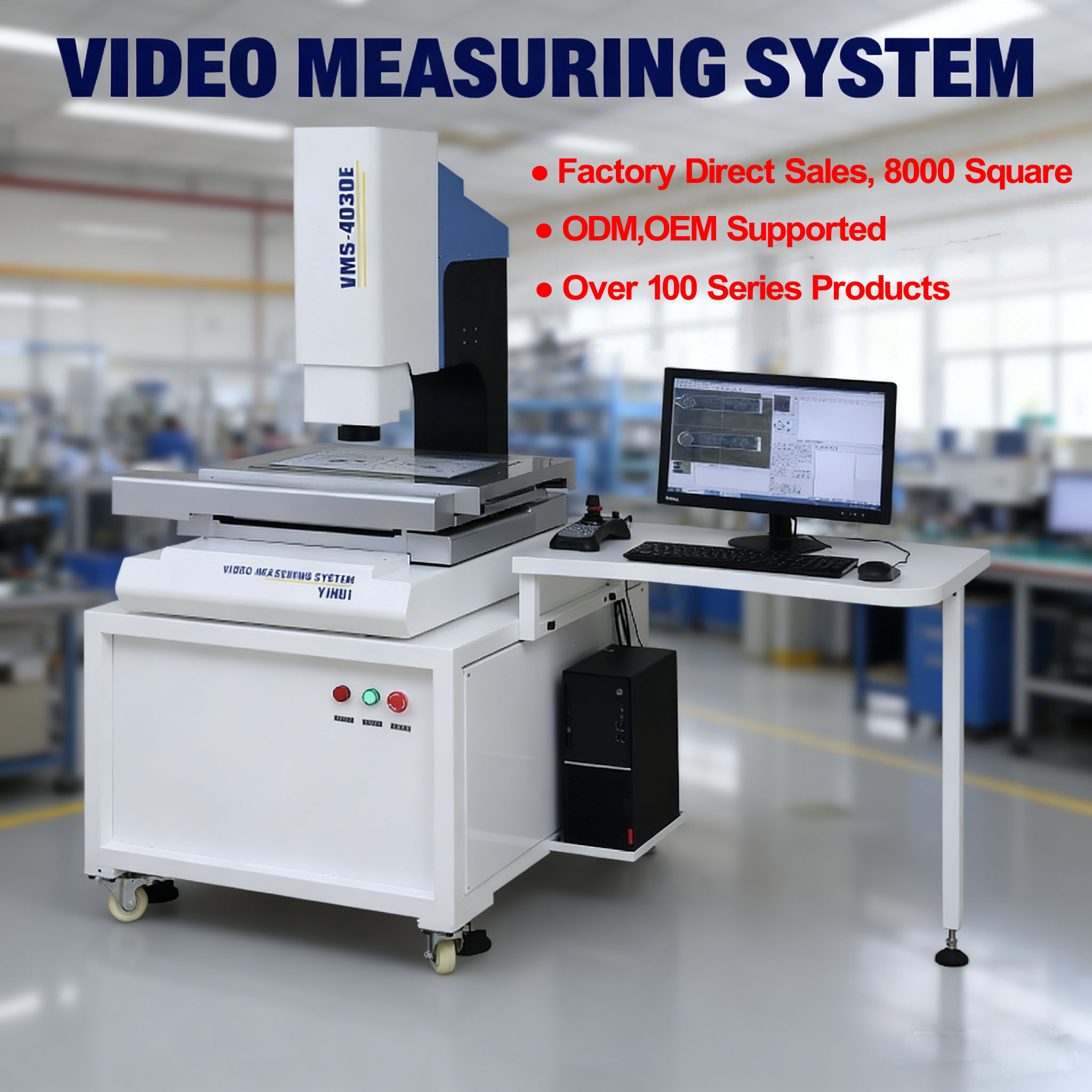

Automatic Visual Inspection System

I. Usage

VMS Series is a universal type of CNC Video Measuring System. It has been widely applied in machinery, electronics, aerospace, automotive, mold, and other industries for precision automatic measurement. Designed for rapid precision measurement & batch test.

Measure point, line, circle, arc, oval, and rectangular coordinates; improve accuracy with multi-point positioning function and clear observation.
Perform coordinate measurement, translation, and coordinate straightening.
Export measurement data directly into AutoCAD drafting.
Record, edit, and execute user programs and commands.
Perform metrology tests including width, length, height, thickness, straightness, flatness, perpendicularity, circular degree, and coaxiality.
Applicable test products:
- Machinery: sheet, mold & die, gear, turning parts like bearings, shaft.
- Electronics: phone & tablet sheet, PCB, watch parts, etc.
- Plastics: mobile phone camera plate, cover, front bezel, slide plate, etc.

II. Features

Double closed-loop motion control performs micron-level precision motion.

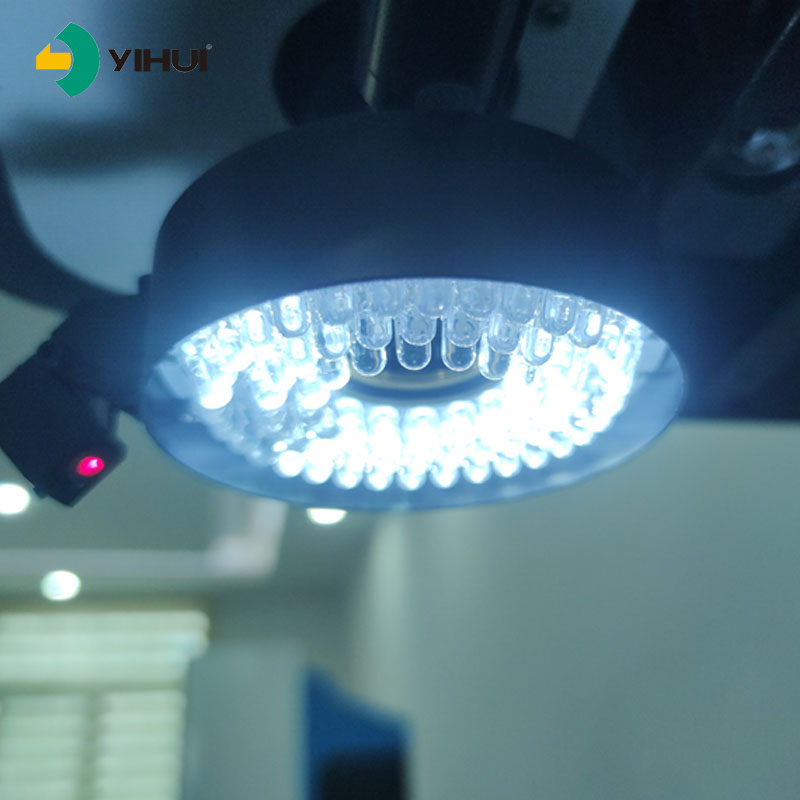

8 regional LED surface light source configuration.
Grade 00 JINANQING granite base and column ensures high stability.
Specific CNC software delivers exceptional measurement efficiency.

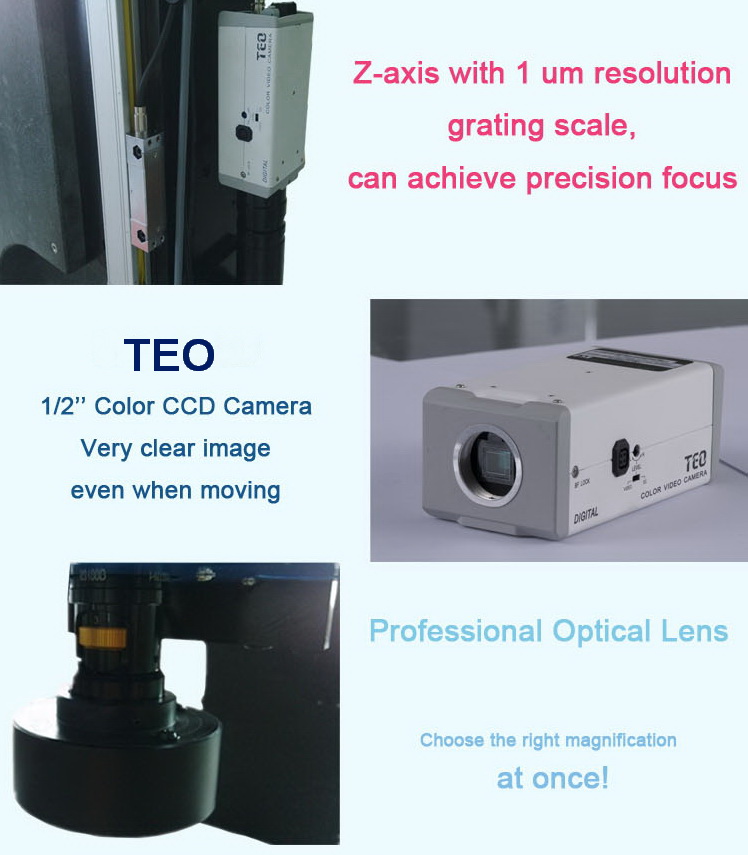

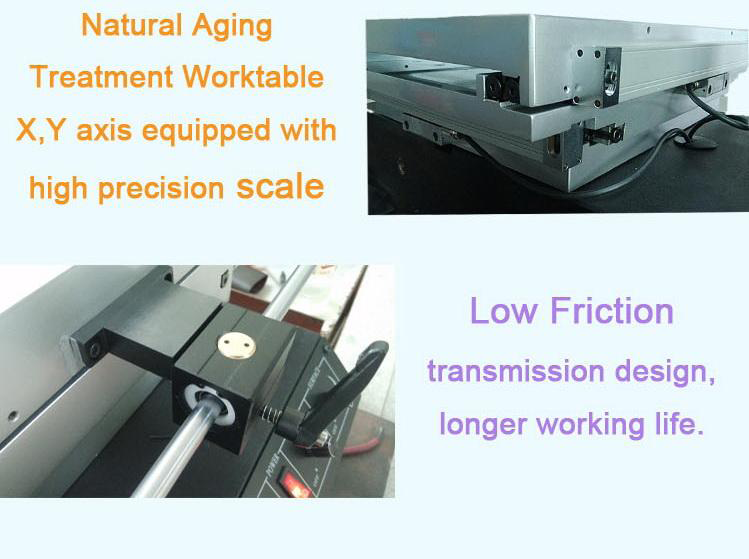

Structure

Specification

Model		VMS-3020E	VMS-4030E	VMS-5040E

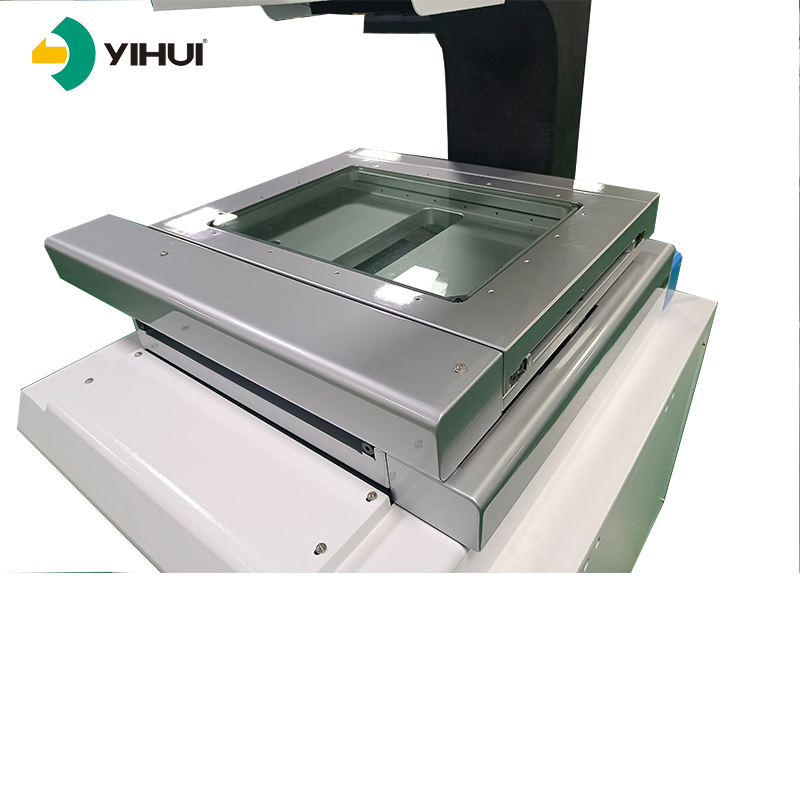

Worktable	Worktable Size (mm)	500*330	606*466	706*566
	Glass Table Size (mm)	350*280	450*350	550*450
	X, Y Stroke (mm)	300*200	400*300	500*400
	Load Capacity	approx. 20 kg	approx. 30 kg	approx. 35 kg
Resolution		1µm	1µm	1µm
Accuracy E1*		Ex,y ≤ (3.0+L/200) µm
Accuracy E2*		Exy ≤ (3.5+L/300) µm
Accuracy E3*		Ez ≤ (3.5+L/150) µm
Z-axis Stroke (mm)		150 (Focus)	150 (Focus)	150 (Focus)
Instrument Weight (kg)		270	325	500
Dimension (mm)		670660950		80010401020
Motorization
Motor	Three-axis Max. Velocity	X, Y: 400mm/s \| Z: 200mm/s
Motor	Three-Axis Positioning Accuracy	0.001mm

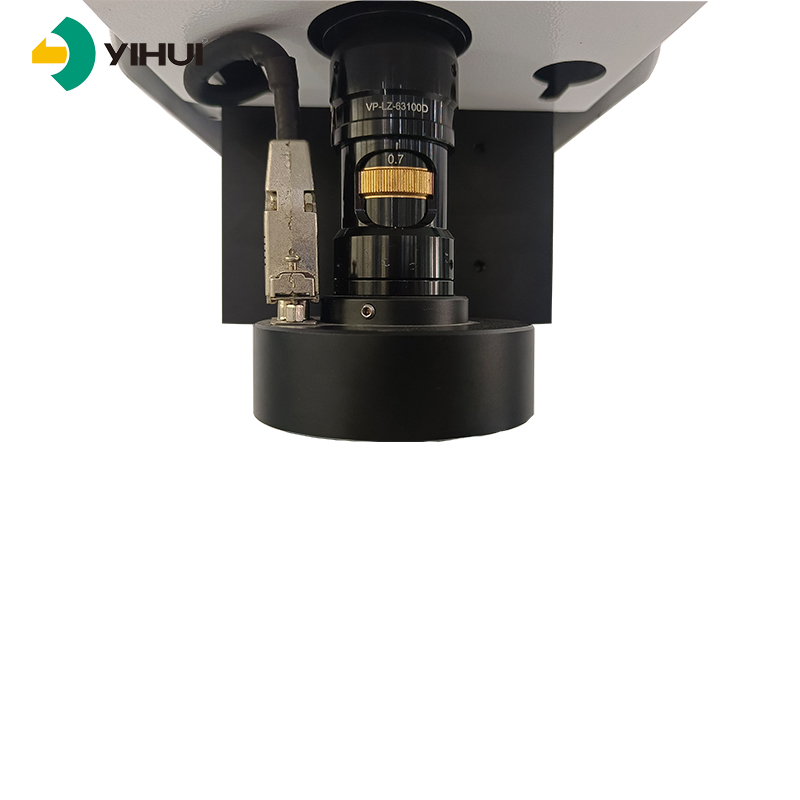

Optical & Imaging System
Imaging System	Camera	TEO™ Color 1/2" CCD Camera
	Zoom Lens	Coaxial optical manual zoom lens
	Zoom Lens Magnification	0.7 - 4.5X
	Video Magnification	20 - 128X
	FOV	11.1 - 1.7mm
	Power Consumption	600W

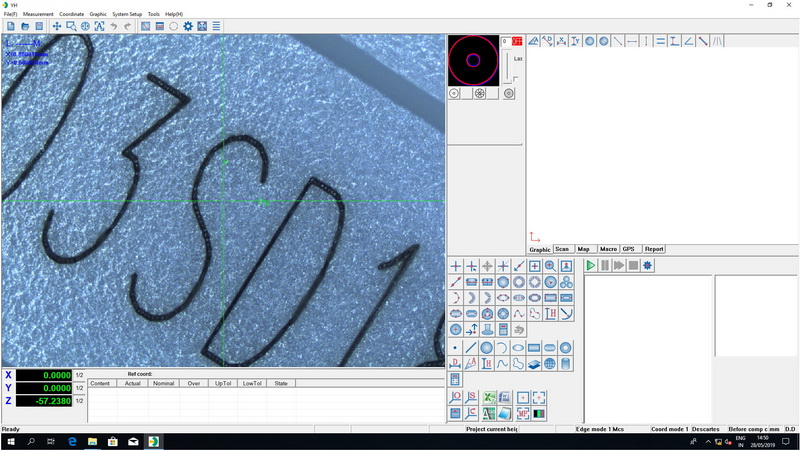

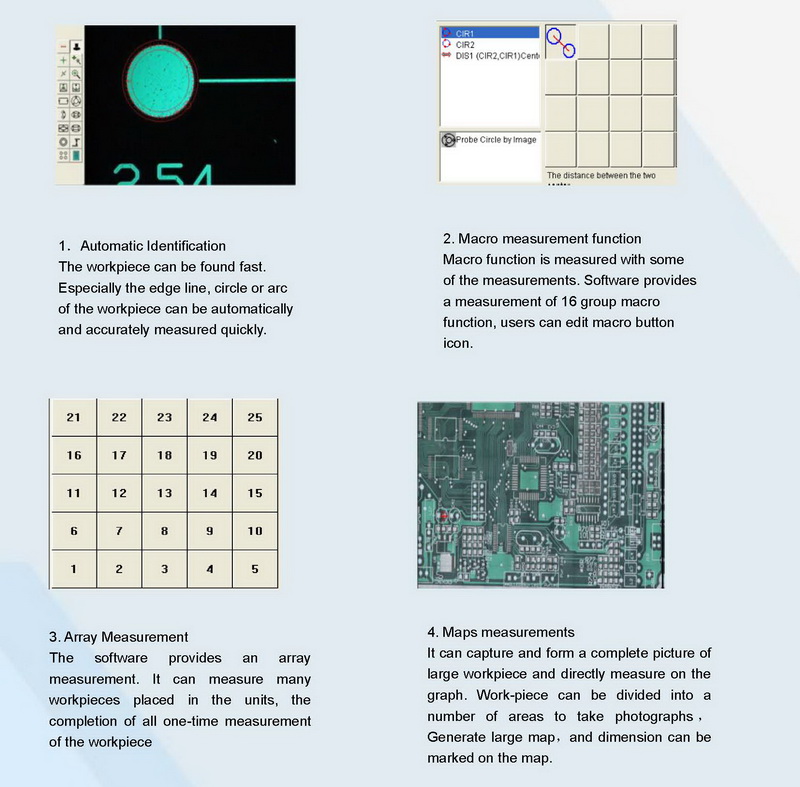

Software Display

Packing & Delivery

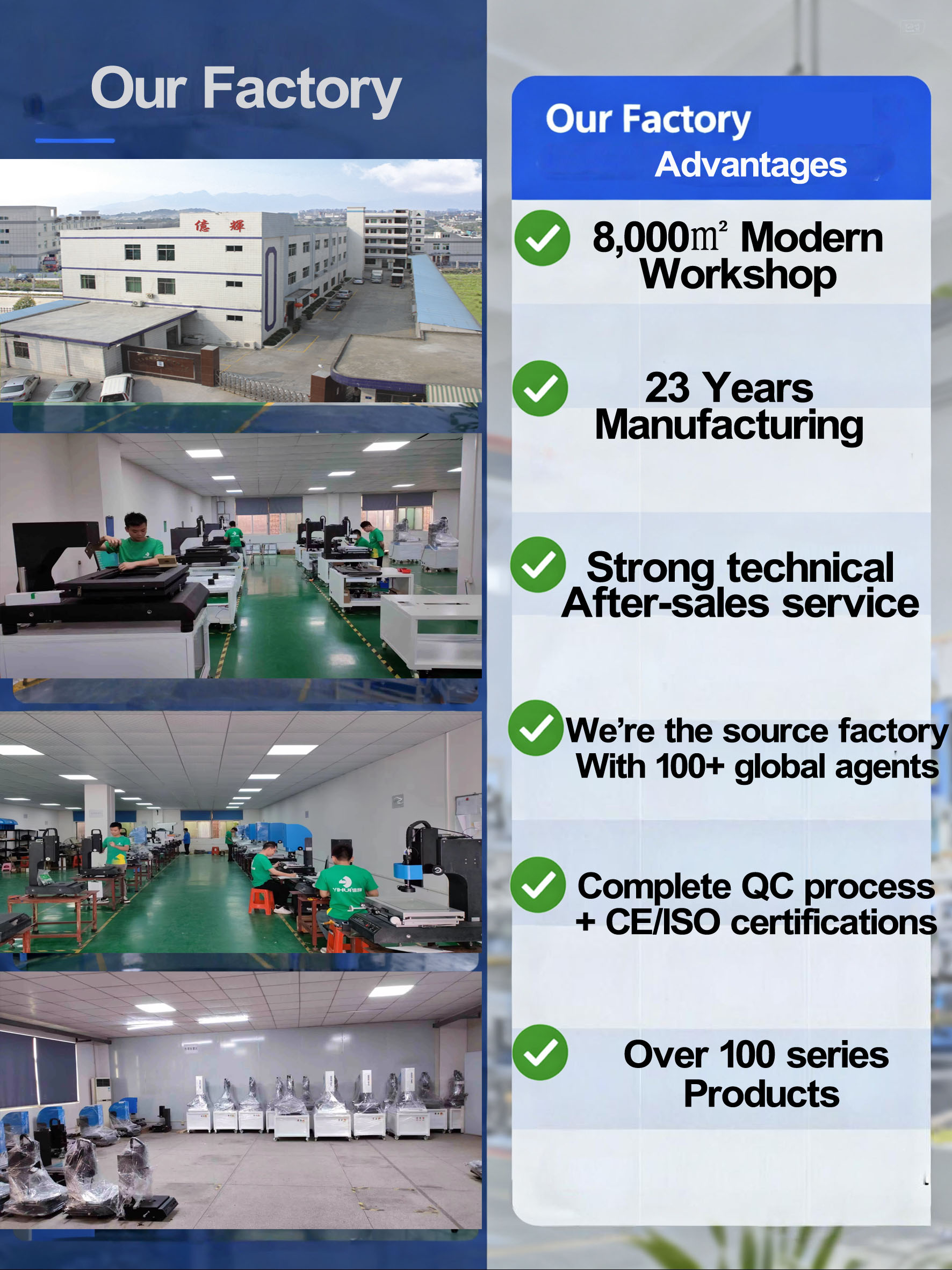

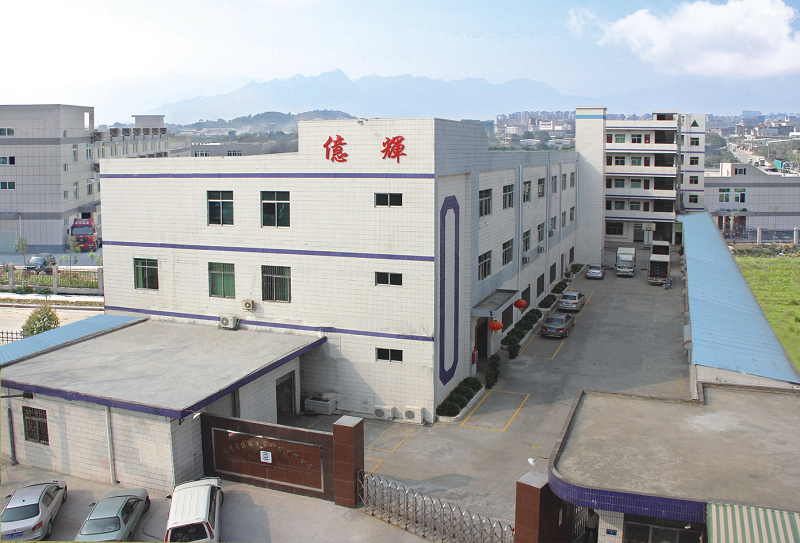

Profile

Established in 2003, the enterprise has 18 years of experience in manufacturing optical instruments and 13 years of experience in trading overseas. It is a high-tech enterprise dedicated to precision detection equipment R&D, production, and sales. The main product line includes video measurement systems, measurement profile projectors, CMM, tool microscopes, grating sensors, tensile testing machines, and environmental testing machines, spanning over 100 kinds of testing instruments. These products are widely used in electronics, plastics, mold, machinery, hardware, clocks, connectors, mobile, and other manufacturing industries.

Up to 2022, the products have been exported to 54 countries worldwide, with formal distribution networks set up in regions including Taiwan, Korea, Iran, Germany, and Malaysia. Customers globally have achieved high efficiency and high-quality metrology solutions through these installations.

Certifications

Frequently Asked Questions

Q: We don't know much about the machine but we need it. How do we decide which model is best?

A: Please clarify the specific dimensions, material, and measurement requirements of your test samples. Our technical support team will evaluate your needs and recommend the most suitable system configuration, supported by product catalogs, demonstration videos, or sample testing reports.

Q: We want to protect our payment, and T/T is not preferred. Are there alternative payment methods?

A: Yes, multiple safe payment options are available including L/C, PayPal, and other secure online payment gateways to ensure smooth transaction safety.

Q: After the machine arrives, what installation and training support is provided?

A: If a local representative is available nearby, on-site service can be directly requested. For other regions, engineering dispatch can be arranged for system installation and hands-on operational training (subject to travel expenses). If physical dispatch is not practical, comprehensive remote online training, detailed instruction manuals, interactive video sessions, and remote control support will be set up.

Q: What types of geometric dimensions can this CNC Video Measuring System test?

A: The system performs comprehensive metrological analysis, enabling measurement of width, length, height, thickness, straightness, flatness, perpendicularity, circular degree, coaxiality, and coordinate translation for precise quality assurance.

Q: What industries typically deploy the VMS series equipment?

A: This series is widely utilized in high-precision manufacturing fields such as machinery (gears, bearings, molds), electronics (PCB components, watch parts), automotive, aerospace, and plastics (covers, bezels, lenses).

Q: What are the base materials used in the machine to ensure measuring stability?

A: The system incorporates a Grade 00 JINANQING granite base and column, providing superior structural stability, low thermal expansion, and minimal deformation under industrial test loads.
