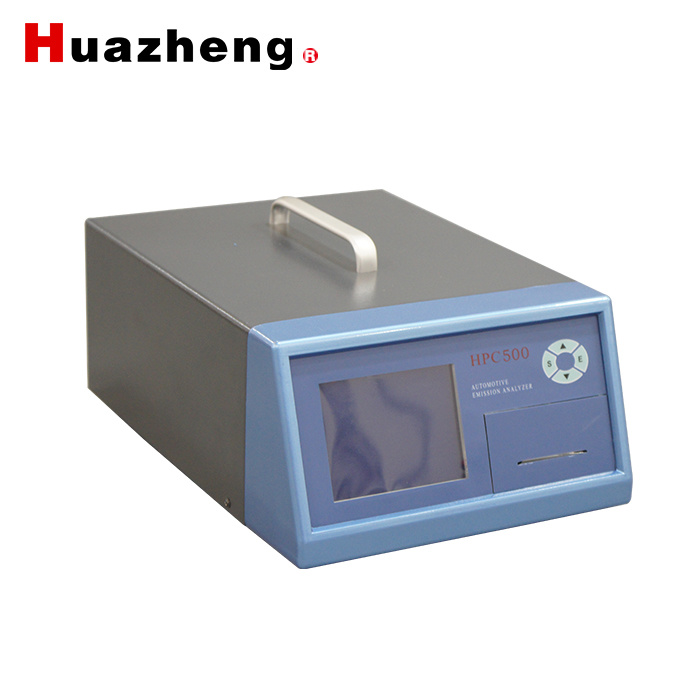

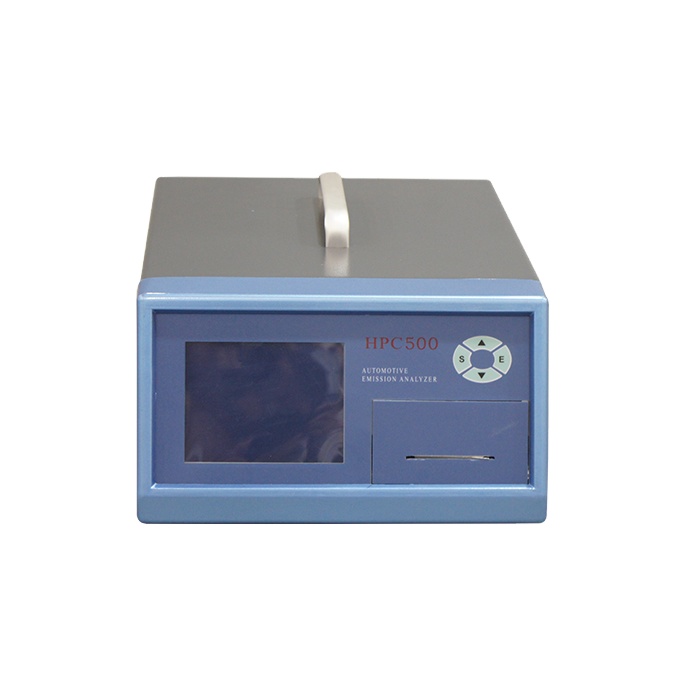

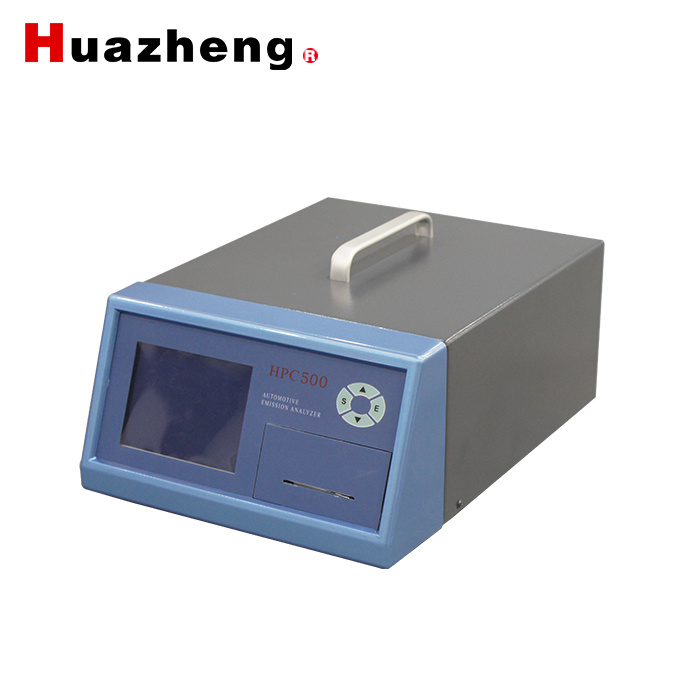

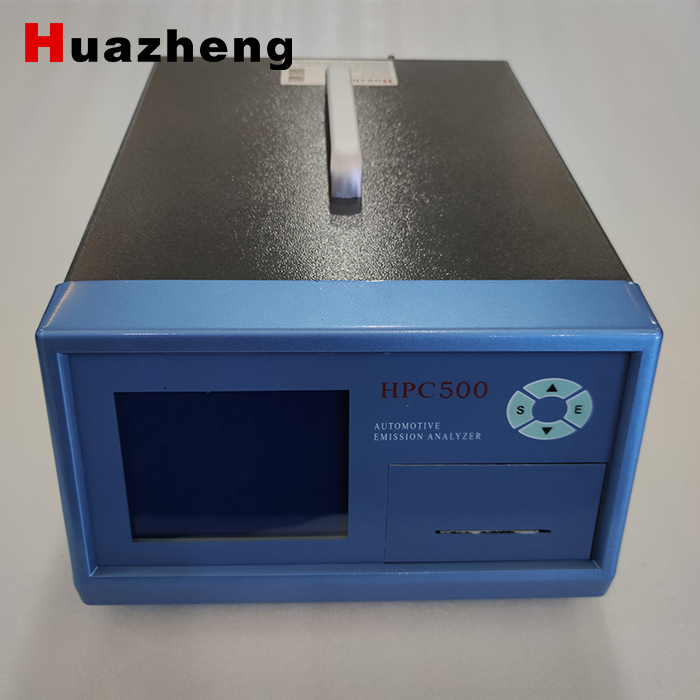

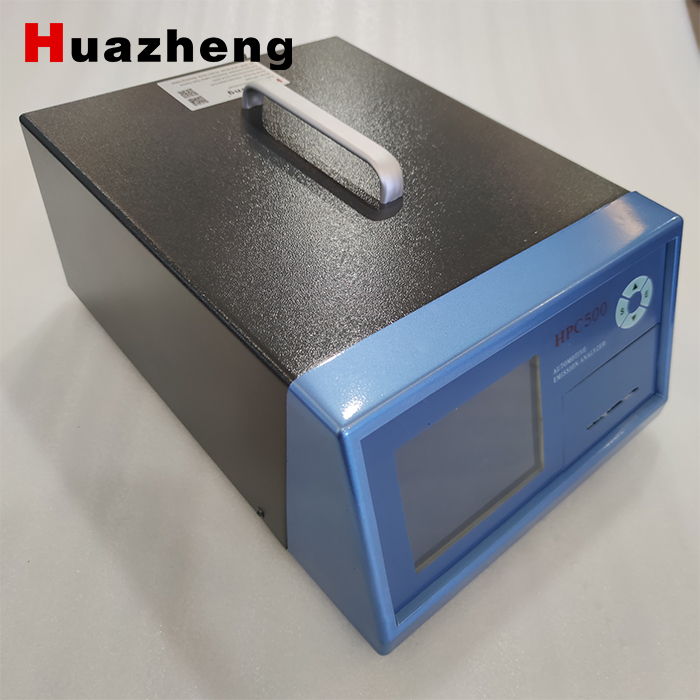

Car Exhaust Emission Tester for Automotive With Gasoline Petrol Engines for Sale

Product Description

Product Description
Main Features
  • The large screen liquid crystal display, ( Chinese or English ) menu;
  • The use of imported infrared detector, O2 and NOX sensor, vibration resistance, good stability, high precision;
  • The measurement of CO, HC, CO2 for O2, NOX, COcor, concentration and the lambda value, speed, temperature, flow, pressure;
  • With the single, double idle general measuring function;
  • Vehicles capable of measuring gasoline, LPG, CNG, alcohol and diesel fuel;
  • According to the new standard and the United States BAR97 standards development, in line with the ISO3930 or OIML R99 I level precision;
  • With the automatic zero adjustment, automatic cleaning, automatic temperature compensation, pressure compensation;
  • With the HC residue measurement, traffic monitoring, gas leak check;
  • The machine has self diagnostic function, fault when prompted, until the troubleshooting can continue measurement;
  • With speed, temperature measurement, built-in printer or digital (Analog) interface network;
  • The license plate number input and 2000 groups of data storage, reference function, clock display;
Main Technical Parameters
Measuring Range (HC): 0~10000 × 10-6 (ppm) vol
Measuring Range (CO): 0~10 × 10-2 (%) vol
Measuring Range (CO2): 0~20 × 10-2 (%) vol
Measuring Range (O2): 0~25 × 10-2 (%) vol
Measuring Range (NOx): 0~5000 × 10-6 (ppm) vol
R.P.M: 0~9999 r.m.p
OIL TEMP: 0~150℃
Lambda: 0.50~3.00
COcor: 0~10 × 10-2 (%) vol
Indicating Error (HC): ±12 × 10-6 (ppm) vol (absolute) or ±5% (relative)
Indicating Error (CO): ±0.06 × 10-2 (%) vol (absolute) or ±5% (relative)
Indicating Error (CO2): ±0.5 × 10-2 (%) vol (absolute) or ±5% (relative)
Indicating Error (O2): ±0.1 × 10-2 (%) vol (absolute) or ±5% (relative)
Indicating Error (NOx): ±25 × 10-6 (ppm) vol (absolute) or ±4% (relative)
Stability: Moment drift ≤±3%
Repeatability: ≤±2%
Resolution (HC): 1 × 10-6 (ppm) vol
Resolution (CO): 0.01 × 10-2 (%) vol
Resolution (CO2): 0.1 × 10-2 (%) vol
Resolution (O2): 0.01 × 10-2 (%) vol
Resolution (NOx): 1 × 10-6 (ppm) vol
Resolution (Lambda): 0.01
Resolution (R.P.M): 10 r.p.m
Resolution (OIL TEMP): 0.1℃
Response Time: 95% response is not more than 10 seconds
Preheating Time: 8 min (preheating 3 min emergency detection)
Power: AC100~240V 50/60Hz or DC12V (Add power inverter)
Power Consumption: 40VA
Dimension: 420 (L) × 310 (W) × 170 (H) mm
Weight: 9kg
Output Mode: Output mode can display, print gas concentration maximum value, average value, the minimum value of the license plate number, test time, date, speed, temperature and COcor value of lambda, can interface with computer networking.
Operation Conditions: Temperature: -5~50°C, Relative humidity: ≤90%
Packing List
No. Item Qty
1Sampling Hose1
2Power Line1
3Sampling Head2
4Water Separator Screw Cap1
5Copper Filter Element For Water Separator10
6Leak Detecting Cap1
7Print Paper3
8Standard Cylinder2
9In-line filter20
10Filter Paper4
11Filter Nonwovens2
12Fuse2

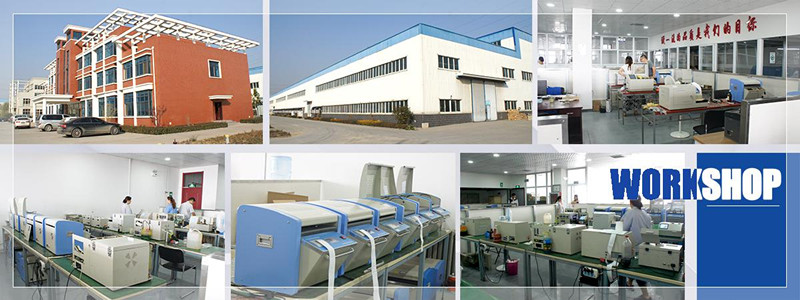

Company Profile

We insist on customer orientation and provide you with high quality products, reasonable prices, timely delivery and efficient service. We are willing to work with global clients for joint development and create value and success for our customers continuously.

Car Exhaust Emission Tester for Automotive With Gasoline Petrol Engines for Sale
Car Exhaust Emission Tester for Automotive With Gasoline Petrol Engines for Sale
Certifications

We have our own manufacturing factory, please see the below certificate, we are the direct supplier. We are a new enterprise engaged in development, produce & sale a serious of power system products, such as Cable fault tester, transformer test class, lightning arrester test class, comprehensive test class.

Car Exhaust Emission Tester Certifications
Car Exhaust Emission Tester Certifications
Car Exhaust Emission Tester Certifications
Our Services

From the date of purchase within one year instrument, the warranty time is 12 months. This is the period of free repair replacement, lifetime supply of maintenance and technical services. If the instrument has been found anomalies or malfunctions please contact us to arrange the most convenient treatment options.

Service and Support

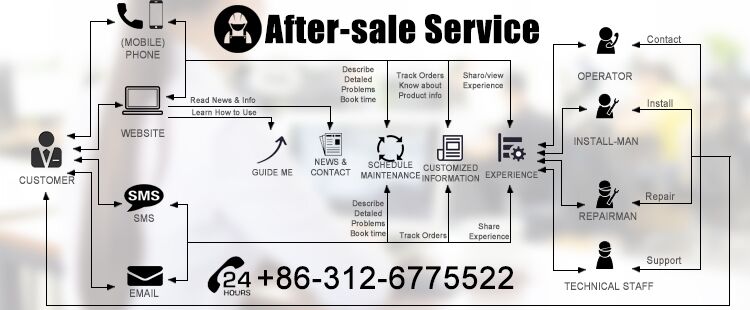

Technical Support Services
Transaction & Client

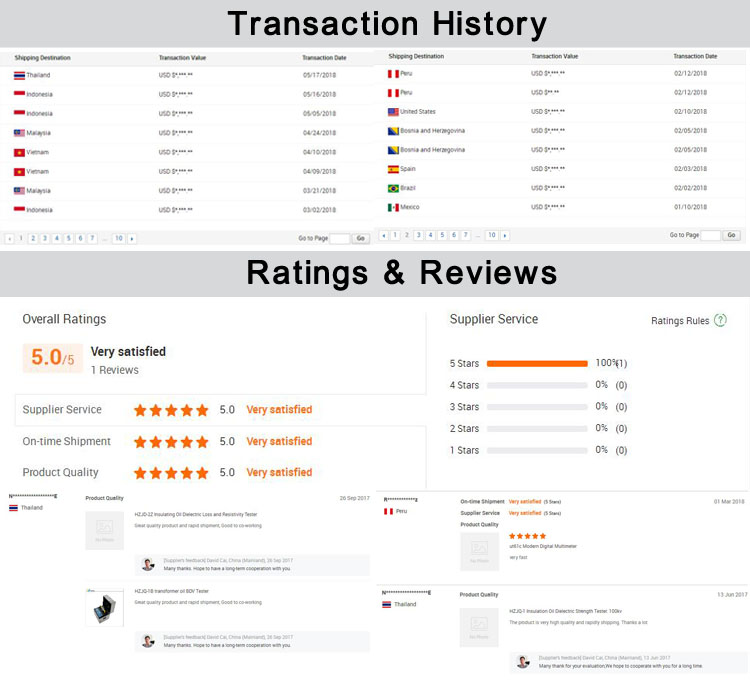

Transaction History
Client Exhibition
Exhibition
Exhibition Gallery
Frequently Asked Questions (FAQ)
Q1: Which types of gases can this car exhaust emission tester measure?
A: This tester is capable of measuring CO, HC, CO2, O2, NOx, corrected carbon monoxide (COcor) concentration, lambda value, speed, temperature, flow, and pressure.
Q2: What fuel types are supported by this diagnostic equipment?
A: It supports measuring emission values for vehicles powered by gasoline, LPG, CNG, alcohol, and diesel fuel.
Q3: Does the device feature auto-maintenance and calibration capabilities?
A: Yes, it features automatic zero adjustment, automatic cleaning, automatic temperature compensation, and pressure compensation. It also monitors HC residue and performs gas leak checks automatically.
Q4: What standards of accuracy does this device comply with?
A: The tester has been developed in accordance with the United States BAR97 standards and complies with the ISO3930 or OIML R99 Class I precision standards.
Q5: How long is the preheating time and general response time?
A: The standard preheating time is 8 minutes (with a 3-minute quick option for emergency detection). The general response time is under 10 seconds for a 95% response.
Q6: What warranty and technical support services are provided?
A: We provide a 12-month warranty from the date of purchase. This includes free repairs or replacements during the warranty period, alongside lifetime technical support and maintenance services.
