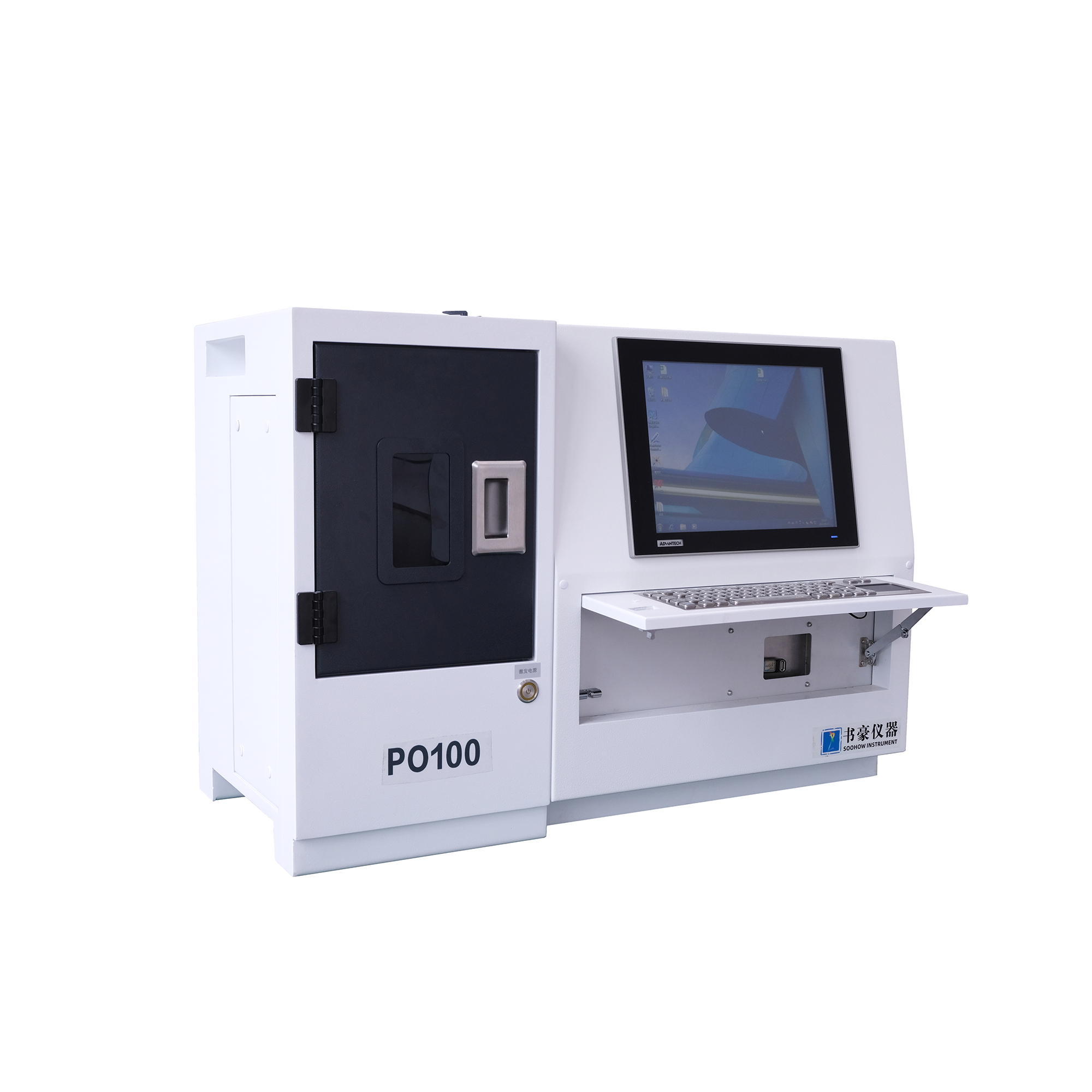

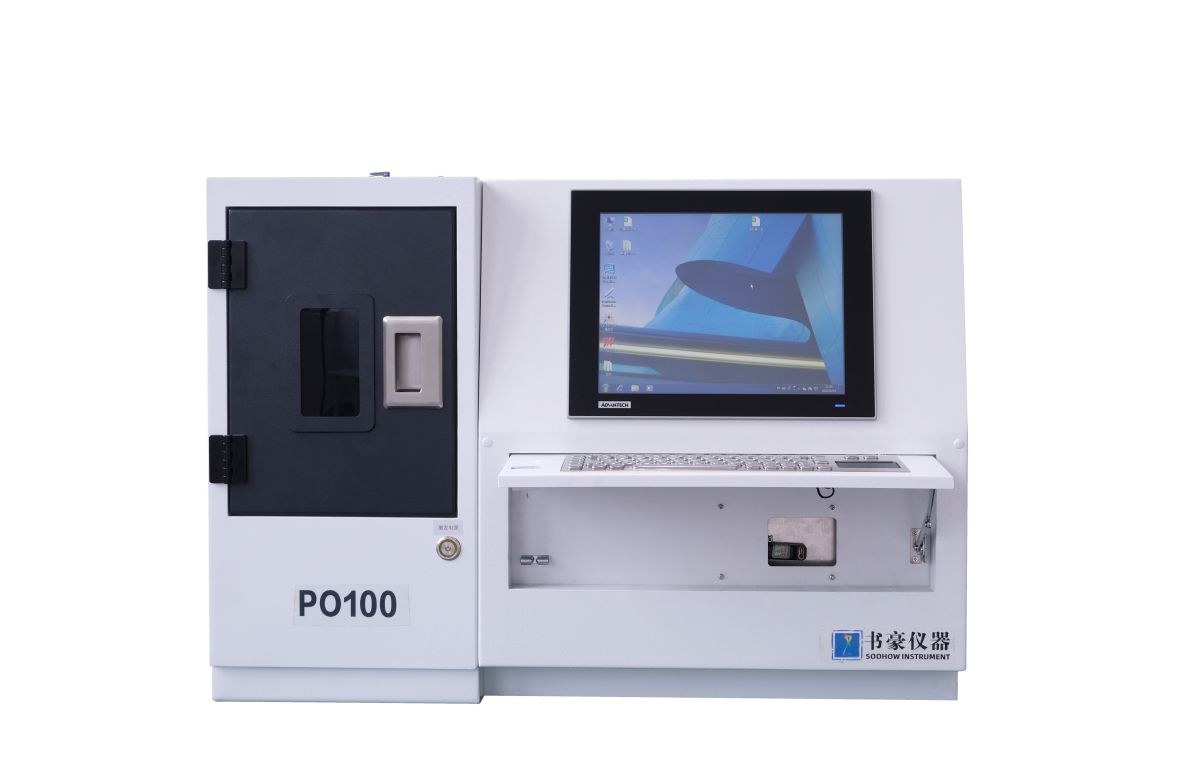

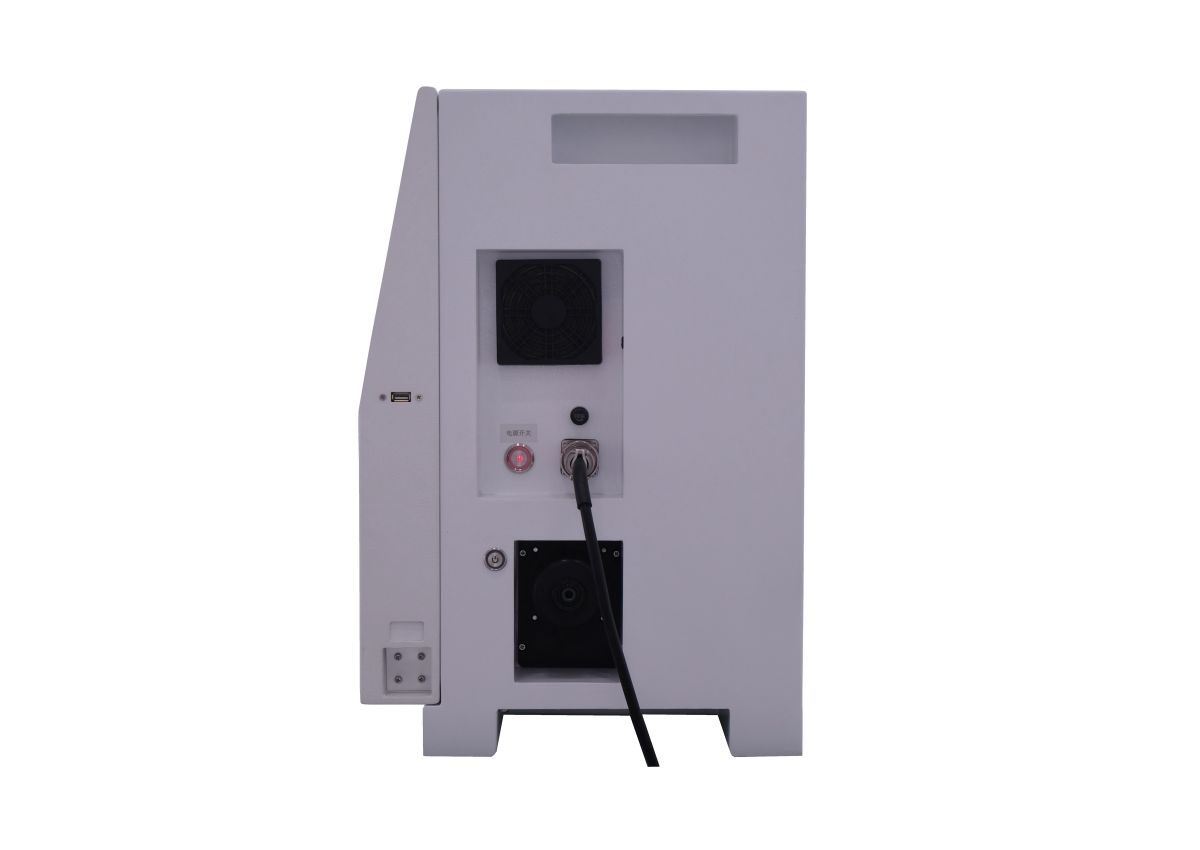

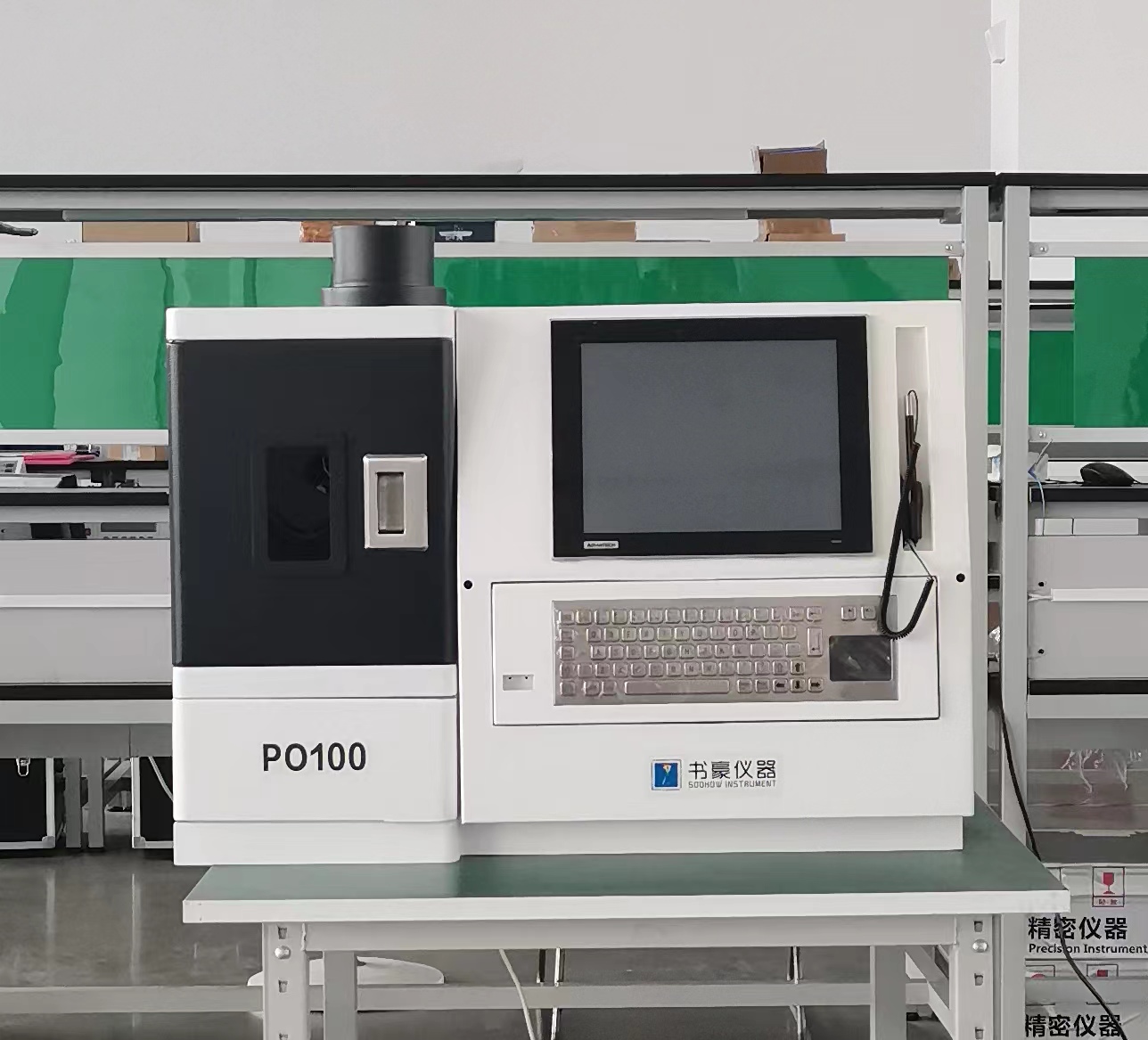

PO100 is an oil spectral instrument which uses rotating disc electrode atomic emission spectroscopy technology and a new digital light source control system, making it smaller and more lightweight. It offers professional testing of metal abrasives and pollutants in lubricating oil or hydraulic oil in use, consistent with the requirements of ASTM D6595 standard. Simultaneously, it complies with ASTM D6728 standard (detection standard for alkaline pollutants in fuel). As an oil element spectral analyzer, there is no need for dilution of oil, and no need for auxiliary solvents or gases. It analyzes multiple abrasive elements simultaneously within 30 seconds, allowing users to quickly detect the oil status of the equipment. The independently developed Oil Spectrometer Analysis Software [WinOil] V1.0 is intuitive and easy to operate, capable of analyzing multiple elements simultaneously.
Application areas: Military, aviation, railway, ocean fleet, mines, refineries, power plants, oil plants, oil recovery, manufacturing plants, commercial laboratories, racing teams, and any other industry that uses lubricants.
Specification
Item
Value
Type
Atomic Emission Spectrometer
Place of origin
China
Region
Jiangsu
Warranty
1 Year
Customized support
OEM
Model number
PO100
Detecting element
Regular 24 elements, up to 32 extensible
Working voltage
AC220V±10%, 50-60Hz
Test Time
30s
Optical structure
Paschen-Runge construction, Roland circle device
Optical zoom
500mm
Spectral range
190~800nm
The detector
CCD
Detection limit
<1ppm
Product Features
Patent digital arc light source and solid-state source excitation, ensuring constant current source frequency output without the need for periodic cleaning or correction of excitation source errors.
Adopting a high-resolution solid-state CCD sensor optical system, with a single pixel of 3648 bits and a pixel size of 8 * 200um, allowing higher pixels to detect more effective spectral intensity.
Spectral analysis application software based on Windows system, capable of running on Windows 7, Windows 10 and other systems, integrating instrument control, data management, qualitative, and quantitative analysis functions.
Single desktop instrument with built-in computer system and motor grinder. The overall volume of the instrument is small, making it easy to transport.
Short heating time and high reliability, suitable for naval and demanding environments.
Operates without the use of argon, oxygen, and other chemical solvents; the oil sample does not require pre-treatment and can be directly placed in a sample cup for testing.
Built-in barcode scanner, Bluetooth communication module, and 485 communication interface, requiring no additional configuration.
Application & Equipment Gallery
Frequently Asked Questions
Q1
Are you the factory? Can you make the equipment according to our requirements?
Yes, we are a factory and have the rights to export directly. We have our own dedicated R&D team to configure and adjust the equipment according to your requirements.
Q2
When can I get the quotation?
We usually quote within 24 hours after receiving your inquiry. If you are urgent to get the pricing, please let us know so that we can prioritize your request.
Q3
What is the delivery time and production cycle?
In most cases, production starts immediately after receiving the deposit, with a production cycle typically within 30 days. Delivery time is negotiable.
Q4
What shipping methods are available and how are costs determined?
We support delivery by sea, air, or express courier. The cost of delivery depends on the shipping mode, destination, and product weight. Local taxes depend on your local customs regulations.
Q5
How is the equipment setup and training handled?
A detailed user manual is attached with the instrument. Our engineers can provide comprehensive training remotely at no extra cost. The machine works independently, is easy to set up, and does not require connection to other external devices.
Q6
What kind of after-sales service do you provide?
We have a professional engineering team. All problems will be responded to within 12 hours. We offer life-long service and can arrange remote diagnostic checks for any technical queries.
