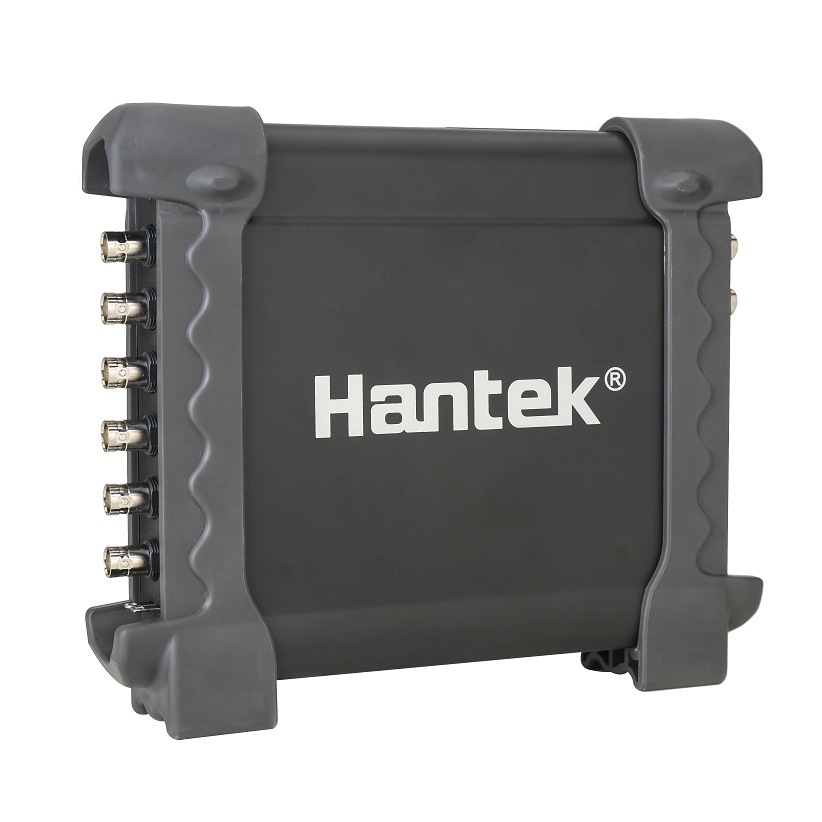

Hantek1008C Automotive Diagnostics 8-channel Oscilloscope signal Generator USB Oscilloscope

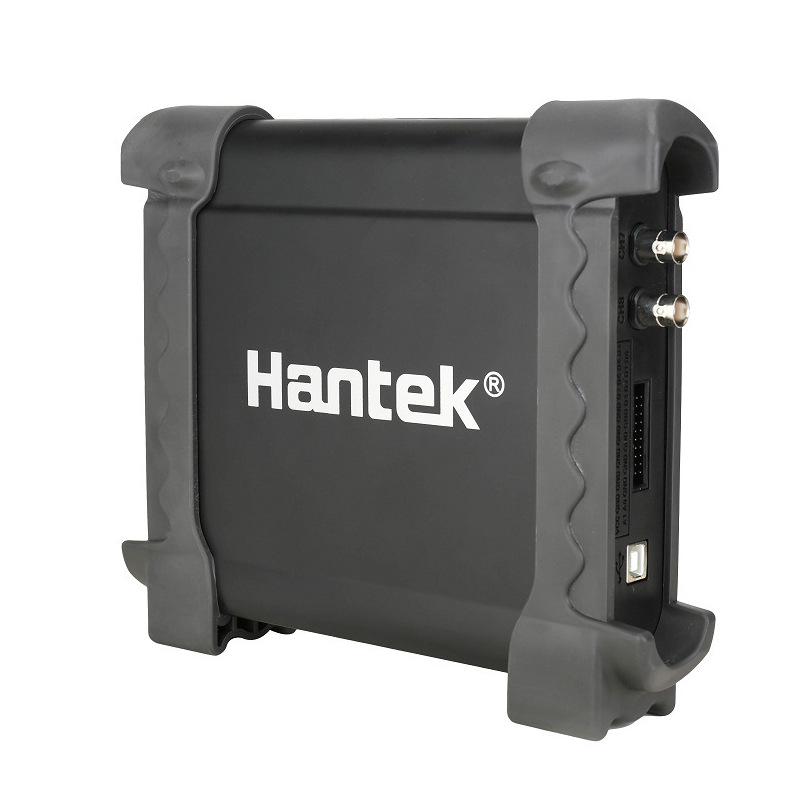

Automotive Diagnostic Oscilloscope Image 1

Automotive Diagnostic Oscilloscope Image 2

Automotive Diagnostic Oscilloscope Image 3

Automotive Diagnostic Oscilloscope Image 4

Automotive Diagnostic Oscilloscope Image 5

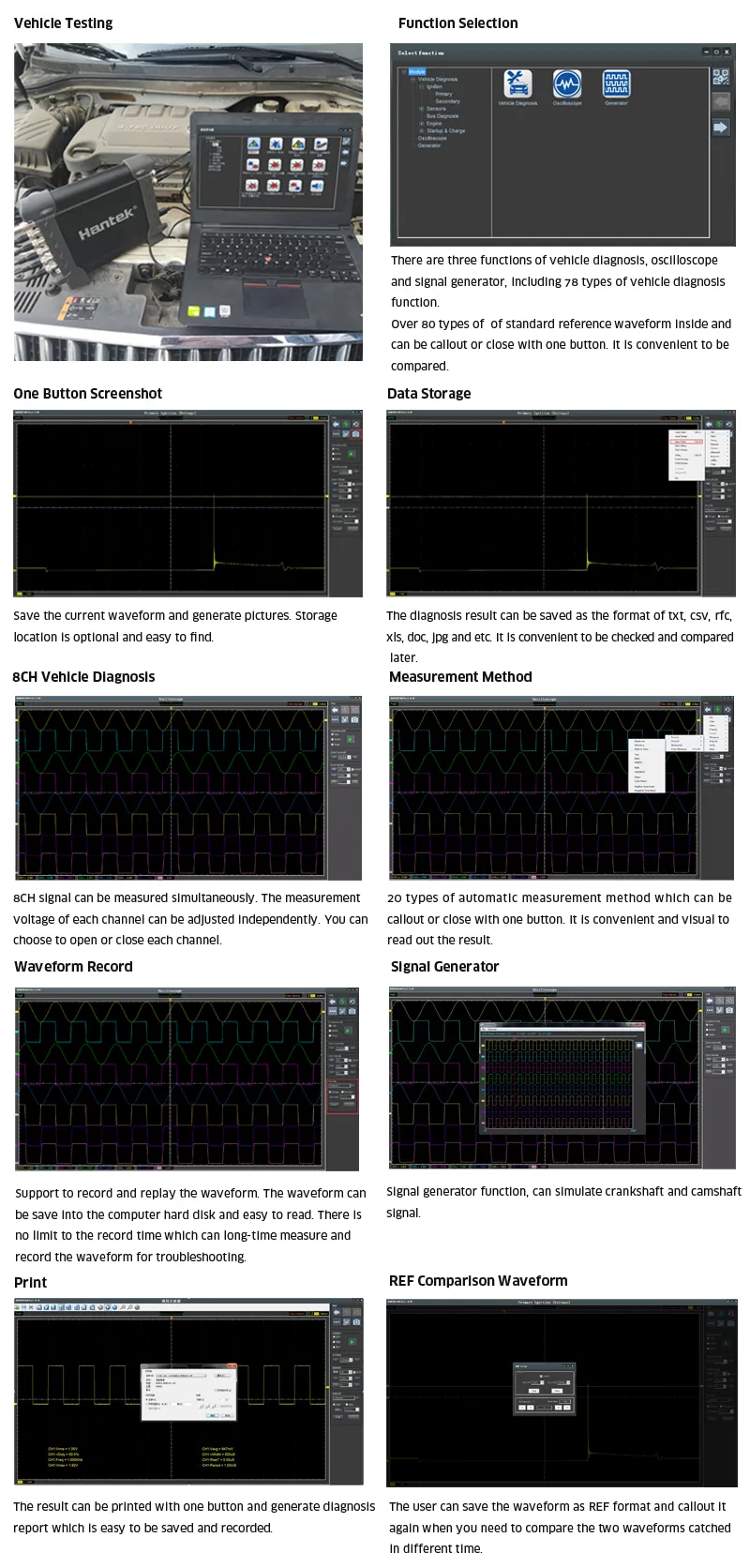

Automotive Diagnostic Oscilloscope Image 6

Product Description

Cost-effective PC USB 8CH Automotive Diagnostic Oscilloscope/DAQ/Programmable Generator: Highly efficient and cost-effective instrument featuring an 8 channels oscilloscope optimized for vehicle testing, an Auto Ignition Probe, 2.4MSa/s real-time sampling rate, 12-bit vertical resolution, and integrated spectrum analysis. It is equipped with 10mV/div to 5V/div input sensitivity, DAQ card functionality, and an 8-channel programmable generator capable of simulating crankshaft, camshaft, and other analog signals.

Features & Capabilities

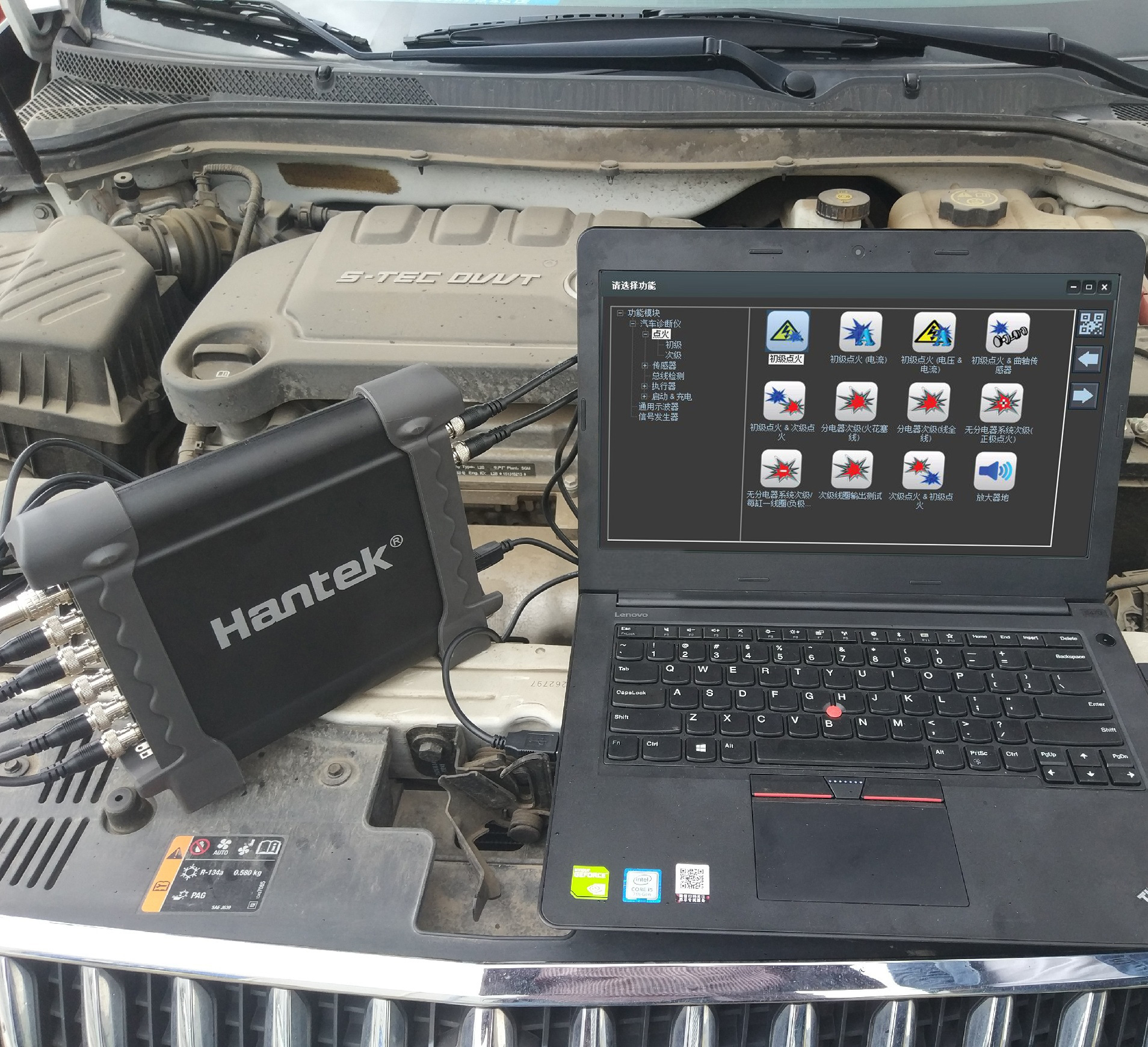

Vehicle Testing

First Diagnosis: Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition.
Ignition: Primary and secondary ignition diagnostics.
Sensors: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position.
Bus Diagnosis: CAN bus data examination, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus.
Performers: Petrol and Diesel diagnostics.
Circuits: Starter and charging circuits testing.

Oscilloscope Specs

8 channels professional diagnostic oscilloscope.
2.4MSa/s real-time sampling rate.
12-bit vertical resolution for precise measurement.
Integrated spectrum analysis function.

Programmable Generator

8 channels programmable generator.
Capable of analog output signals of crankshaft, camshaft, etc.

Operation & Software

USB 2.0 interface plug and play, no external power supply required.
Over 20 types of automatic testing functions.
User-friendly interface similar to benchtop oscilloscopes.
OS Support: Windows NT, Windows 2000, Windows XP, VISTA, Windows 7.

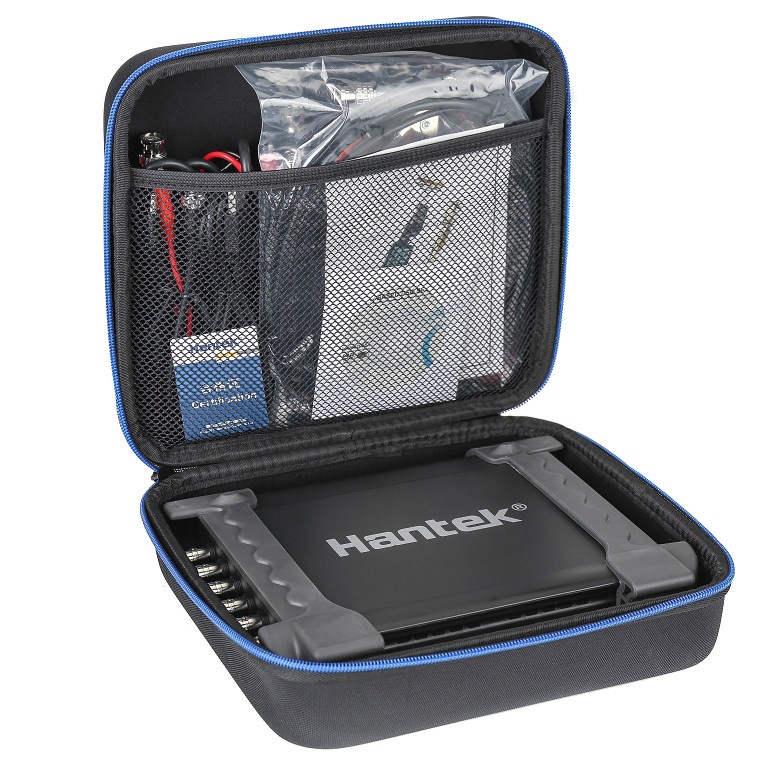

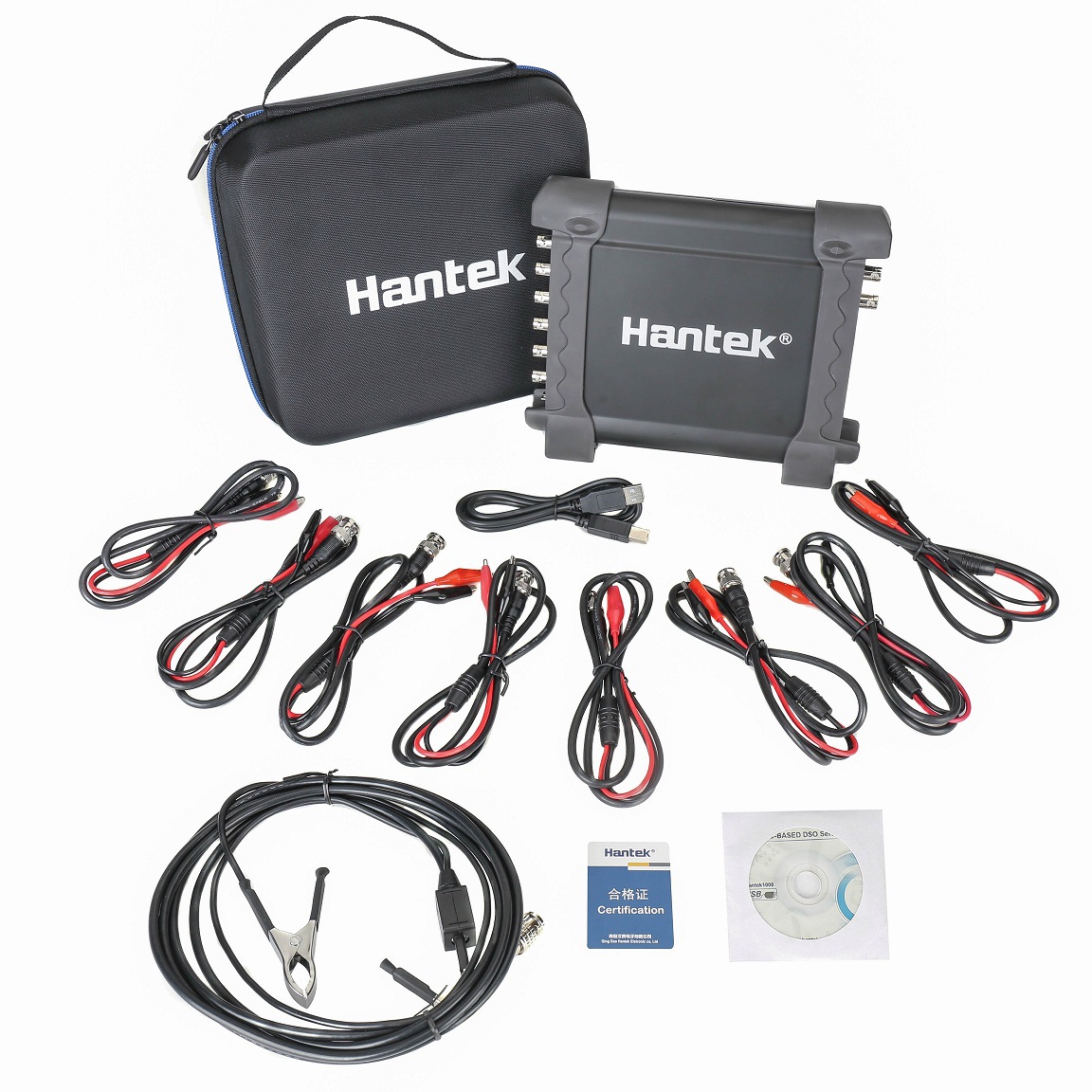

Package Content:

1 x 1008C DAQ Oscilloscope

1 x Auto-probe

4 x Crocodile Probes/Cable

4 x BNC Connectors

1 x USB Cable

1 x CD (Driver & Software)

Frequently Asked Questions

What are the primary applications of this diagnostic oscilloscope?

This device is designed specifically for vehicle testing, including primary/secondary ignition diagnostic, sensor testing (Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda, Throttle position), bus diagnosis (CAN bus integrity, LIN bus), and starter/charging circuit testing.

Does the device require an external power supply?

No, the device utilizes a standard USB 2.0 interface which provides plug-and-play operation and power directly from your PC, eliminating the need for an extra power adapter.

Which operating systems are compatible with the software?

The software supports Windows NT, Windows 2000, Windows XP, Windows VISTA, and Windows 7 operating systems.

What parameters does the programmable generator feature?

The device features an 8-channel programmable generator that can output simulated analog signals for crankshafts, camshafts, and various other vehicle engine components for reference diagnostic testing.

How is the product quality guaranteed?

Strict quality management protocols are followed, which include evaluating pre-production samples before mass production begins and executing a final inspection process prior to shipment.

What payment methods and delivery terms are available?

Accepted delivery terms include FOB, CFR, CIF, EXW, and Express Delivery. Supported transaction currencies include USD, EUR, and CNY, with payment methods such as T/T, L/C, PayPal, and Western Union.
