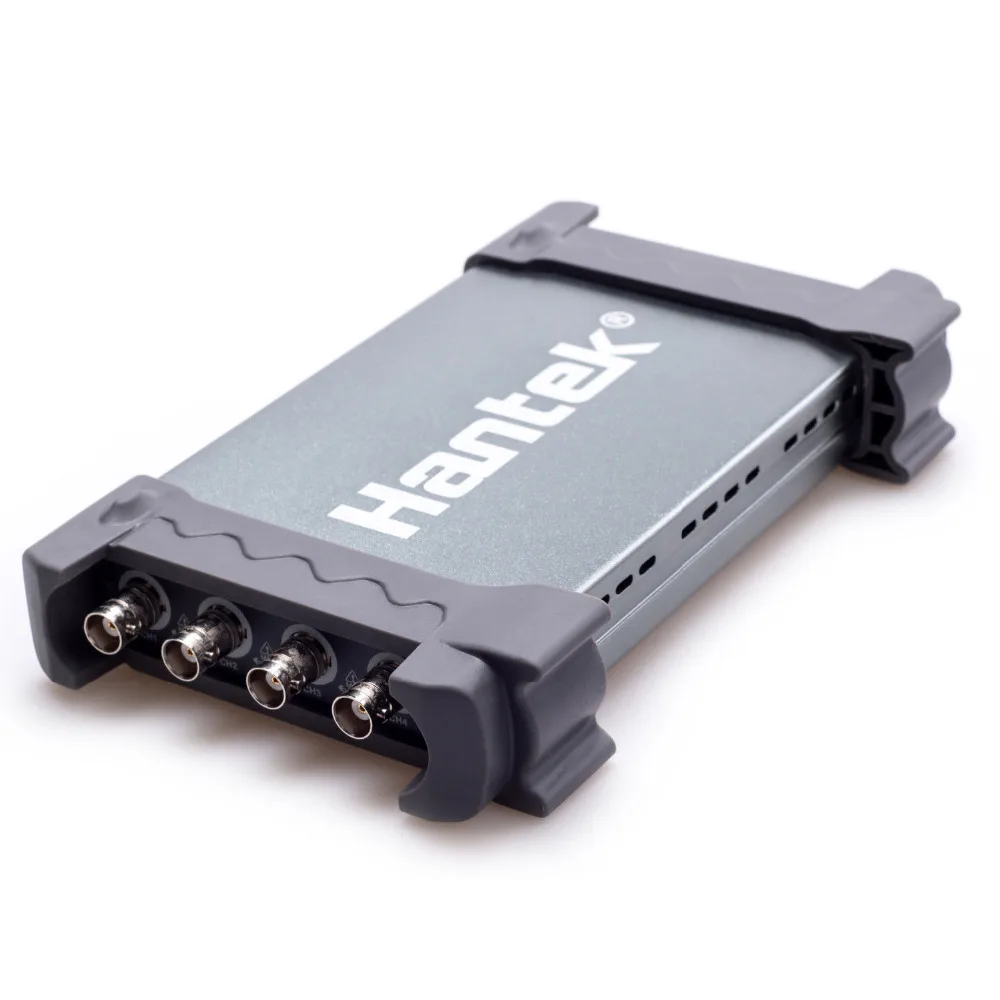

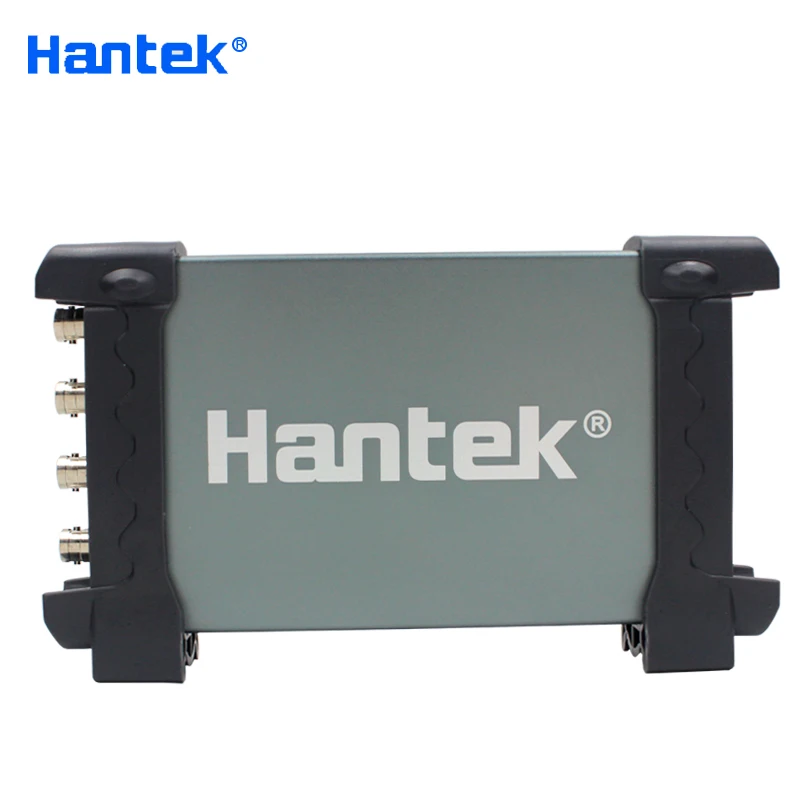

Hantek 6254BE Automotive Digital Diagnostic Oscilloscope USB PC 1GSa/s 250MHz 4CH Oscilloscope Equipped with HT25COP/CC65/CC650
Hantek 6254BE Automotive Digital Diagnostic Oscilloscope USB PC 1GSa/s 250MHz 4CH Oscilloscope Equipped with HT25COP/CC65/CC650
Standard equipped over 80 types of automotive measurement function (Ignition Action/The Sensor/Bus Diagnosis/Performer/Startup&Charge), USB 2.0 interface plug and play, and need no extra power supply, Support tablet PC, Support WIN10/ WIN8/WIN7 etc. Free software upgrading constantly, higher cost performance, Support USBXI, easy to operate. 4 isolated channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 250MHz high bandwidth, small size, easy to carry. Dynamic cursor tracking, waveform record and replay function.
Features
Standard equipped over 80 types of automotive measurement function:
First Diagnosis
Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition;
Bus Diagnosis
CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus;
Performer
Petrol/Diesel;
Starter & Charging
Starter and charging circuits.
Fit for the portable computers, table PC, and suitable for wild mobile use and business trip use. Support WIN10/ WIN8/WIN7 etc.
USB 2.0 interface plug and play, and no need extra power supply.
Great function, More than 20 kinds of automatic measurement function, PASS/FAIL Check function. Resourceful trigger function, dynamic cursor tracking, waveform record and replay function.

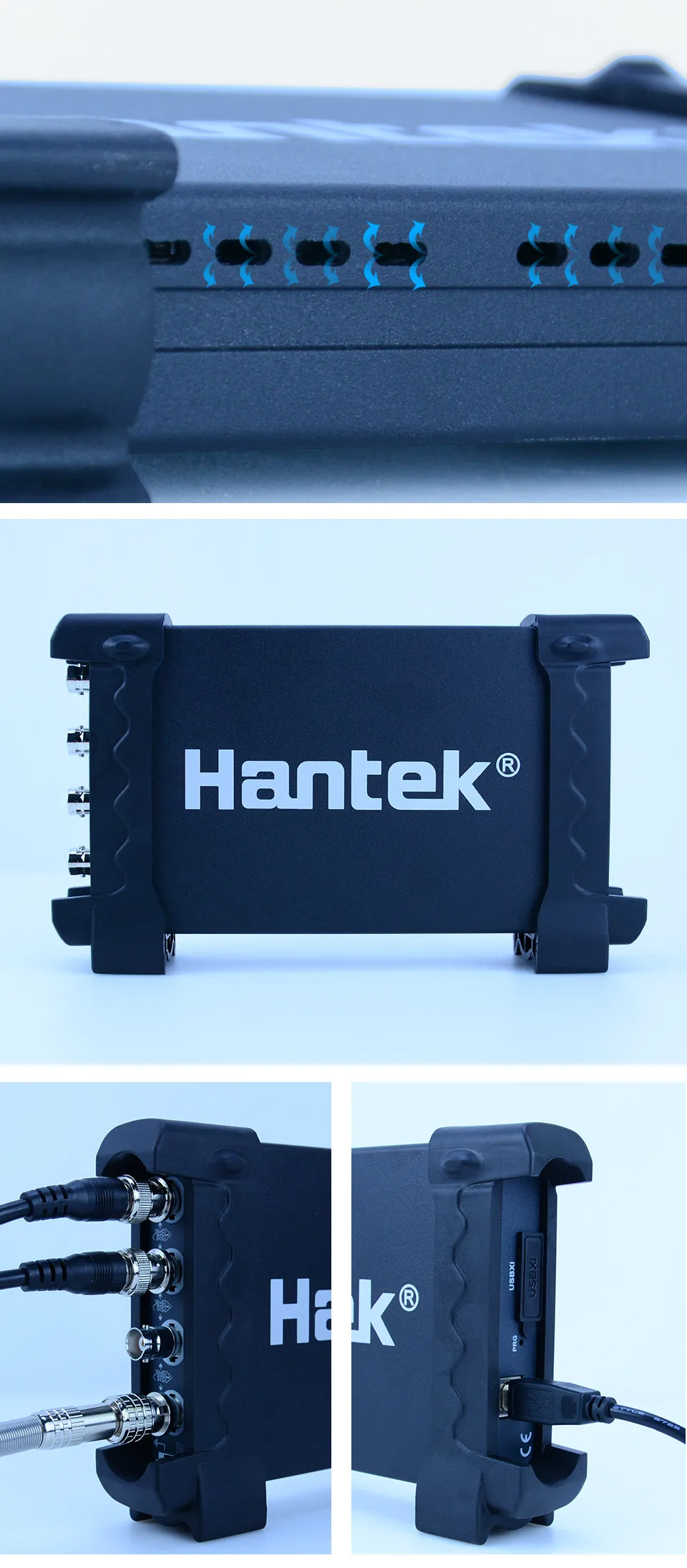

Good mechanical design with small size which is easy for carrying. The outer case is made by Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.

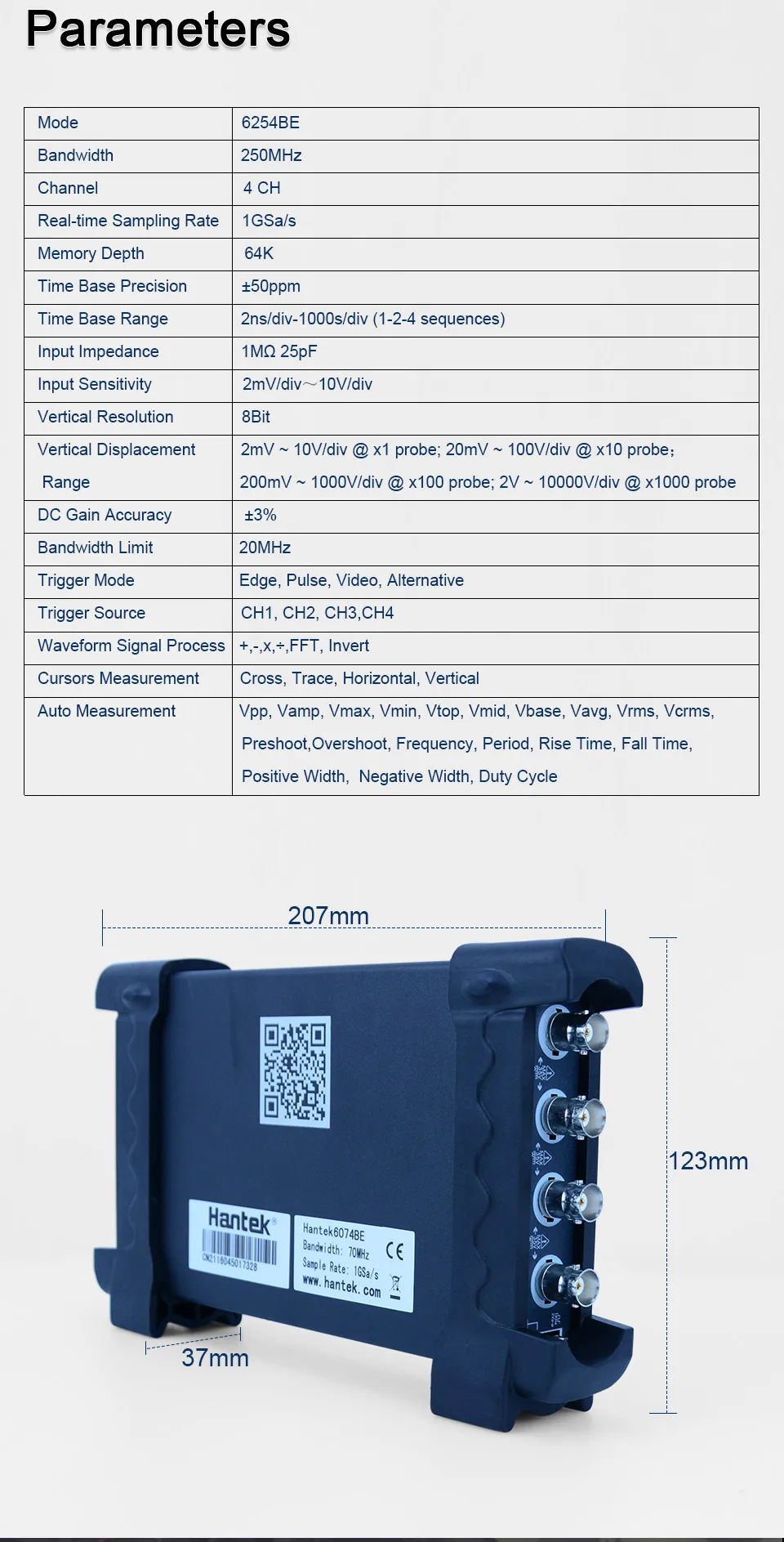

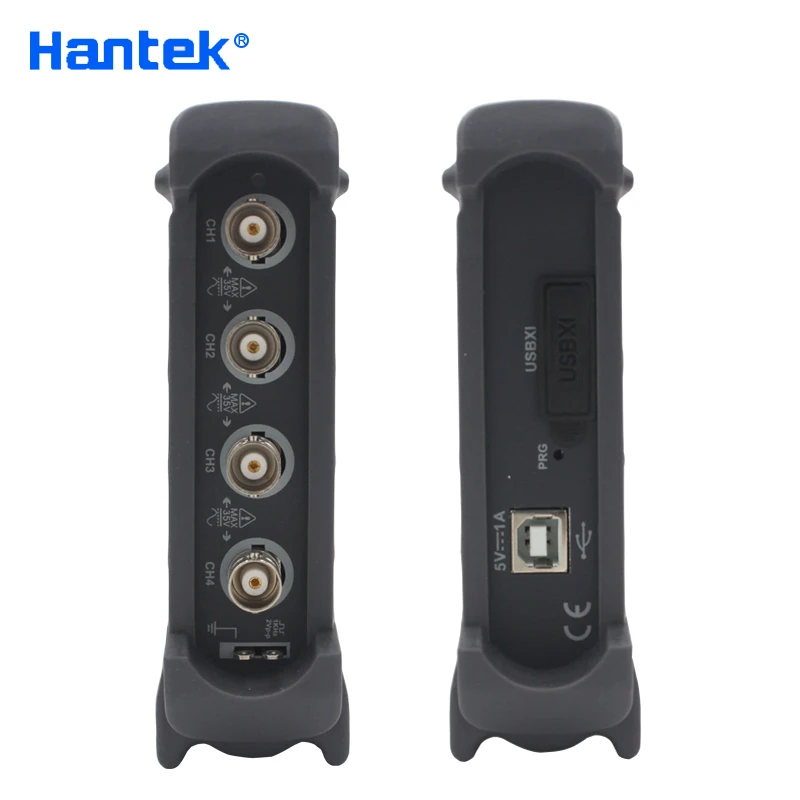

4 isolated channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 250MHz high bandwidth.

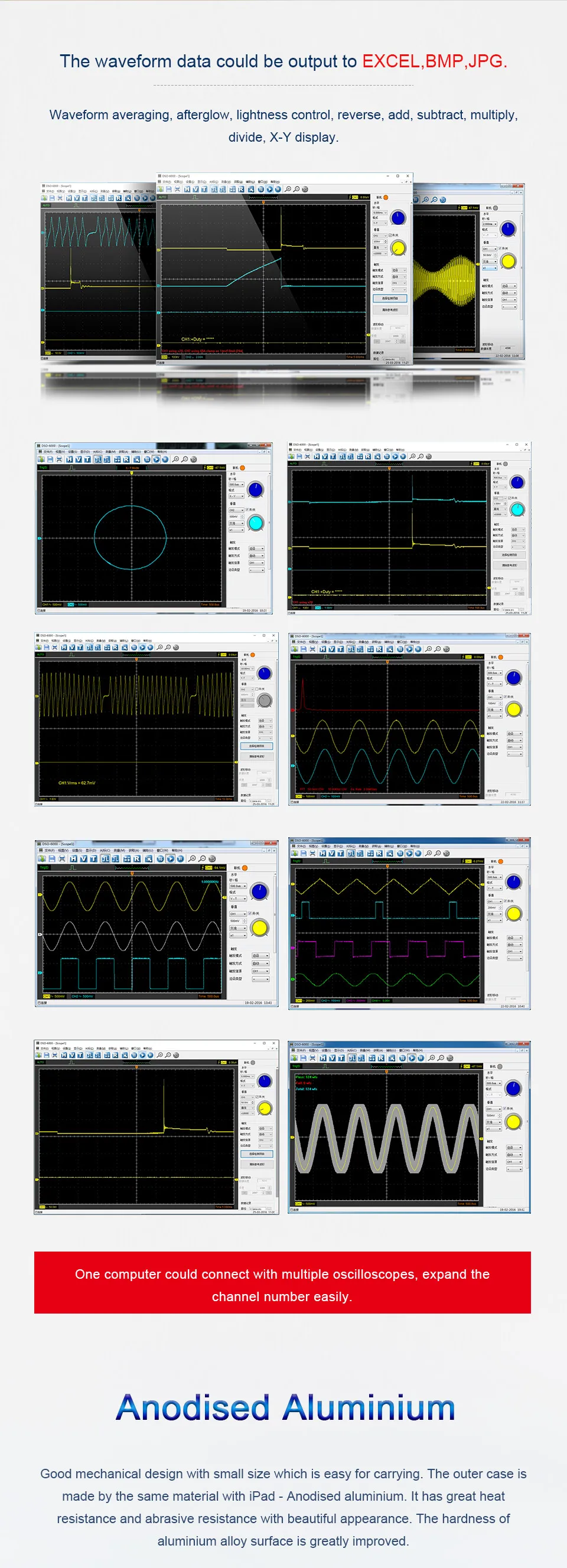

The waveform data could be output to EXCEL, BMP, JPG.
Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Volume
175mm * 105mm * 25mm
Note:
Hantek 6074BE/6104BE/6204BE/6254BE Oscilloscope is for 3 years Warranty!
Please read the instruction manual data CD carefully to avoid injury and prevent damage to this product.

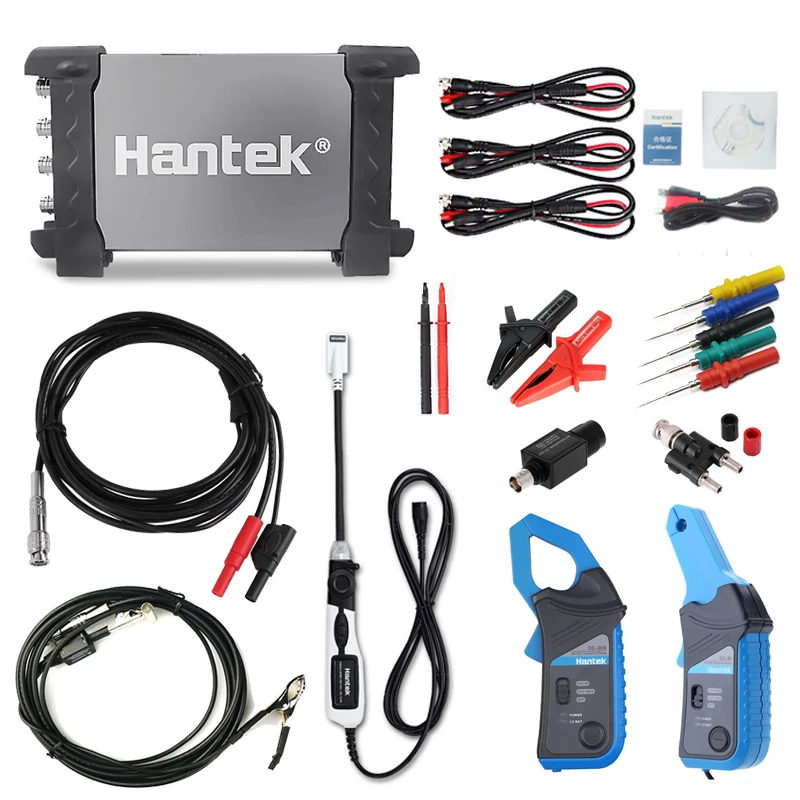

Package List
1 *6254BE Automotive Diagnostic Oscilloscope

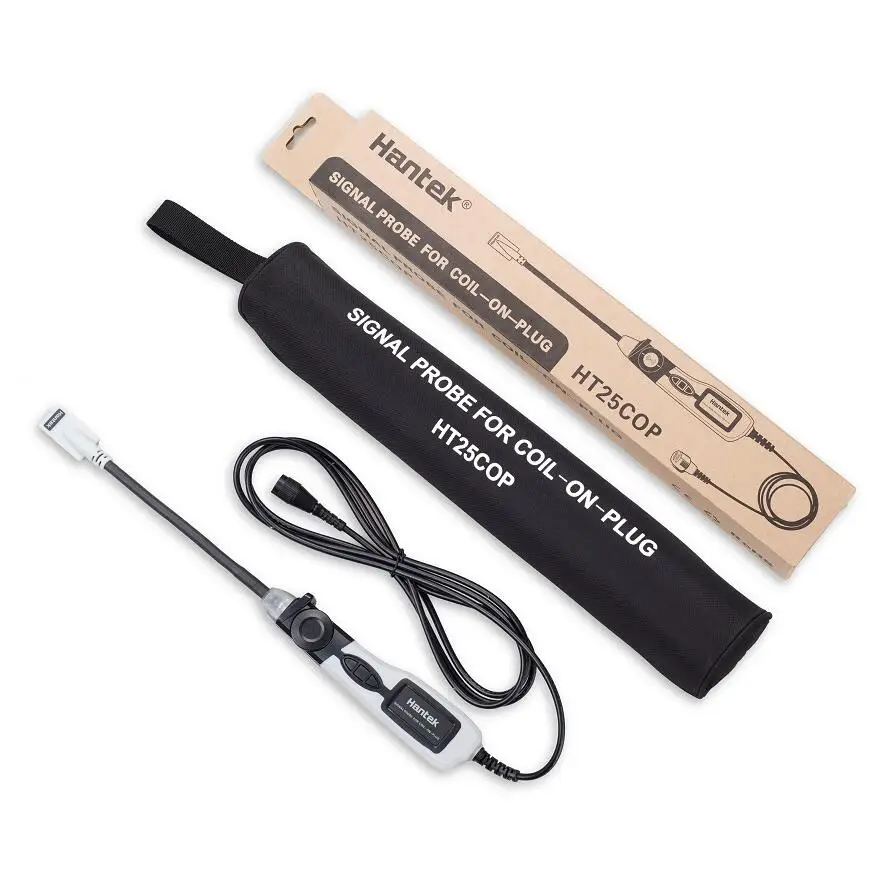

1 *HT25COP independent ignition probe

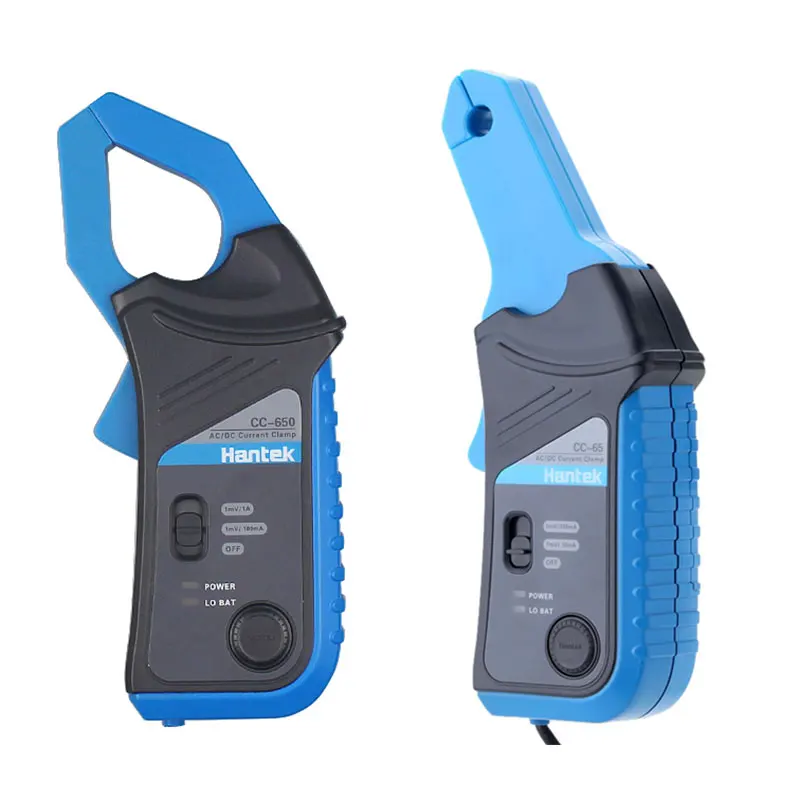

1 *CC650 AC and DC current clamp
1 *CC65 AC and DC current clamp
1 *HT30A dual banana head multi-purpose test line
1 *HT18A Dolphin/Alligator Clip
1 *HT19 multimeter probe
1 *HT25 automatic high voltage ignition
1 *HT307 Acupuncture Probe Set
1 *HTT201 signal generator 20:1
1 *Automatic test cable
3 *Dolphin/crocodile clip cable
1 *USB power cord
1 *PC software CD with user manual
Frequently Asked Questions (FAQ)
What are the primary automotive diagnostic functions supported by Hantek 6254BE?
The Hantek 6254BE comes equipped with over 80 types of automotive measurement functions. These include First Diagnosis (intake manifold vacuum, exhaust, and ignition), Ignition (primary and secondary), Sensors (airflow meter, camshaft, crankshaft, distributor, lambda sensor, throttle position), Bus Diagnosis (CAN and LIN buses), Performers (Petrol/Diesel), and Starter/charging circuits.
Does this diagnostic oscilloscope require an external power supply?
No. The Hantek 6254BE features a USB 2.0 interface that offers plug-and-play functionality, drawing power directly from your computer or tablet without needing any extra power supply.
Which computer operating systems are compatible with the software?
The device supports standard Windows operating systems including WIN7, WIN8, and WIN10. Free software upgrades are constantly provided. Additionally, secondary development library DLLs are provided for programming environments like Labview, VB, VC, and QT.
What is the bandwidth and sampling rate of the Hantek 6254BE?
It features 4 isolated channels, a high bandwidth of 250MHz, and a 1GSa/s real-time sampling rate, along with a high input sensitivity range of 2mV-10V/DIV.
What materials are used for the outer casing, and is it suitable for field work?
The outer case is constructed from Anodised Aluminium, providing excellent heat and abrasive resistance. Its compact size and lightweight design make it highly portable and ideal for field mobile use and business trips.
What is the warranty period for this oscilloscope model?
The Hantek 6254BE (along with the 6074BE, 6104BE, and 6204BE models) comes with a 3-year warranty for peace of mind. Please read the CD manual carefully before use to prevent any injury or damage to the device.
