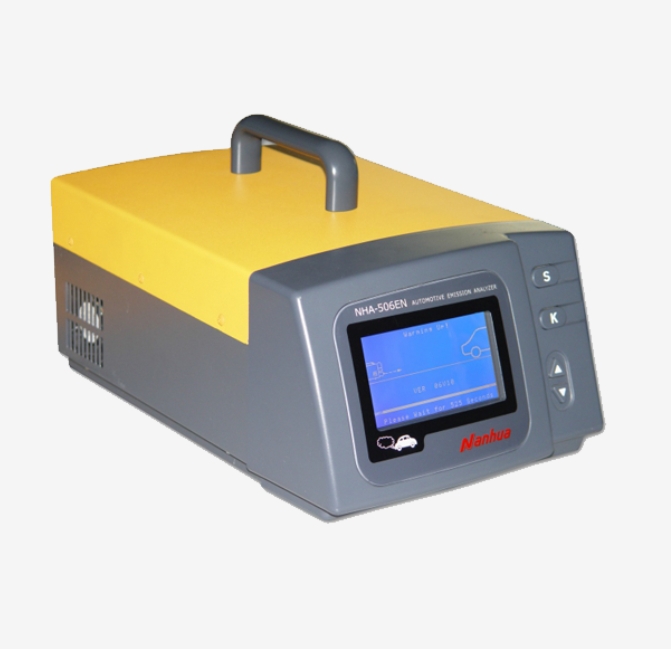

Portable Engine Exhaust Analyzers For HC/CO/CO2/O2/NO 5 Gas NHA-506EN NHA506 NHA-506 110V/220V Gas Automotive Emission Tester

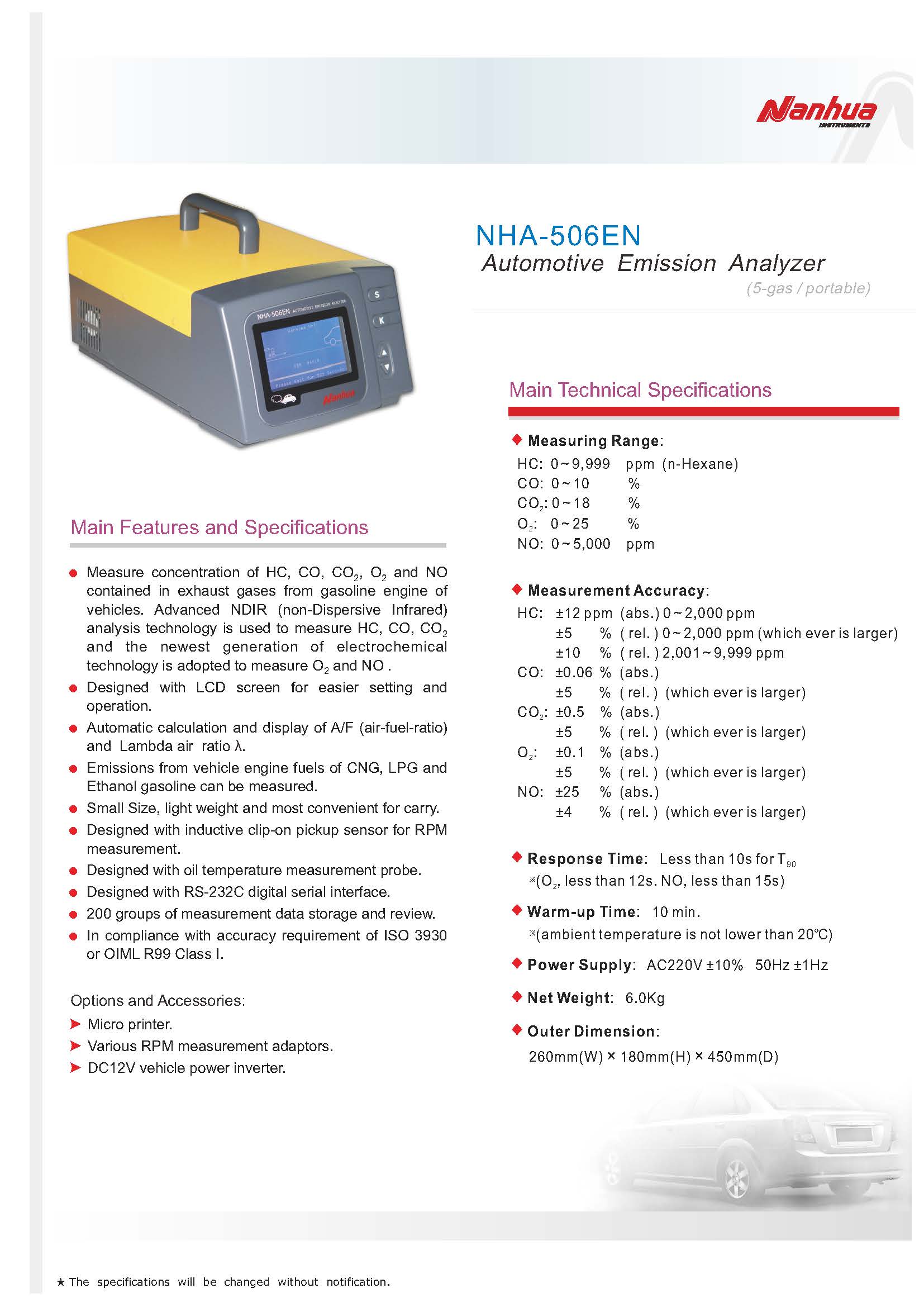

Measure concentration of HC, CO, CO2, O and NO contained in exhaust gases from gasoline engine of vehicles.| CO | 0 ~ 10 * 10-2 (%) |
| CO2 | 0 ~ 18 * 10-2 (%) |
| O2 | 0 ~ 25 * 10-2 (%) |
| NO | 0 ~ 5,000 * 10-6 (%) |
| HC |
±12 * 10-6 (abs.) 0 ~ 2,000 * 10-6 ±5 * 10-2 (%)(rel.) 0 ~ 2,000 * 10-6 (whichever is larger) ±10 * 10-2 (%)(rel.) 2,000 ~ 9,999 * 10-6 (whichever is larger) |
| CO |
± 0.06 * 10-2 (%) (abs.) ±5 * 10-2 (%)(rel.) (whichever is larger) |
| CO2 |
±0.1 * 10-2 (%) (abs.) ±5 * 10-2 (%)(rel.) (whichever is larger) |
| O2 |
±0.1 * 10-2 (%) (abs.) ±5 * 10-2 (%)(rel.) (whichever is larger) |
| NO |
±25 * 10-6 (%) (abs.) ±4 * 10-2 (%)(rel.) (whichever is larger) |
| Response Time | Less than 10s (O2 less than 12s, NO less than 15s) |
| Warm-up Time | 10 min (ambient temperature not lower than 20°C) |
| Power Supply | AC220V ±10% 50Hz ±1Hz |
| Net Weight | 6.0 kg |
| Outer Dimension | 260mm (W) * 180mm (H) * 450mm (D) |
This automotive emission tester is designed to measure the concentration of five key gases: Hydrocarbons (HC), Carbon Monoxide (CO), Carbon Dioxide (CO2), Oxygen (O2), and Nitrogen Oxide (NO).
It utilizes advanced Non-Dispersive Infrared (NDIR) technology to analyze and measure HC, CO, and CO2, and the latest generation electrochemical technology to measure O2 and NO.
Yes, it can measure emissions from vehicle engines running on various fuel types, including CNG, LPG, and ethanol gasoline.
The response time is less than 10 seconds (O2 requires less than 12 seconds, and NO requires less than 15 seconds). The device takes approximately 10 minutes to warm up at an ambient temperature of at least 20°C.
Yes, the device is designed with built-in storage capability that allows you to store and review up to 200 groups of measurement data.
The exhaust gas analyzer supports a standard power supply of AC220V ±10%, 50Hz ±1Hz, and is also compatible with a 110V power source. An optional car power inverter is also available for portable field operation.
