Professional Automobile Oscilloscope for ATO2004 4 Analog Channels 2GSa/S 200mhz Full Touch Screen Digital Oscilloscope
1 / 5
Professional Automobile Oscilloscope for ATO2004 4 Analog Channels 2GSa/S 200mhz Full Touch Screen Digital Oscilloscope
Professional Automobile Oscilloscope for ATO2004 4 Analog Channels 2GSa/S 200mhz Full Touch Screen Digital Oscilloscope
Key Features

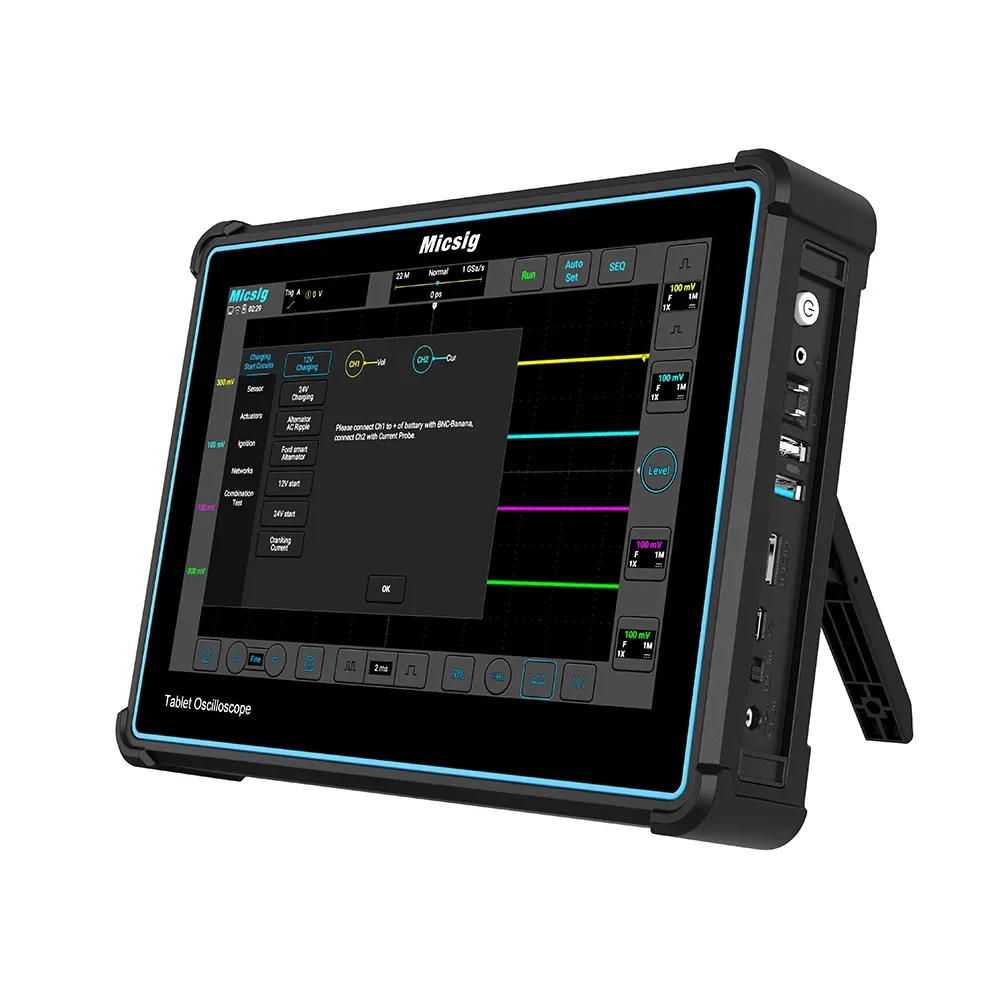

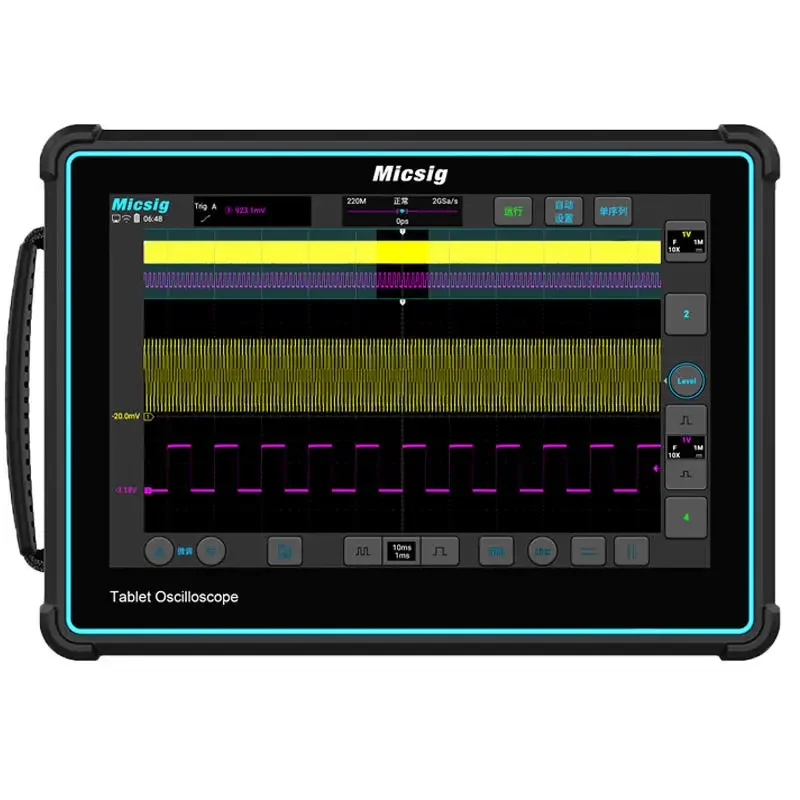

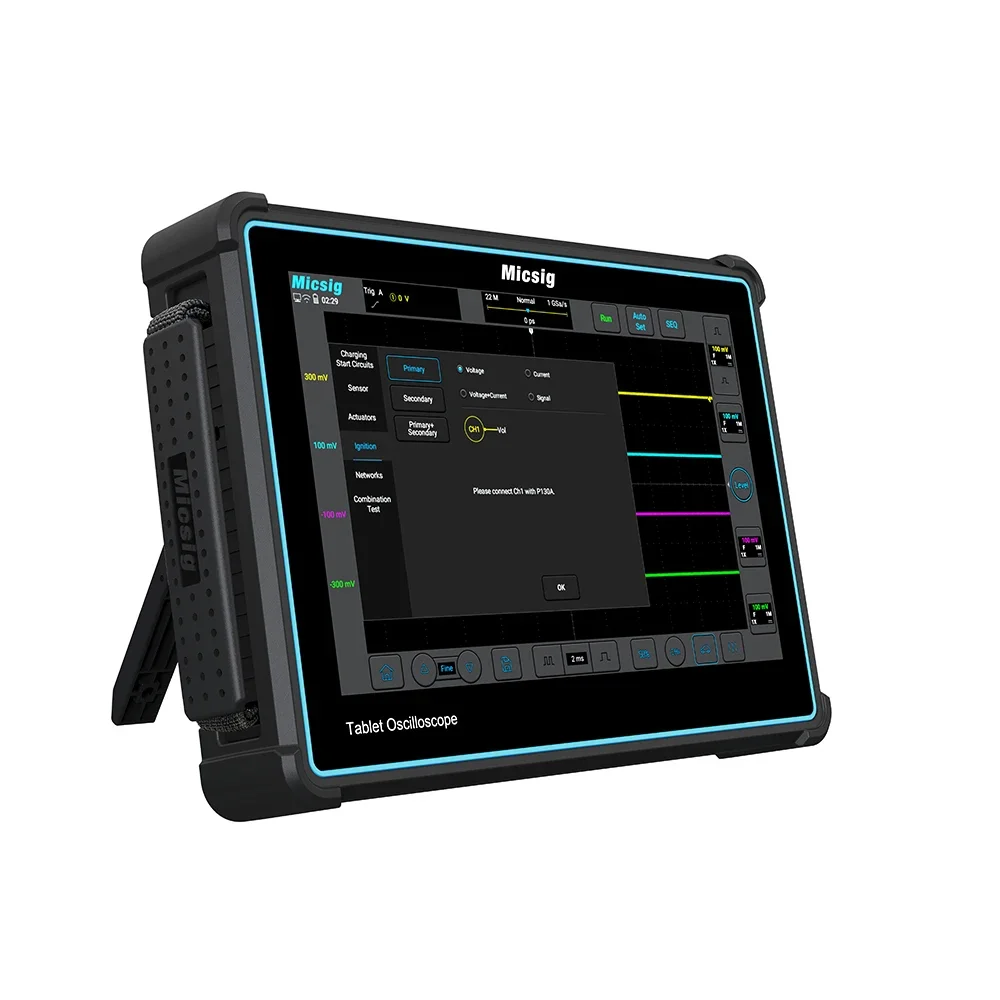

Portable tablet design with all-in-one functions
Comprehensive auto diagnostic presets
Powerful signal capture and analysis capabilities

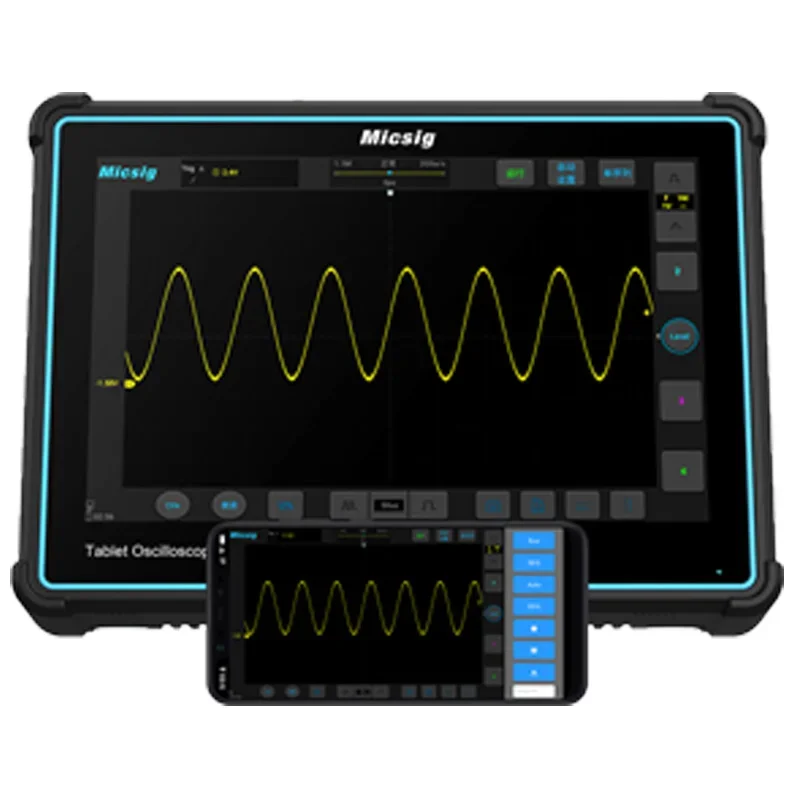

Support PC & Smartphone remote control
function for training & demonstration
Life-long free software online upgrade
Supported Diagnostic Tests

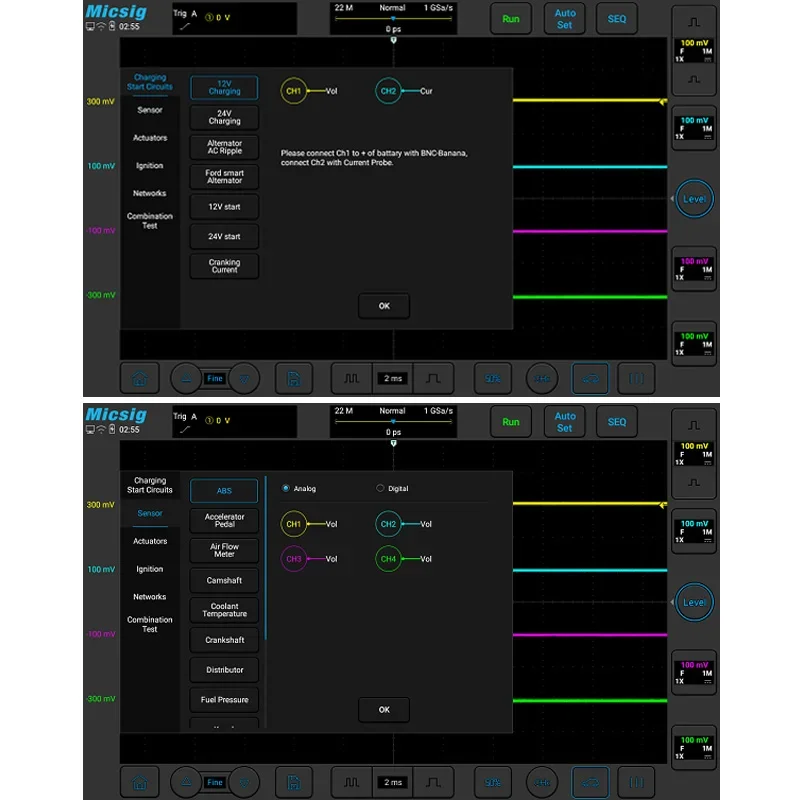

1. Charging / Start Circuit
Support 12V & 24V charging/start, Charging Ripple, Cranking Current and other tests.
2. Various Sensor Tests
Supports testing of ABS, Accelerator Pedal, Throttle Position, Fuel Pressure, Air Flow meter, Crankshaft, Camshaft, Knock, MAP, etc.
3. Actuators
One-press to get signals, Fast and Easy. Supports various Actuator tests: multiple fuel injector voltages and currents, fan control signals, variable valve timing, carbon canister solenoid valves, EGR solenoid valves, etc.
4. Ignition
Including Primary ignition, Secondary ignition, and combined Primary+Secondary ignition tests.
5. Network
CAN (CAN High / CAN Low), CAN FD, LIN, FlexRay, and K line.
6. Combination Tests
Multiple channels of oscilloscope can be measured together to perform a variety of combined tests, such as the combined test of the Crankshaft and the Camshaft, or the combined test of the Primary Ignition and the Fuel Injector Voltage, etc.
Technical Specifications
Item
Value
Type
Oscilloscope
Customized support
OEM
Place of Origin
China
Region
Guangdong
Model Number
ATO2004
Size
265*192*50mm
Weight
1.9kg (with battery)
Analog Channels
4
Bandwidth
200MHz
Sample Rate (Max.)
2GSa/S (single channel)
Memory Depth
220Mpts (single channel)
Waveform Capture Rate (Max.)
300,000wfms/s
Support Test
Charging & Start Circuit ect
Bandwidth Filter
20MHz, Low pass (to 30Hz)
Interfaces
Wi-Fi, USB 3.0/2.0 Host, USB Type-C, Grounding, HDMI, Trigger out
What are the primary diagnostic applications of the ATO2004 automobile oscilloscope?
The ATO2004 supports a wide range of automotive tests, including Charging/Start circuits (12V & 24V), various sensors (ABS, Throttle, Air Flow, Knock, etc.), actuators (fuel injectors, solenoid valves), ignition tests (Primary & Secondary), and network diagnostic protocols like CAN, CAN FD, LIN, and FlexRay.
What is the maximum sample rate and bandwidth of this device?
The ATO2004 delivers a bandwidth of 200MHz and a maximum real-time sampling rate of 2GSa/S on a single channel, paired with a memory depth of up to 220Mpts.
Does the ATO2004 support remote control functionality?
Yes, this digital oscilloscope supports remote control operation via PC and smartphone, which makes it ideal for training sessions, remote diagnostic assistance, and demonstration purposes.
Is the software upgradeable?
Yes, users can enjoy life-long free software online upgrades to ensure the device is always equipped with the latest diagnostic databases and system features.
How portable is the ATO2004 digital oscilloscope?
The ATO2004 features a portable tablet design measuring 265*192*50mm and weighs only 1.9kg (including the built-in 7.4V, 7500mAh Li-ion battery), making it extremely convenient for on-site vehicle inspections.
