| Items | Brake Tester | Suspension Tester | Sideslip Tester |
|---|---|---|---|
| Max axle load | 3T | 3T | 3T |
| Testing Speed | 2.5km/h | / | 3~5 km/h |
| Power supply | 380V 50HZ | 380V / 50HZ | 220V / 50HZ |
| Motor | 3kw×2 | 1.5 KW X 2 | / |
| Roller diameter | 245mm | / | / |
| Roller length | 750mm | / | / |
| Testing range | 0-9000N | / | ±15mm |
| Adhesion coefficient | 0.8 | / | / |
| Frequency | / | 23HZ | / |
| Amplitude | / | 6mm | / |
| Dimensions (L×W×H) | 2500X750X350mm | 2500X550X356mm | 800X460X60mm |

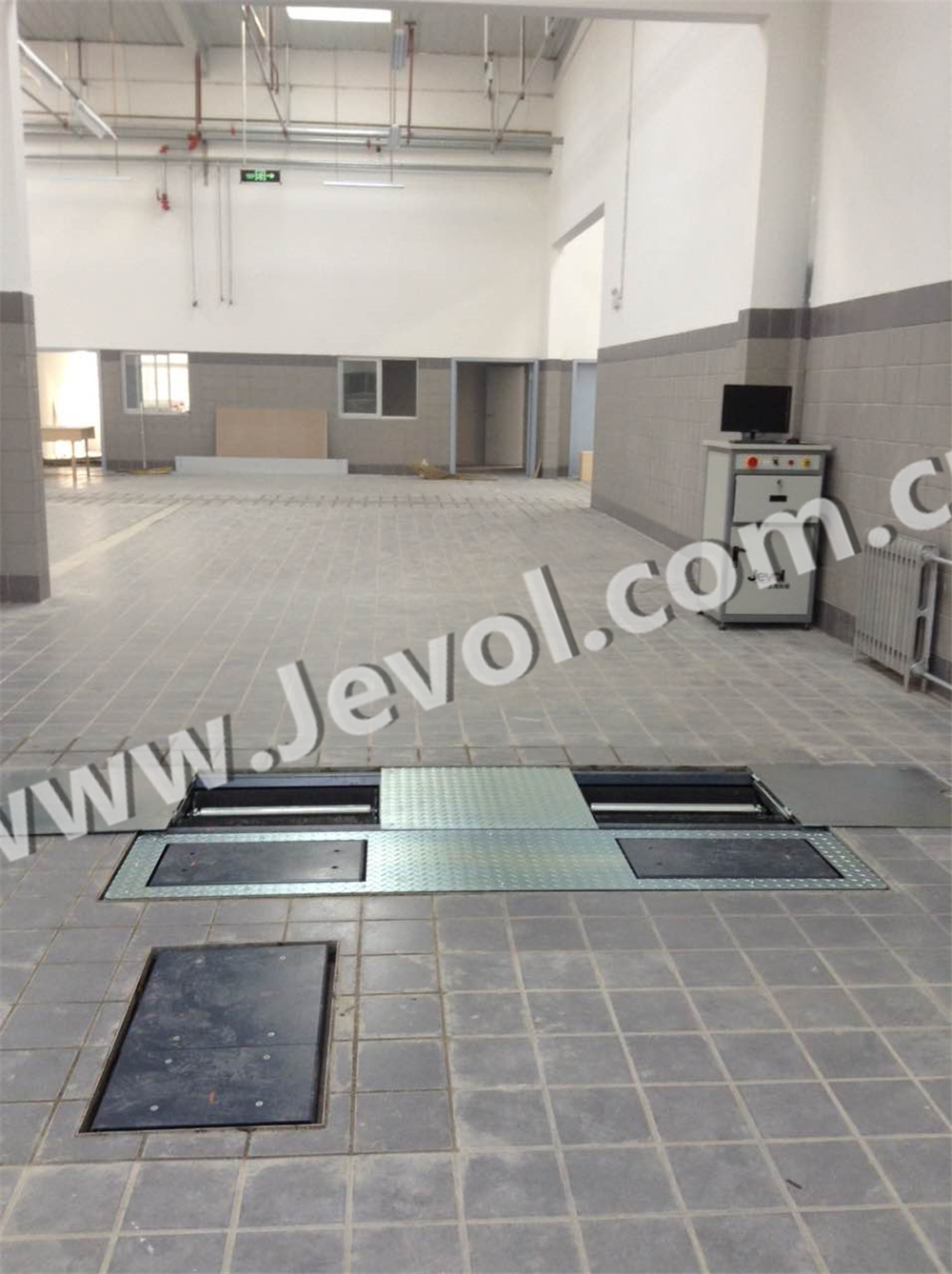

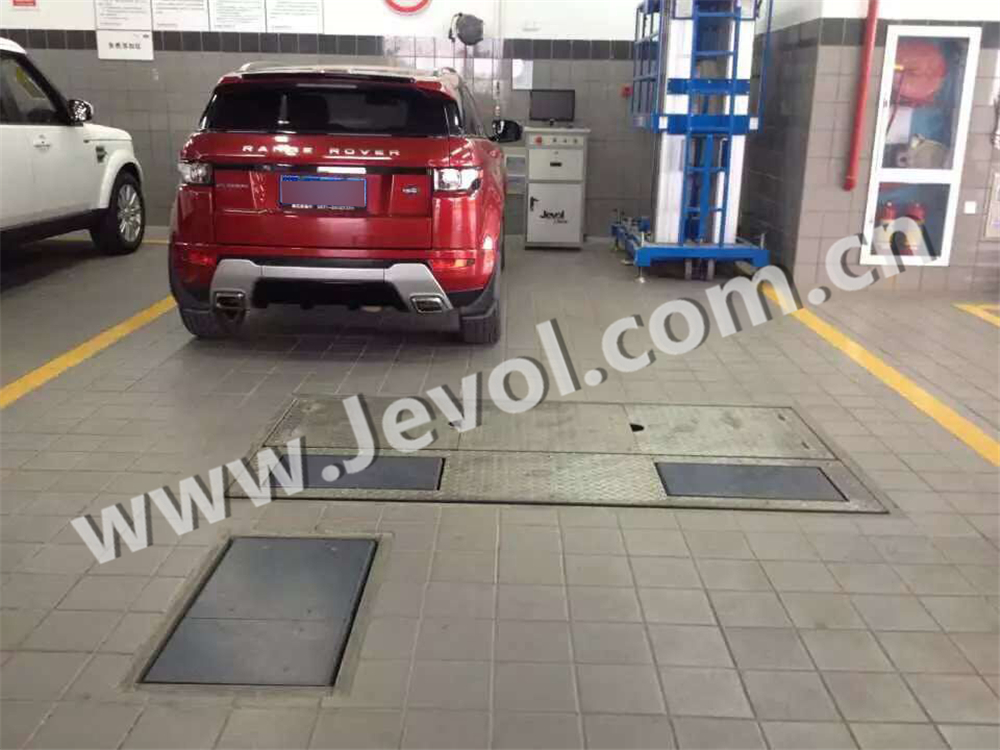

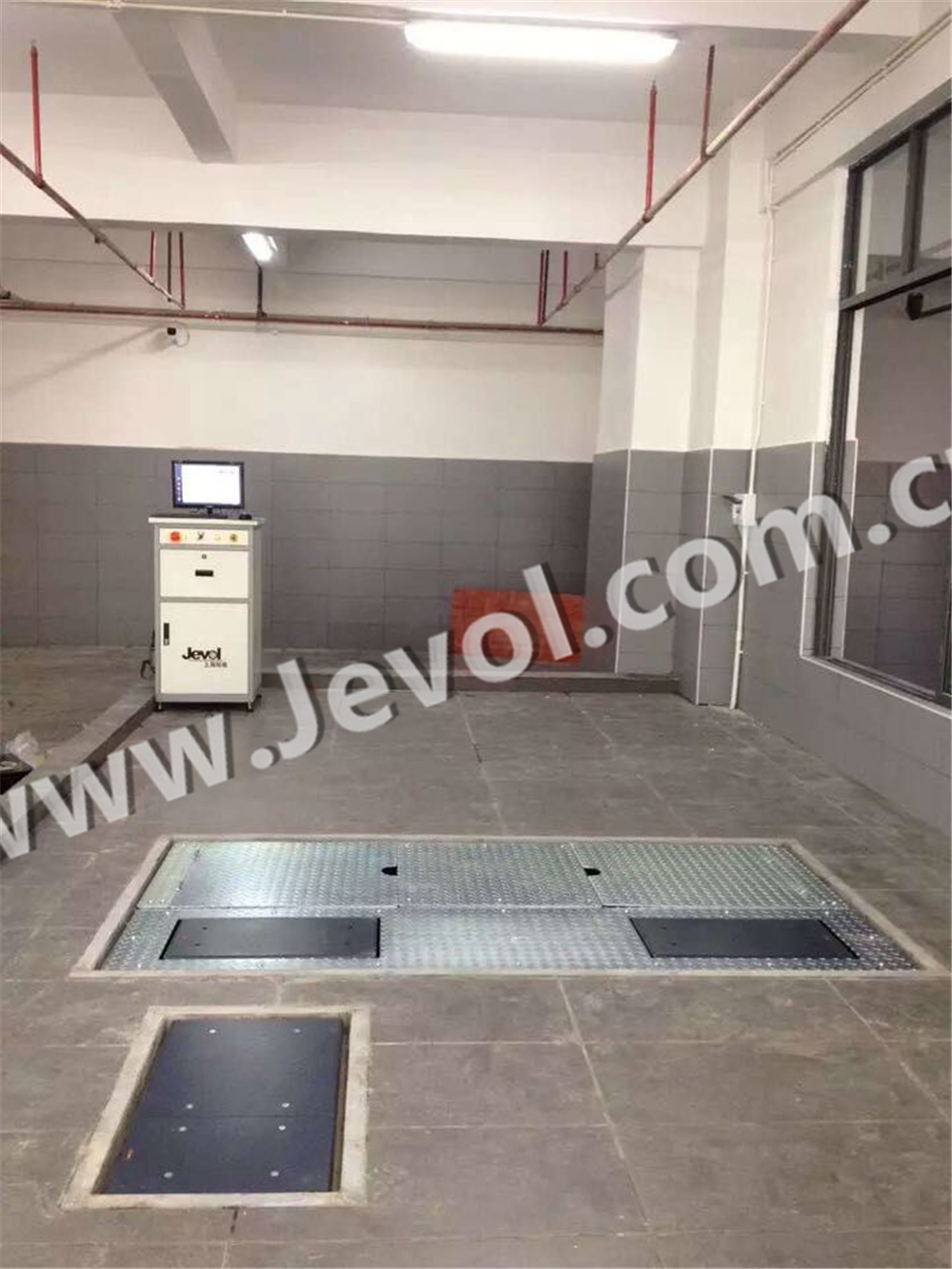

This system functions as a brake tester, suspension tester, and sideslip tester, providing comprehensive performance diagnostics for vehicles within a 3T axle load limit.
The corundum coating ensures durability and provides an adhesion coefficient of over 0.8, which closely simulates real road conditions for highly accurate testing results.
The tester features an integrated third roller that automatically detects tyre locking and instantly stops the motor to prevent tyre abrasion.
Yes. The system is equipped with a self-lock mechanism that allows the vehicle to safely and easily drive out of the testing bench once the evaluation is finished.

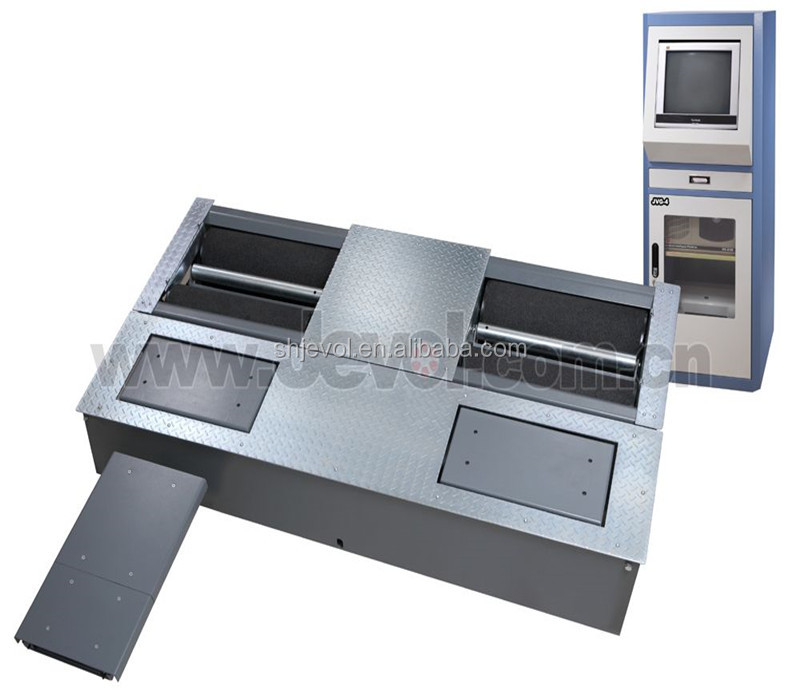

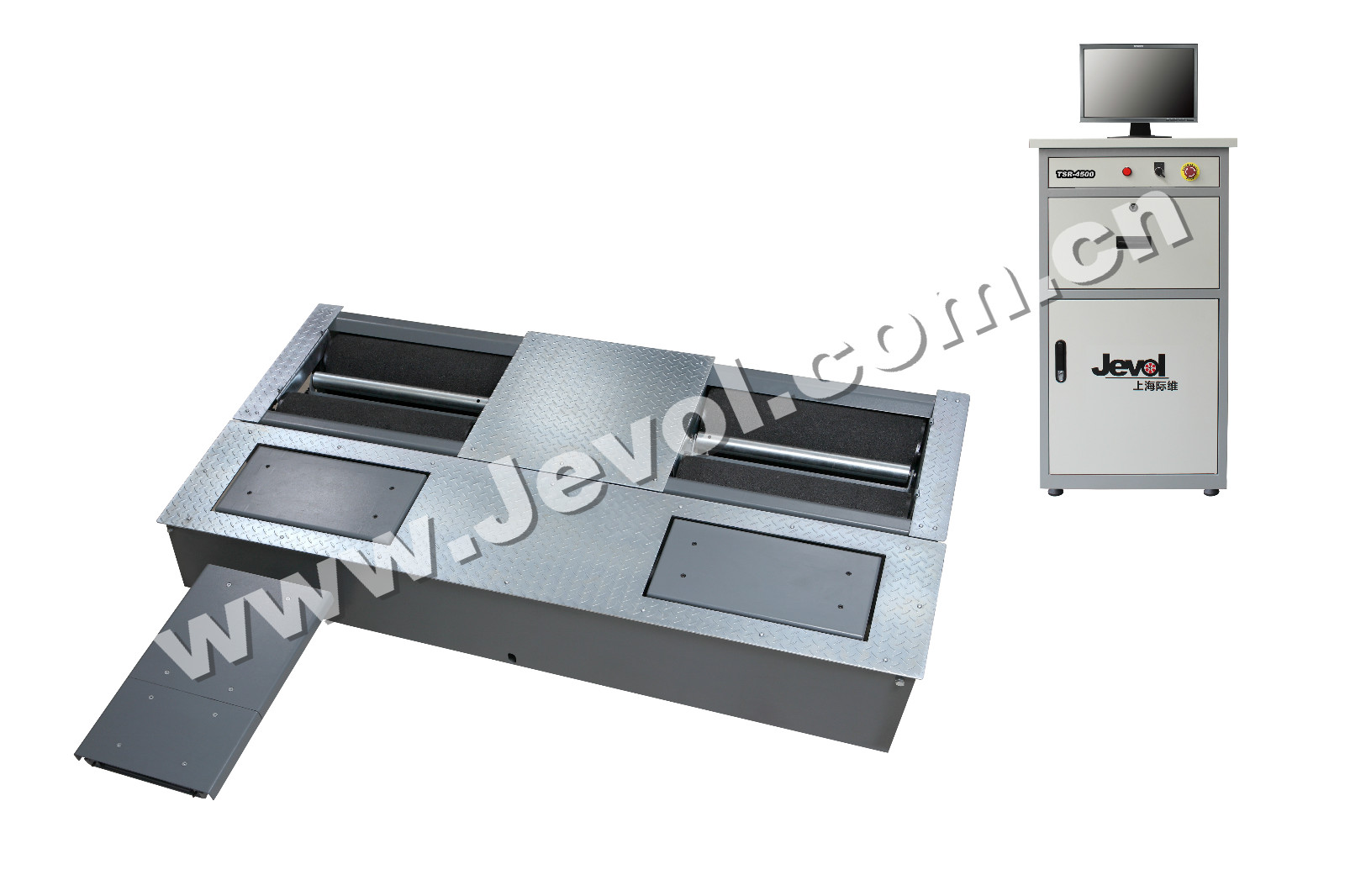

The compact design combines the brake tester and axle/suspension tester into a single, integrated physical structure, saving valuable floor space while maintaining high repetition of test data.
The brake test runs at a testing speed of 2.5 km/h, while the sideslip test runs at a speed range of 3 to 5 km/h.
