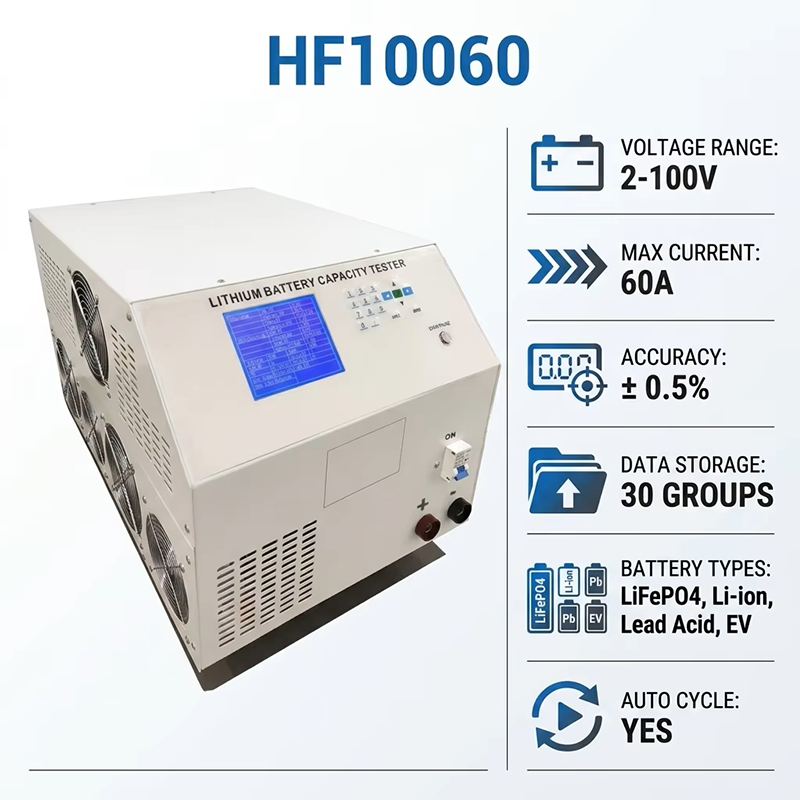

HF10060 Multi-Function Lithium Battery Capacity Tester 100V 60A Charge/Discharge 110V/220V Automatic Cycle Li-Ion Battery Pack

Product Description

Product Description

HF10060 2-100V / 1-60A Multi-Function Lithium Battery Pack Capacity Tester

  • Test Battery Pack Capacity
  • Charge Battery pack
  • Discharge Battery pack

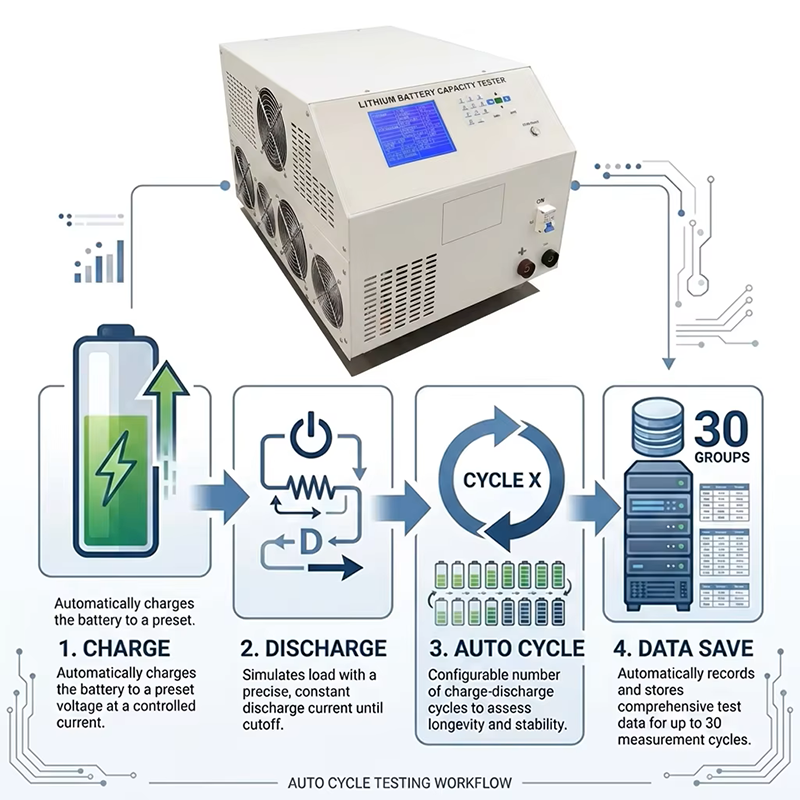

  • Charge-discharge-charge automatic cycle
  • Test Battery Power Charger current
  • Test circuit board overcharge and over discharge parameters
  • Built-in Power Charger 5-110V / 1-15A or 20A
  • Stores up to 30 sets of recent test data directly on the equipment

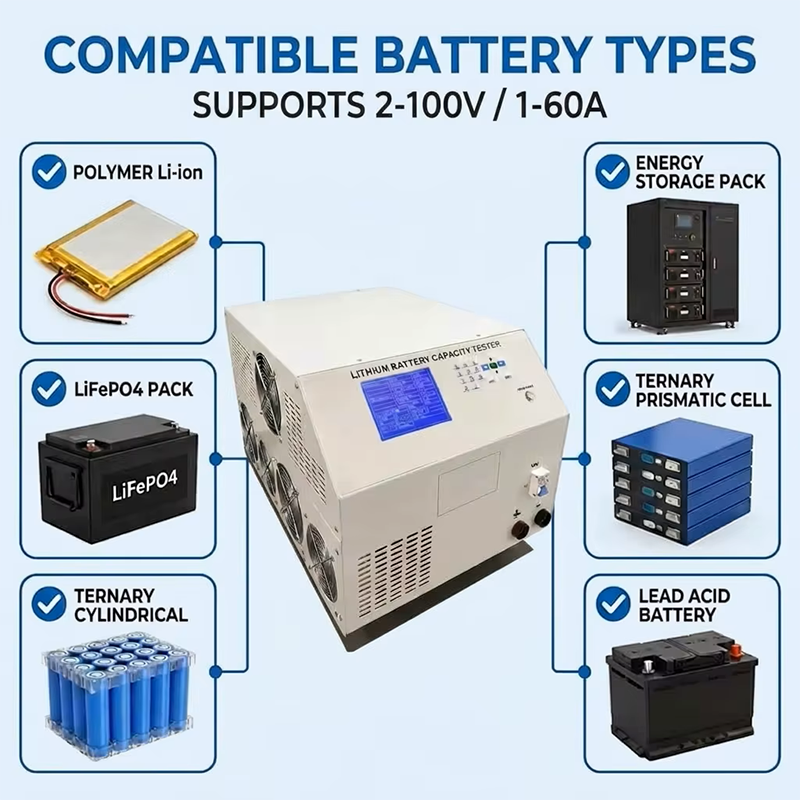

Supported Battery Types: Lead-acid battery, Lithium-iron battery, Ternary battery, LiFePO4 battery, and Li-Polymer battery
Battery Capacity Tester Display

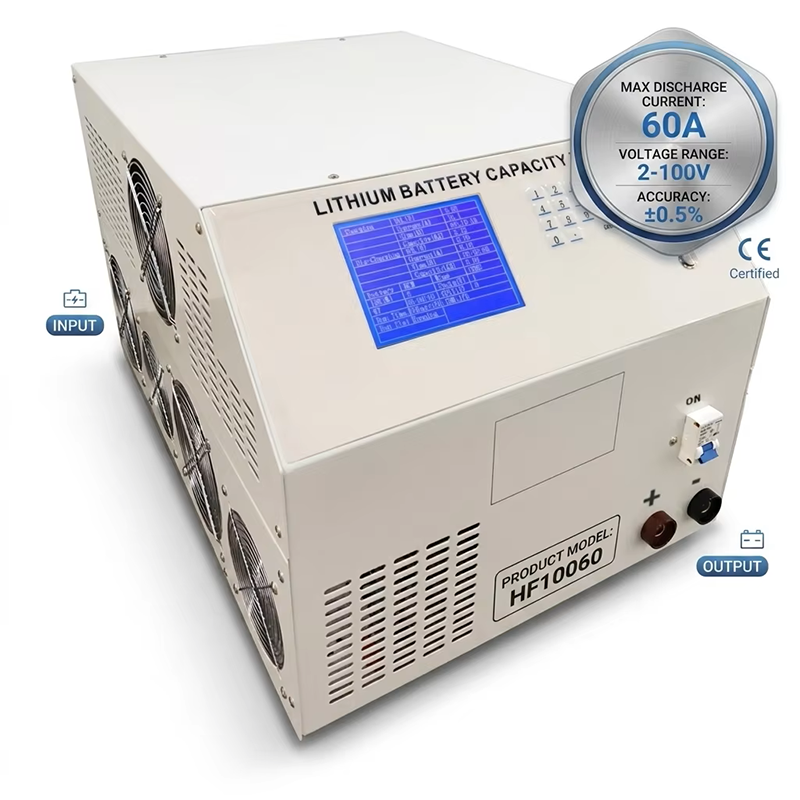

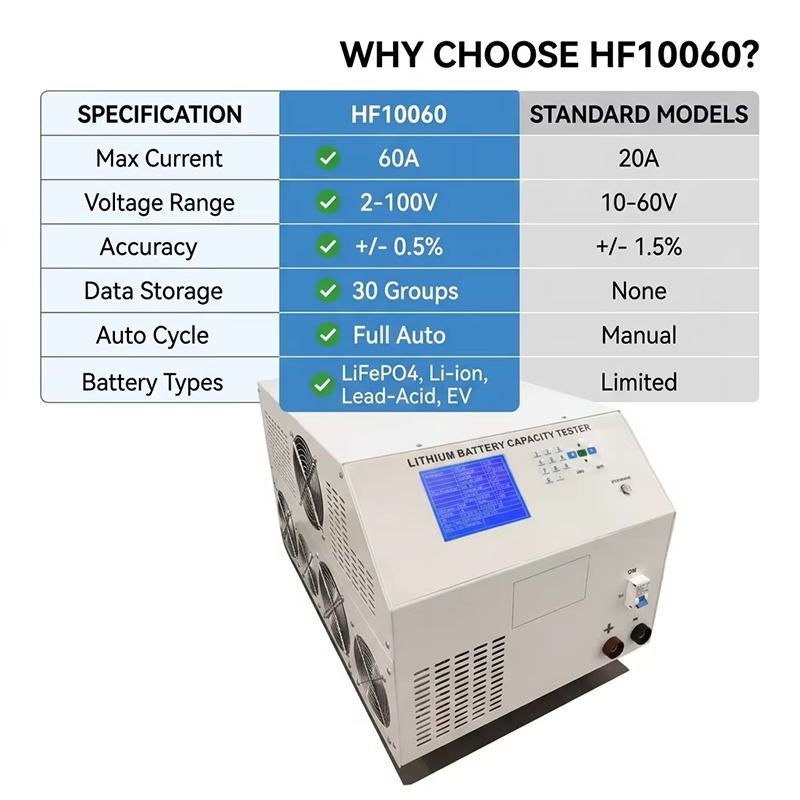

Battery Capacity Tester Front Panel

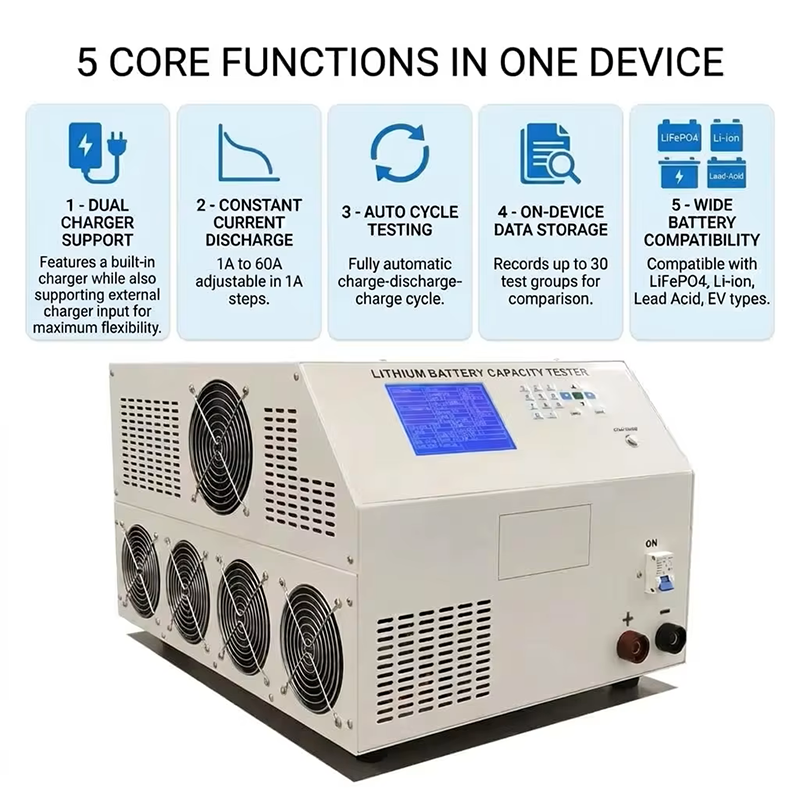

Battery Capacity Tester Operations
Tester Interface View

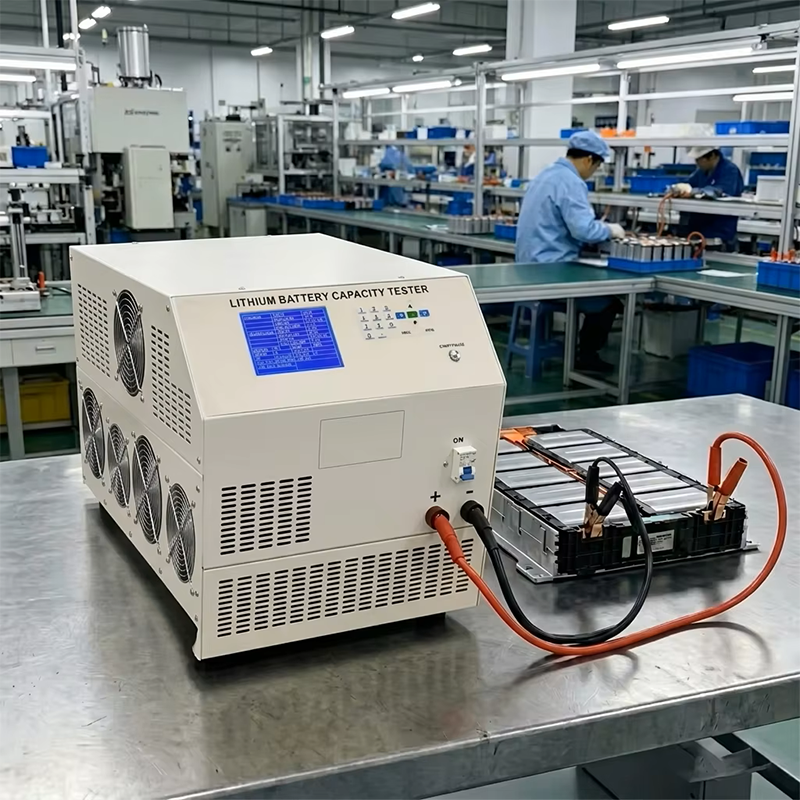

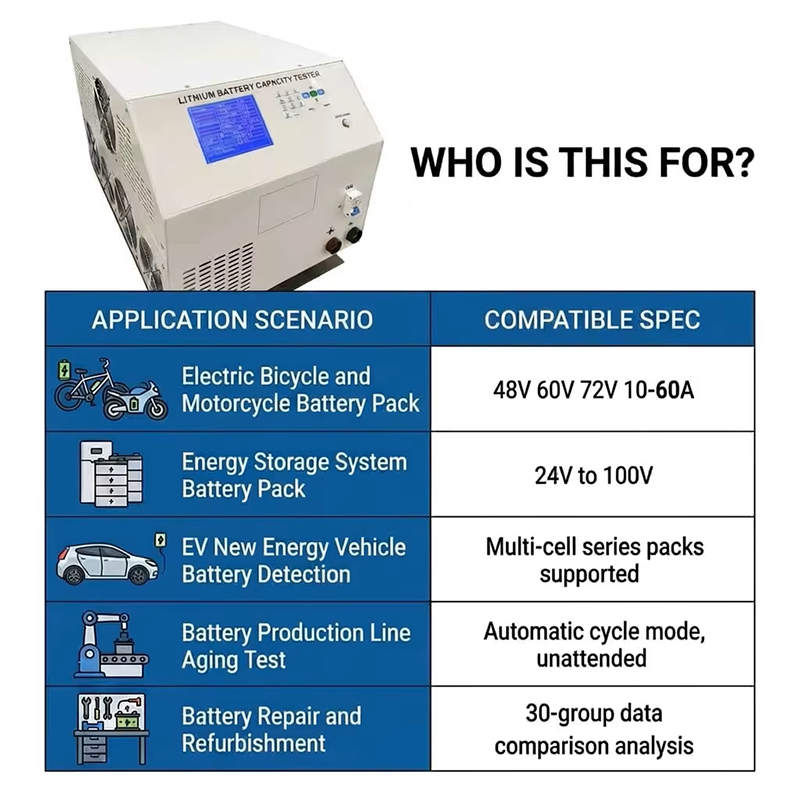

Battery Testing Setup
Tester Connectors Panel
Tester Side Angle
Tester Internal Design
Specification
Model HF10060
Power Supply AC 110V / 220V
Voltage input range 2VDC-100VDC
Voltage accuracy ±0.5%, two decimal places
Maximum discharge current 60A
Step adjustment current 1A
Charging Voltage 5-110V
Maximum charging current If power supply 220V the charging current is 1-20A Step: 0.1A
If power supply 110V the charging current is 1-15A Step: 0.1A
Current accuracy ±1% to two decimal places
Discharge mode constant current discharge
Discharge termination voltage The minimum protection voltage of the battery pack-2V or low-voltage protection of the battery pack
Charging mode Charging by external charger
Charge termination voltage Current is less than 0.3A, the instrument opens the connection between the charger and the battery
Capacity measurement accuracy ±0.05AH
Cooling method dual-roller high-speed cooling fan cooling
Product Size 740mm*560mm*520mm
Certifications
Product Certifications
Packing & Delivery
Packing and Delivery Showcase
Recommend Products

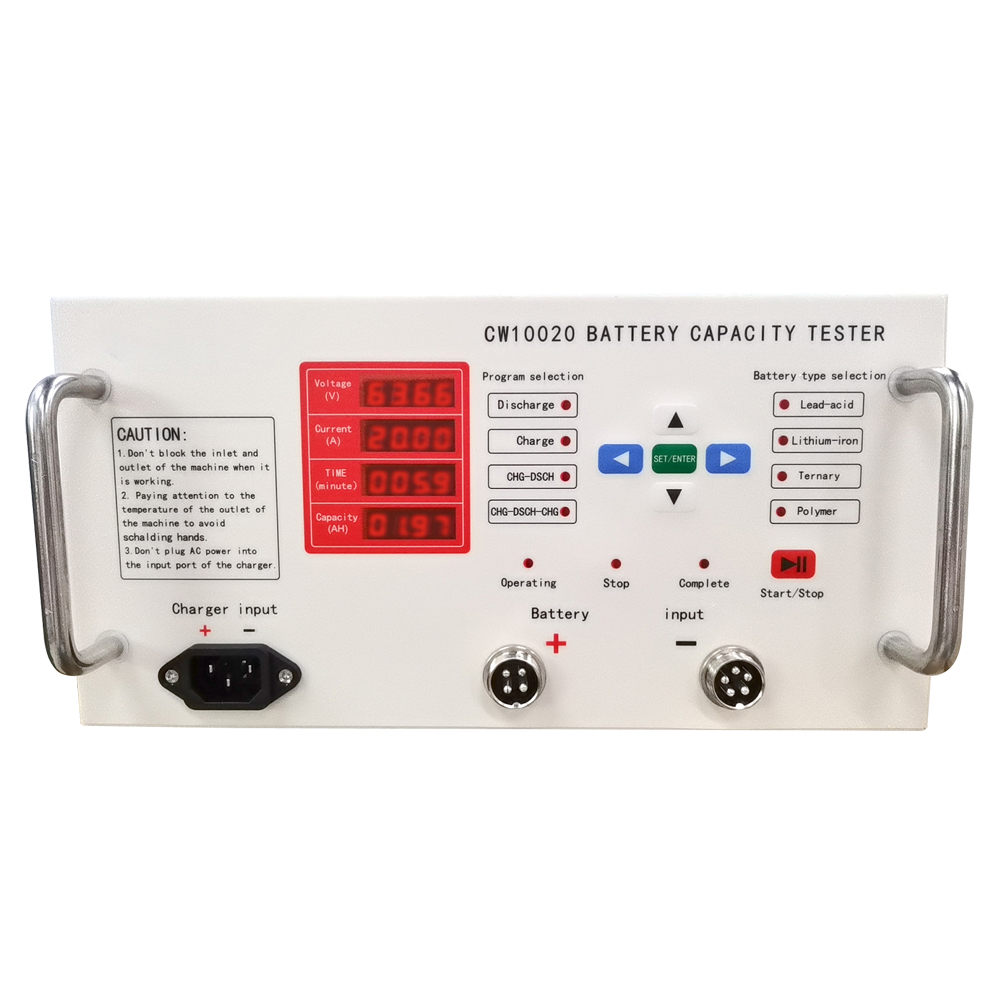

10V-100V/1A-20A Battery Capacity Tester
10V-100V/1A-20A Battery Capacity Tester
$195 - $235 / unit

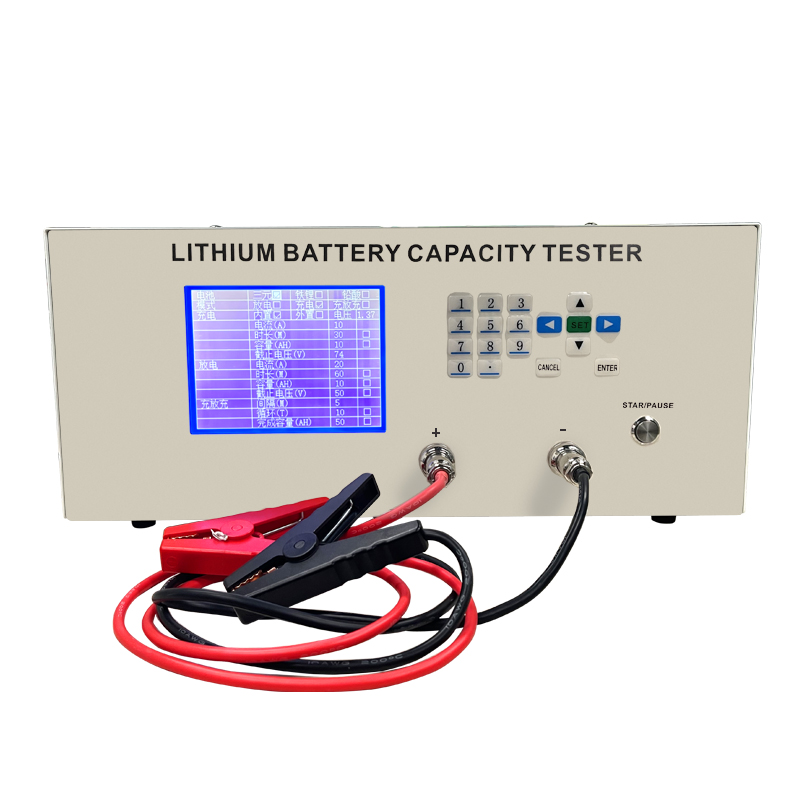

2-100v/1-20a Battery Capacity Tester
2-100v/1-20a Battery Capacity Tester
$675 - $725 / unit

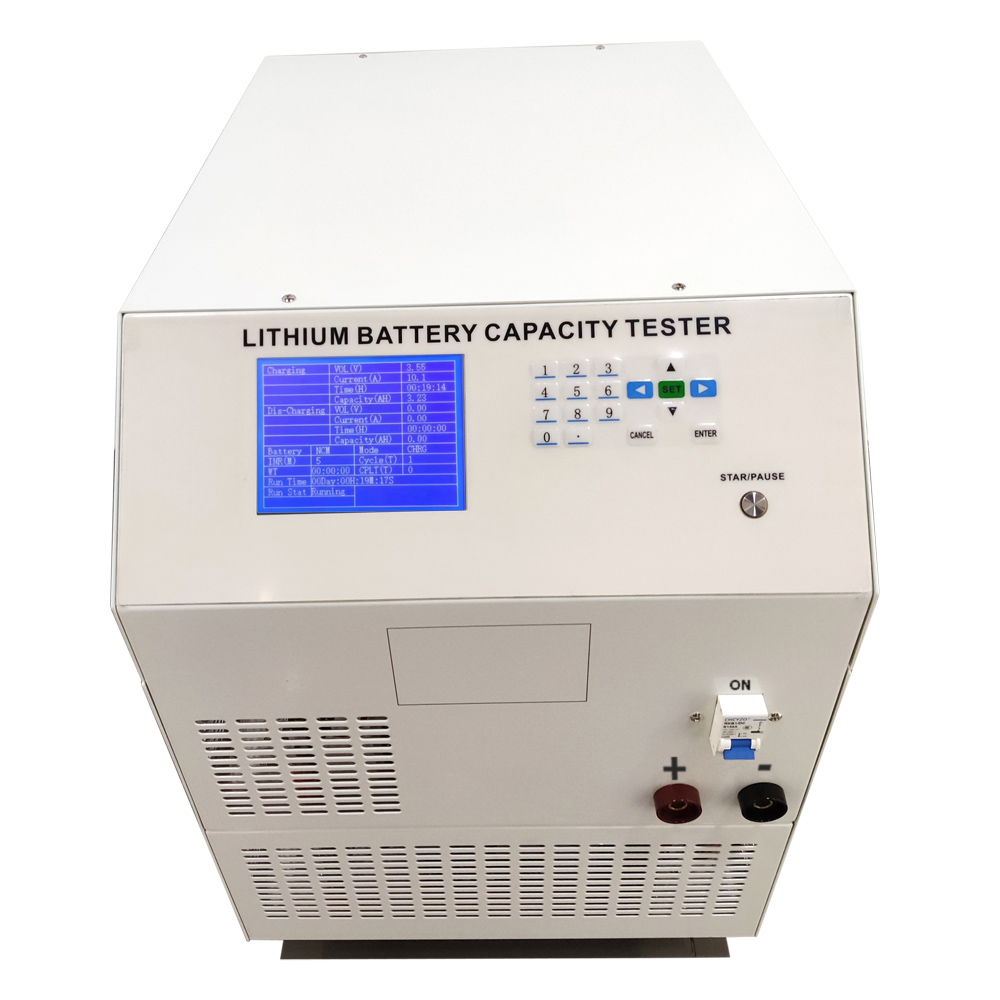

2-100v/1-100a Battery Capacity Tester
2-100v/1-100a Battery Capacity Tester
$1500 - $1600 / unit

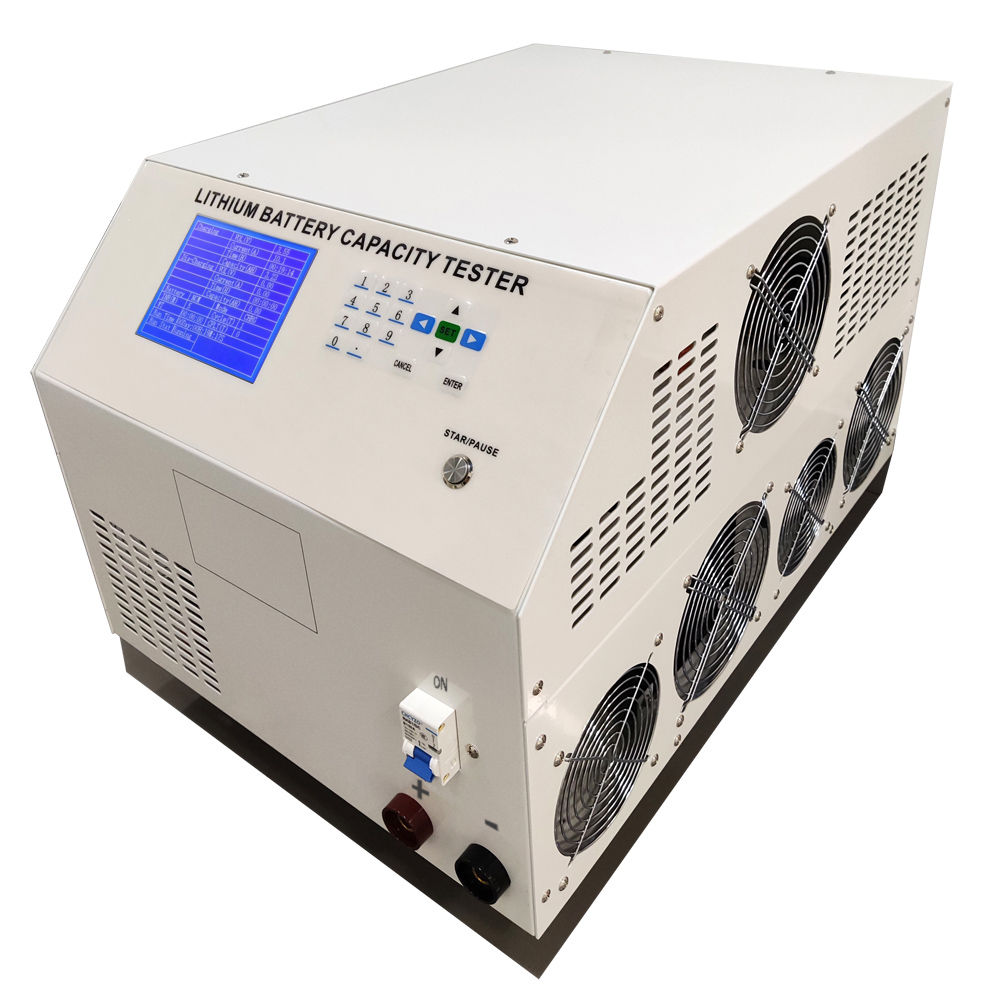

2-100V 1-40A Battery Capacity Tester
2-100V 1-40A Battery Capacity Tester
$850 - $920 / unit
2-100v/1-60a Battery Capacity Tester
2-100v/1-60a Battery Capacity Tester
$985 - $1100 / unit

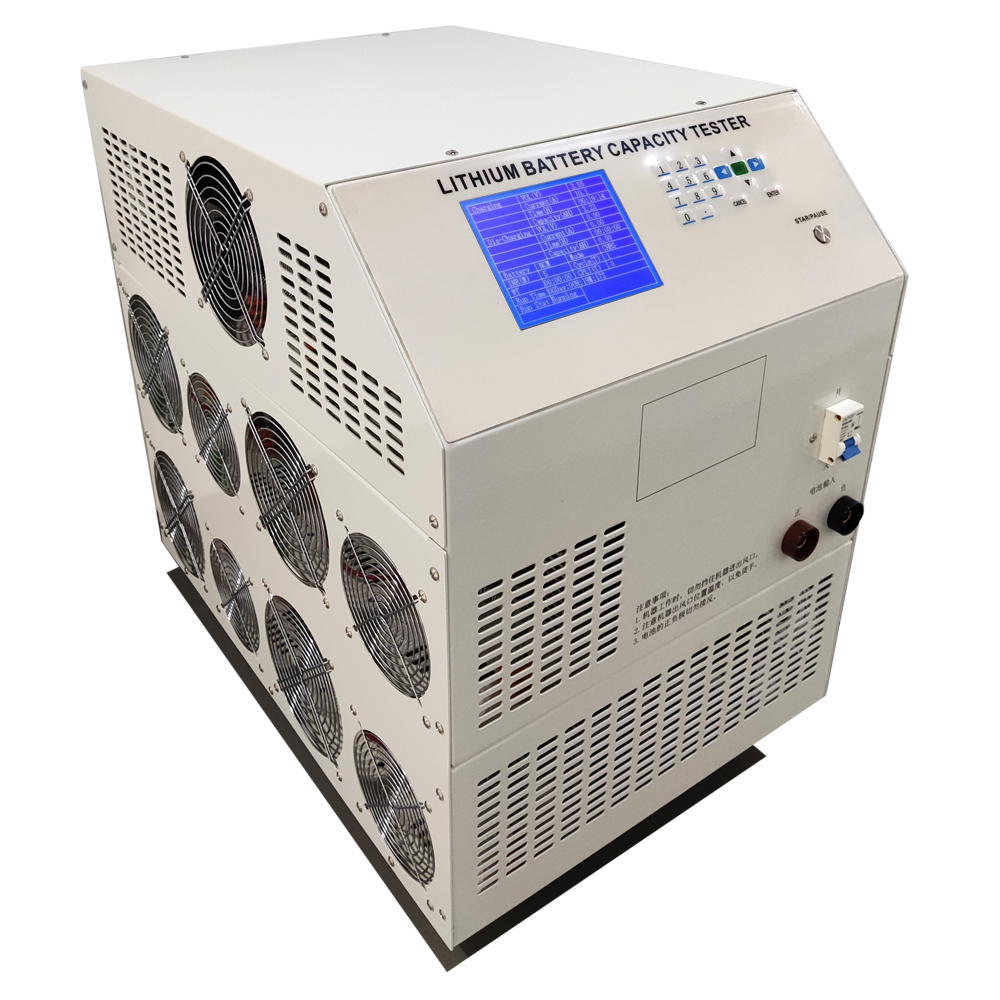

2-100v/1-80a Battery Capacity Tester
2-100v/1-80a Battery Capacity Tester
$1100 - $1300 / unit

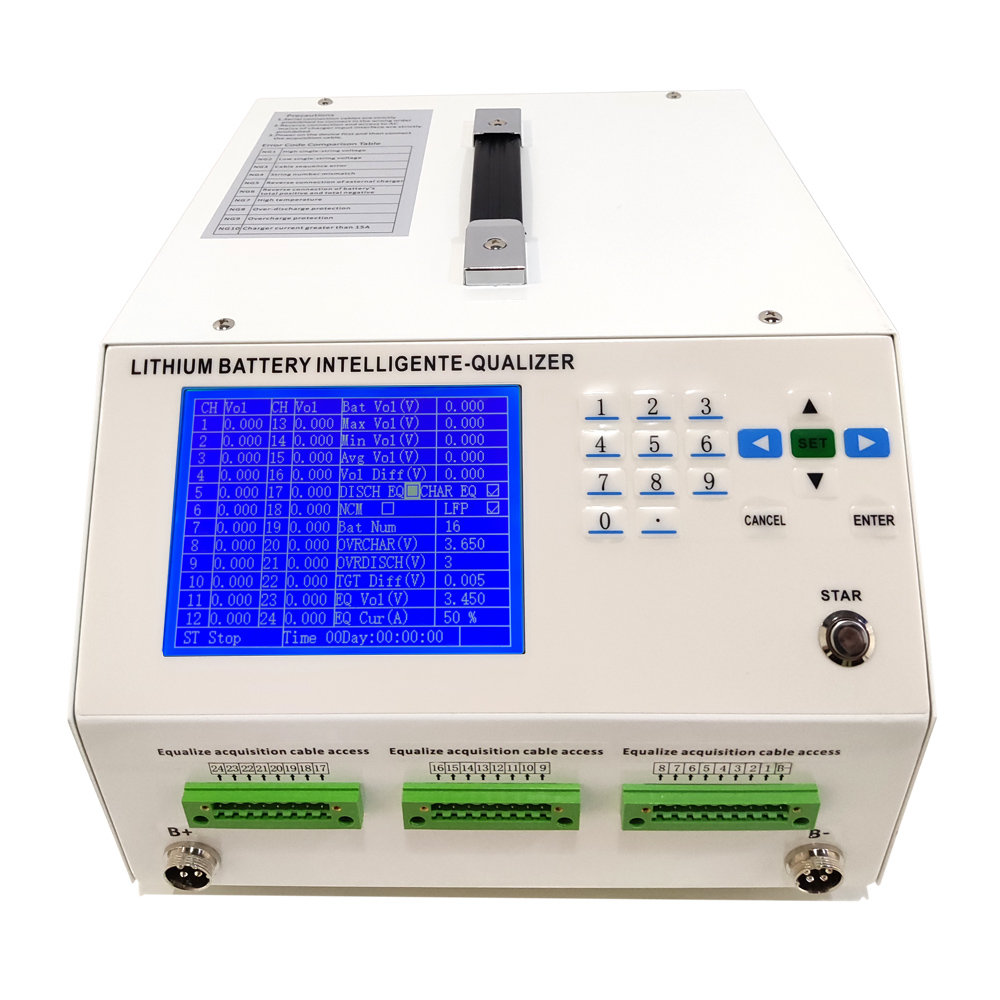

1-10A 24S Lithium Battery Equalizer
1-10A 24S Lithium Battery Equalizer
$694 - $745 / unit

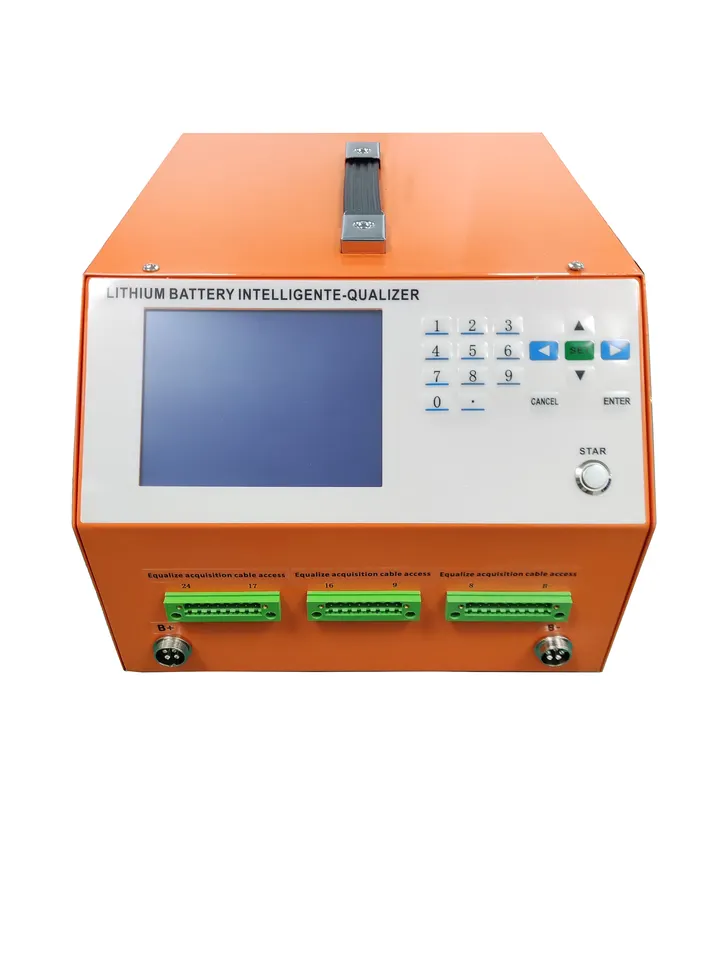

1-20A 24S Lithium Battery Equalizer
1-20A 24S Lithium Battery Equalizer
$935 - $985 / unit

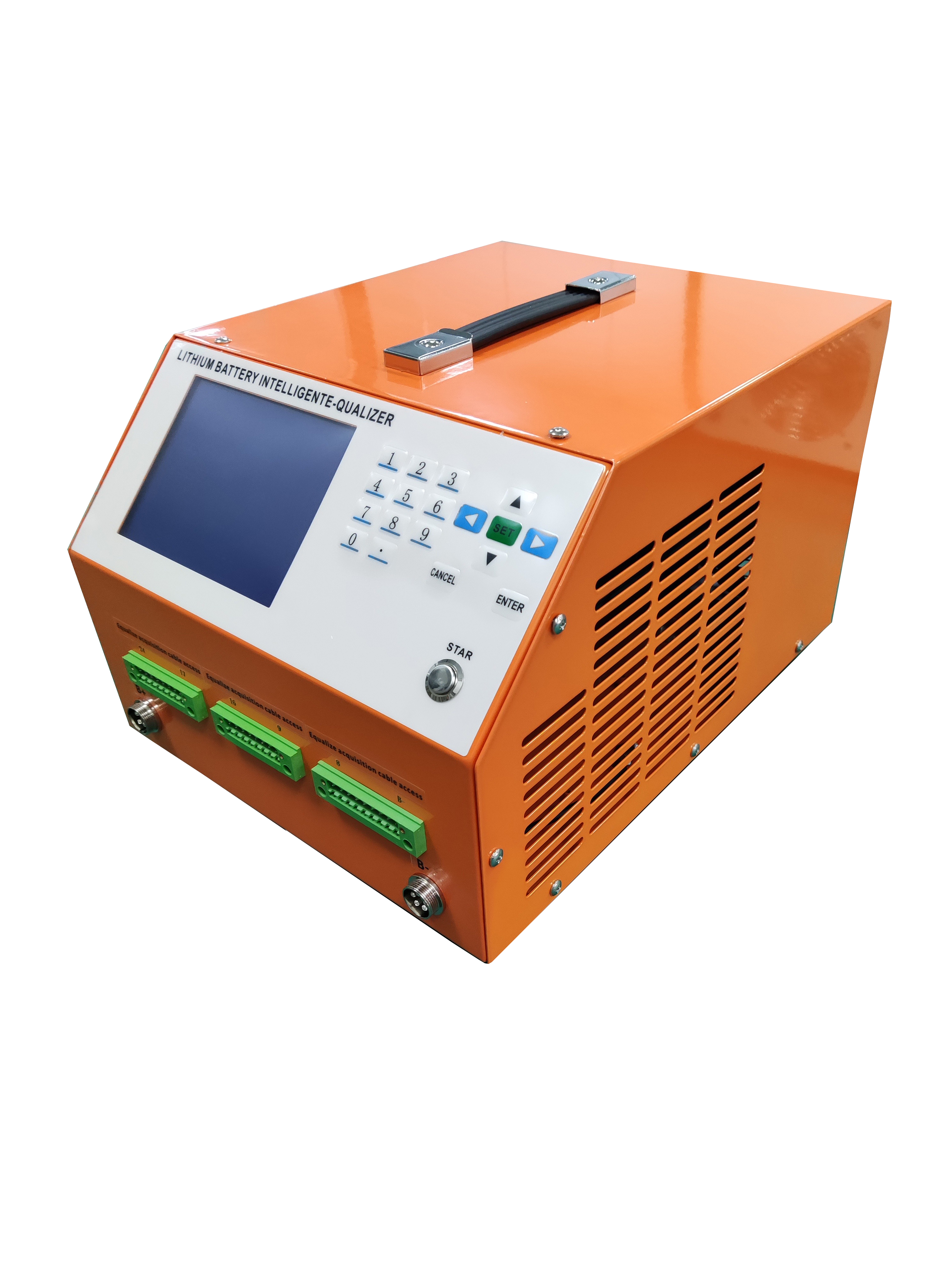

1-20A 24S Lithium Battery Equalizer(Built-in charger)
1-20A 24S Lithium Battery Equalizer(Built-in charger)
$1250 - $1450 / unit
Company Profile
Company Operations
We are an integrated enterprise of R&D, manufacturing and marketing. We have complete production facilities; mature production lines; we can open mold and produce almost all kinds of products related to hardware & plastic. Currently, Our main products are: Portable Power Station, Lithium Battery Tester, USB Data Blocker. By years of developing and accumulating, our R&D abilities are making great progress, and production scale is expanding continuously. At the same time, our quality control system is better and better. Our OEM/ODM service has already served many famous brands all over the world. With the strict work style of "pragmatic and to be better", we are winning more and more customers day by day. We have gained great supports from the cooperation of our esteemed customers. We will improve with a more intelligent managing system, more powerful technical investment, more advanced production engineering & more active team work, to satisfy our customers. We look forward to knowing you and serving you in the near future by having win-win cooperation!
Workshop

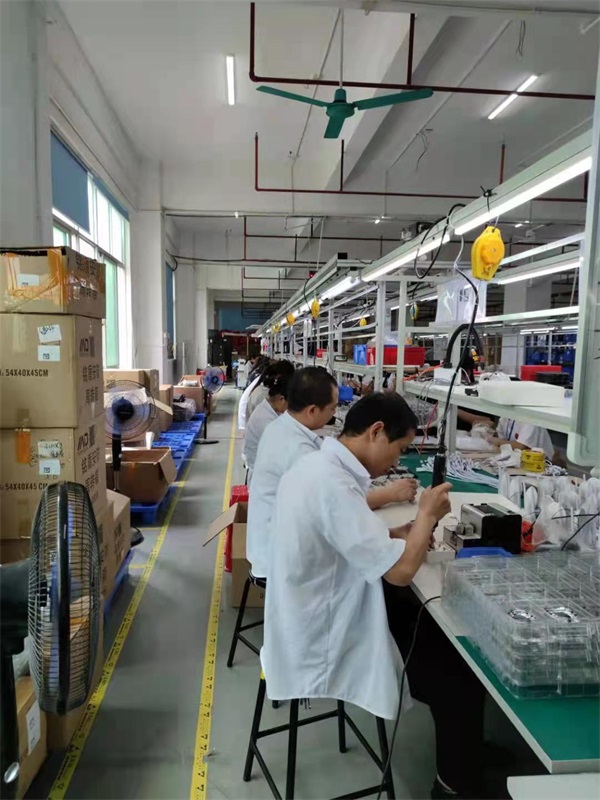

Workshop Assembly Line 1

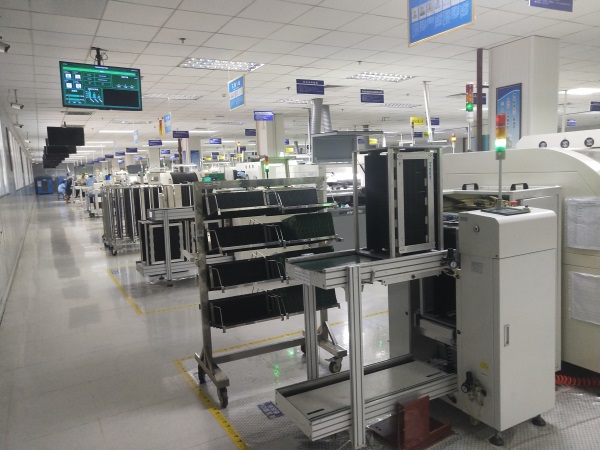

Workshop Assembly Line 2

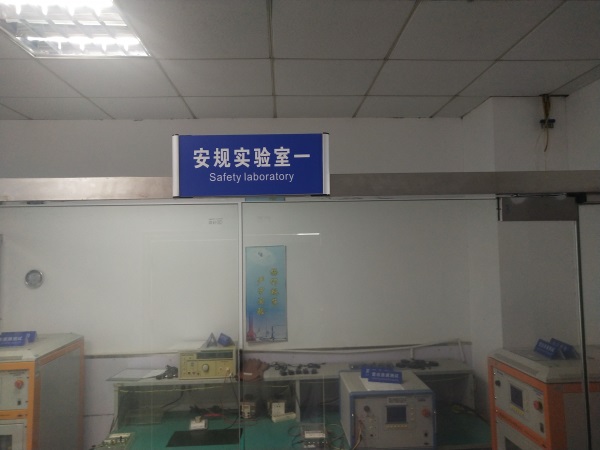

Workshop Production Flow

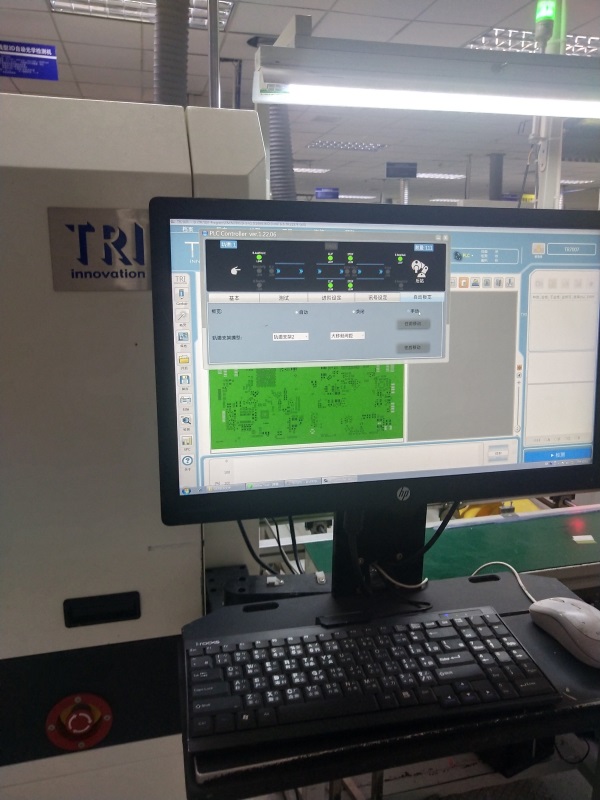

Quality Control Testing Area

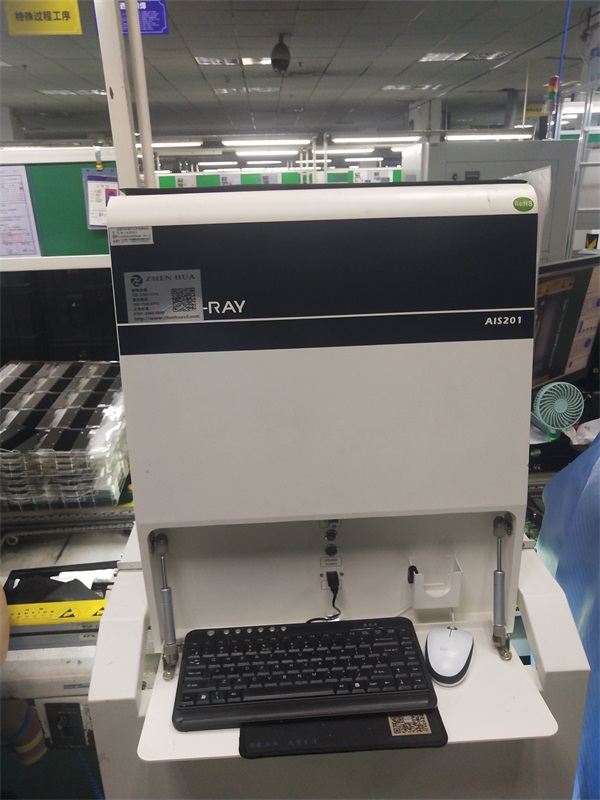

Production Equipments

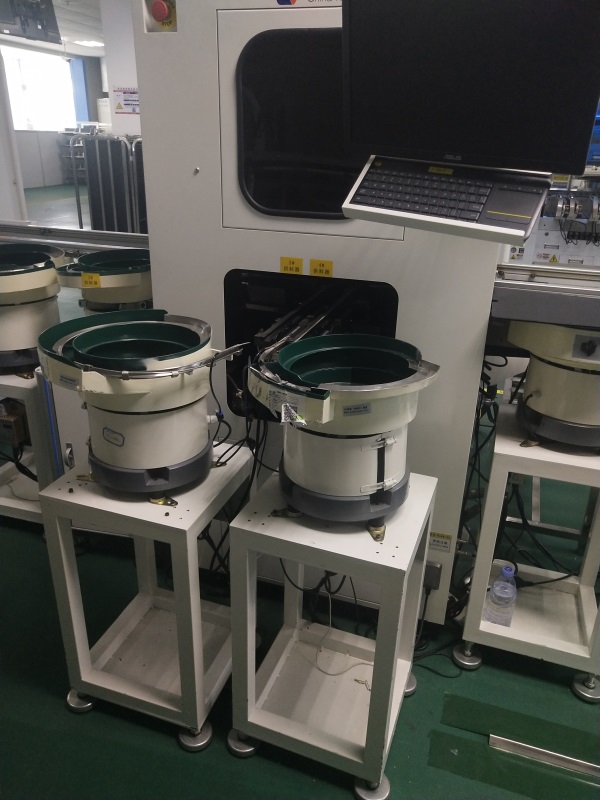

Staff Working Area

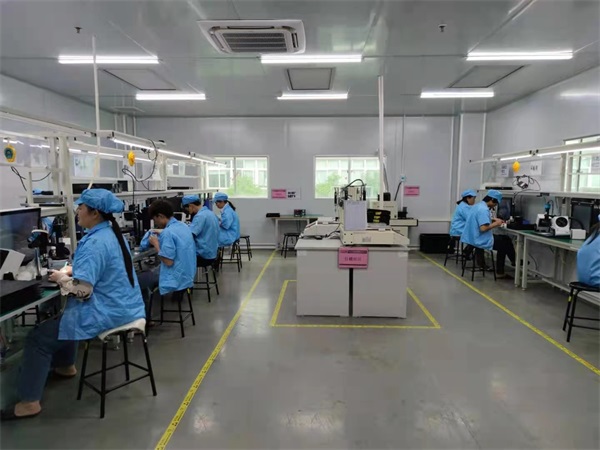

Finished Products Inventory

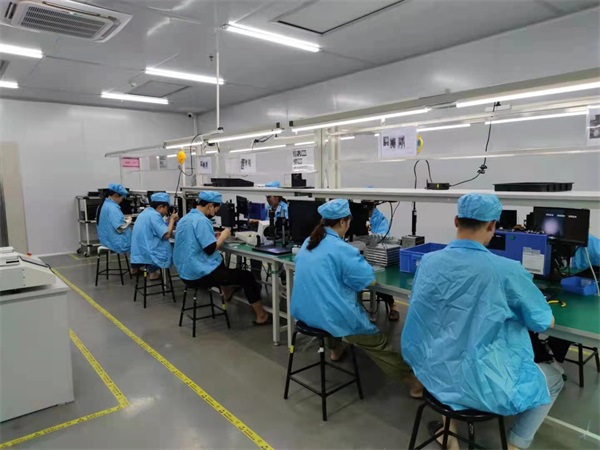

Packing Workshop
