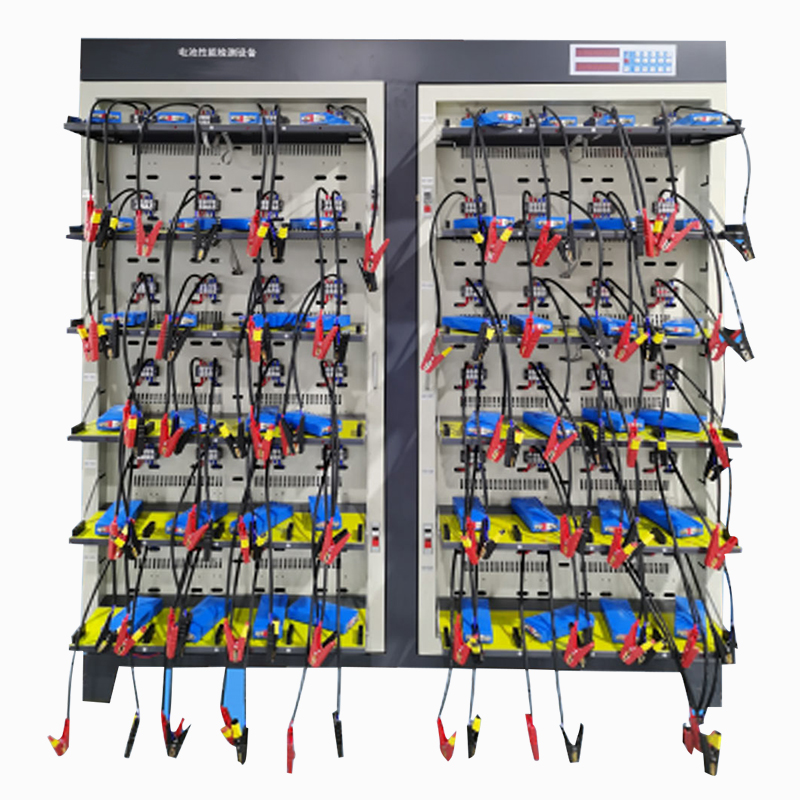

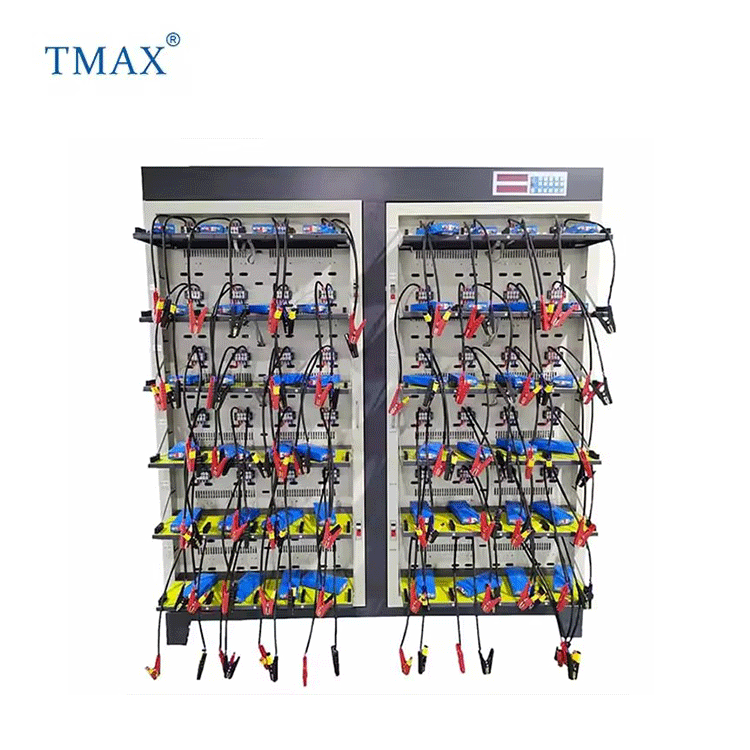

30A Lithium Battery Forming and Grading Tester Analyzer Machine Polymer Cell Capacity Test Testing Equipment
| Number of Equipment Channels |
96 channels in total |
| Overall Dimension |
1680(W)*930(D)*1840(H)mm |
| Chassis Color |
Standard off white (customizable) |
| Fixture Form |
Alligator clip + terminal block |
| Fixture Spacing |
150mm |
| Supporting Battery Specification |
Polymer, square battery (clip on lug) |
| Working Power Supply |
Three phase five wire AC380V±10%, 50HZ |
| Working Power Consumption |
≤16KW |
| Working Environment |
Temperature 0-40 ℃, relative humidity ≤ 80% |
| Heat Dissipation Mode |
Natural air inlet and upward exhaust |
Frequently Asked Questions (FAQ)
Q1: How many channels does this battery grading tester machine have?
A1: The equipment is configured with a total of 96 channels, allowing for simultaneous battery testing, forming, and grading operations.
Q2: What kinds of battery specifications are supported by this tester?
A2: It supports polymer and square batteries, equipped with alligator clips and a terminal block fixture with a spacing of 150mm.
Q3: What are the main protection features of the control software?
A3: The software offers comprehensive safety features including over voltage, under voltage, over current, under current, over capacity protection, power-off protection, and data breakpoint recovery.
Q4: What is the current range and measurement accuracy for charging and discharging?
A4: The charging current range is 200mA-30A and the discharge current range is 200mA-20A. Both have a current accuracy of ±(1‰ reading + 1‰ full scale) with a resolution of 10mA.
Q5: How does the system handle and export test data?
A5: The system automatically calculates constant current charging ratios, capacity loss, discharge efficiency, and average/median voltage. It provides data curves and cycle diagrams, which can be exported as Excel, Word, Text, or MDB database files.
Q6: What is the power and environment requirement for this machine?
A6: The equipment operates on a three-phase five-wire AC380V±10%, 50HZ power supply, with a maximum power consumption of ≤16KW. The recommended working environment temperature is 0-40 ℃ with relative humidity ≤ 80%.
