| Features & Specifications | Details | |
|---|---|---|
| Model | ST/1000/70/EP | |
| System | Balanced Temperature Control (BTC) systems | |
| Internal dimension W×H×D mm | 1000*1000*1000 | |
| External dimension W×H×D mm | 1200*2050*1780 | |
| Volume | 1000L | |
| Weight | 850kg | |
| Test area load-capacity | 100KG | |
| Performance | Temperature range | -70 ~ +100℃ (+150℃/+180℃) |
| Temperature fluctuation | ±0.3°C | |
| Temperature deviation | 1.5°C | |
| Temperature change speed | Heating rate: 3.0°C/min | Cooling rate: 2.0°C/min | |
| Extreme temp reach time | Heating time: From +20 to +100°C for 30 minutes Cooling time: +20 to -70°C for 60 minutes |
|
| Allowed heat load | Test area: +20°C, 1000 W | |

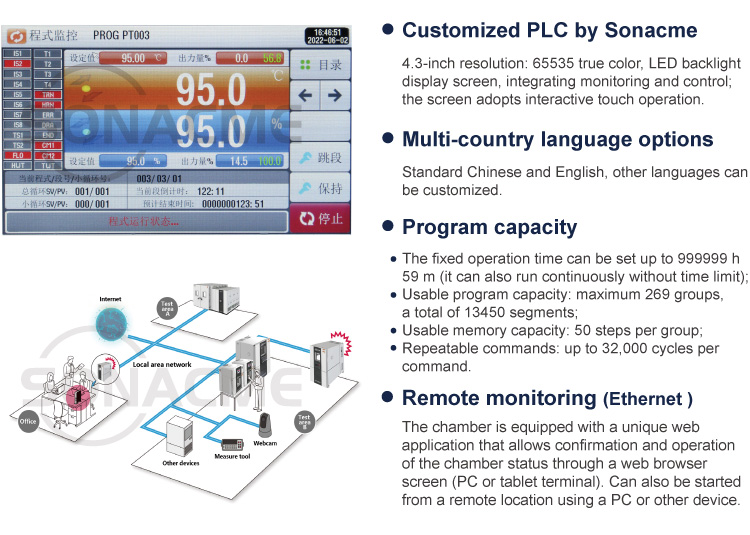

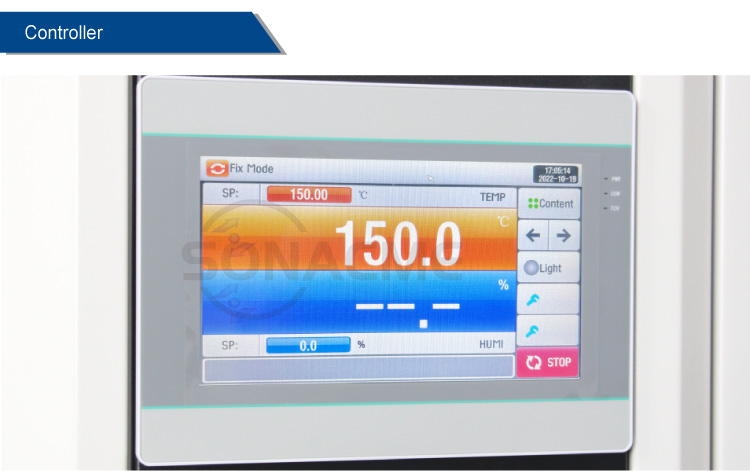

| Configuration | Standard configuration | Explosion-proof chain, Status indicator, Safety door lock, Independent over-temperature protector, Emergency stop, Refrigeration systems pressure gauge, Customised controller, Cable port x 2, Ethernet interface |

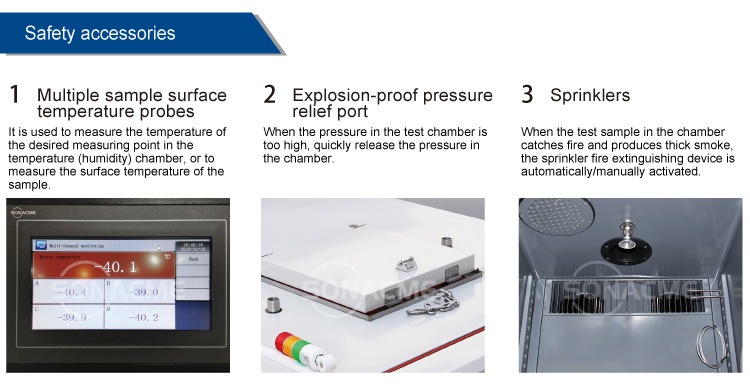

| Security options | Sample surface temperature probe, Explosion-proof pressure relief port, Water sprinkler, CO2 fire extinguishing device, Electronic combination lock, Explosion-proof mesh for observation window, Gas monitoring system (H2/CO) GN2 purge, Fireproof coating, Video monitoring | |
| Structure | External material | 1.5mm thick FC high grade electrolytic plate + plastic spraying for corrosion protection |

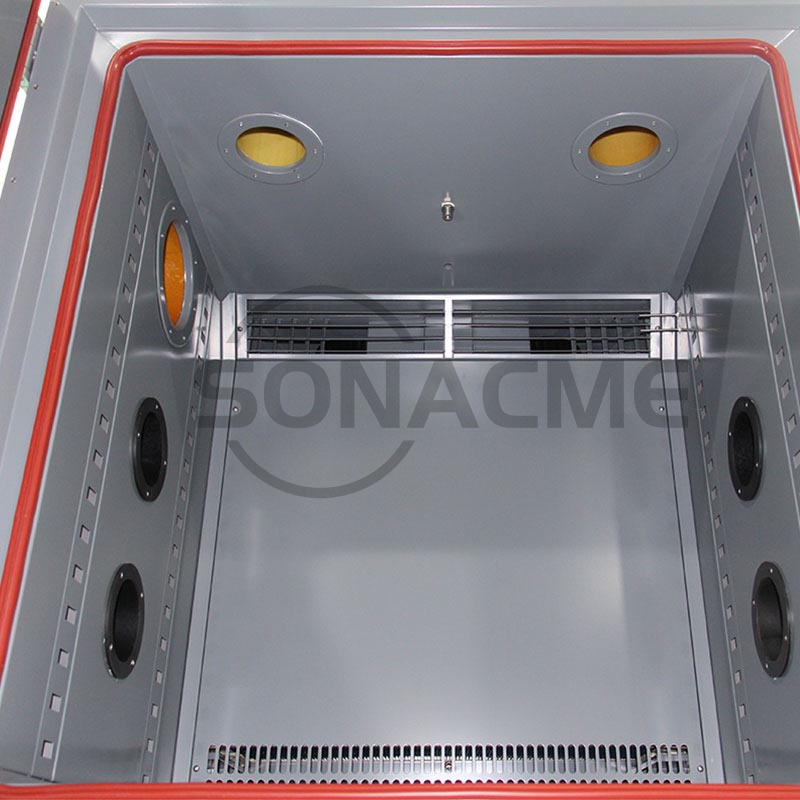

| Test area material | 1.2mm thick SUS304 stainless steel | |
| Heater | Finned nichrome explosion proof heaters | |

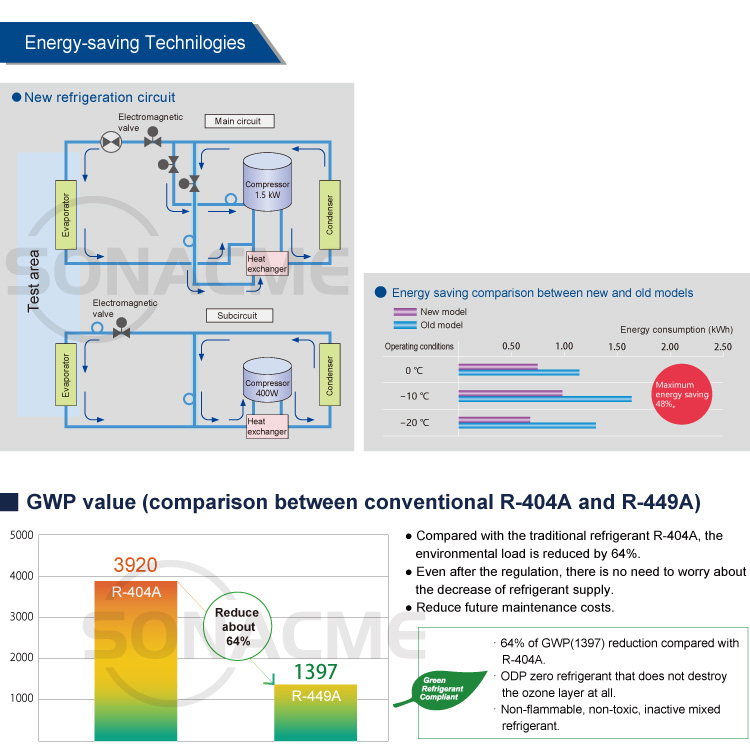

| Refrigeration System | Mechanical Compounding Compression Cooling | |
| Compressor | Scroll / Piston Compressors | |
| Refrigerant | R404A & R23 [R449A & R508B available on request] | |
| Refrigeration Power | 10 Kw | |
| Noise level | 68dB | |
